Allen & Heath MixWizard4 WZ4 16:2 Desk/ Rack Mountable All Purpose Mixer

ITEM #: AH-WZ4-16-2 MFG #: MIXWIZARD WZ4 16:2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Allen & Heath USA
Free Shipping with $49 Minimum Order

List Price:

$2,199.99

Our Price:

$1,799.99

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

MIXWIZARD WZ4 16:2 - Overview

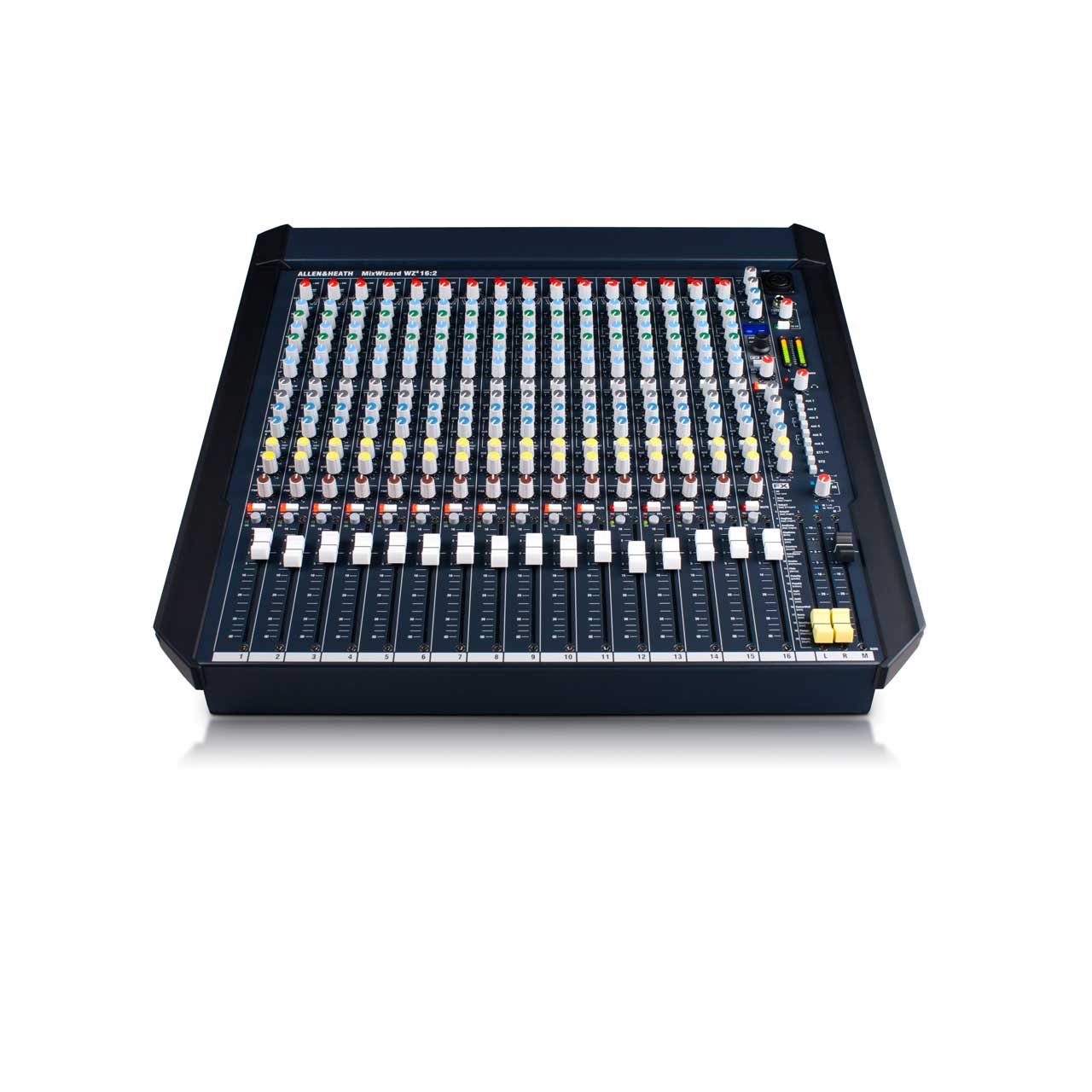

With its simplicity, quality and plentiful inputs, WZ4 16:2 will be loved by seasoned engineers and novice operators alike. This is a true all-purpose mixer, providing a full 16 high specification mic/line inputs in a compact, straightforward format that has made it a consistent best seller.

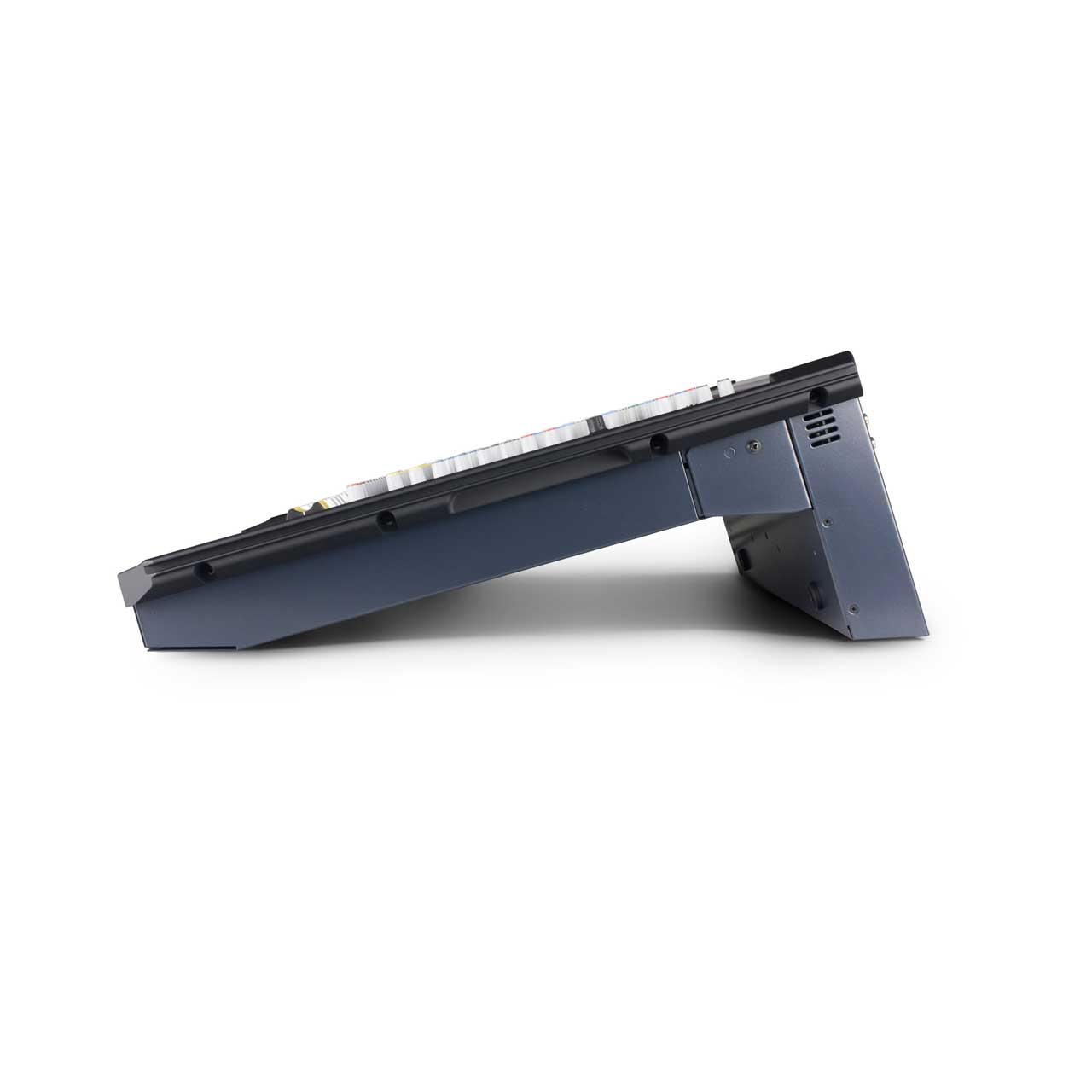

WZ4 16:2 features our acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and our unique QCC connector system for easy desktop, rack or flightcase mounting.

New features for this 4th generation MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets, EQ in/out switching and the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback.

If you're looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.

  • Features:

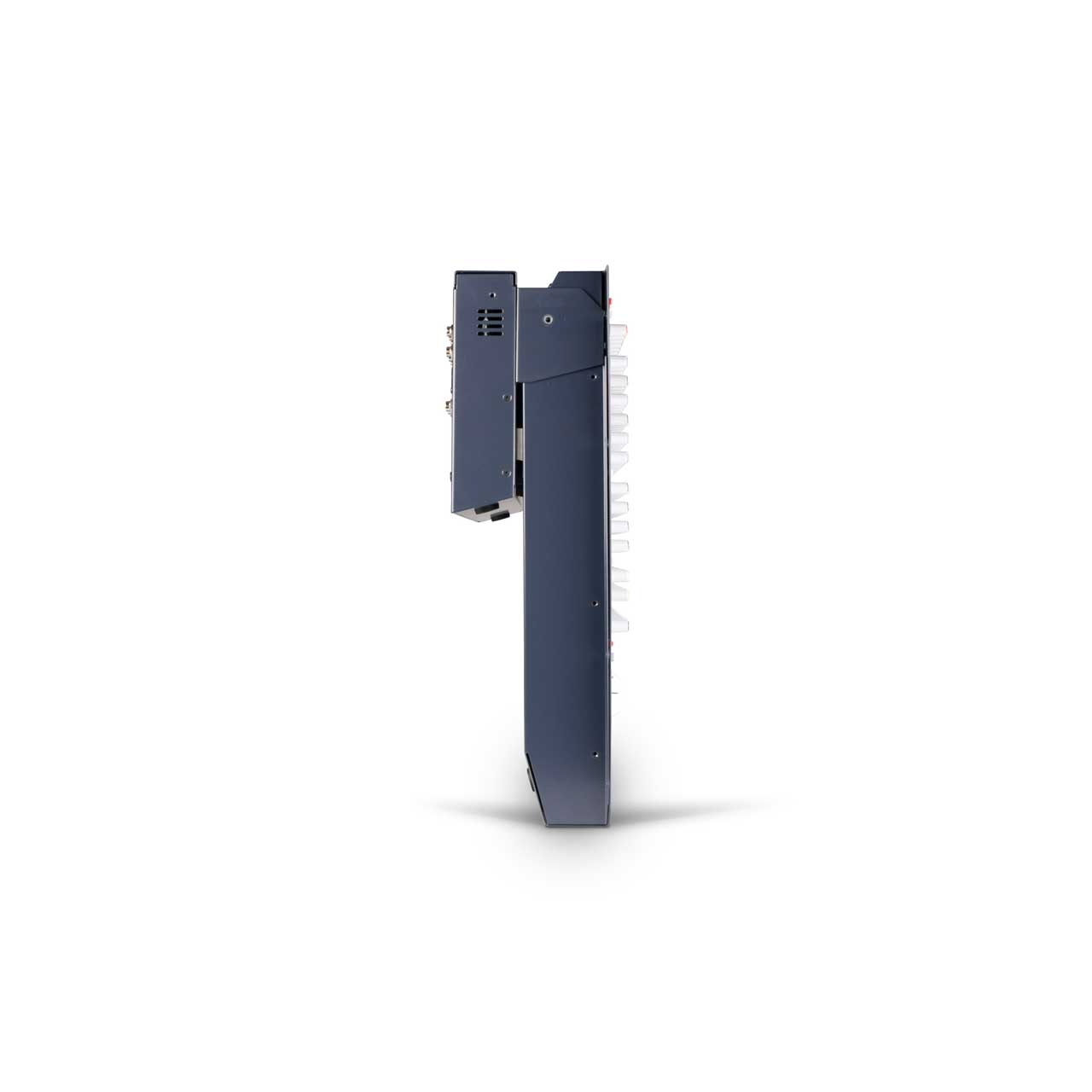

    • 19" Rack mountable

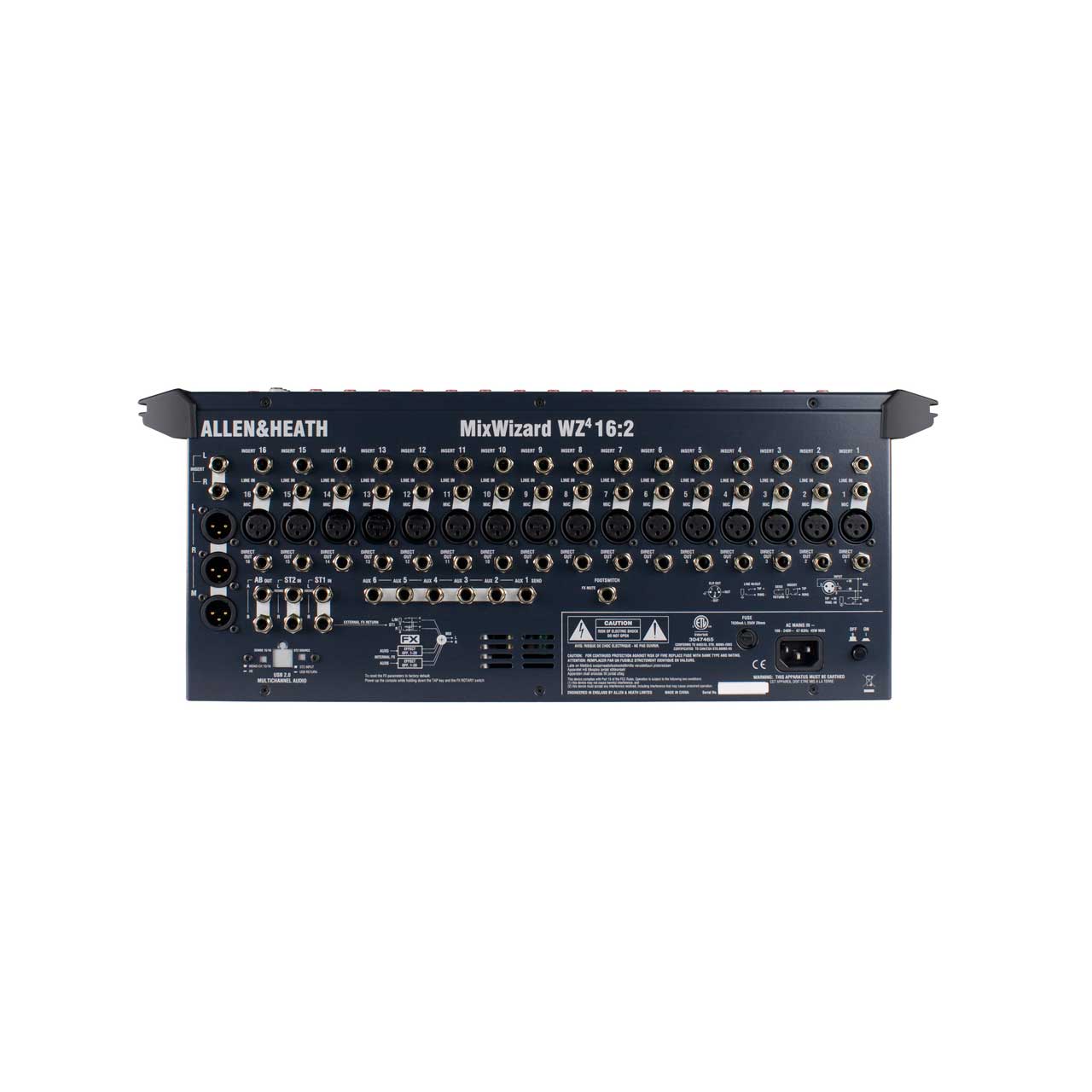

    • 16 mic/line inputs with balanced XLR/TRS jack, insert and direct output
    • 100mm faders
    • 4 band EQ with 2 swept mids
    • 6 Aux sends - 2x pre fade / 2x switched / 2x post fade*
    • 2 Stereo returns
    • Dedicated mono output fader - can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
    • Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
    • Tri-colour, 12 segment bargraph metering
    • Twin FX engines with 20 studio quality FX presets
    • +48V Phantom Power
    • Signal and Peak LEDs
    • Lamp socket
    • USB multitrack recording option
    • Footswitch connector (mutes/unmutes the ST1 FX Return)
    • *Can be reconfigured with internal jumpers


  • Specifications:

    • Maximum output level:
    • XLR +26dBu into 600 ohms max load
    • Jack +21dBu into 2k ohm max load
    • Internal headroom:
    • Channels +21dB
    • Mix +23dB
    • Meters: 3 colour LED, quasi peak response
    • Sensitivity: 0VU = +4dBu at XLR output
    • Master meters: 12 segment -30 to +16dB
    • Channel meters: 2 segment -12, +16dB (5dB before clip)
    • Frequency response: 10Hz to 30kHz +/-0.5dB
    • THD+n at +10dBu 1kHz: Channel to mix out < 0.004%
    • Crosstalk at 1kHz:
    • Fader shutoff >90dB
    • Channel mute >90dB
    • Inter channel >90dB
    • Noise, rms 22Hz to 22kHz Mic EIN: -127dB
    • Residual output noise < -95dBu (-99dB S/N)
    • LR unity fader mix noise < -83dBu (-87dB S/N)
    • Channel HPF: 12dB/octave below 80Hz
    • Mono EQ:
    • HF Shelving, +/-15dB, 12kHz
    • HM Peak/dip, +/-15dB, 500Hz to 15kHz, Q=1.8
    • LM Peak/dip, +/-15dB, 35Hz to 1kHz, Q=1.8
    • LF Shelving, +/-15dB, 80Hz
    • Stereo EQ:
    • HF Shelving, +/-15dB, 12kHz
    • HM Peak/dip, +/-15dB, 2.5kHz, Q=1.8
    • LM Peak/dip, +/-15dB, 250Hz, Q=1.8
    • LF Shelving, +/-15dB, 80Hz
    • Power supply: 100-240V, 50/60Hz auto sensing, IEC input
    • Power consumption: 45W max
    • Mains fuse: T630mA L 20mm


  • GTIN:

    6938122239319
