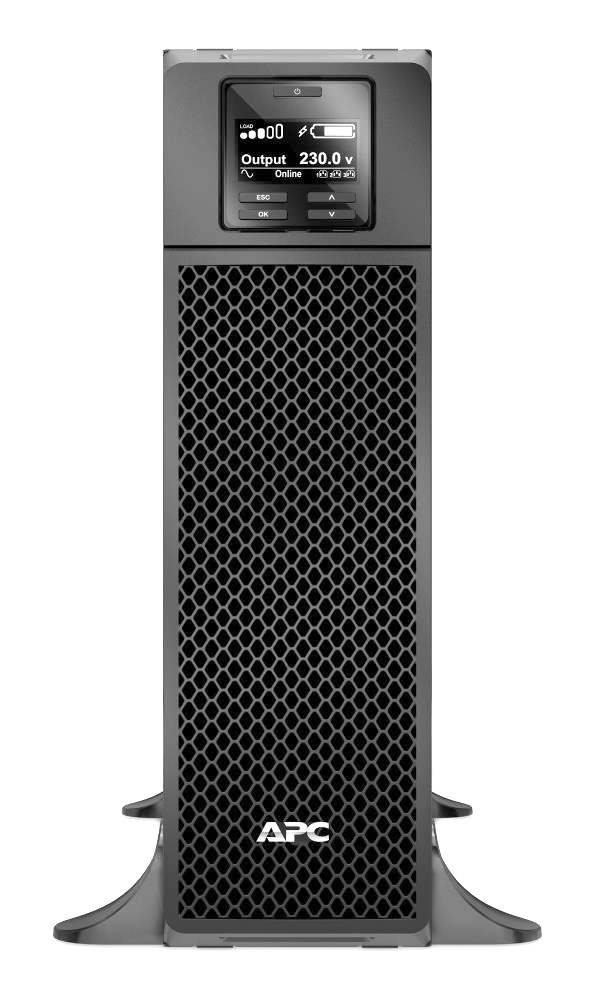

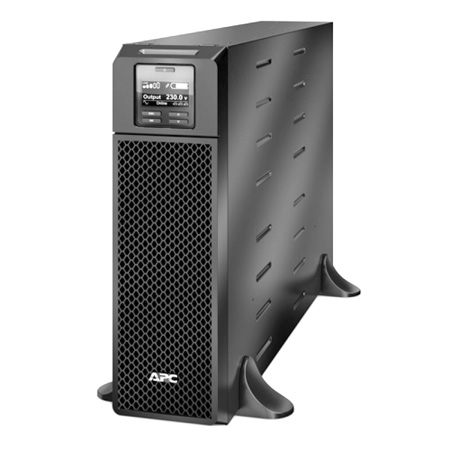

APC SRT5KXLI Smart-UPS SRT 5000VA 230V

SRT5KXLI - Overview

• Features:

  • 10/100 BaseT Connection
  • Battery failure notification
  • Green mode
  • LCD graphics display
  • Network manageable
  • Automatic restart of loads after UPS shutdown
  • Automatic self-test
  • Rack/Tower convertible
  • Flash upgradeable firmware
  • Serial connectivity


• Specifications:

  • Output
  • Output power capacity: 4.5 KWatts / 5.0 kVA
  • Max Configurable Power (Watts): 4.5 KWatts / 5.0 kVA
  • Nominal Output Voltage: 230V
  • Output Voltage Distortion: Less than 2%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Other Output Voltages: 220, 240
  • Load Crest Factor: 3:1
  • Topology: Double Conversion Online
  • Waveform type: Sine wave
  • Output Connections-
  • (6) IEC 320 C13 (Battery Backup)
  • (2) IEC Jumpers (Battery Backup)
  • (4) IEC 320 C19 (Battery Backup)
  • Bypass: Internal Bypass (Automatic and Manual)
    Input
  • Nominal Input Voltage: 230V
  • Input frequency: 40 - 70 Hz (auto sensing)
  • Input Connections: Hard Wire 3 wire (1PH+N+G)
  • Input voltage range for main operations: 160 - 275V
  • Input voltage adjustable range for mains operation: 100 - 275V (half load)
  • Other Input Voltages: 220, 240
    Batteries & Runtime
  • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte:leakproof
  • Included Battery Modules: 2
  • Typical recharge time: 1.5hour(s)
  • Replacement Battery: APCRBC140
  • Expected Battery Life (years): 3-5
  • RBC Quantity: 1
  • Extendable Run Time: 1
  • Battery Volt-Amp-Hour Capacity: 845
    Physical/Environmental
  • Maximum Height: 17.0inches
  • Maximum Width: 5.1inches
  • Maximum Depth: 28.32inches
  • Net Weight: 120.0lbs.
  • Operating Environment: 32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity: 0 - 95% non-condensing %
  • Operating Elevation: 0-10000ft


• Item Includes:

  • CD with software
  • Comms cable
  • Documentation CD
  • Installation guide
  • Removable support feet
  • Temperature Probe
  • USB cable
  • Warranty card
  • Web/SNMP Management Card


• Warranty:

  • 3 Years
