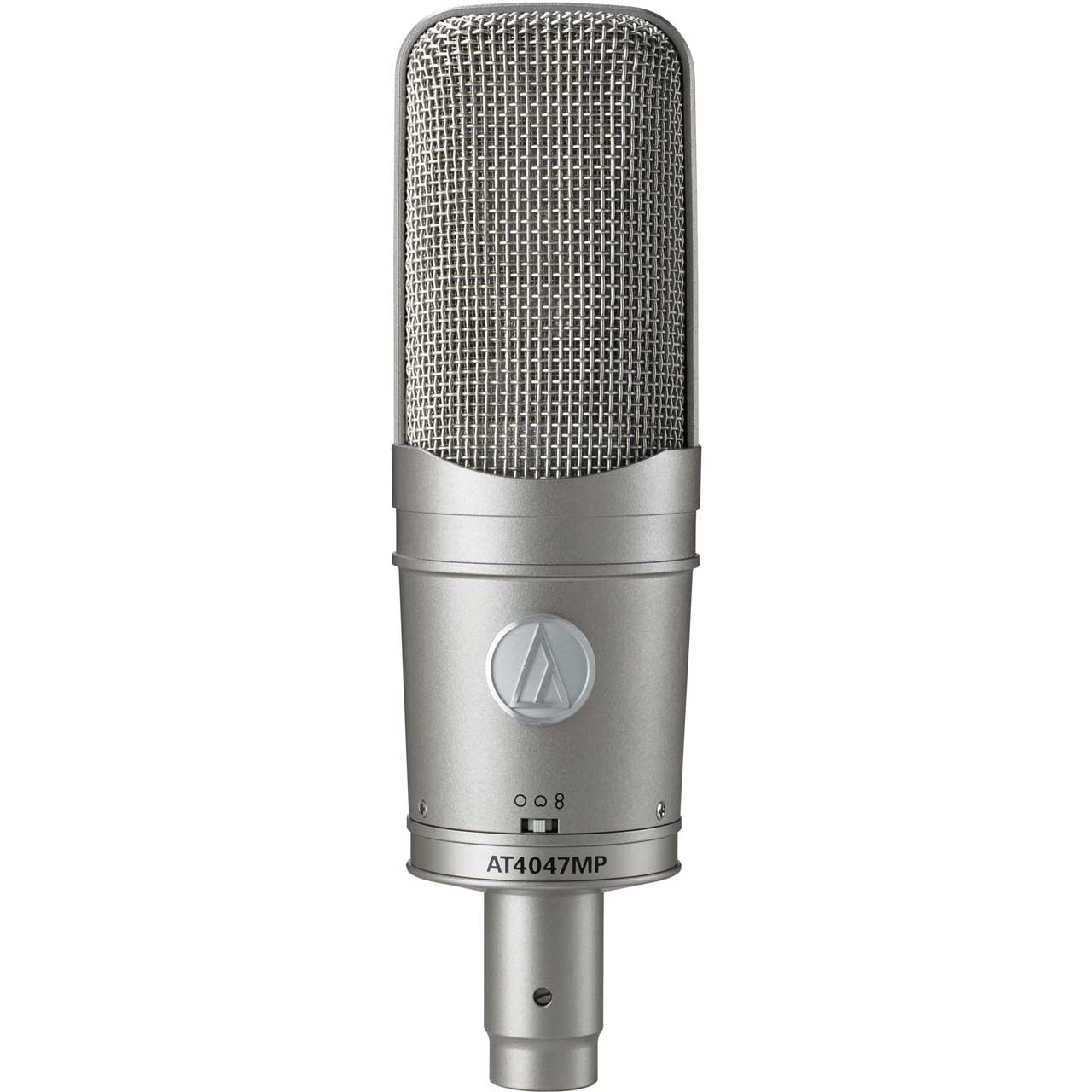

Audio-Technica AT4047MP Multi-pattern Condenser Microphone

ITEM #: AT4047MP MFG #: AT4047MP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$899.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


AT4047MP - Overview

Audio-Technica's AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphone's transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

  • Features:

    • Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
    • Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
    • Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
    • Exceptionally low self-noise, wide dynamic range and high SPL capability
    • Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
    • Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
    • Vintage silver-matte finish on microphone and shock mount
    • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

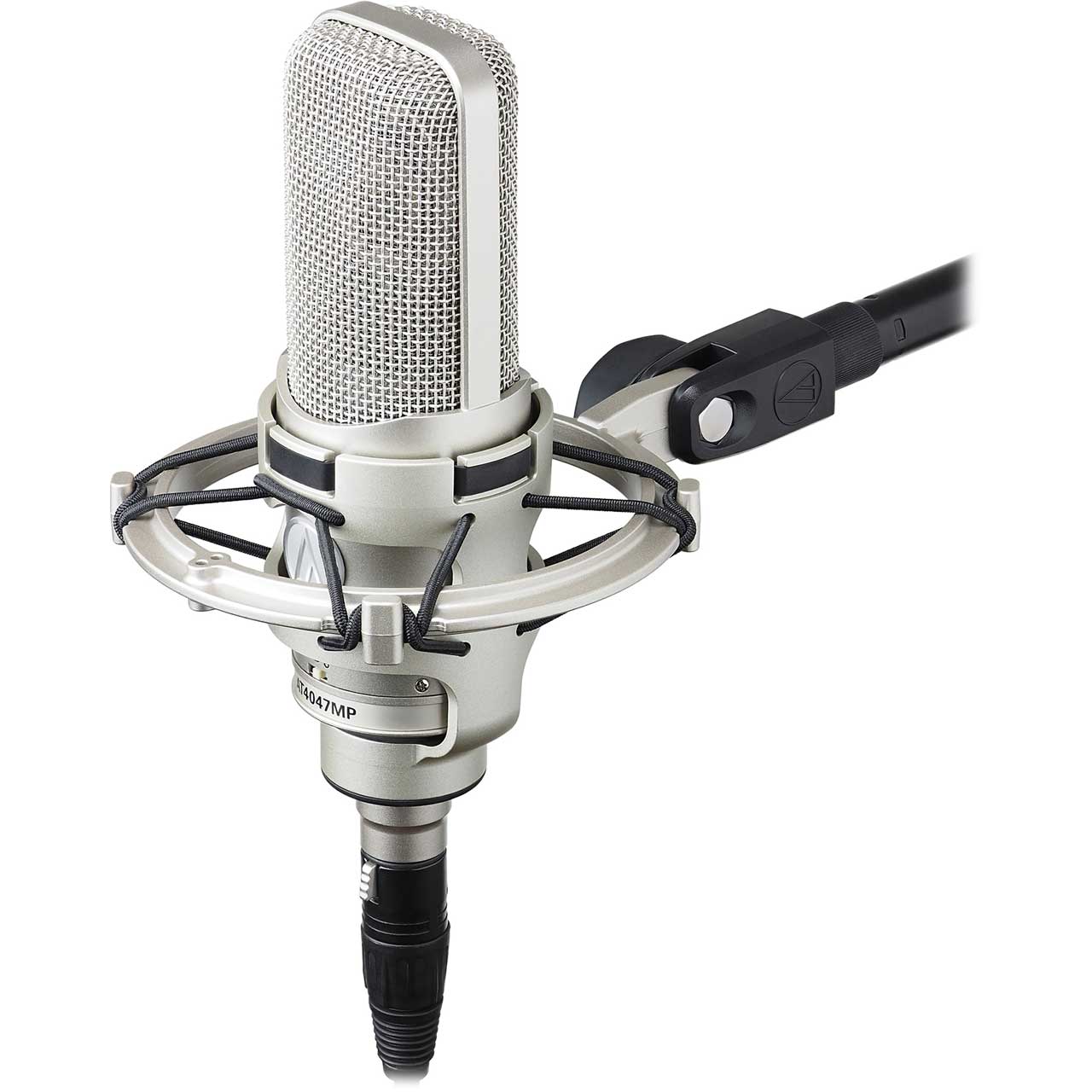

    • Custom shock mount provides superior isolation
    • Integral 80 Hz high-pass filter switch and 10 dB pad switch
    • Certified by the METAlliance (Music Engineering and Technology Alliance)

  • Specifications:

    • Element: Externally-polarized (DC bias) condenser
    • Polar Patterns: Cardioid, Omnidirectional, Figure-of-eight
    • Frequency Response: 20 - 18,000Hz
    • Low Frequency Roll-Off: 80Hz, 12dB/octave
    • Open Circuit Sensitivity: -42dB (7.9mV), re 1V @ 1Pa
    • Impedance: 100Ω
    • Maximum Input Sound Level: 155dB SPL, 1kHz @ 1% T.H.D.; 165dB SPL, with 10dB pad (nominal)
    • Noise: 14dB
    • Dynamic Range (typical): 141dB, 1kHz @ Max SPL
    • Signal-To-Noise Ratio: 80dB, 1kHz @ 1Pa
    • Phantom Power Requirements: 48V DC, 3.4mA typical
    • Switches: Polar selection; Flat, roll-off; 10dB pad (nominal)
    • Weight: 18.5oz
    • Dimensions: 7.40" long, 2.10" maximum body diameter
    • Output Connectors: Integral 3-pin XLRM-type
    • Audio-Technica Case Style: R1

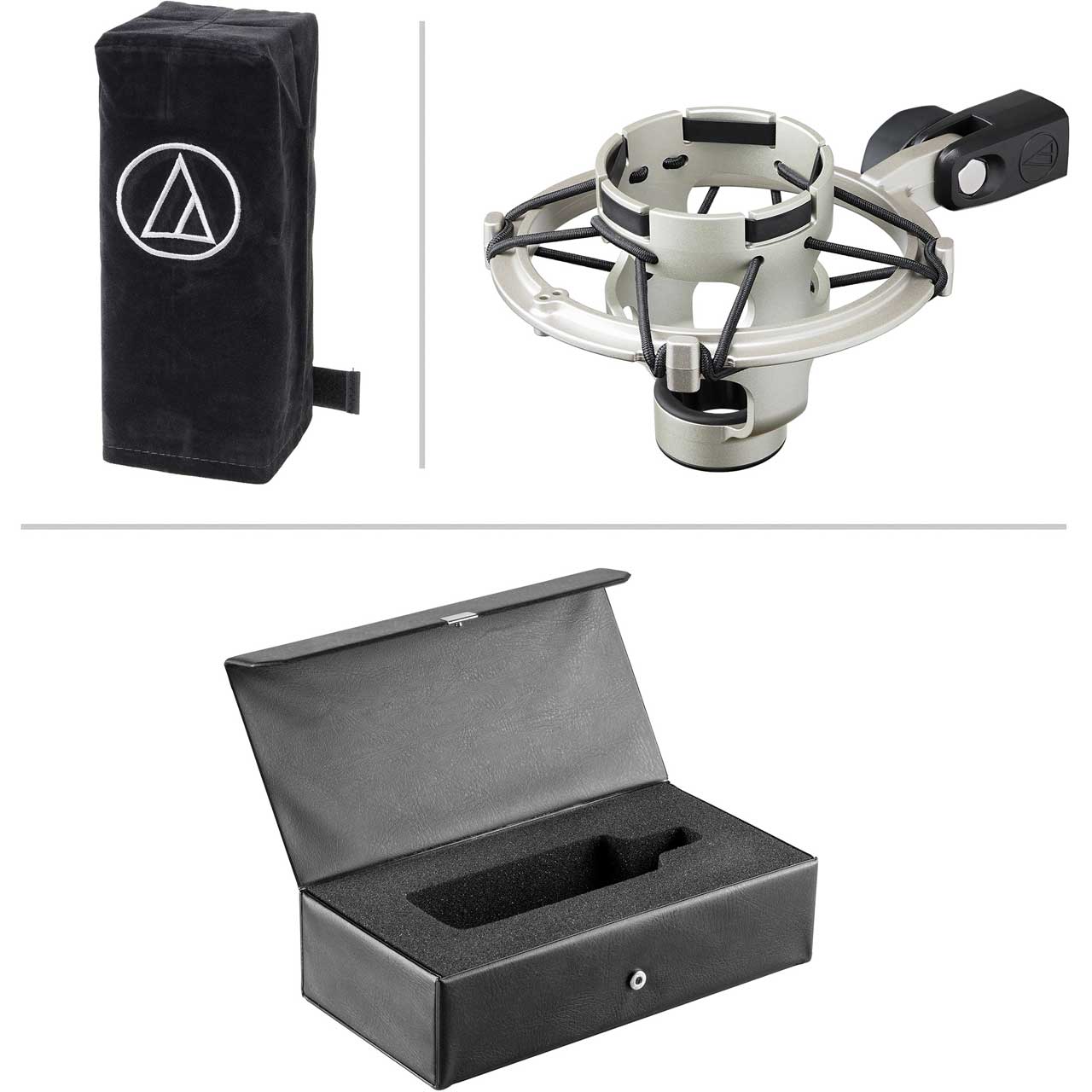

  • Item Includes:

    • AT8449a/SV shock mount for 5/8"-27 threaded stands
    • Microphone dust cover
    • Protective carrying case

  • Warranty:

    • 5 Year Limited End-User

  • GTIN:

    0042005160068
