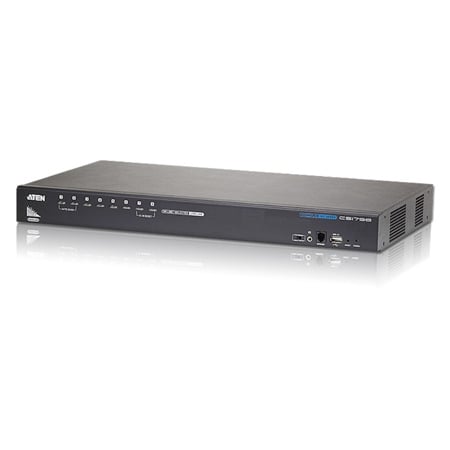

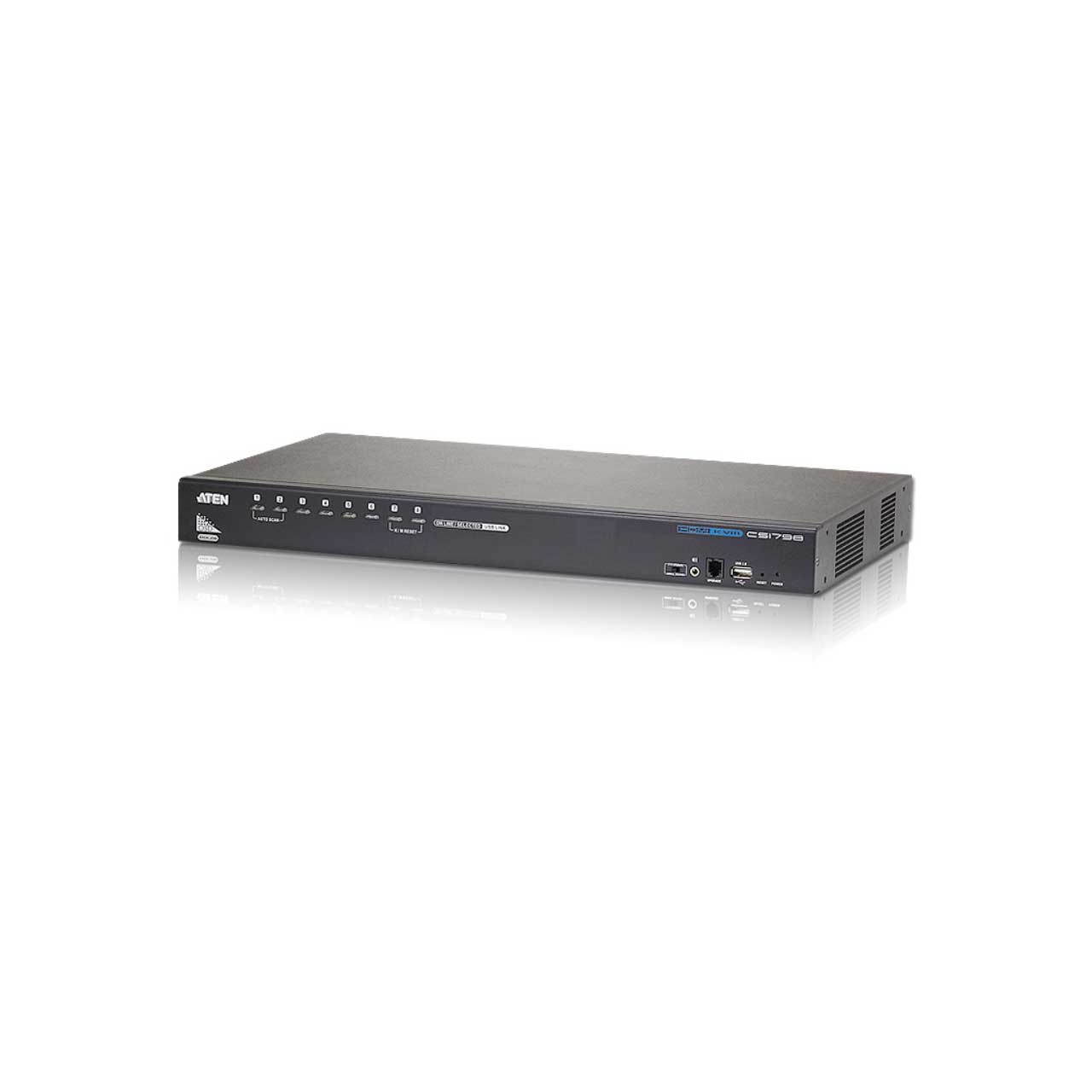

ATEN CS1798 8-Port USB HDMI KVM Switch

CS1798 - Overview

• Features:

  • One USB console controls up to eight HDMI interface computers and two additional USB 2.0 devices
  • HDMI compatible
  • Cascadable to three levels-control up to 512 computers*1
  • Multi-Display feature - stack up to eight CS1798 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
  • 2-port USB 2.0 hub built in
  • Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
  • Independent switching of KVM and USB focus
  • OSD Backup/Restore feature-enables the administrator to back up the switch's configuration and user profile information
  • Firmware upgradable
  • Video DynaSync - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Superior video quality-supports up to 1080p / 1920 x 1200@60Hz
  • Supports widescreen resolutions
  • Audio enabled-full bass response provides a rich experience for 2.1 channel surround sound systems
  • Console audio ports on front panel for easy access
  • Auto Scan Mode for monitoring all computers
  • HDCP compatible
  • Multiplatform support-Windows, Linux, Mac, Sun
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*2.3.
  • Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
  • Multilingual keyboard mapping - supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese

    Note : Enable mouse emulation for independent switching
  • 1. CS1798 cascade to CS1798 only.
  • 2. For PC compatible computers. Mac and Sun computers must be compatible with USB connections.
  • 3. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.


• Specifications:

  • Computer Connections
  • Direct: 8
  • Maximum: 512 (via Cascade)
  • Port Selection: OSD, Hotkey, Pushbutton

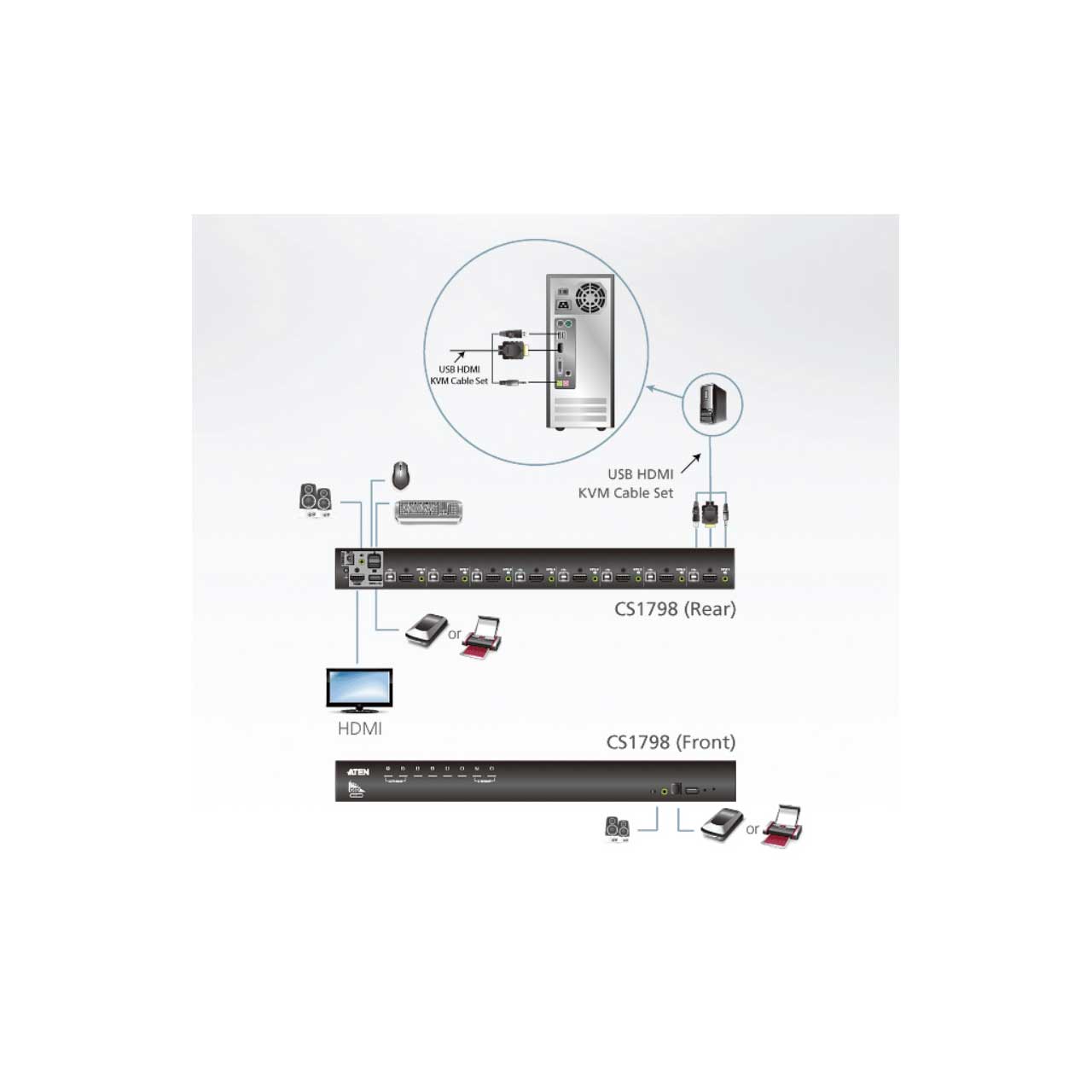

    Connectors
  • Console Ports: 2x USB Type A Female (Black), 1x HDMI Female, 2x Mini Stereo Jack Female (Green; 1 x front panel, 1x rear panel)

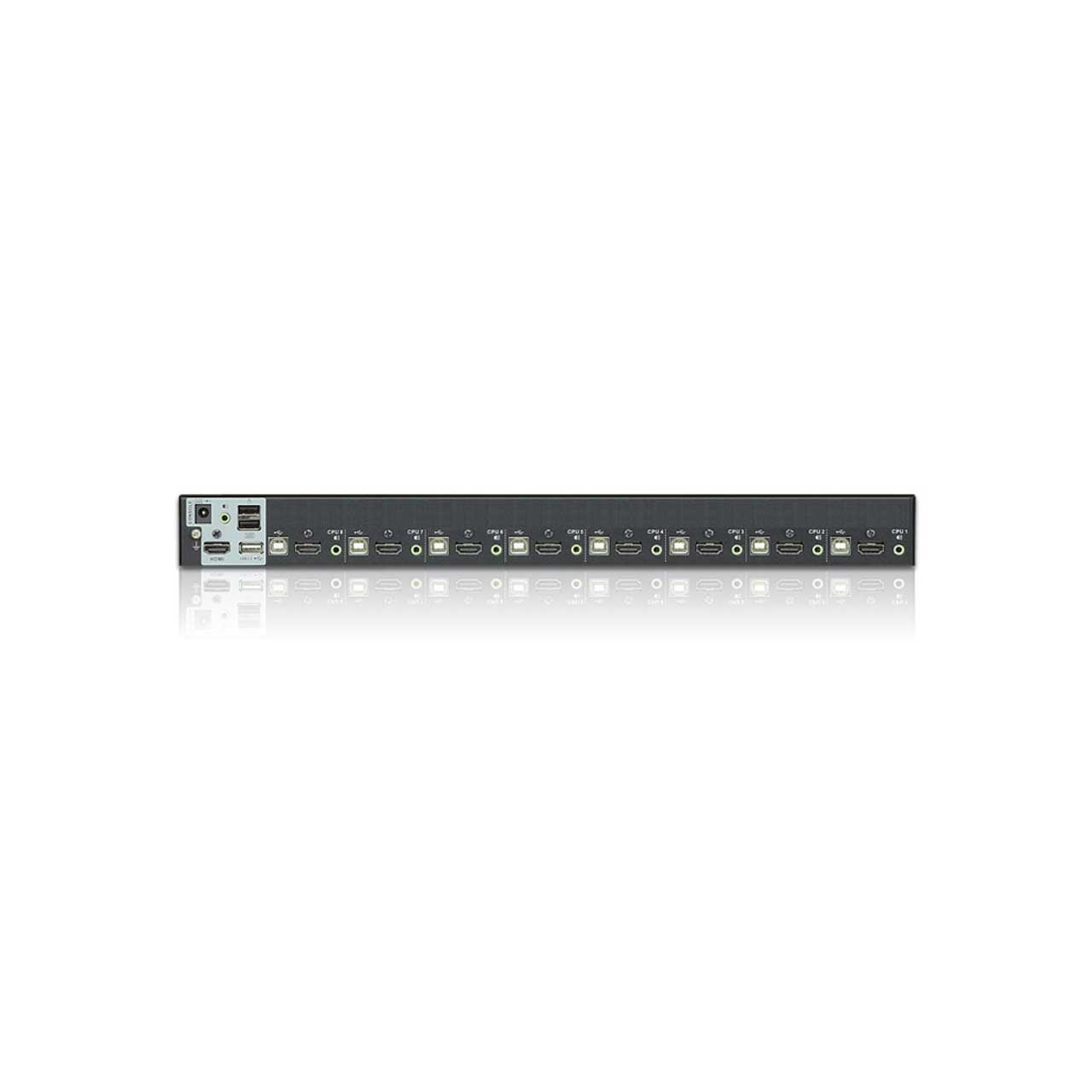

  • KVM Ports: 8x USB Type B Female (White), 8x HDMI Female (White), 8x Mini Stereo Jack Female (Green)
  • Firmware Upgrade: 1 x RJ11 Female (Black)
  • Power: 1x DC Jack
  • USB Hub: 2x USB Type A Female (White) (1 x front panel, 1 x rear panel)


    Switches
  • Port Selection: 8x Pushbutton
  • Reset: 1x Semi-recessed Pushbutton
  • Firmware Upgrade: 1x Slide Switch


    LEDs
  • USB Link: 8 (Green)
  • Power: 1 (Dark Green)
  • On Line /Selected: 8 (Orange)


    Emulation
  • Keyboard / Mouse: USB
  • Video: 1080p / 1920 x 1200 (DVI)
  • Scan Interval: 1 - 255 Seconds (Default: 5 secs)
  • Power Consumption: DC 5.0V; 12.0W


    Environmental
  • Operating Temperature: 0 - 50°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-condensing


    Physical Properties
  • Housing: Metal
  • Weight: 3.49 kg ( 7.69 lb )
  • Dimensions (L x W x H): 43.24 x 25.72 x 4.40 cm (17.02 x 10.13 x 1.73 in.)


• Item Includes:

  • 1x 8-Port USB HDMI KVM Switch with Rack Mounting Kit
  • 2x Custom USB HDMI KVM Cable Sets (2L-7D02UH)
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x Foot Pad Set (4 pcs)
  • 1x Quick Start Guide


• GTIN:

  0672792005565
