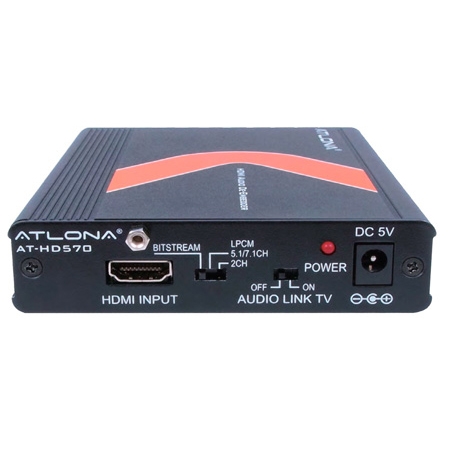

Atlona AT-HD570 HDMI 1.3 Audio De-Embedder with 3D Support

ITEM #: ATNO-HD570 MFG #: AT-HD570

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATNO-HD570

AT-HD570 - Overview

The Atlona AT-HD570 is an HDMI Audio De-Embedder with 3D Support. Input an HDMI signal to the HD570 and it de-embeds the audio signal to either Optical or Multi-Channel analog audio outputs. This audio de-embedder supports uncompressed analog LPCM 7.1, 5.1, 2ch through the multi-channel analog outputs. On the optical output it supports Dolby Digital, LPCM 2CH and DTS signals. Dolby TrueHD and DTS-HD Master Audio pass through HDMI connection without being de-embedded.

  • Features:

    • Audio de-embedding through multichannel analog audio and digital optical audio output ports
    • Signal amplification and equalization to extend HDMI input and output ports up to 15 meters (50 feet)
    • De-embedded audio up to LPCM 7.1 through the analog audio outputs
    • De-embedded audio up to Dolby Digital / DTS 5.1 through the optical audio output
    • Pass through audio up to Dolby TrueHD or DTS-HD Master Audio on HDMI
    • Audio sample rate supported up to 192kHz
    • Video up to 1080p@60Hz on HDMI
    • 3D pass through
    • CEC pass through
    • HDCP 1.4 CompliantAward-winning 10 year limited product warranty
    • Ensures long-term product reliability and performance in residential and commercial systems
    • Specify, purchase, and install with confidence


  • Specifications:

    • Resolution
    • Video: 480i, 480p, 576i, 576p, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/50/60Hz
    • VESA: 640x480, 800x600, 1024x768, 1280x1024, 1360x768, 1600x1200, 1920x1200
    • Colorspace: YCbCr 4:4:4, xvYCC
    • Color depth: pass through support of 24-bit

      Audio
    • Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
    • Bit depth: pass through support of up to 24-bit
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • THD+N: -95db

      Distance
    • HDMI: up to 15 meters: up to 50 feet

      Signal
    • Bandwidth: 6.75 Gbps
    • CEC: Yes
    • HDCP: Compliant

      Temperature
    • Operating: 0°C to 40°C: 32°F to 104°F
    • Storage: -20°C to 60°C: -4°F to 140°F
    • Humidity: 20 to 90% non-condensing

      Power
    • Consumption: 6W
    • Idle Consumption: 1W
    • Supply: Input: AC100~240V 50/60Hz
    • Output: DC 5V/2.6A

      Dimension
    • H x W x D: 25.46 x 101.92 x 149.51 (mm): 1 x 4.01 x 5.89 (inch)

      Weight
    • Device: 0.32kg: 0.71lbs
    • Shipping: 0.88kg: 1.93lbs


  • Item Includes:

    • AT-HD570 Audio De-Embedder
    • 5V DC power supply adaptor
    • Operation Manual


  • Warranty:

    • 10 Years


  • Warranty:

    :

    • 10 year manufacturers warranty (parts&labor)


  • GTIN:

    0878248008399
