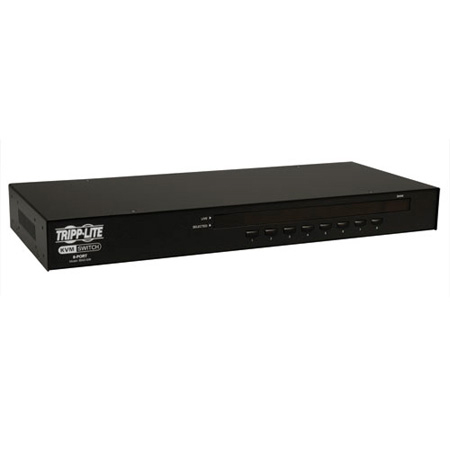

Tripp Lite B042-008 8-Port 1U Rackmount USB/PS2 KVM Switch w/ On-Screen Display

ITEM #: B042-008 MFG #: B042-008

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$600.00

Our Price:

$399.85

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


B042-008 - Overview

Tripp Lite's NetController 8-Port, 1U rackmount KVM Switch is an affordable, highly-flexible enterprise class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to 8 directly connected computers, or expand the number of connected computers to up to 248 by daisychaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048 x 1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing.

  • Features:

    • NetController 8-Port, 1U rackmount KVM switch
    • Control 8 computers via a single VGA monitor and USB or PS/2 keyboard/mouse
    • Control up to 248 computers by daisychaining up to 15 additional B042-Series KVM switches
    • P780-Series USB/PS2 combo KVM cables kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters
    • Compatible with all major operating systems

  • Specifications:

    • # Of Users 1
    • AC Adapter 100-250V
    • Console No
    • Port Control Push Buttons, Hotkeys, OSD
    • Max CPU 248
    • PC/Server VGA; USB; PS/2
    • Cat5 KVM Switch No
    • IP Remote Access YES WITH B051-000
    • Color Black
    • Style 1U Rackmount
    • LCD Monitor (in.) Not Applicable
    • LCD Monitor (cm) Not Applicable
    • BTUs 245.52
    • CONNECTIONS Ports 8
    • WARRANTY
    • Product Warranty Period (Worldwide) 1-year limited warranty

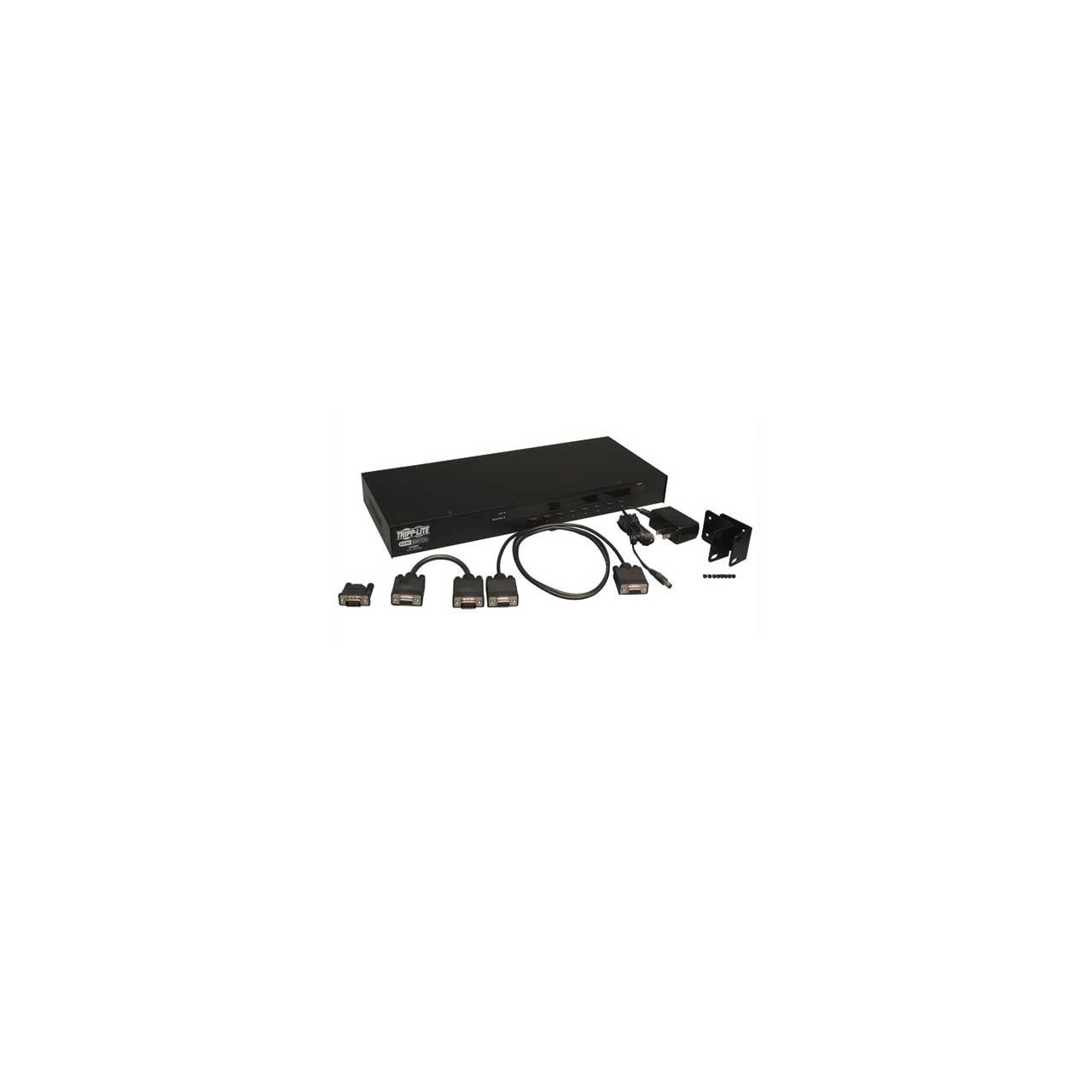

  • Item Includes:

    • B042-008 NetController 8-Port, 1U rackmount KVM switch
    • External power supply
    • Rackmount hardware
    • 8 In. Daisychain cable ( for longer daisy-chain cables, see Tripp Lite P781 series cables)
    • Daisychain terminator
    • 4 ft. HD15 to DB9 firmware upgrade cable
    • CD with owner's manual and quick start guide
    • Quick start guide

  • GTIN:

    0037332141392
