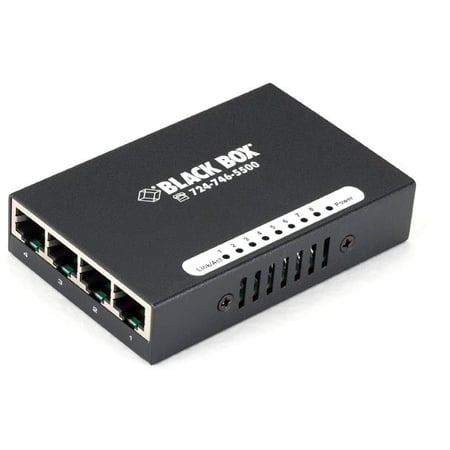

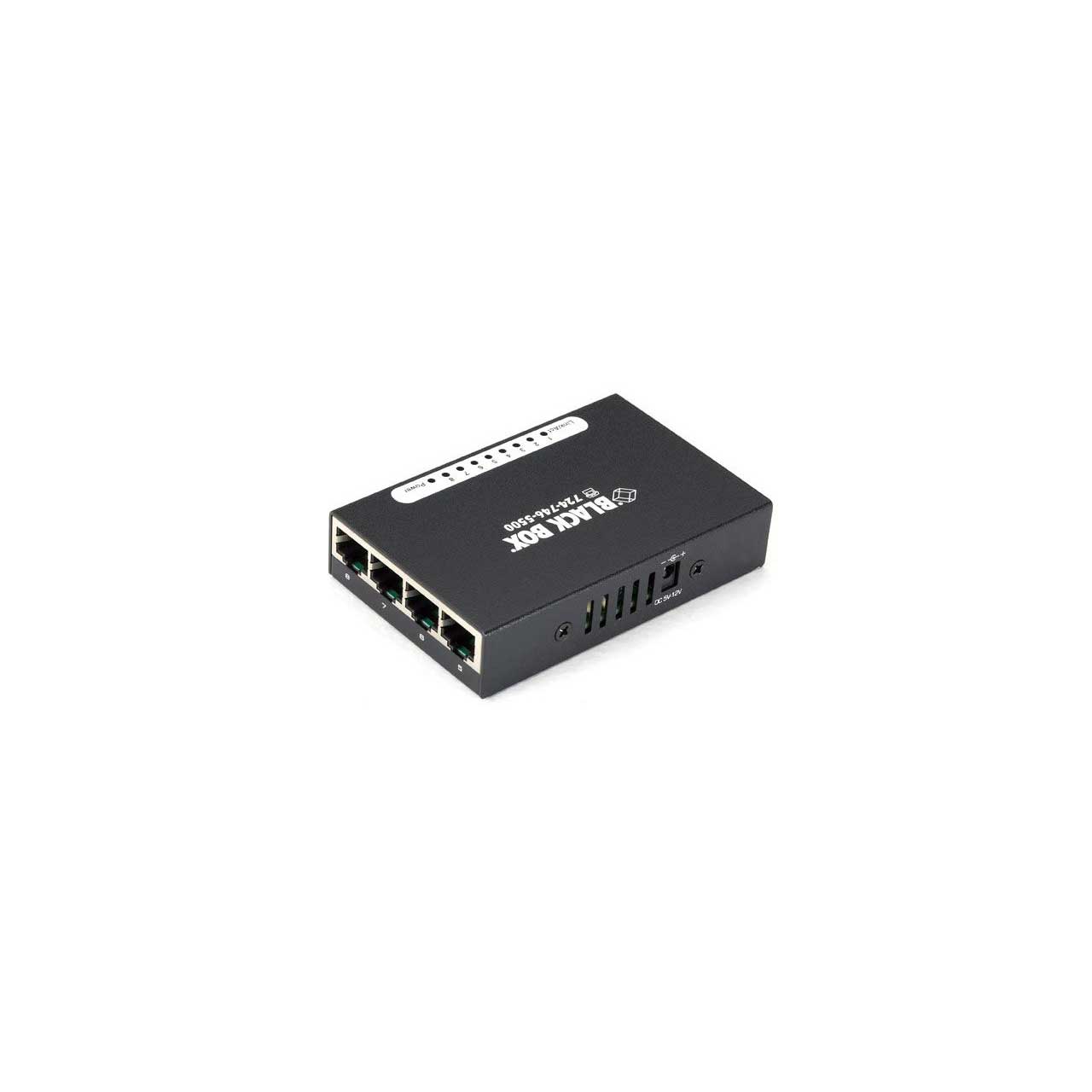

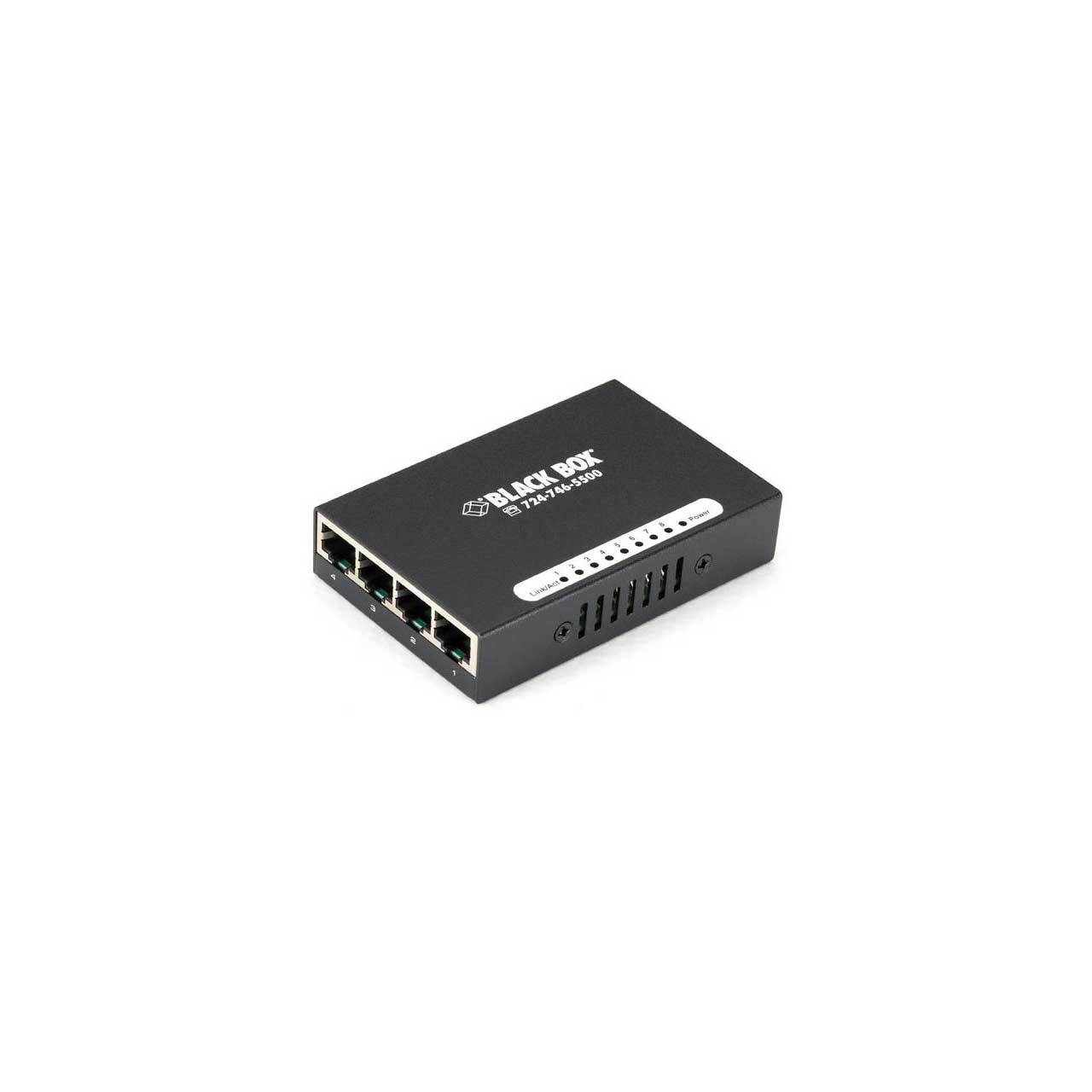

Black Box LBS008A USB-Powered 10/100 8-Port Switch

ITEM #: BBX-LBS008A MFG #: LBS008A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Black Box
Free Shipping with $49 Minimum Order

List Price:

$56.69

Our Price:

$52.88

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

LBS008A - Overview

The compact USB-Powered 10/100 Switch is an easy way to quickly add eight 10-/100-Mbps Ethernet ports to your network. Because it's USB powered, you can plug it into the nearest PC-an advantage anywhere power outlets are tight.

The switch offers autosensing 10-/100-Mbps ports that autonegotiate half-/full-duplex. All ports feature Auto MDI/MDI-X, so there's no need for cross-pinned cables-just plug it in and you're ready to go. There's no easier way to set up a quick workgroup. Plus, the switch is tiny enough to tuck neatly behind a PC.

  • Features:

    • 10-/100-Mbps ports are autosensing for speed and duplex.
    • A quick way to build a small network or add ports to an existing network.
    • Can be powered through a PC's USB port so there's no need to find a spare outlet. Or use the included AC power supply.
    • Auto MDI/MDI-X.


  • Specifications:

    • Environmental: Operating temperature: 32 to 131° F (0 to 55° C); Operating humidity: 10-90%, noncondensing
    • Filtering and Forwarding Rate: 10 Mbps: 14,880 pps; 100 Mbps: 148,800 pps
    • MAC Addresses: 1K
    • Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.3x flow control
    • Switching Method: Store-and-forward
    • CE Approval: Yes
    • RoHS: Yes
    • Connectors: (8) RJ-45, (1) Power
    • Indicator LEDs: Per Unit: (1) Power; Per Port: (1) LINK/ACT
    • Power: From computer's USB port via power cable (included) or 115-VAC, 60-Hz external power supply (included); 3 watts maximum
    • Dimensions: 0.8"H x 2.4"W x 3.1"D (2 x 6.2 x 7.9 cm)


  • Warranty:

    • 1 Year


  • GTIN:

    0822088076100
