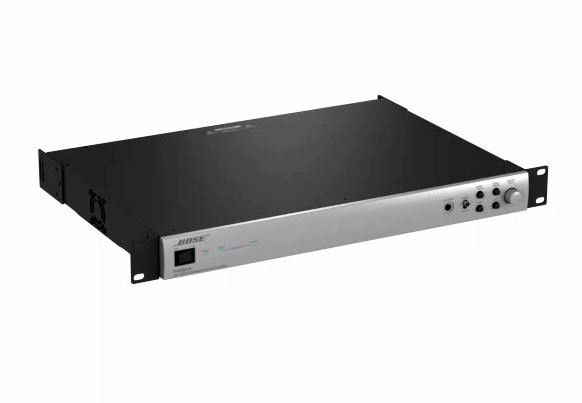

Bose FreeSpace IZA 2120-HZ 120V Integrated Zone Amplifier

719782-1410 - Overview

• Features:

  • True two-zone capability provides two independent outputs that each support volume/source selection remotes, EQ, tone controls, and paging/auxiliary routing options
  • Opti-voice paging equalizes the vocal frequency range for clear speech intelligibility while providing seamless transitions
  • Dynamic EQ ensures full and balanced music at any volume level
  • Independent Loudspeaker EQ per output enriches audio quality and simplifies connection to Bose loudspeakers: FreeSpace 3 systems, FS3 subwoofer, DS 16, DS 40 and DS 100
  • Dual remotes support optional volume/source selection for independent, or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls
  • Expansion-ready connectivity with FreeSpace ZA amplifiers to drive additional zones
  • Reliable 2 x 120 W Class-D amplification optimized for 70/100V high-impedance applications
  • Intuitive feature setup enables the amplifier to be configured without a PC for remote, paging, auxiliary input/output and automatic standby options
  • Auto-Standby feature allows the amplifier to consume less power when not in use

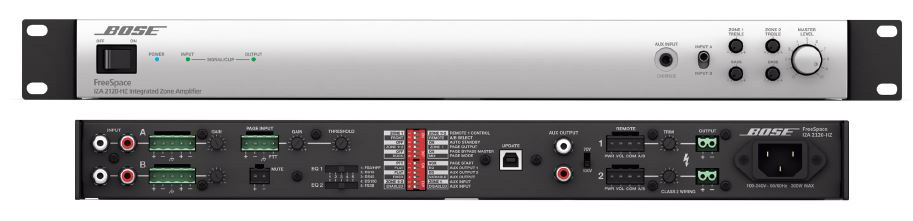

  • Simplified front panel interface provides end users with tone, source selection and master volume controls as well as a connection to mobile sources via a 3.5 mm connector
  • Remote muting allows the amplifier to be muted via a centralized control system


• Specifications:

  • TECHNICAL
  • Frequency Response: 55 Hz - 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz)
  • Amplifier Power: 2 x 120 W @ 70/100V
  • THD+N: = 0.3 % (at rated power)
  • Dynamic Range: 88 dB
  • Built-in Loudspeaker EQ: Bose FreeSpace 3 systems, FS3 subwoofer, DS 16, DS 40 and DS 100

    INPUT CHANNELS
  • Line Inputs: 2 unbalanced, 2 balanced
  • Page Input: 1 balanced mic/line
  • Auxiliary Input: 1 unbalanced line

    PHYSICAL

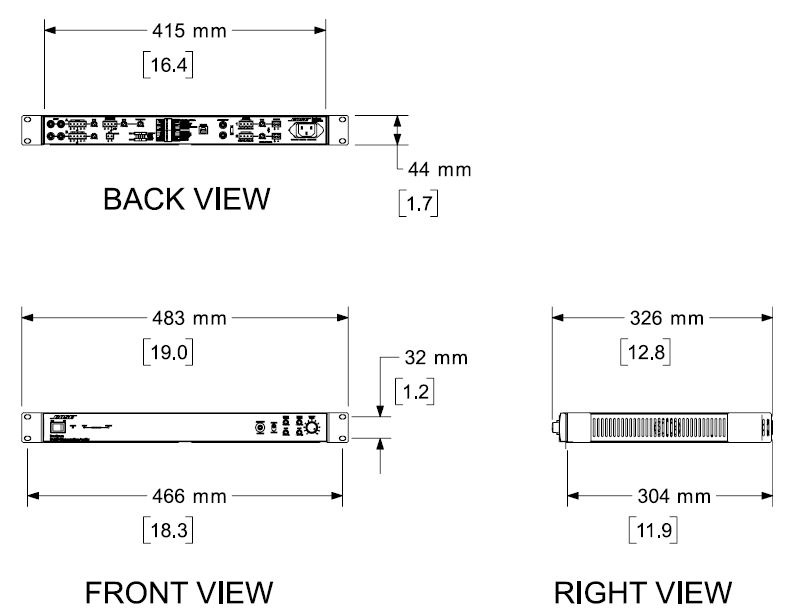

  • Dimensions: 1.7" H x 19.0" W x 12.8" D (44 mm H x 483 mm W x 324 mm D)
  • Net Weight: 9.0 lb (4.1 kg)
  • Cooling System: Single fan, continuous left-to-right air flow


• GTIN:

  0017817700030
