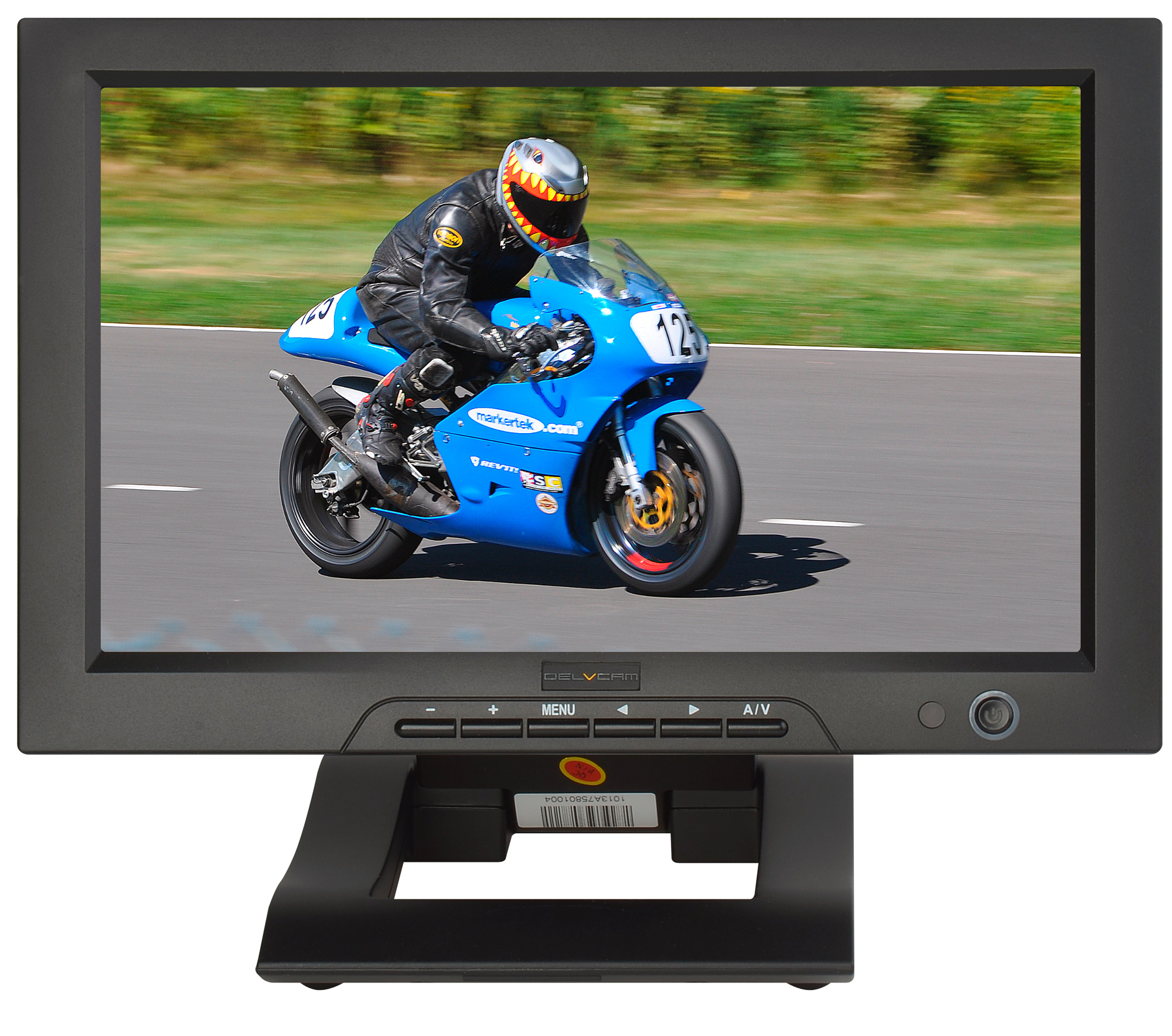

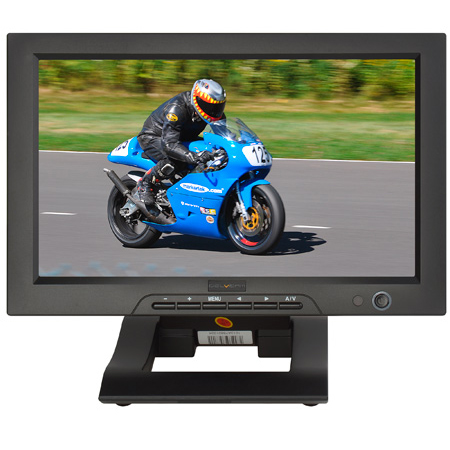

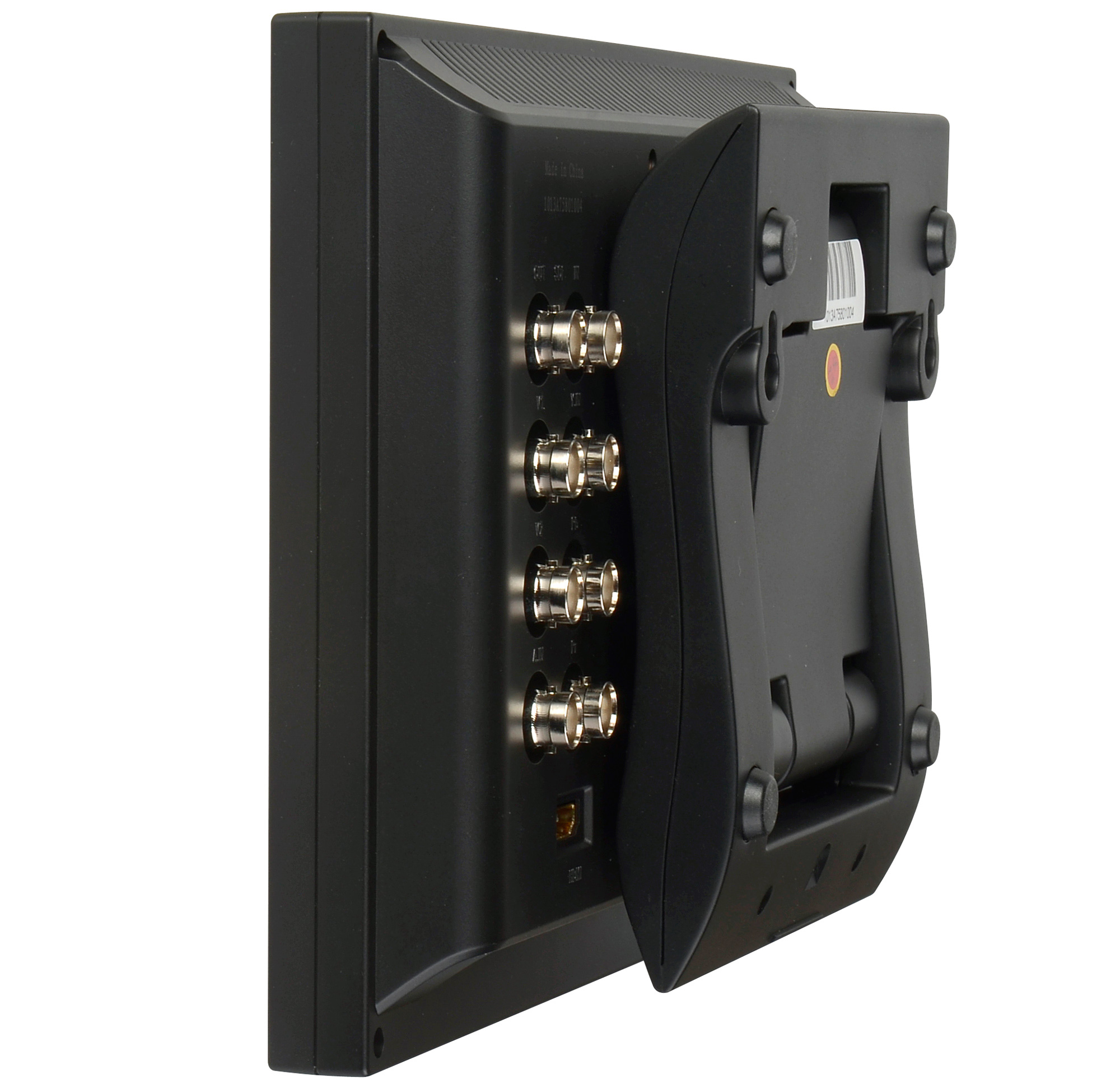

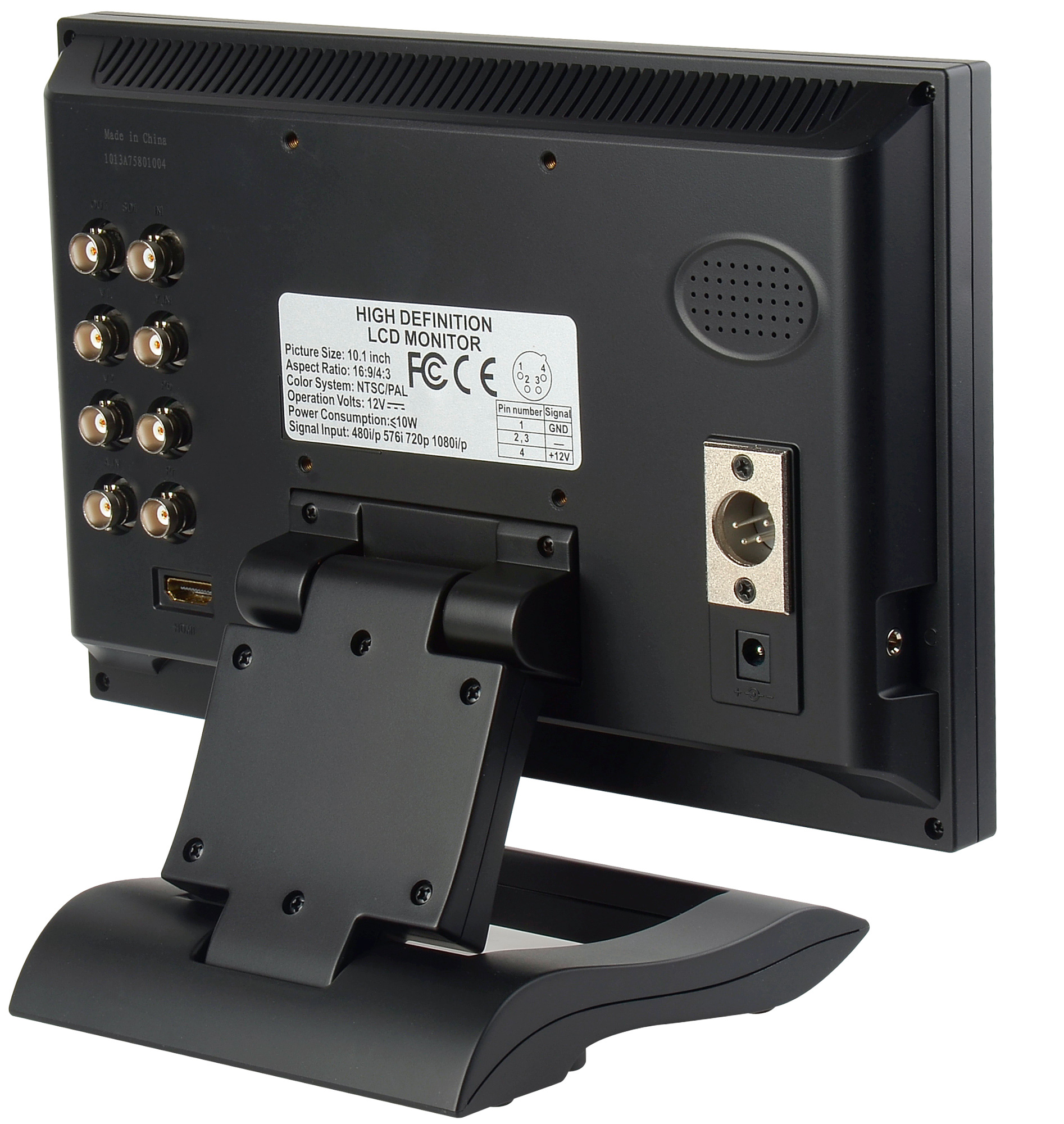

Delvcam SDI10-16X9 10-Inch 3G-SDI/HDMI Widescreen Monitor with SDI Loop Out

DELV-SDI10-16X9 - Overview

• Features:

  • HD-SDI Input
  • HDMI Input
  • YPbPr Component Input
  • LCD 16:9 Aspect Ratio
  • Supports Resolutions up to 1920x1080
  • Multiple Mounting Options


• Specifications:

  • Panel Size:10.1" TFT LCD (16:9)
  • Resolution:1024X600, support up to 1920X1080
  • Brightness: 250cd/M2
  • Contrast: 500:1
  • Viewing Angle: 140deg/ 110Deg(H/V)
  • Input Voltage: DC 12V (XLR DC Connection)
  • Input Signal: SDI, HDMI, YPbPr, AV1/AV2
  • SDI/HDMI/YPbPr Mode: 480i/p,576i/p,720p,1080i (50/60),1080p (50/60)
  • Compatibility: SDI A, SDI B limited to1080i60
  • Response Time (ms): SDI 4.874, HDMI 5.286, AV 3.062, YPBPR 4.838
  • Color System: PAL /NTSC
  • Current: 500mA (under 800x600-60Hz)
  • Standby Current: 50mA Max
  • Power Consumption: 6W Max
  • Audio Output: 250mW
  • Speaker: 1x (back)
  • Ear Phone Jack: 1x 3.5mm
  • Mount: 75mm Standard VESA
  • Dimensions: 10.1" L x 6.7"W x 1.45"D
  • Weight: 2.5 Lbs.


• Item Includes:

  • 12VDC/1.5A Power Cable
  • HDMI Cable
  • Remote Control


• Warranty:

  • 1 Year


• GTIN:

  0854554007370
