Delvcam SDI10-IP 10.1-Inch 3G-SDI Camera Monitor with HDMI & VGA Inputs

Name: Delvcam SDI10-IP 10.1-Inch 3G-SDI Camera Monitor with HDMI & VGA Inputs
Brand: Delvcam
SKU: DELV-SDI10-IP

ITEM #: DELV-SDI10-IP MFG #: SDI10-IP

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DELV-SDI10-IP

Lilliput FA1014/S 10.1 Inch 3G-SDI Production/Security Monitor with HDMI/VGA Inputs and I/O InterfaceOur Price: $479.00
Blackmagic Design HYPERD/AVIDA12/7HDR Video Assist 7-Inch 12G HDR Recording MonitorOur Price: $795.00
Lilliput 667/S 7 Inch 3G-SDI On-Camera Field LED MonitorOur Price: $249.00
Lilliput Q7-12G 7 Inch Full HD 12G 2000 nits Ultra Brightness On Camera Monitor with HDR/3D LUTsOur Price: $899.00

Required Accessories

Recommended Accessories

SDI10-IP - Overview

The Delvcam DELV-SDI10-IP monitor features an integrated dustproof front panel that protects the screen from light rain and dust.The 10.1" IPS display offers twice the viewing area of a 7" display with a 1280 x 800 native resolution and 170° horizontal and 170° vertical viewing angles.

The I/O control interface offers functions such as connecting with the reverse trigger line in a car reversing system and a control computer host to switch on and off. Functions buttons can be customized to meet different demands.

Features:
- Integrated dustproof front panel
- I/O control interface
- High contrast: 800:1
- 3G-SDI, HDMI, DVI, VGA & AV inputs
Specifications:
- Display Screen: 10.1" LED IPS
- Resolution: 1280 x 800, suport up to 1920 x 1080
- Aspect Ratio: 16:9
- Contrast Ratio: 800:1
- Brightness: 350cd/m2
- Viewing Angle: 170°/170° (H/V)
- Input Signal: 3G-SDI, HDMI, VGA, AV
- Output Signal: 3G-SDI
- Compatibility: SDI A, SDI B limited to1080i60
- I/O port: 1
- Speaker: 1
- Battery Plate Compatibility: LPE6, F970, DU21, QM91D
- Input Voltage: DC 7-24V
- Current: 800mA
- Power Consumption: <10W
- Audio Output: <1W
- Operating Temperature: 0°~50°
- Storage Temperature: -20°~60°
- Dimension(LWD): 9.84 x 6.7 x 1.27 inch
- Weight: 1.5 lbs

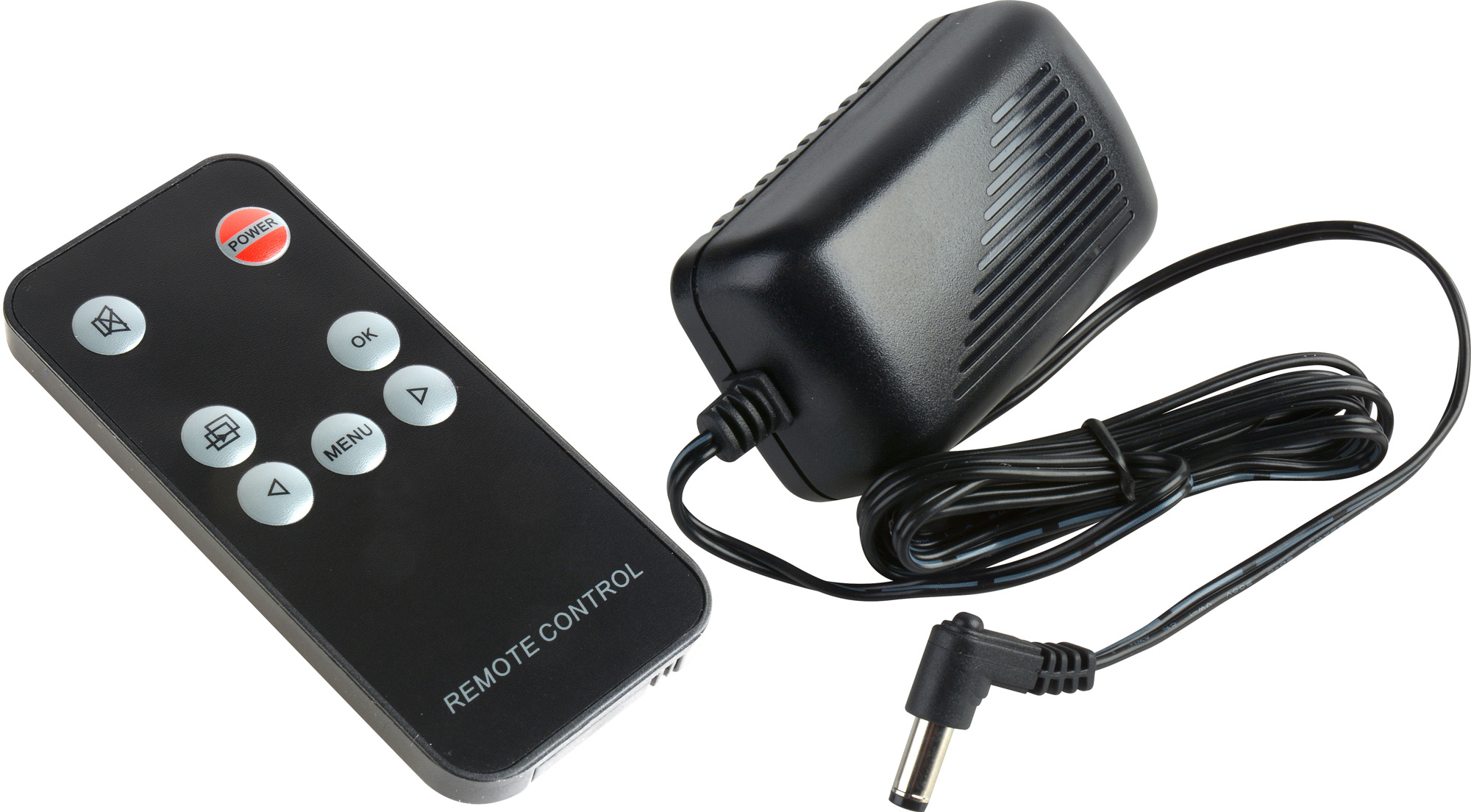

Item Includes:
- Talley Connector
- Remote Control
- 12VDC Power Cable
- Cables: HDMI, Video Output, Composite, Mini XLR & Tally
- Gimbal Bracket
- Shoe Mount
- Battery Plates: VESA, F970, LPE6
- Mount Plate Bracket
Warranty:
- 1 Year
GTIN:
0854554007387
