Datavideo SE-2200 Video Switcher with HD-SDI and HDMI Inputs

ITEM #: DV-SE-2200 MFG #: SE-2200

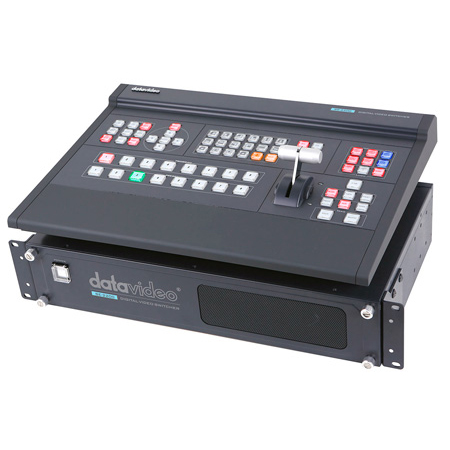

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DV-SE-2200

SE-2200 - Overview

The SE-2200 switcher is a separate control panel / processor system that switches High Definition HD-SDI video signals as well as HDMI signals. The SE-2200 is a six-input switcher that's perfect for events and meetings. It is available in three configurations including solo (Switcher), table-top (Studio Kit), or suitcase (Mobile Studio). And the cost is low enough that some people buy two - one for the studio and one to go

  • Features:

    • 16 Wipe Effects: SE-2200 is made with 16 wipe effects, as well as mix(dissolve).
    • Tally Output: SE-2200 has Tally Output for Tally Light communication with crew members.
    • Dual PiP: SE-2200 comes standard with Dual Picture-in-Picture Functionality.
    • Freeze: SE-2200 can perform Freeze Frame.
    • Lumakey: SE-2200 supports Lumakey.


  • Specifications:

    • Video Inputs:
    • Input1: HD-SDI
    • Input2: HD-SDI
    • Input3: HD-SDI
    • Input4: HD-SDI
    • Input5: HD-SDI or HDMI
    • Input6: HD-SDI or HDMI
    • Output:
    • 6x HD-SDI**, 2x HDMI (Multi-view)
    • ** = Outputs can be Program, Program with Logo, Program With Logo and Titles, Preview, or Aux
    • Audio Input: 4x XLR (mono)
    • Output: 2x XLR (mono)
    • Embedded audio is supported. Audio may be embedded into the SDI stream.
    • Control: 1x RS-232/422
    • Tally: 1x Tally Output
    • Supported HD-SDI Video Formats
    • 1080i 50/59.94/60
    • 720p 50/59.94/60
    • Supported HD-SDI Input Resolutions for Computers
    • 1920x1080i 50/59.94/60
    • Supported HDMI Input Resolutions for Computers
    • 1920x1080i 50/59.94/60
    • 1280x720p 50


  • Item Includes:

    • SE-2200 Processor
    • SE-2200 Control Panel


  • GTIN:

    0672255005354
