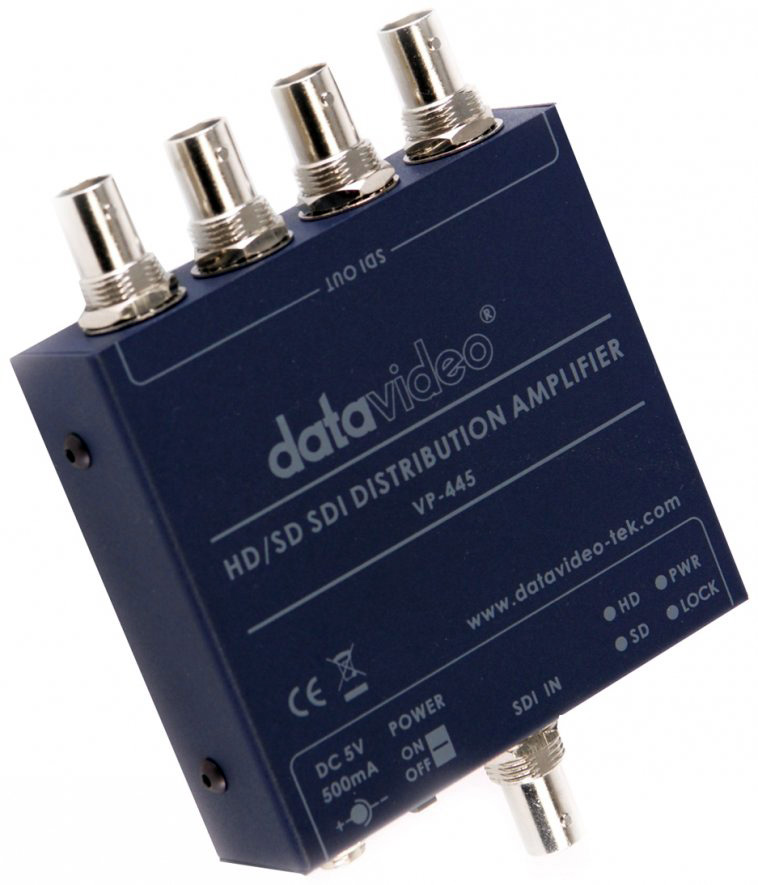

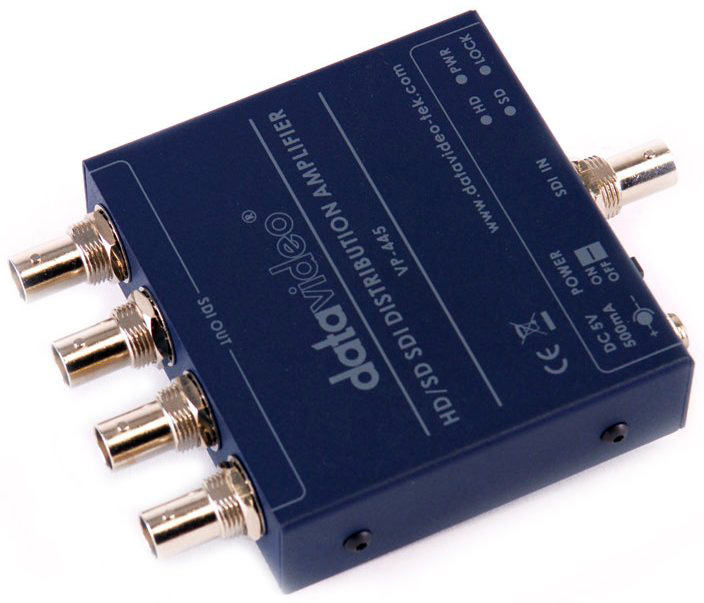

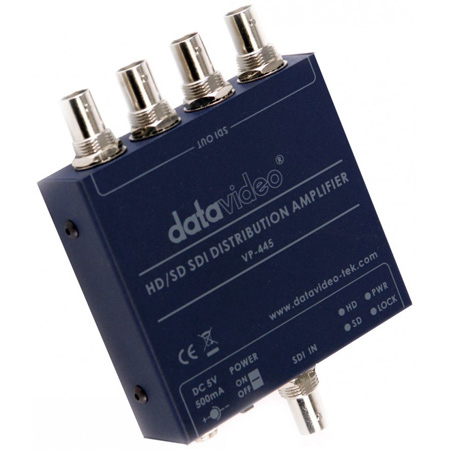

Datavideo VP-445 1x4 HD/SD SDI Distribution Amplifier

ITEM #: DV-VP445 MFG #: VP-445

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DV-VP445

VP-445 - Overview

Datavideo's VP-445 Distribution Amplifier will distribute (1) SD-SDI or HD-SDI signal to up to (4) outputs. The unit works in either one of these formats, but is not capable of converting between them. It features a small footprint convenient for use in any setup and a mounting bracket is included to facilitate installation.

  • Features:

    • SD / HD SDI Distribution Amplifier
    • SD / HD Auto Detect with LED Indicator
    • LED Power and Signal Lock Indicator
    • Compact design
    • Built in mounting plate for easy installation
    • Locking 2.1mm in-line DC In socket


  • Specifications:

    • Video Input: BNC (75C) SDI inc. Embedded Audio
    • Video Output: 4 x BNC (75C) SDI inc. Embedded Audio/Video Signal
      Datavideo VP-445 Video Signal:
      SD:
    • SDI signal (SMPTE-259M, 270Mb/sec)
    • Amplitude: 800 +/- 10%
    • Timing jitter: 0.2 UI
    • Alignment jitter: 0.2 UI
      HD:
    • HD-SDI signal (SMPTE-292M, 1.47GMb/sec)
    • Amplitude: 800 +/- 10%
    • Timing jitter: 0.2 UI
    • Alignment jitter: 1.0 UI
      Audio:
    • Digital : SDI Embedded
      Power Requirement:
    • 12V 300mA (2.1mm In-Line Jack centre positive)


  • GTIN:

    0672255002698
