EXTDVIAUDIOCAT5 - Overview

The Gefen DVI Audio Extender extends your DVI and digital/analog audio up to 200 feet away from your HDTV DVI or HDMI source using cost effective CAT-5 cables.

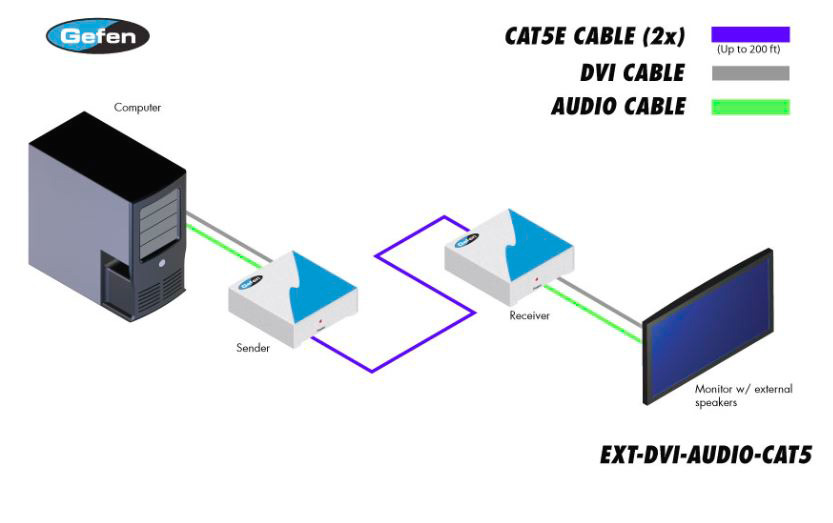

The DVI Audio Extender sender unit sits next to your video source such as computer, DVD player or any set-top box. The cables supplied with the DVI Audio Extender connect your video source/audio source to the sender. Your display/audio receiver plugs into the back of the DVI Audio Extender receiver. Two CAT-5 cables* connect the sender and the receiver units to each other

NOTE:A shielded CAT-5e or CAT-6 cable for DDC is recommended for optimal video quality. The video CAT-5 cable does not need to be shielded.

  • Features:

    • Extends any DVI & Digital or Analog Audio compliant device up to 200 feet from the computer.
    • Uses CAT-5e cable for DDC and control signals.
    • Supports Digital 8.1(DTS, Dolby Digital, etc.).
    • Audio and video are transmitted digitally over the CAT-5e cable for zero signal loss.
    • Supports resolutions up to 1080p, 2K, and 1920 x 1200.
    • Supports DDWG standard for DVI compliant monitors.
    • HDCP compliant.


  • Specifications:

    • Maximum Pixel Clock: 165 MHz.
    • Digital Audio Input/Output: S/PDIF (Digital Coax), Optical TOSlink.
    • Analog Audio Input/Output: RCA Left and Right.
    • S/PDIF (Digital Coax): 96 kHz Performance.
    • Video Amplifier Bandwidth: 165 MHz.
    • Single Link Range:1080P/1920 x 1200.
    • Input Video Signal:1.2 volts p-p.
    • Input DDC Signal: 5 volts p-p (TTL).
    • Input/Output DVI Connector: DVI-I (29 pin) female, Supports ONLY Digital Signals.
    • Link Connector: RJ-45.
    • Power Supply: (2) 5Vdc Power Supplies / 10W each power consumption (max).
    • Dimensions: 3.3"D x 5.5"W x 1"H.
    • Shipping Weight: 5 Lbs.


  • GTIN:

    0845344001715
