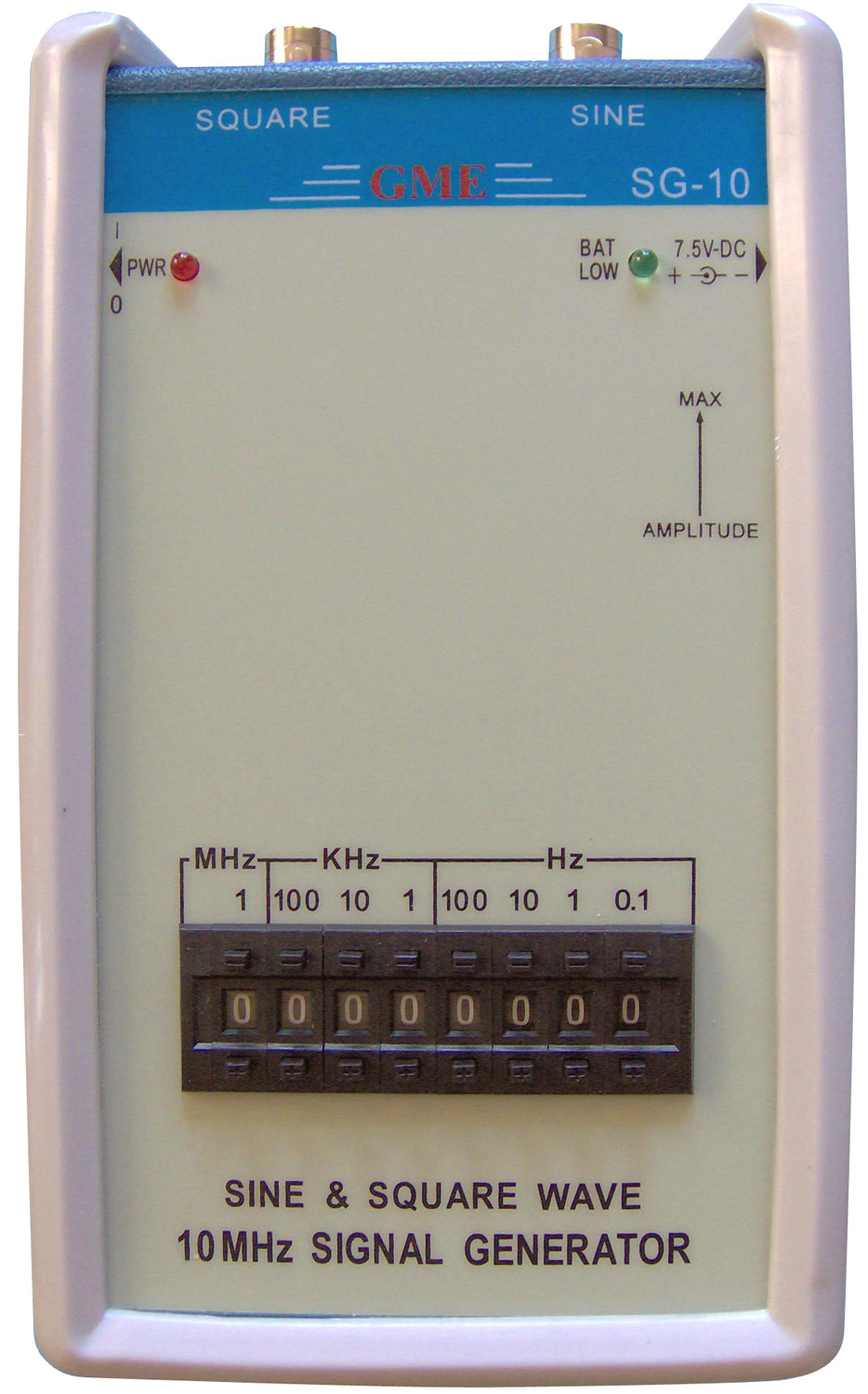

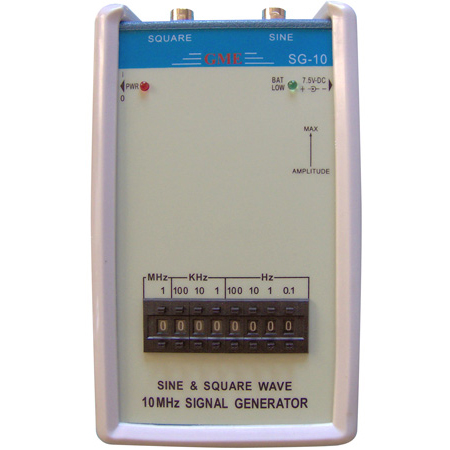

Handheld 10MHz Signal Generator With 2 BNC Output Connectors

ITEM #: GME-SG10 MFG #: SG-10

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the GME-SG10

SG-10 - Overview

Model SG-10's architecture is based on the latest advances in DDS technology. Microprocessor control delivers clean and accurate DC to 10MHz waveforms with frequency accuracy of 0.02% and 0.1 Hz frequency resolution. Features eight push wheel switches for accurate and simple frequency setting. Two BNC connectors for sine and square wave output. Variable sine wave amplitude control. User friendly interface for easy operation.

  • Features:

    • 10 MHz waveform for sine and square wave .
    • DDS technology with microprocessor control for clean and accurate waveform
    • Standard BNC connectors for sine and square wave output
    • Variable sine wave amplitude control
    • Eight push wheel switches for frequency setting
    • Low battery indicator


  • Specifications:

    • Waveforms: Sine, Square
    • Range: DC to 9.9999999 MHz
    • Frequency Resolution: 0.1 Hz steps
    • Accuracy: 0.02%
    • Sine wave: 5Vp-p (no load) with variable amplitude control
    • Square wave: 5Vp-p . Output impedance: 50 ohm
    • Power: Standard 9V battery or external AC adapter
    • Dimensions: 5.7_h(H) x 3.8_h(W) x 1.5_h(D)


  • GTIN:

    0761691287582
