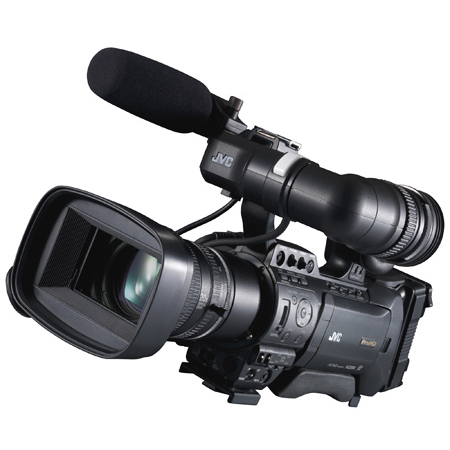

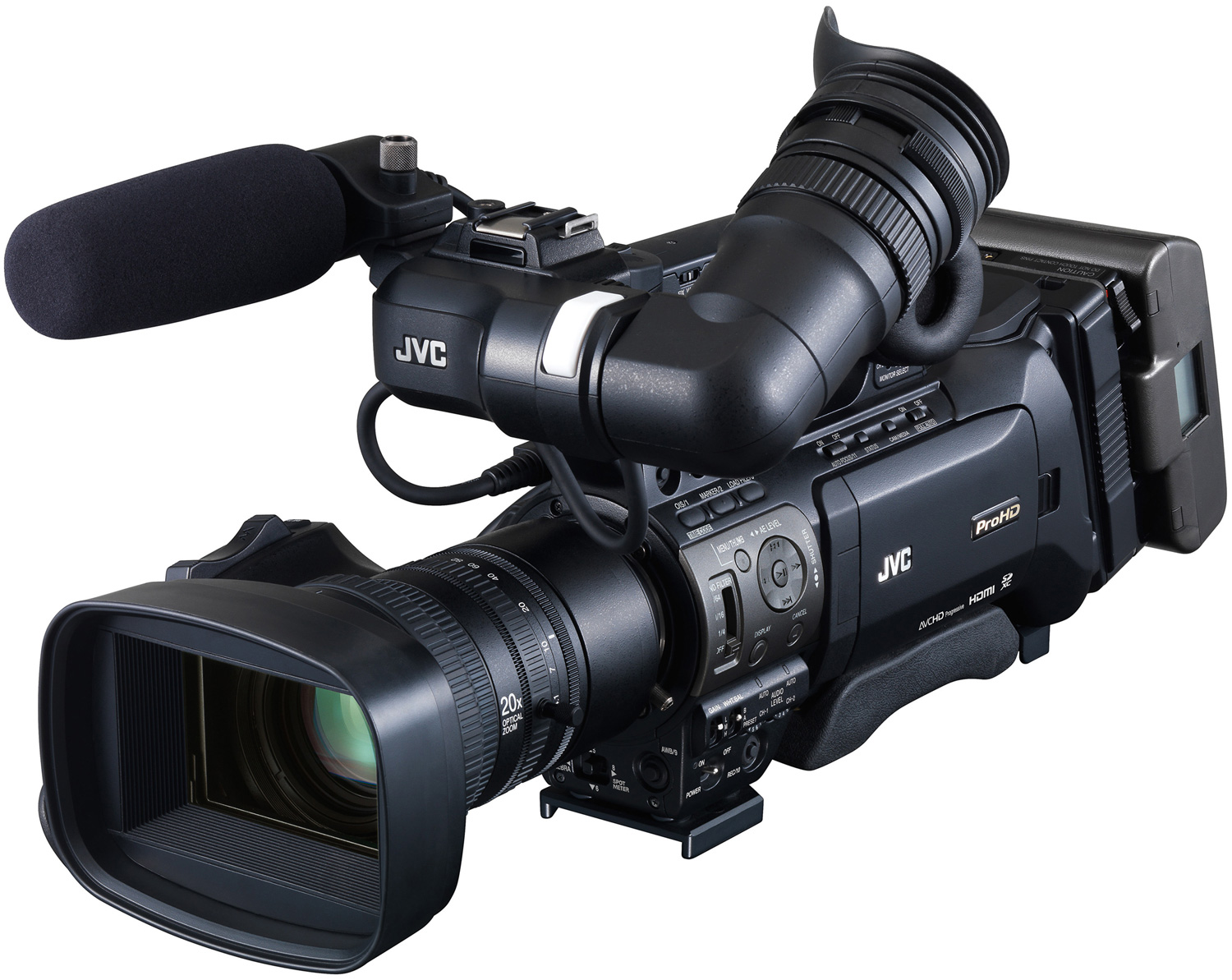

JVC GY-HM850U ProHD Compact Shoulder Mount Camera with Fujinon 20x Lens

ITEM #: JVC-GY-HM850U MFG #: GY-HM850U

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the JVC-GY-HM850U

GY-HM850U - Overview

Whether you're shooting news, commercials, sports, documentaries or special events, JVC's new GY-HM850U is your first choice in an affordable high-performance shoulder camera. Its new 3-CMOS optical system delivers pristine HD images to solid state memory while the camera streams live video and audio via Wi-Fi or a plug-in LTE modem. It features a removable 20x Fujinon auto-focus lens, 4 channels of audio, dual memory card recording, and a new virtually lossless 50 Mbps recording mode. With the GY-HM850, you'll be First On-Air and First On-Line.

  • Features:

    • 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
    • F11 Sensitivity
    • Compact shoulder design with interchangeable lens options
    • Fujinon 20x Optical Zoom Lens with AF/OIS included
    • Dual SDHC/SDXC Memory Card Recording (HD+HD, HD+SD, HD+web, etc.)
    • Multiple File Formats for Native Workflows
    • XDCAM EX (.mp4)
    • Final Cut (.mov)
    • AS-10 (.mxf)
    • AVCHD (.mts)
    • H.264 (.mov)
    • Virtually lossless H.264 50Mbps recording
    • 4 Position ND Filter (Clear, 1/4, 1/16, 1/64)
    • 0.45-inch LCOS Viewfinder
    • High-Resolution 4.3-inch LCD Monitor
    • Histogram Display and Expanded Focus Functions
    • Focus Assist Function
    • 12 assignable user buttons
    • Variable Frame Rate Recording (Over Cranking, Under Cranking)
    • Wired Remote Control Operation
    • Genlock Input and TC Input/Output
    • 4-Channel Audio System


  • Specifications:

    • General
    • Power: DC 12V (10.5V-17V)
    • Power consumption: Approx. 28W (Camera body with provided lens and LCD/VF ON, single recording mode, default settings)
    • Mass:
    • Approx. 4.0kg (8.9lbs.) (without battery)
    • Approx. 4.8kg (10.6 lbs.) (including battery)
    • Operating temperature: 0°C to 40°C (32°F to 104°F)
    • Operating humidity: 35% to 80%
    • Storage temperature: -20°C to 50°C (14°F to 122°F)
    • Storage humidity: Under 85%

    • Camera
    • Image sensor: 1/3" 2.2M pixels progressive scan 3CMOS
    • Synchronizing system: Internal/external synchronization
    • Stabilizer: Optical image stabilizer
    • Lens: Fujinon F1.6-3.0, 20x (interchangeable) f=4.1-82mm (35mm conversion:29 to 580mm)
    • Shutter speed: 1/4 to 1/10000
    • Filter diameter: 72mm
    • Gain: -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC
    • ND filter: Clear, 1/4, 1/16, 1/64
    • LCD display: 4.3" 1.15M pixels
    • Viewfinder: 0.45" 1.22M pixels

    • Video/Audio Recording
    • Recording media: 2x SDHC/SDXC memory card Class 4/6/10 (Class4 for AVCHD and H.264 SD/Web only)
    • Video recording: Video codec: MPEG-2 Long GOP (HD), AVCHD progressive, H.264
    • File format:
    • MOV (HD/SD/WEB), MP4 (XDCAM EX),
    • MTS (AVCHD progressive), MXF
    • NTSC Recording mode:
    • MPEG-2 Long GOP
    • NTSC setting: HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p,
    • 1440 x 1080/59.94i, 1280 x 720/59.94p,
    • 29.97p, 23.98p
    • SP mode: 1440 x 1080/59.94i, 1280 x 720/59.94p
    • PAL recording mode:
    • HQ mode: 1920 x 1080/50i, 25p, 1440 x 1080/50i
    • SP mode: 1440 x 1080/50i, 1280 x 720/50p
    • AVCHD
    • NTSC setting:
    • Progressive mode (Max 28Mbps): 1920 x 1080/59.94p
    • HQ mode (24Mbps): 1920 x 1080/59.94i
    • SP mode (17Mbps): 1920 x 1080/59.94i
    • LP mode (9Mbps): 1440 x 1080/59.94i
    • EP mode (5Mbps): 1440 x 1080/59.94i
    • PAL setting:
    • Progressive mode (Max 28Mbps): 1920 x 1080/50p
    • HQ mode (24Mbps): 1920 x 1080/50i
    • SP mode (17Mbps): 1920 x 1080/50i
    • LP mode (9Mbps): 1440 x 1080/50i
    • EP mode (5Mbps): 1440 x 1080/50i
    • HD (H.264)
    • NTSC setting: XHQ mode: 1920 x 1080/59.94p, 59.94i, 29.97p, 23.98p (50Mbps)
    • UHQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p (35Mbps)
    • PAL setting: UHQ mode: 1920 x 1080/50p, 50i, 25p (50Mbps), 1920 x 1080/50i, 25p (35Mbps)
    • SD (H.264)
    • NTSC setting: 720 x 480/59.94i (GY-HM850U/HM890U only)
    • PAL setting: 720 x 576/50i (GY-HM850E/HM890E only)
    • Web (H.264)
    • NTSC setting: HQ mode (3Mbps): 960 x 540/29.97p, 23.98p
    • LP mode (1.2Mbps): 480 x 270/29.97p, 23.98p
    • PAL setting: HQ mode (3Mbps): 960 x 540/25p
    • LP mode (1.2Mbps): 480 x 270/25p
    • Audio recording: LPCM 2ch/4ch, 48kHz/16-bit (MPEG-2 Long GOP/H.264), AC3 2ch (AVCHD), æ-law 2ch (Web)

    • Interface
    • Video input: SDI input (BNC x1) (GY-HM890 only)
    • Video output: Composite output (BNC x 1), 3G SDI output (BNC x 1), HDMI output x 1
    • Audio input: XLR 3-pin x 2, (MIC,+48V, LINE)/f3.5mm mini jack x 1
    • Audio output: RCA x 2
    • Headphone: f3.5mm mini jack x 2
    • Genlock input: BNC x 1
    • Time code input/output: BNC x each 1
    • Remote: DIN 6-pin x 1/f2.5mm mini jack x 1
    • USB: HOST x 1 (Network connection)/DEVICE x 1 (Mass storage)
    • DC input: XLR 4-pin x1
    • Provided Accessories: Microphone x 1


  • GTIN:

    0046838069062
