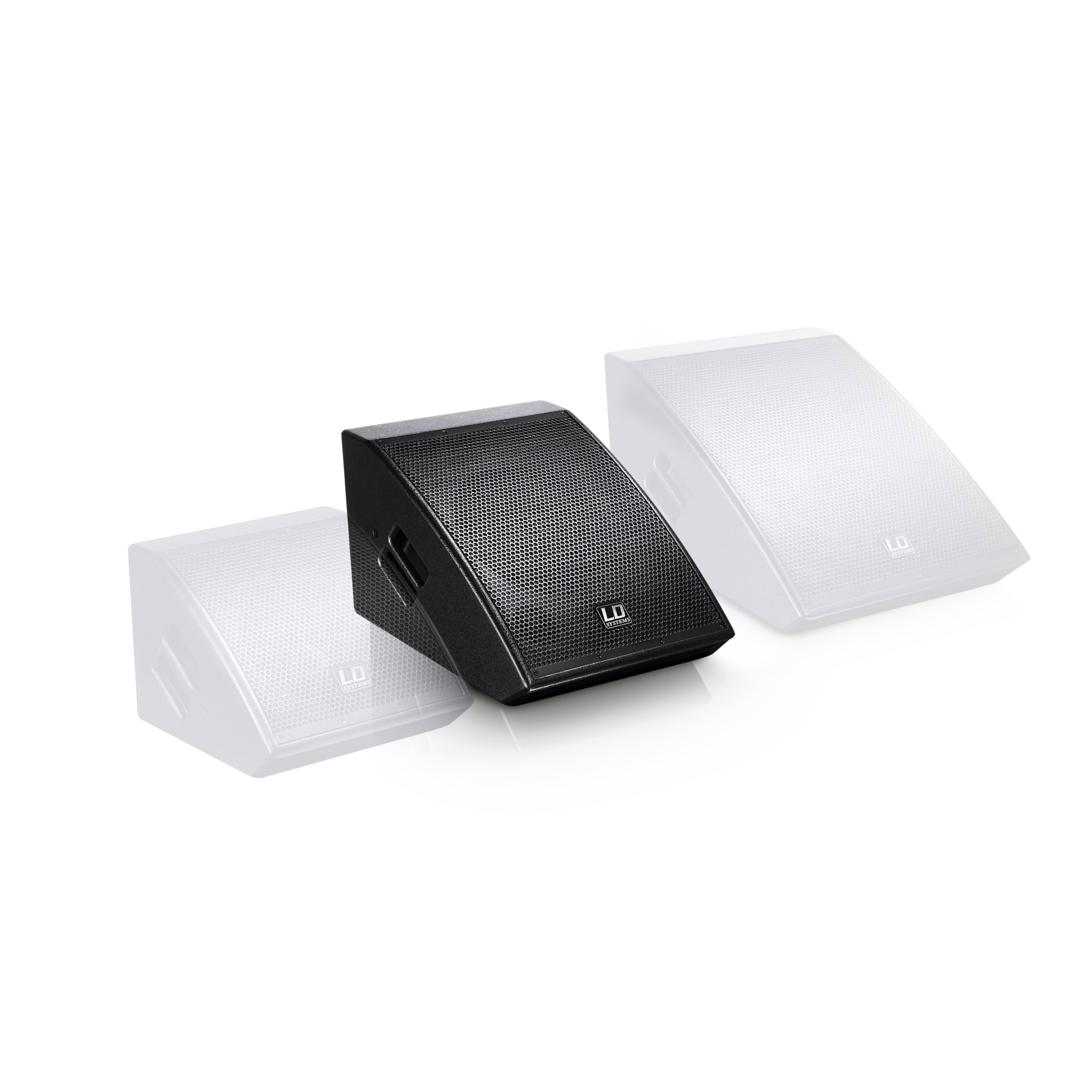

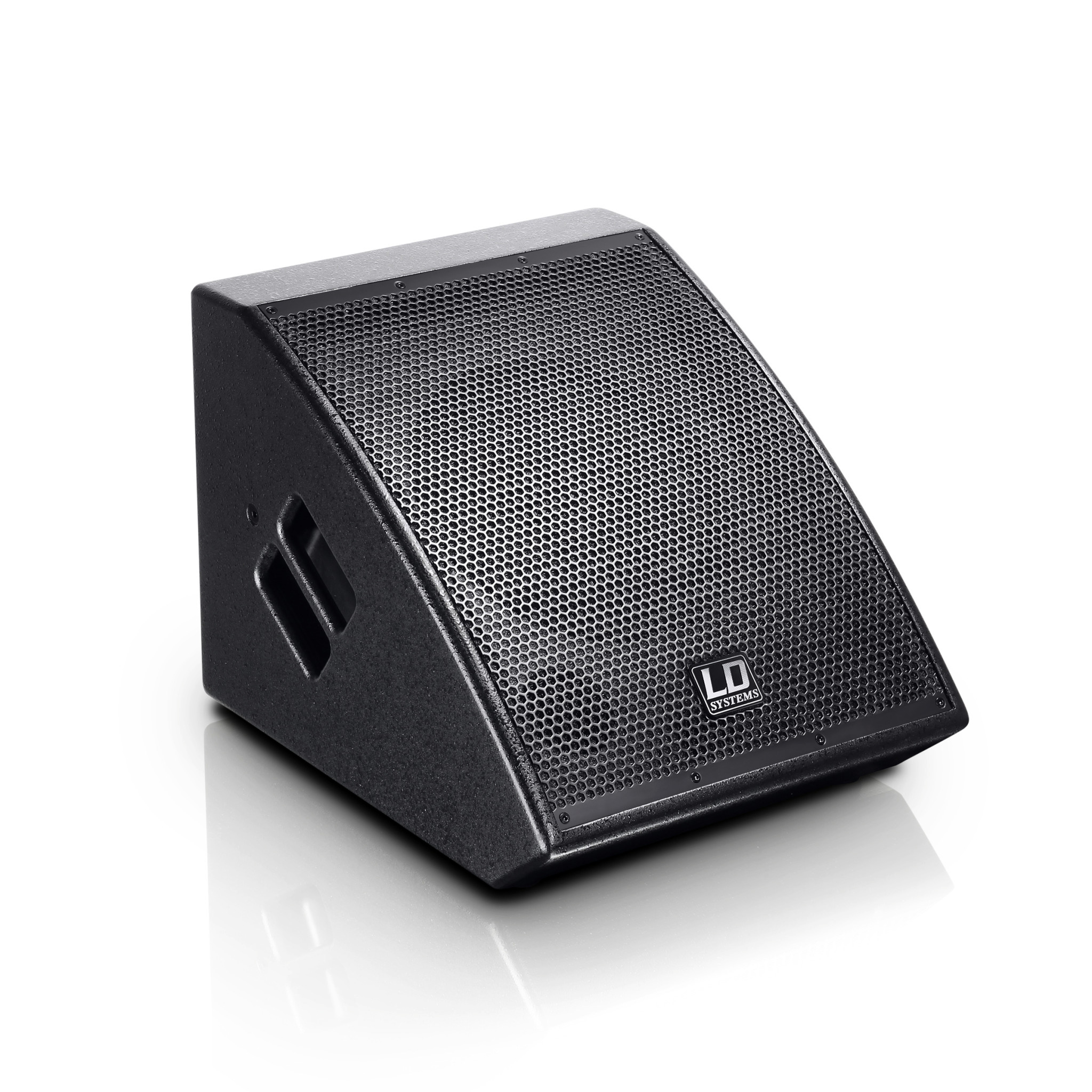

LD Systems MON101AG2 - 10 Inch Active Stage Monitor

ITEM #: LDS-MON101AG2 MFG #: MON101AG2

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LDS-MON101AG2

MON101AG2 - Overview

The LD Stinger MON101AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 121dB for versatile use on stage. The 10" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output of 600W Peak. Short-circuit protection and a limiter ensure dependable operation.

  • Specifications:

    • Product type: stage monitors
    • Type: active
    • Low/mid driver dimensions: 10"
    • Low/mid driver dimensions (mm): 254mm
    • Woofer type: coaxial loudspeaker
    • Woofer magnet: Ferrite
    • Woofer brand: Custom-made
    • Woofer voice coil: 2"
    • Woofer voice coil (mm): 50.8mm
    • HF driver dimensions: 1"
    • HF driver dimensions (mm): 25.4mm
    • HF driver magnet: Ferrite
    • HF driver brand: Custom-made
    • HF driver voice coil: 1"
    • HF driver voice coil (mm): 25.4mm
    • Amplifier: Class A/B
    • Dispersion (H x V): 75 x 75°
    • RMS: 150W
    • Peak power: 600W
    • Frequency response: 90 - 20000Hz
    • Crossover frequency: 3300Hz
    • SPL (1W/1m): 99dB
    • Max. SPL (continuous): 113dB
    • Max. SPL (peak): 121dB
    • Protection circuits: limiter, short circuit
    • Controls: On / Off, volume
    • Display: limit, signal, Power
    • Line Inputs: 1
    • Line input connectors: XLR, 6.3 mm Jack
    • Line Outputs: 1
    • Line output connectors: XLR
    • Operating voltage: transformer, 230 V AC / 50-60 Hz
    • Cabinet material: 15 mm Plywood
    • Cabinet construction: vented
    • Monitor angle: 35°
    • Width: 380mm
    • Depth: 335mm
    • Height: 398mm
    • Weight: 15.3kg

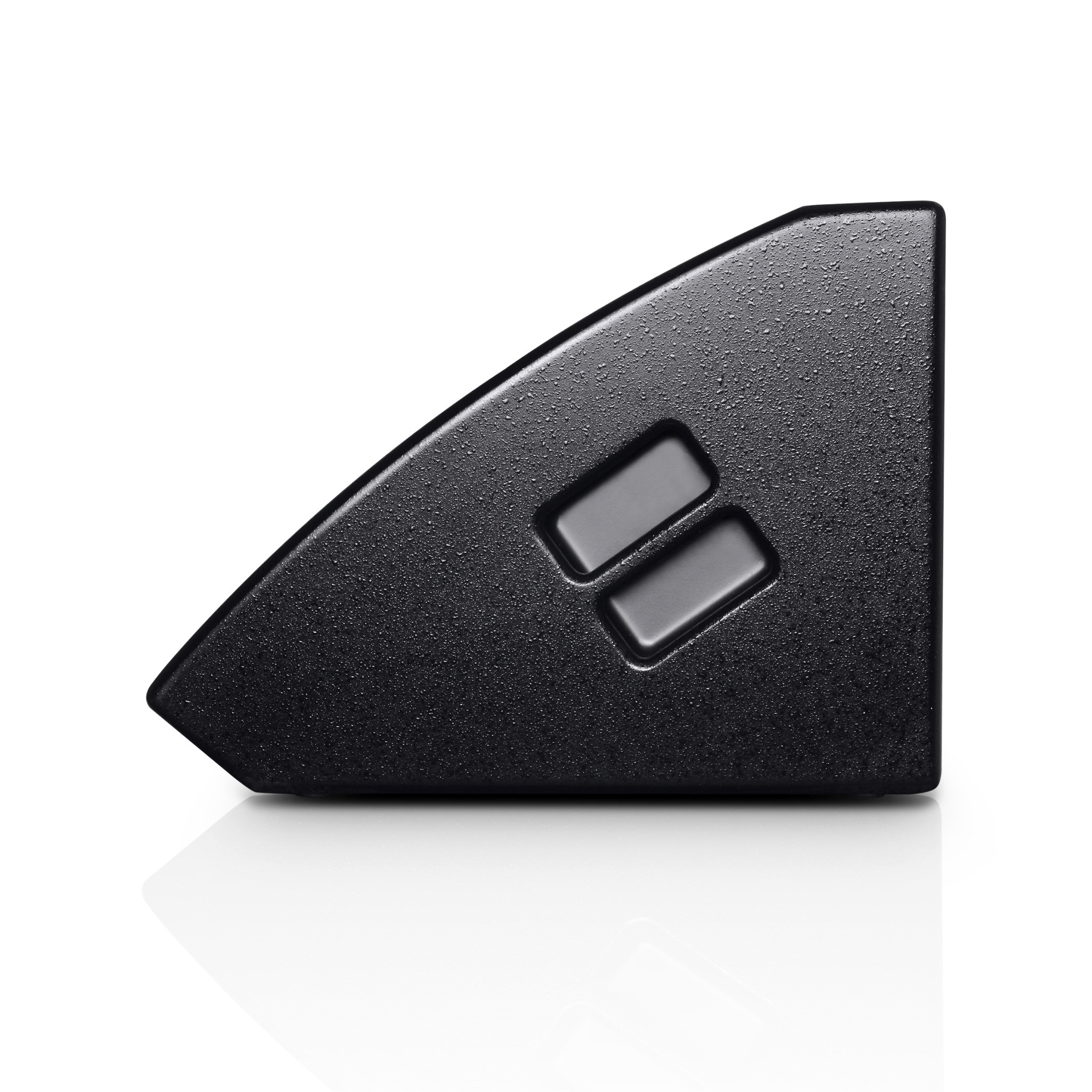

    • Features: ergonomically shaped insert handles

  • GTIN:

    4049521159381
