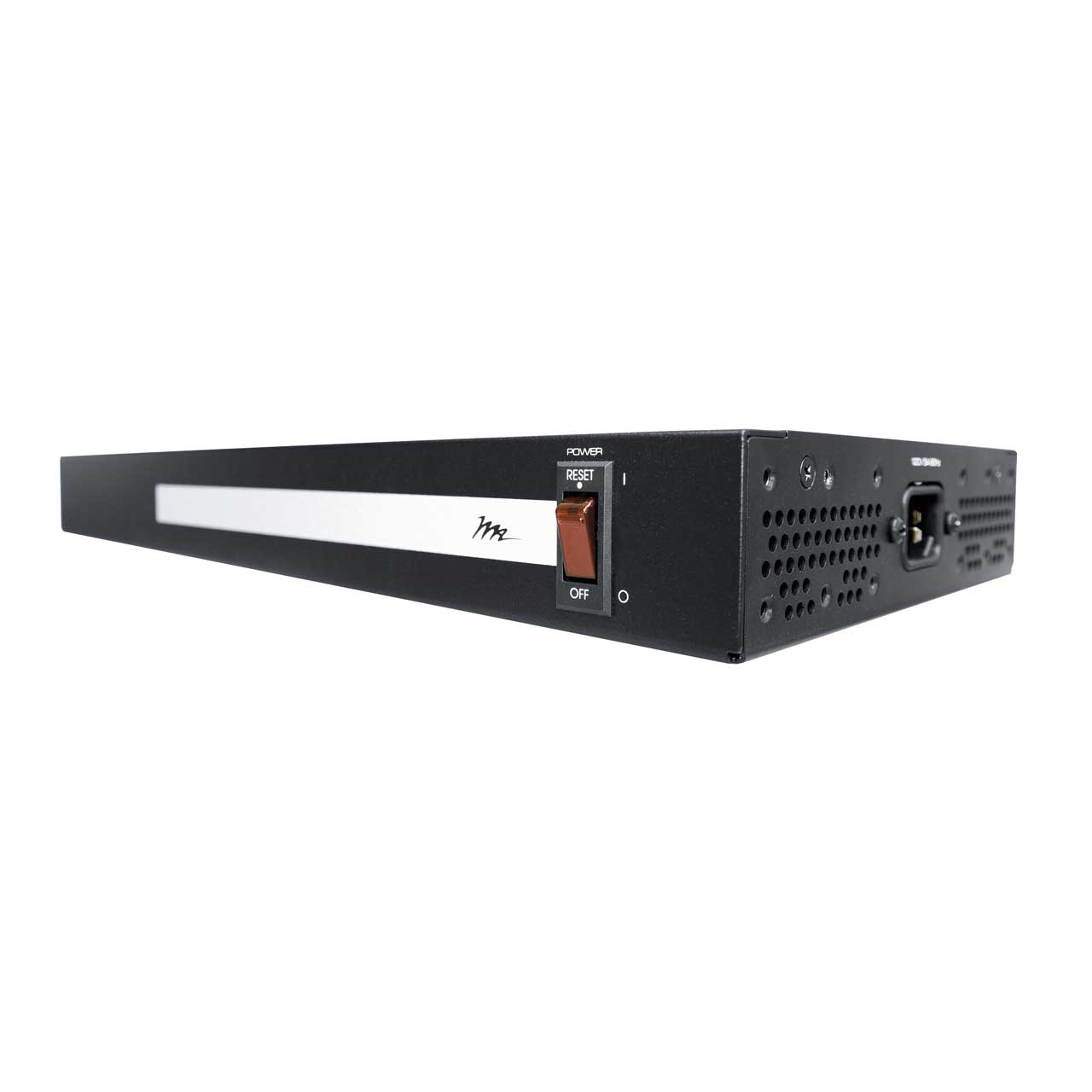

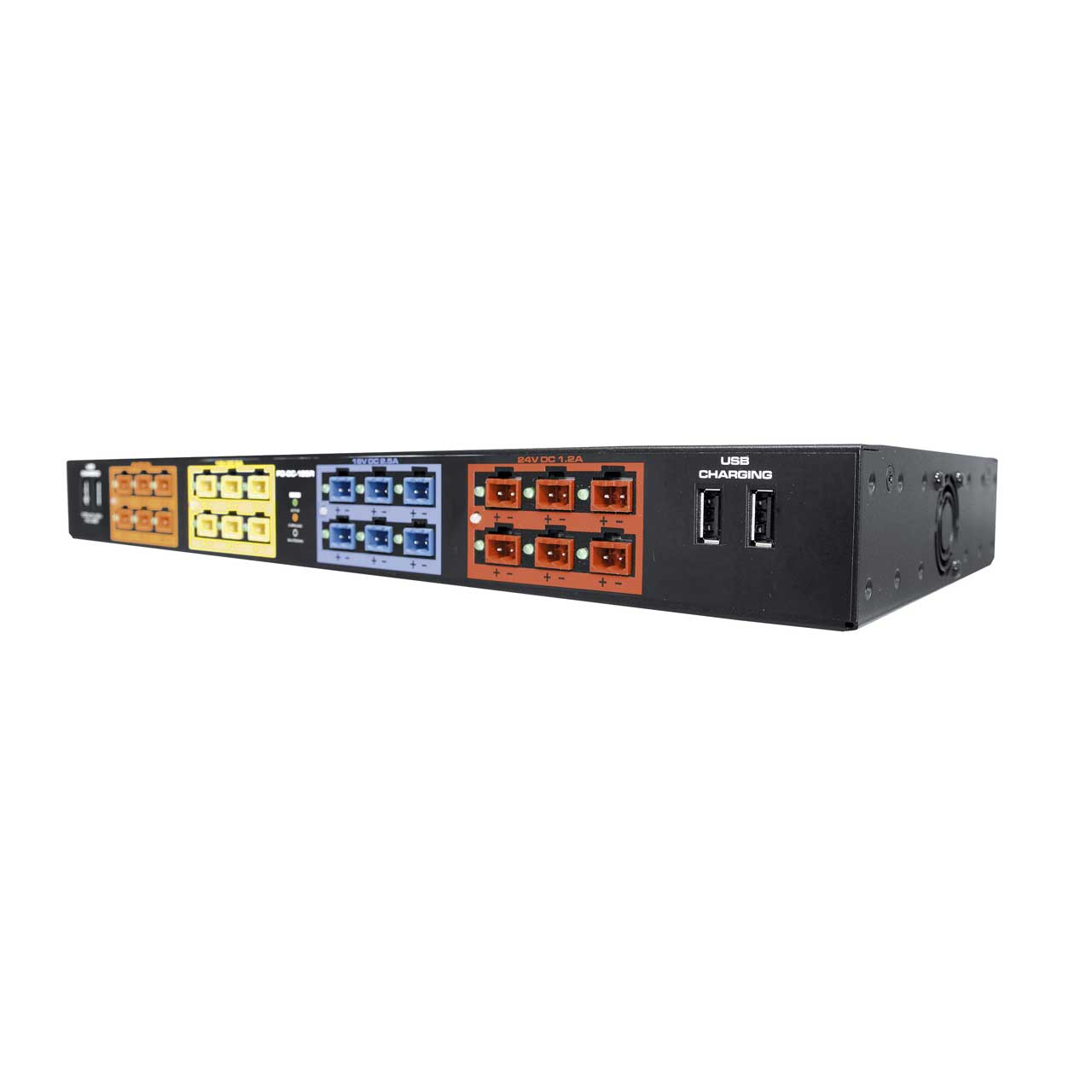

Middle Atlantic PD-DC-125R 125 Watt Rackmount DC Power Distribution System

ITEM #: MAP-PD-DC-125R MFG #: PD-DC-125R

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$700.00

Our Price:

$630.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


PD-DC-125R - Overview

Replace Messy, Space Hogging Wall Warts and Power Strips with a Universal DC Power Solution!

Eliminate wall warts and other power clutter in your AV, networking or security installations with DC Power Distribution, the perfect universal power solution for most DC powered devices like extenders, scalers, converters, and media players. With flexible mounting options, DC Power Distribution can be placed within typical rack units, small enclosures or wall boxes. This space-saving solution is intuitive to install with a color-coded screw terminal connector platform and polarity labeling. Utilize DC Power Distribution to streamline your install by allowing leads to be trimmed to length and by reducing design modifications contributing to additional labor costs.

  • Features:

    • Multiple voltage outputs of 5V, 12V, 18V, and 24V) supported in a single box form factor
    • Color-coded screw terminal connectors with industry standard voltages and polarity labeling for easy identification
    • Reliable multi-level protection on both AC input and DC outputs
    • USB ports provided to conveniently power compatible products
    • 45W DC compact and 125W DC 1 RU systems support a wide range of applications from small systems in tight spaces to enclosures in large distributed systems
    • LED indicator lights showing activity on each output and alerting maximum capacity on each voltage bank
    • Hardware kit includes flexible mounting hardware, color-coded screw terminal connectors to connect devices, and a 6ft IEC power cord

  • Specifications:

    • Line Voltage: 120VAC/60Hz (Min. 100Vac, Max. 132VAC)
    • Current Rating: 5A AC
    • Maximum Power Rating: 600W (DC Outputs Fully Loaded)
    • AC Input Connector: IEC C-14
    • Power Cord Length: 6 Feet
    • Surge Protection: MOV, Mode L-N, Clamping Voltage 595V
    • Total DC Output Current: 11.2A
    • Total DC Output Power: 125.3W
    • DC Output Over Current Protection: Automatically Resetting PTC Fuse on Each Output
    • Idle Current: 0.250A AC

  • GTIN:

    0656747258367
