500481-I - Overview

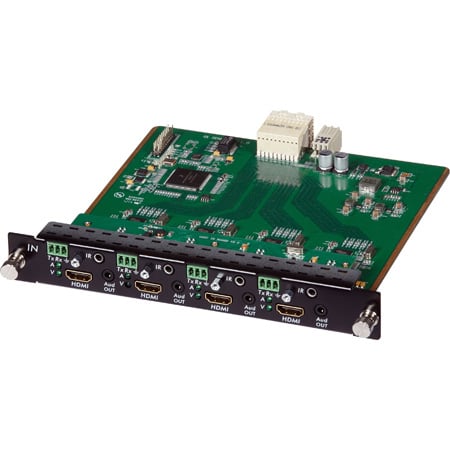

The 4 channel HDMI/RS232 input card, UHD-4K supports four (4) HDMI input ports up to 4K (3840 x 2160) @ 30fps (4:4:4), four (4) RS232 ports and four (4) IR ports. Any of the four (4) HDMI input ports may be switched, via the 500480 4K60 Multimedia 16×16 Matrix Switch, to any of the mounted output ports (up to 16 modular output ports may be mounted - 4 modular cards of 4 ports each). HDMI input ports may be switched to HDMI or HDBT output ports. RS232 and IR commands may be send to the 500480 4K60 Multimedia 16×16 Matrix Switch and transmitted through any of the respective four (4) RS232 and IR ports on the card to control end devices.

  • Features:

    • Four (4) HMDI input ports, and four (4) RS232 and IR output ports
    • Supports resolutions up to 4K (3840 x 2160) @ 30fps (4:4:4)
    • Supports RS232 and IR transmission to control end devices
    • HDMI input ports may be switched to HDMI or HDBT output ports
    • Hot swappable card


  • Specifications:

    • Environment: HDMI 1.4a, HDMI 2.0a, 3D Support, HDBT

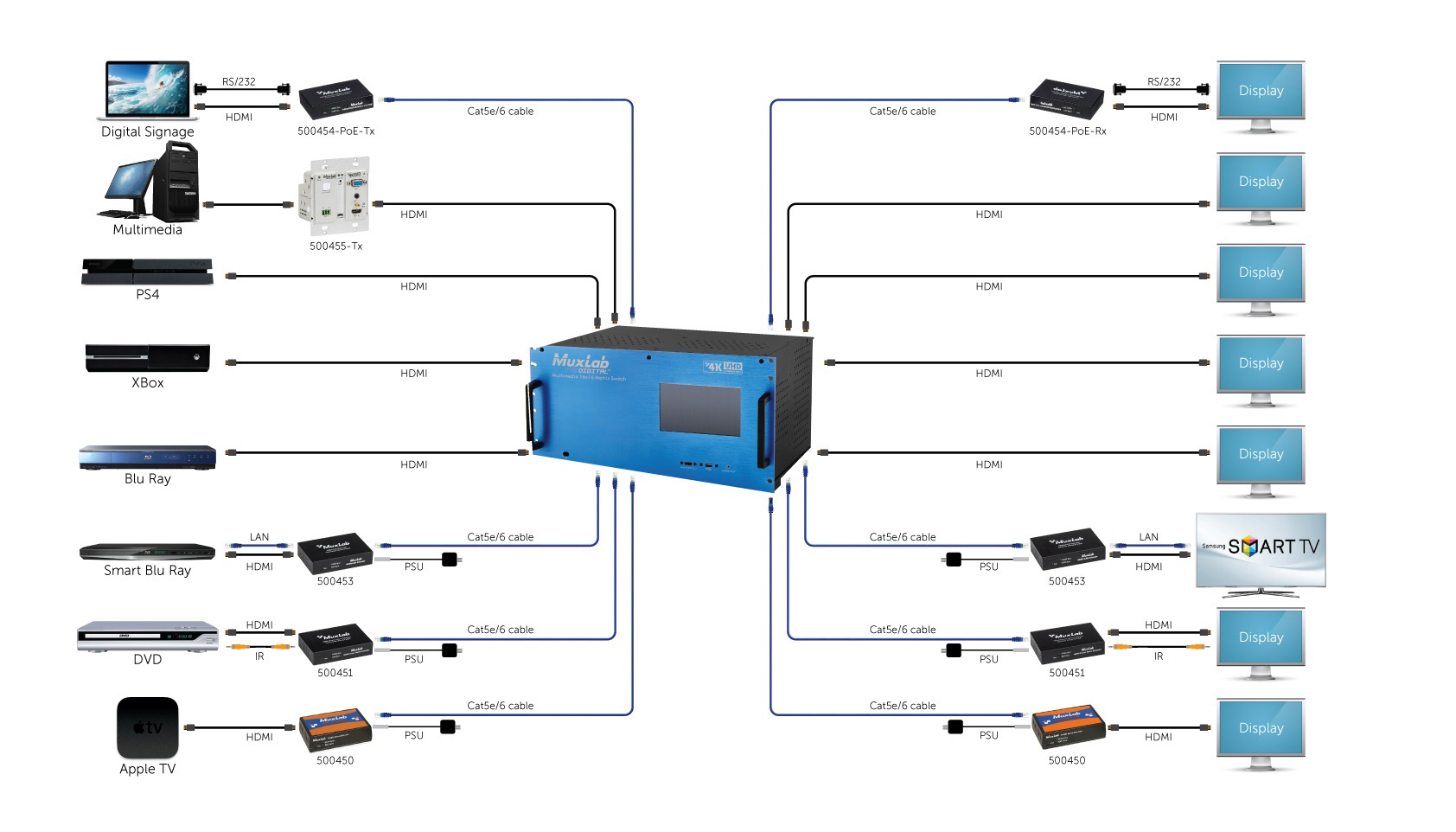

    • Devices: HD screens, DVD and Blu-Ray players, monitors, projectors, PCs, laptops, home theatre systems, game consoles.
    • Transmission: Transparent to the user
    • Switching Configurations: 4x4, 4x8, 4x12, 4x16, 8x4, 8x8, 8x12, 8x16, 12x4, 12x8, 12x12, 12x 16,16x4,16x8, 16x12, 16x16
    • Management: Front LCD touch panel control, RS232, USB, IR, Webserver and third party control systems
    • Input Slots: 4 slots supporting 4-port modular input card; HDMI, HDBaseT
    • Output Slots: 4 slots supporting 4-port modular output card; HDMI, HDBaseT
    • Connectivity: Ethernet LAN (RJ45), USB (Type B), IR (3.5mm jack), RS232 (DB9), 2 Dry-contact relays
    • Maximum Distance (over Cat5e/6 UTP/STP): HDBT/LAN Card: 330ft (100m) @ 1080p, and 230ft (70m) @ 4K/30; HDBT Card: 230ft (70m) @ 1080p, and 115ft (35m) @ 4K/30
    • Backplane Bandwidth: Supports up to 18Gbps (HDMI 2.0a)
    • Cables: Cat 5e/6 UTP/STP cables (or better) required for HDBaseT port
    • Power: AC 100-240 V 50/60 Hz
    • Power Supply: Dual Redundant Power Supply; 100-240 VAC to 12 VDC @ 25A (300 W)
    • Display: 7” TFT display with touch screen
    • Temperature Operating: 0°C to 50°C, Storage: -20°C to 85°C, Humidity: Up to 95% non-condensing
    • Dimensions: 6U Rack Mountable: 483 x 267 x 370 mm
    • Weight: 20 lbs. (9.1 kg)
    • Regulatory: FCC, CE, RoHS, WEEE
    • Safety: UL, CUL
    • Warranty: Two (2) years


  • Warranty:

    • 2 Years Part & Labor


  • GTIN:

    0627699014813
