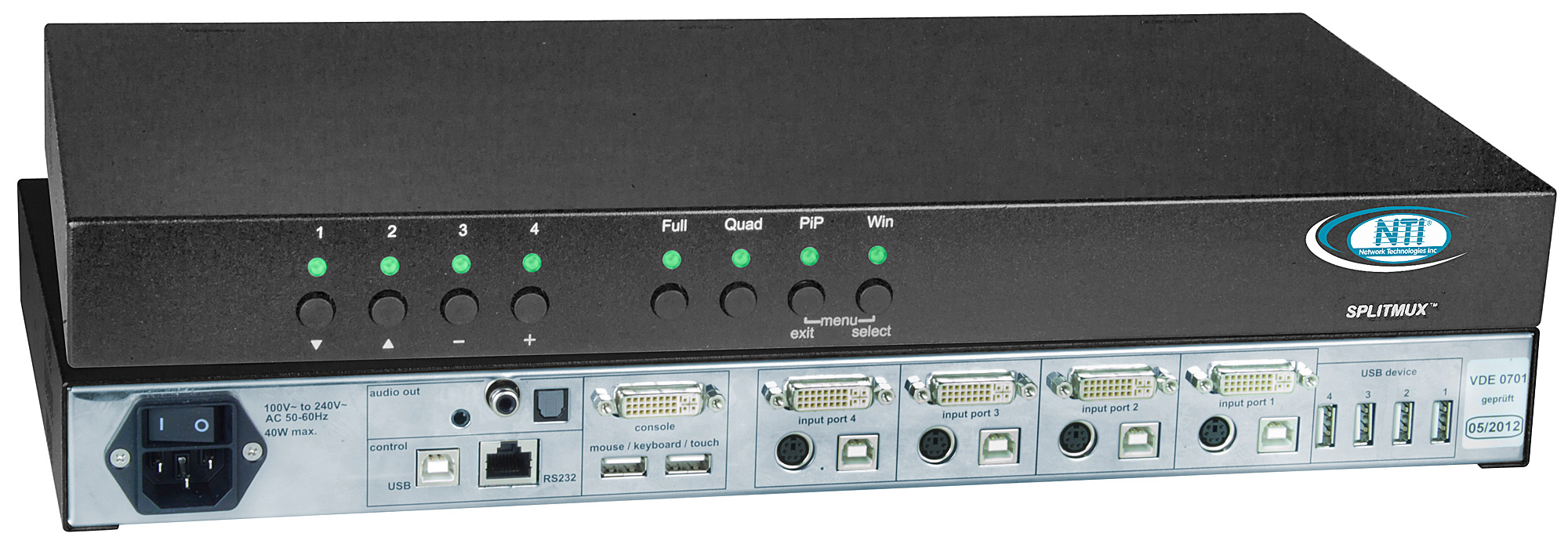

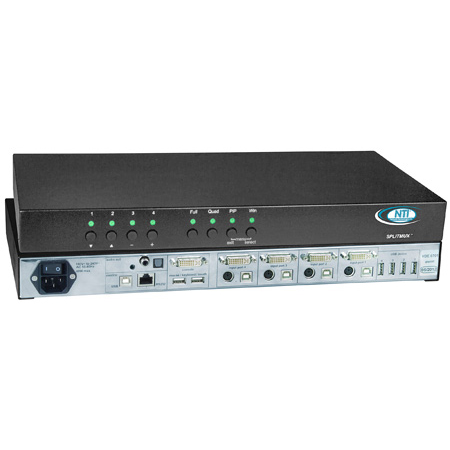

NTI SPLITMUX-DVI-4RT DVI/VGA Quad Screen Multiviewer with Built-In KVM Switch & Real-Time Video

SPLITMUX-DVI-4RT - Overview

• Features:

  • Quad, Picture in Picture, Full Screen, Dual, Fade Through Black, and Win display modes
  • Independent video in to video out resolution
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200
  • Supports digital/analog DVI and analog VGA
  • Connect analog and digital sources to the splitter, and display images on a digital or analog monitor
  • HDCP compliant
  • Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants
  • Rotate the screen display at different angles – 0°, 90°, 180° & 270° (SPLITMUX-DVI-4RT only)
  • Control multiple PCs displayed on a split screen with a single keyboard/mouse - no switching required
  • Switch audio independently of video from HDMI sources connected to the DVI-I port
  • Transmit audio and video over a single cable with the DVI-HDMI-xx-MM male DVI-D to male HDMI cable
  • Touch Screen support – operate connected computers via USB touch screen monitor
  • Control the multiviewer through the front panel interface, keyboard/mouse commands, on screen display (OSD), or RS232
  • Cascade SPLITMUX Quad Screen Splitters to display video from up to 16 video sources on one screen
  • LED indicators on switch show which port is active
  • Built-in 4-port USB hub – switch devices between connected computers
  • Compliant with USB 2.0 (high-speed and low/full speed) standards


• Specifications:

  • Hosts
  • Four female DVI-I connectors.
  • Four female USB Type B connectors.
  • Four female 6-pin miniDIN connectors.
  • Supports USB and PS/2 computers.
  • Boots PCs SUNs and MACs simultaneously.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Supports digital DVI devices, such as DVD players, satellite receivers and HDTV tuners.
  • Any VGA computer can be connected by using a DVI-I to VGA cable (included).


  • Monitor
  • Video resolutions:
  • VGA video: Supports computer resolutions to 1920x1200.
  • DVI video: Supports computer resolutions to 1920x1200 and HDTV resolutions to 1080p.
  • One female DVI-I connector.
  • A VGA monitor can be connected by using a DVI-I to VGA adapter (included).
  • Support for touch screens with the following controllers: Elo AccuTouch 2116, Elo IntelliTouch/SecureTouch 2701, TSharc Octopus, 3M Microtouch EX II, and others.
  • For other controllers, please contact NTI technical support to determine compatibility.


  • Devices
  • Two female USB Type A connectors for keyboard and mouse.
  • Compatible with most USB keyboards and mice.
  • Keyboard and mouse are hot-pluggable.
  • Supports keyboard layouts in multiple languages: English, German, French, Italian, Spanish, and Japanese.
  • Connect legacy PS/2 devices by using a USB to PS/2 converter (included).
  • USB SUN start-up keys are supported.
  • Supports MAC soft (keyboard) power-on.
  • Four female USB Type A connectors for USB peripheral devices (printers, scanners, security cameras, flash drives, etc.).
  • Connect any type of USB device – fully transparent USB connectors.
  • Switch USB 2.0 devices between connected computers.
  • Provides support for high-speed (480 Mbps), full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.


  • Audio
  • Connect external speakers or headphones.
  • Switch audio independently of video from HDMI sources connected to the DVI-I port.
  • One 3.5mm analog stereo jack.
  • One RCA jack.
  • One TOSLINK optical audio jack.


  • Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • Power consumption: 40W.


  • MTBF
  • 320,000 hrs.


  • Environmental
  • Operating temperature: 41°F to 113°F (5°C to 45°C).
  • Storage temperature: 14°F to 140°F (-10°C to 60°C).
  • Operating and Storage Relative Humidity: 5 to 85% non-condensing RH.
  • Dimensions WxDxH (in): 17.17x9.20x1.75.
  • Regulatory Approval:CE, FCC, RoHS, TAA compliant.
  • Rackmount kit included.


  • Cables
  • Four 6.5-foot 6-pin miniDIN Y-cables included.
  • Four 6.5-foot USB male Type A to male Type B cables included.
  • Two 6.5-foot DVI-I male to male cables included.
  • Two 6.5-foot DVI-I to VGA male to male cables included.
  • USB to PS/2 adapter included.
  • DVI-I male to VGA female adapter included.
  • Serial update cable and adapter included.
  • Use DVI-HD-xx-MM DVI-D to HDMI interface cable to connect the video source or display with integrated speakers (not included).


• Item Includes:

  • 1x SPLITMUX-DVI-4RT multiviewer
  • 1x 19" rack mount kit
  • 1x CD that contains the manual and configuration software (ConfDev)
  • 1x country-specific power cable
  • 4x 6.5-ft 6-pin miniDIN Y-cables
  • 4x 6.5-ft USB male type-A to male type-B cables
  • 2x 6.5-ft DVI-I male to male cables
  • 1x USB to PS/2 adapter
  • 1x DVI-I male to VGA female adapter
  • 1x serial update cable and adapter


• Warranty:

  • 2 years
