PreSonus StudioLive 24 Series III 46x26 Digital Mixer with 24 Recallable IMAX Preamps and 24 Channel Strips

ITEM #: PRE-SL-24-S3 MFG #: STUDIOLIVE 24 SERIES III

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PRE-SL-24-S3

STUDIOLIVE 24 SERIES III - Overview

The most powerful mixer in its class

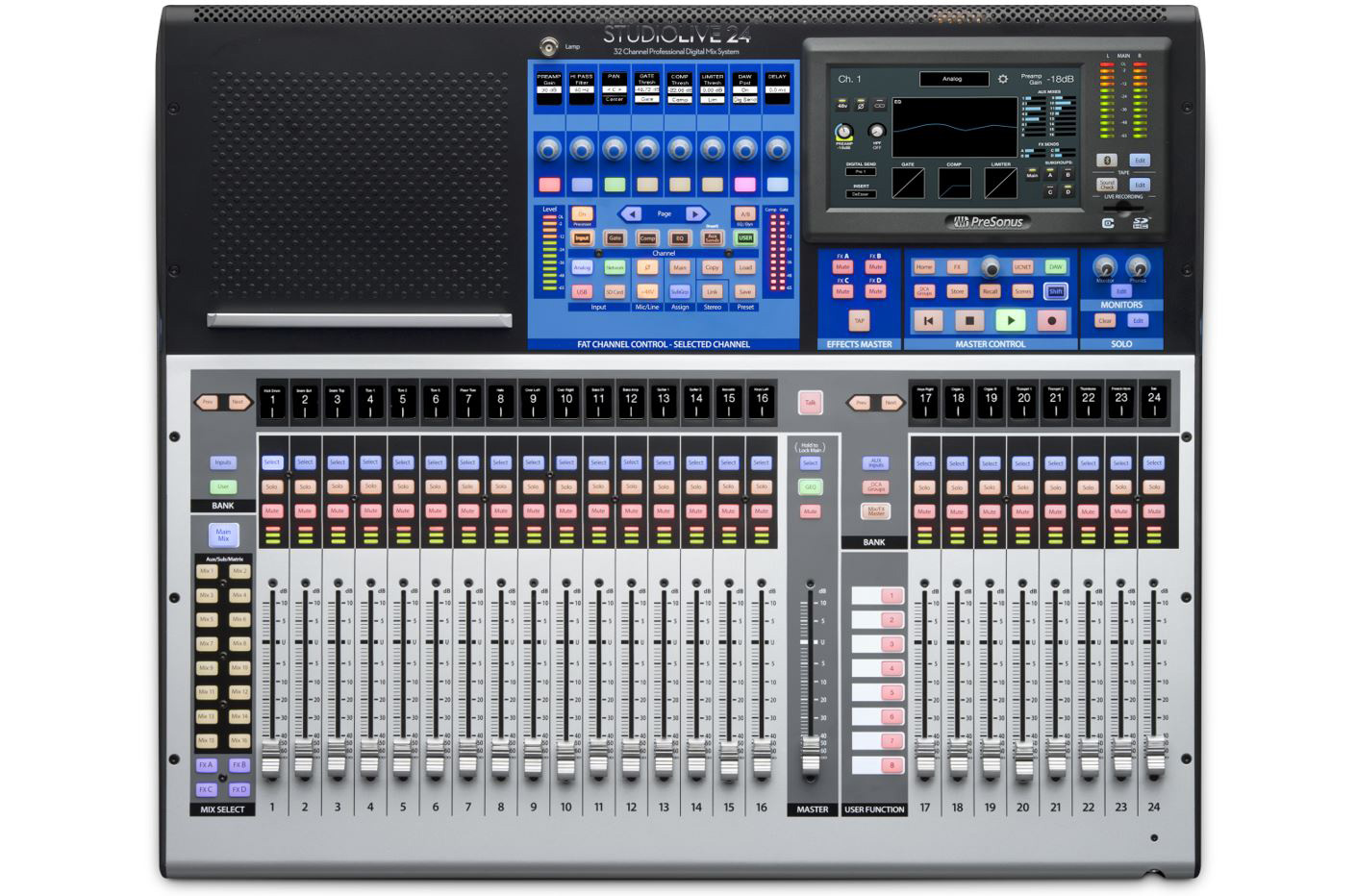

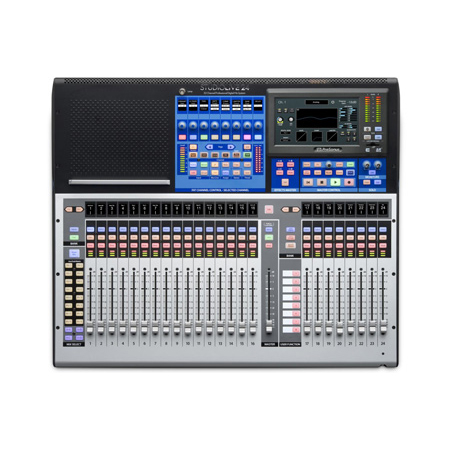

The PreSonus StudioLive 24 digital console/recorder is by far the most powerful mixer in its class. This third-generation StudioLive mixer is fully recallable, with 25 touch-sensitive, motorized faders and 25 recallable XMAX preamps. Yet despite its extensive features, the StudioLive 24 actually improves upon PreSonus' legendary ease of use while letting you customize its workflow and operations. The StudioLive sound is better than ever, including all-new Fat Channel processing, re-engineered from the ground up, and vintage-style EQs and compressors. Add built-in AVB networking, onboard multitrack Capture recording to SD Card, and a complete suite of software, and you have a mixing and recording powerhouse that's equally formidable in live and studio applications.

Integrated multitrack recording and virtual soundcheck - no computer required
PreSonus Capture recording software is an intuitive, rock-solid multitrack recording application with virtual soundcheck. It's installed directly into the StudioLive 24 so you can leave your laptop at home. Capture's one-touch recording makes it easy to record to the StudioLive 24's onboard SD multitrack recorder. When you're finished recording, open your Capture session in Studio One for Mac and Windows (included), and the entire mix scene will transfer to your Studio One session, including fader levels, Fat Channel settings, and, yes, any drum solos that you may have had to endure that night.

A re-envisioned Fat Channel.
The StudioLive 24's Fat Channel has received a major overhaul while continuing to offer digital precision with the heart and soul of analog. Our new Fat Channel implements a plug-in-style workflow that features vintage-style EQ and compression options on every channel, from classic tube limiters to passive EQs. And in addition to channel processing, the StudioLive 24 offers 6-band, fully parametric EQ on all mix outputs. Enjoy extensive, studio-style processing when recording on location or running shows on the road!

Customize scenes and presets in new and powerful ways-including your way
With StudioLive 24, we've upped the ante and given you more flexibility when working with scenes and presets. Mixer scenes now include Scene Safe. Similarly, we've expanded the concept of Fat Channel presets so that presets have, for practical purposes, become like scenes for individual channels, not only saving input and Fat Channel settings but also aux send and bus assignments. Of course you can also use preset filters to choose what you want to recall.

Now Includes Free Studio Magic Plug-in Suite
This suite of plug-ins brings extended sonic functionality into Studio One. Cherry-picked from the first names in virtual instruments and effects, each one brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll find yourself relying on for countless mixes.

  • Features:

    • 25 touch-sensitive, motorized faders 1-to-1 workflow
    • RGB Select buttons with user-assignable colors
    • Transport control
    • All-new Fat Channel controls including
    • 8 scribble strips, encoders, and multicolor buttons
    • Customizable user layer
    • 7-inch color touchscreen
    • 32 total inputs
    • 24 channel inputs: 16 mic, 8 mic/line
    • 1 XLR Talkback mic input with recallable XMAX Class A preamp
    • 2 stereo Aux inputs
    • 10 FlexMix outputs: 6 XLR, 4 balanced TRS
    • Unbalanced stereo (RCA) tape input and output
    • Bluetooth 4.1 wireless tape input
    • Stereo AES/EBU digital output
    • 2 XLR (L/R) Main outputs
    • XLR Main summed mono output
    • 2 TRS monitor outputs
    • Stereo headphone output

  • Specifications:

    • Line Inputs
    • Type: 1/4" TRS Female, balanced
    • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
    • Input Impedance: 10 kΩ
    • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
    • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
    • Maximum Input Level: +18 dBu

      Tape Inputs
    • Type: RCA Female, unbalanced (stereo pair)
    • Maximum Input Level: +12 dBu, ±0.5 dBu

      XLR Outputs
    • Type: XLR Male, balanced
    • Maximum Output Level: +24 dBu, ±0.5 dBu
    • Output Impedance: 100Ω

      Line Outputs
    • Type: 1/4" TRS Female, balanced
    • Maximum Output Level: +18 dBu, ±0.5 dBu
    • Output Impedance: 100Ω

      Tape Outputs
    • Type: RCA Female, unbalanced (stereo pair)
    • Maximum Output Level: +18 dBu, ±0.5 dBu
    • Output Impedance: 100Ω

      Headphone Output
    • Type: 1/4" TRS Female, active stereo
    • Maximum Output: 100 mW/ch. @ 60O load
    • Frequency Response: 20 Hz - 20 kHz (± 0.5 dB)
    • THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
    • S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

  • GTIN:

    0673454006111
