AcousticDesign AD-S32T
(Yoke and ball mounting hardware included)
The AcousticDesign Series of installation loudspeaker products from QSC Audio expands with the new AD-S32T surface mount loudspeaker system. Designed for background and general purpose audio playback, the new AD-S32T is attractive, compact and acoustically matched to the entire AD Series. Rated for 30 Watts continuous power handling and able to handle 120 Watt peaks, the AD-S32T is a fully featured loudspeaker system in a very small package.

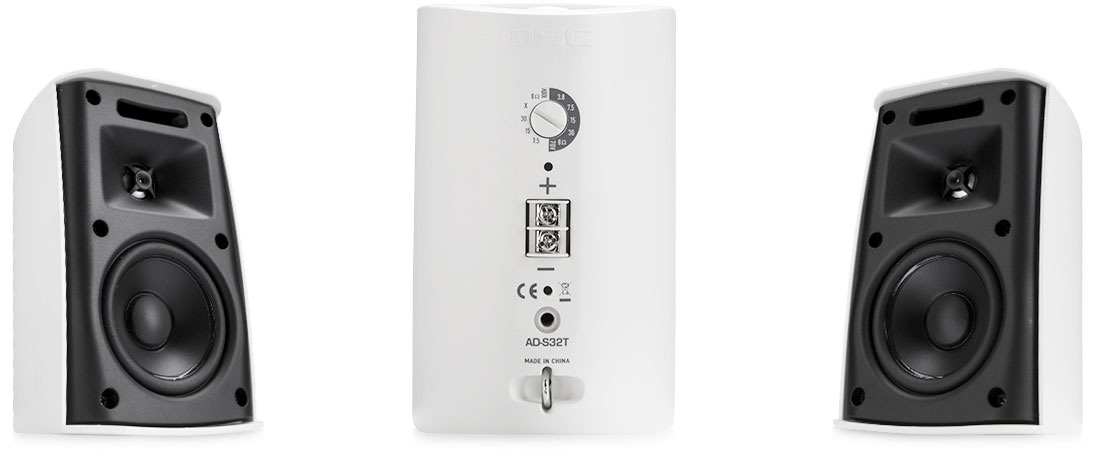

The 3" woofer is equipped with a polypropylene cone for protection in humid environments. The driver features a synthetic rubber surround and is optimized to deliver useable low frequency extension below 70 Hz. An additional humbucking magnet provides AV shielding. The high-frequency device is a 0.75" dome tweeter with a titanium diaphragm and a cloth surround. The dispersion of the high frequency is 100° by 100°. The AD-S32T measures 85 dB SPL sensitivity.

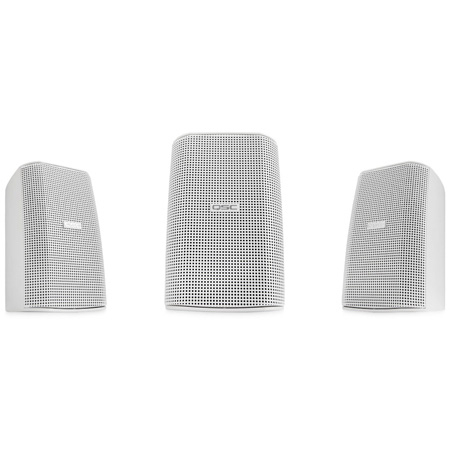

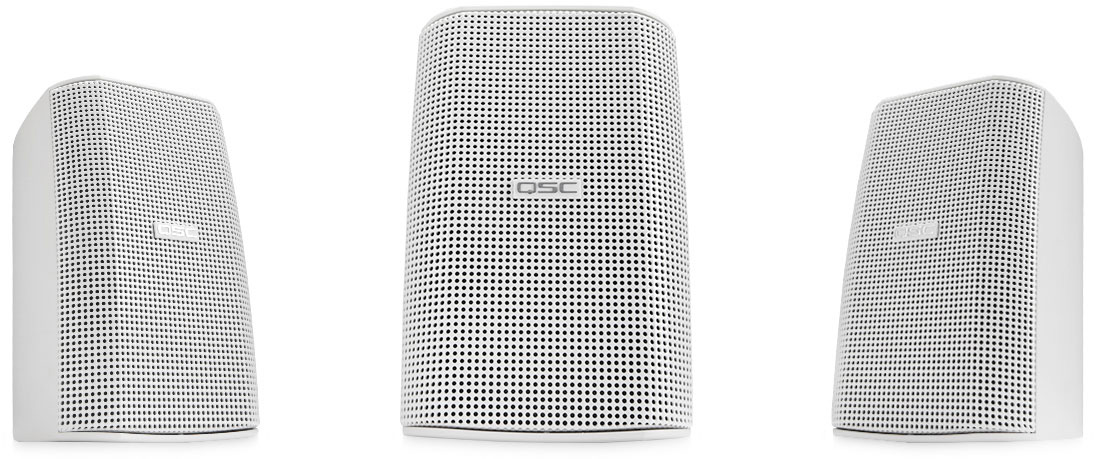

The enclosure is molded from high-impact polystyrene and is available in black or white. The aluminum grille is backed with acoustically transparent foam that provides protection from the elements. Signal input connections are made with plated screw terminals and a sealing weather cover is provided for outdoor applications.

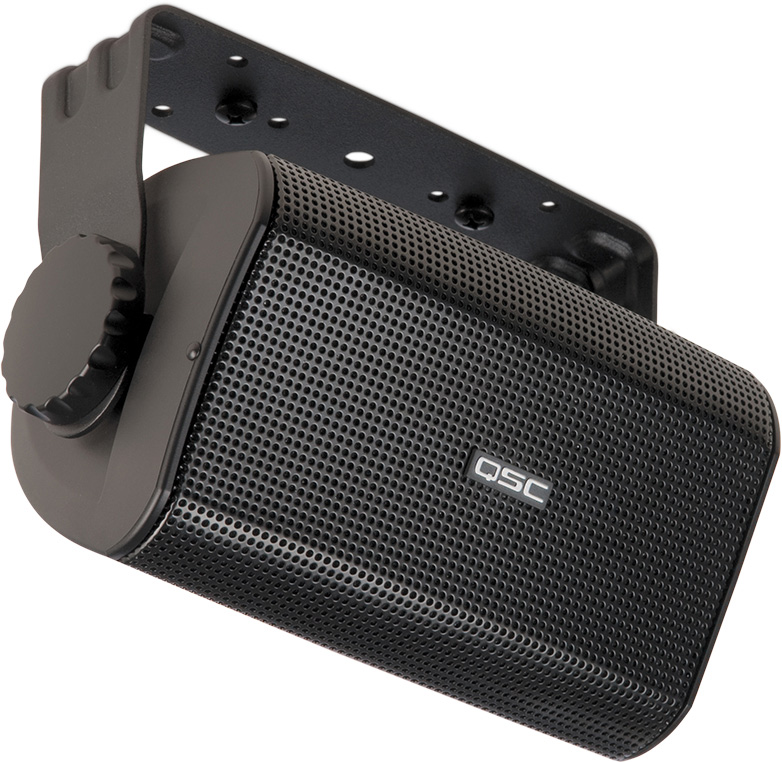

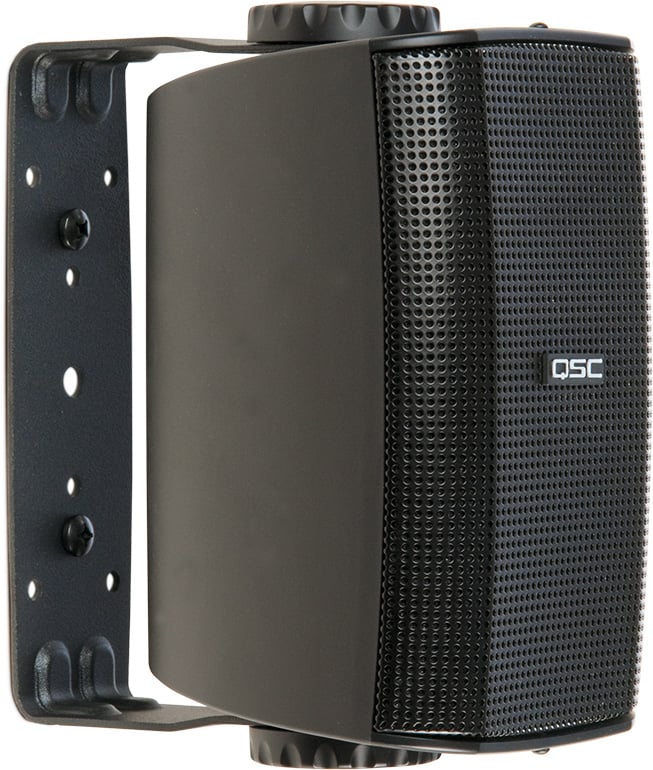

The AD-S32T is unmatched in its installation versatility. An included ball mount assembly can be attached to a variety of surfaces or structures. In addition to attaching to the rear of the cabinet, the ball mount can be attached to the top of the cabinet for mounting to an overhead structure or to the bottom of the cabinet to provide a shelf stand. Also included in the system is an aluminum yoke mount. This mount further enhances the AD-S32T mounting options for either vertical or horizontal installation. The AD-S32T is equipped with a 70/100 volt transformer with multiple taps and an 8 ohm bypass.
