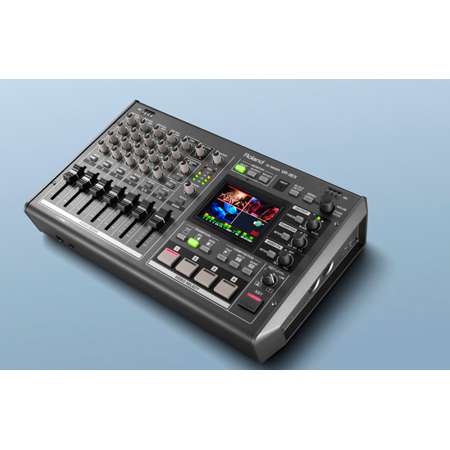

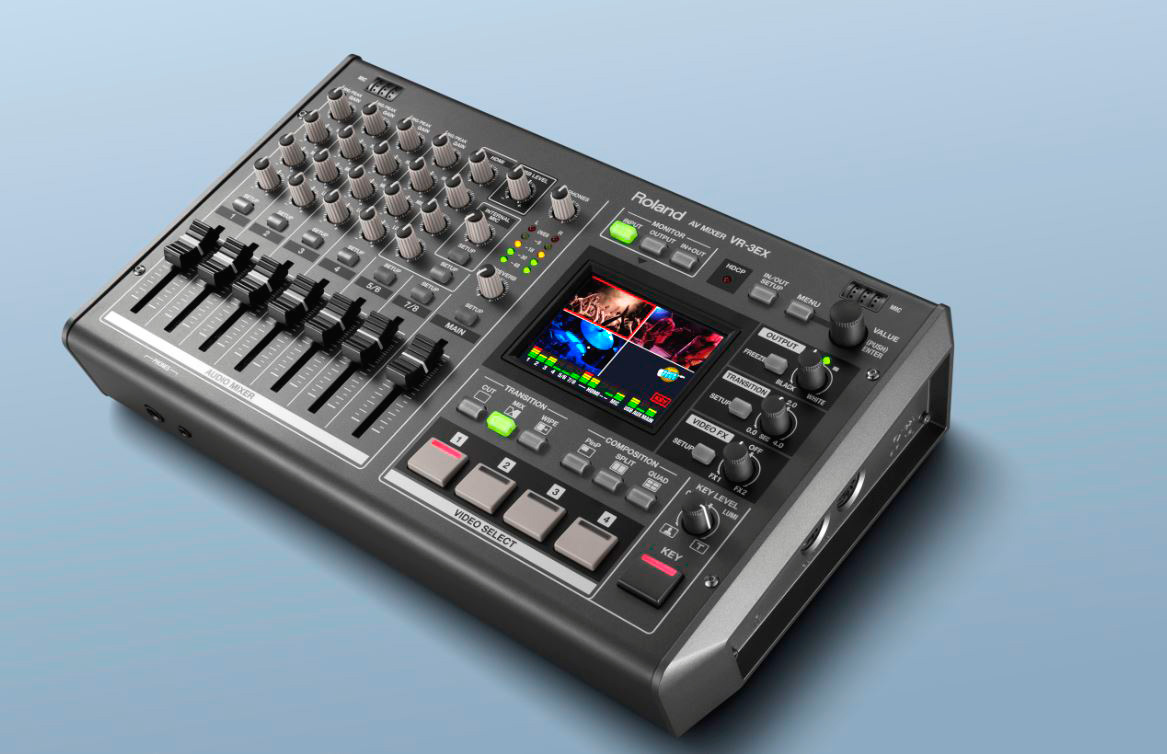

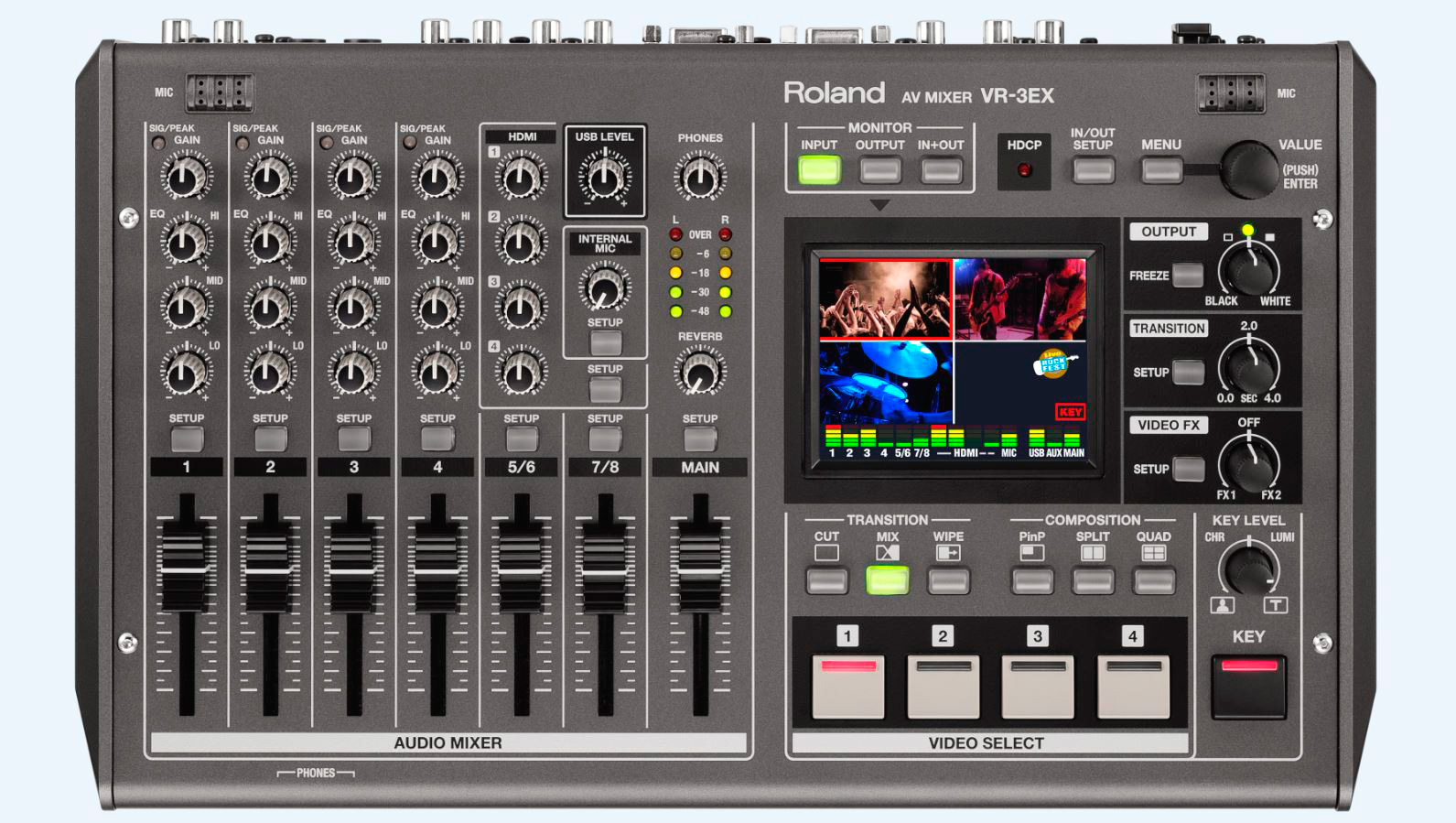

Roland VR-3EX SD/HD A/V Mixer with USB Streaming

VR-3EX - Overview

• Features:

  • HDMI & Composite Inputs
  • Standard Definition 16:9 Mixing Engine
  • Scaled Output up to 1080p
  • Advanced 18 Channel Audio Mixer
  • USB 2.0 for 480i Streaming
  • 2.5" Multiview Preview Monitor
  • Pnp, Key and Video Effects


• Specifications:

  • Processing
  • Video Processing
  • 4:2:2 (Y/Pb/Pr), 8 bits (Internal Processing : 480/59.94p when set to NTSC, 576/50p when set to PAL)
  • Audio Processing
  • Sampling Rate : 24 bits/48 kHz


  • Input Formats
  • HDMI Video (VIDEO IN 1-3)
  • 480/59.94p (when set to NTSC)
  • 576/50p (when set to PAL)
  • HDMI Video (VIDEO IN 4)
  • 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p (when set to NTSC)
  • 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p (when set to PAL)
  • HDMI Audio (VIDEO IN 1-4)
  • Linear PCM, 24 bits/48 kHz, 2 ch
  • RGB/Component (VIDEO IN 4)
  • 640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz, 1280 x 1024/60Hz, 1366 x 768/60Hz, 1400 x 1050/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz
  • * The refresh rate is the maximum value of each resolution.
  • * Conforms to VESA DMT Version 1.0 Revision 11.
  • * 1920 x 1200/60Hz : Reduced blanking
  • Composite Video NTSC, PAL (VIDEO IN 1-4)
  • NTSC, PAL


  • Output Formats
  • HDMI and RGB/ Component Video (VIDEO OUT)
  • 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
  • 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
  • * The output format of HDMI and RGB/Component is always the same. When an interlaced format is selected, component signal is output from the RGB/COMPONENT connector. When a non-interlaced format is selected, RGB signal is output from the RGB/COMPONENT connector.
  • * The refresh rates of RGB format is 60 Hz when set to NTSC, 75 Hz when set to PAL (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 75 Hz when set to PAL.)
  • * RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
  • * 1920 x 1200/60Hz : Reduced blanking
  • HDMI Audio (VIDEO OUT)
  • Linear PCM, 24 bits/48 kHz, 2 ch
  • Composite Video (VIDEO OUT)
  • NTSC, PAL
  • Preview Video (PVW OUT)
  • 480/59.94p when set to NTSC, 576/50p when set to PAL
  • Preview Audio (PVW OUT)
  • Linear PCM, 24 bits/48 kHz, 2 ch
  • USB Video
  • 720 x 480 when set to NTSC, 720 x 576 when set to PAL, Motion JPEG
  • USB Audio
  • Linear PCM, 16 bits/48 kHz, 2 ch

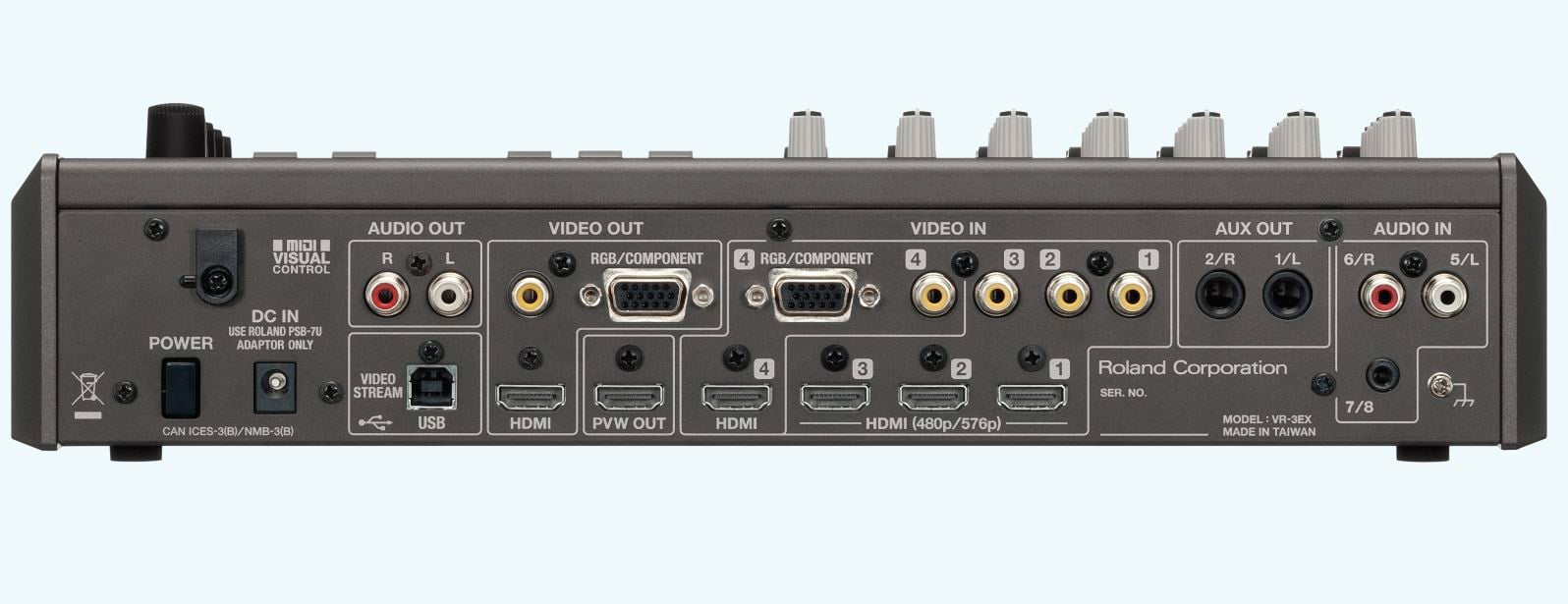

  • Input Connectors
  • Video
  • VIDEO IN 1-4 (HDMI : Type A 19 pins)
  • VIDEO IN 4 (RGB/Component : HD DB-15 type)
  • VIDEO IN 1-4 (Composite : RCA phono Type)
  • Audio
  • AUDIO IN 1-4 (XLR/TRS combo type, phantom power)
  • AUDIO IN 5--6 (Stereo RCA phono type)
  • AUDIO IN 7/8 (Stereo miniature type)
  • MIC (Internal stereo microphones)
  • Phantom Power
  • DC 48V (unloaded maximum), 10 mA (maximum load)
  • * Current value per channel


  • Output Connectors
  • Video
  • VIDEO OUT (HDMI: Type A 19 pins)
  • VIDEO OUT (RGB/omponent : HD DB-15 type)
  • VIDEO OUT (Composite : RCA phono type)
  • PVW OUT (HDMI: Type A 19 pins)
  • Audio
  • AUDIO OUT L,R (Stereo RCA phono type)
  • AUX OUT L,R (Stereo 1/4-inch phone type)
  • PHONES (1/4-inch phone type) (headphones)
  • PHONES (Stereo miniature type) (headphones)
