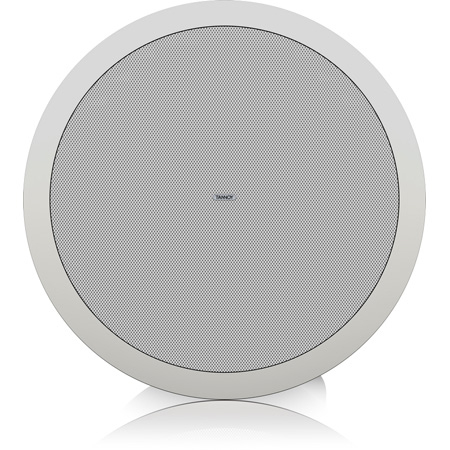

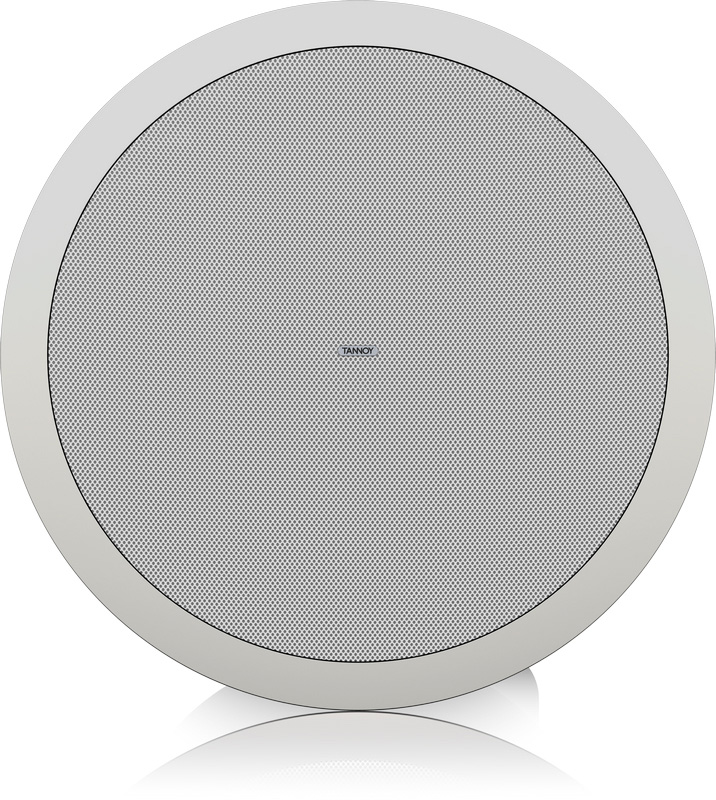

The larger format CVS 8 is a 200mm (8") full bandwidth blind mount model, specifically designed for all applications requiring the combination of excellent sonic quality for music and speech reinforcement,exceptional reliability and most critically - affordability.
This CVS 8 is specifically designed for applications requiring the combination of music and speech reinforcement at higher SPLs with consistent functionality and full bandwidth sound quality. Typical applications include shopping malls, large conference facilities, hotel lobbies and ballrooms, and larger bars and high-end restaurants where higher output BGM specifications are often demanded.

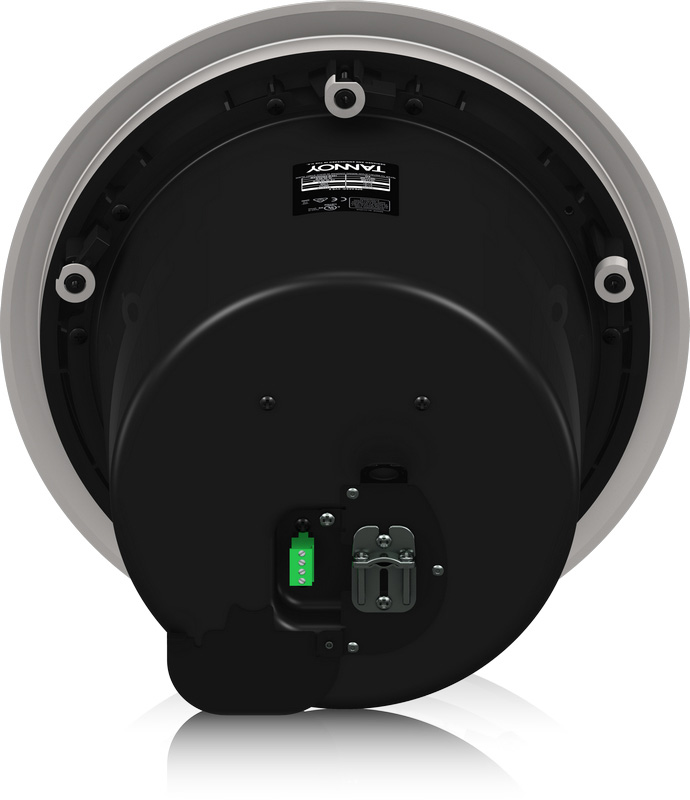

The device is supplied with an integral zinc-plated steel back can, with recessed termination box, the removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. The drive unit itself is mounted in a vented, injection moulded, paintable front baffle manufactured from UV / weather resistant UL94V-0 ABS material.
An integral low insertion loss 60 W line transformer uses an easily accessible front baffle mounted rotary tapping switch to select between low impedance and 70 V or 100 V operation.
