Tripp Lite B020-016-17 16 Port KVM Switch/ 17 Inch Console (with built-in slide out keyboard and tilt-up console) 1U Rac

ITEM #: TRL-B020-016-17 MFG #: B020-016-17

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TRL-B020-016-17

B020-016-17 - Overview

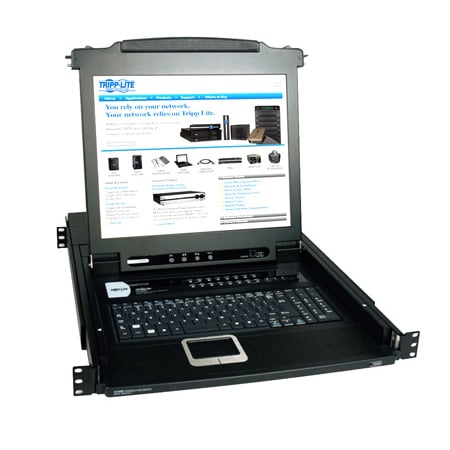

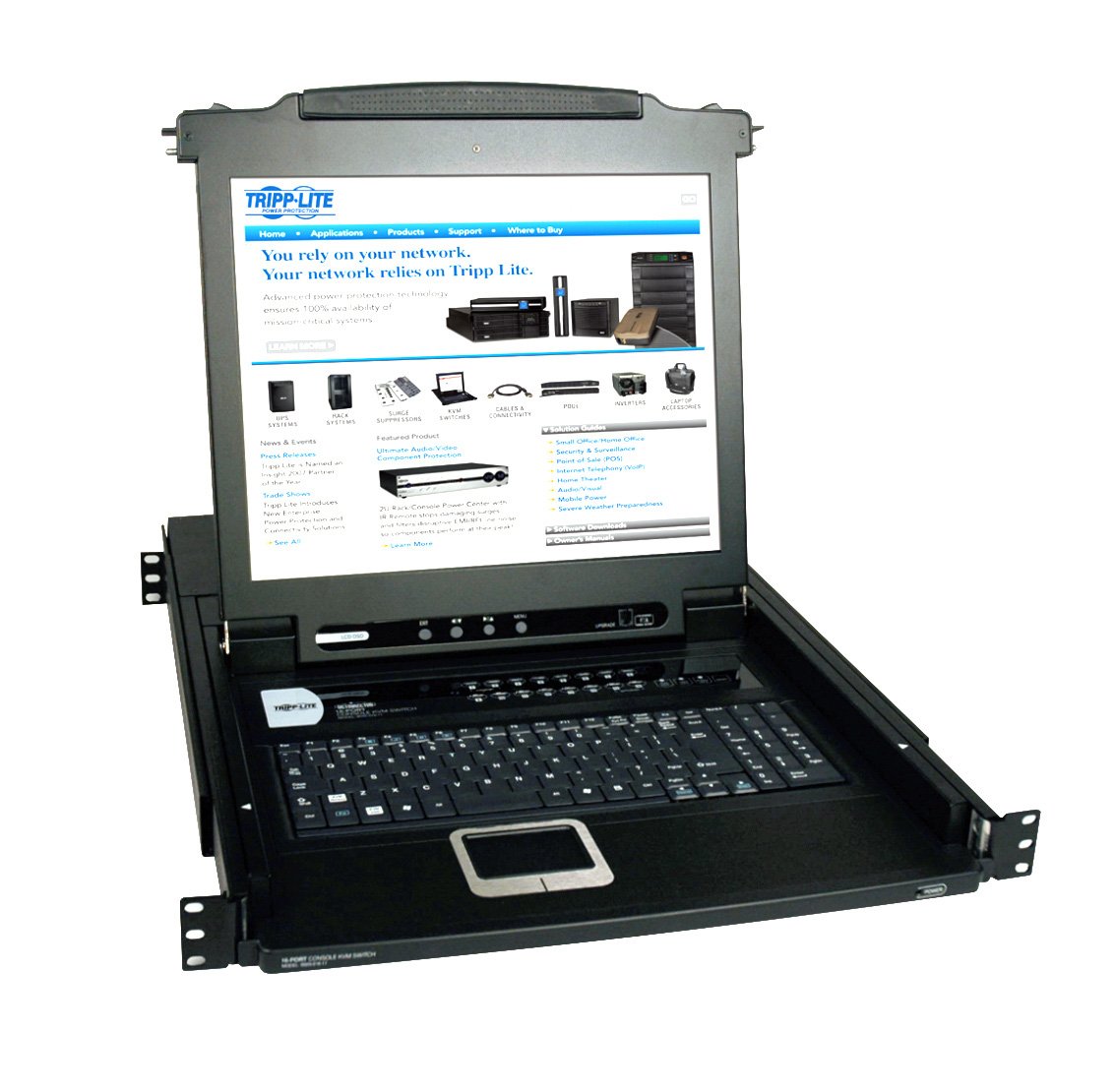

Tripp Lite's 16-port Console KVM Switch with 17" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines a 16 port KVM switch, keyboard, 17" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Control PS/2 or USB computers/servers using P774-Series (PS/2) and P776-Series (USB) KVM Cable kits. Includes an extra HD15 and (2) PS/2 ports on the rear of the unit, which allows for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. Compatible with all major operating systems (Special keys on Mac and Sun keyboards are not supported).

  • Features:

    • Combines a 16 port KVM switch, 17" LCD screen, keyboard, and touchpad in a 1U rackmountable drawer
    • Supports video resolutions up to 1280 x 1024
    • Two level password security (administrator/user)
    • Compatible with all major operating systems (Special keys on Mac and Sun keyboards are not supported)
    • Combines a 16 port KVM switch, 17" LCD screen, keyboard and touchpad in a 1U rackmountable drawer
    • Supports video resolutions up to 1280 x 1024
    • Switch between ports via pushbuttons, OSD or keyboard hot key commands
    • Includes autoscan feature
    • Multi-level password security (administrator/user) to ensure only those with authorization can access connected computers/servers

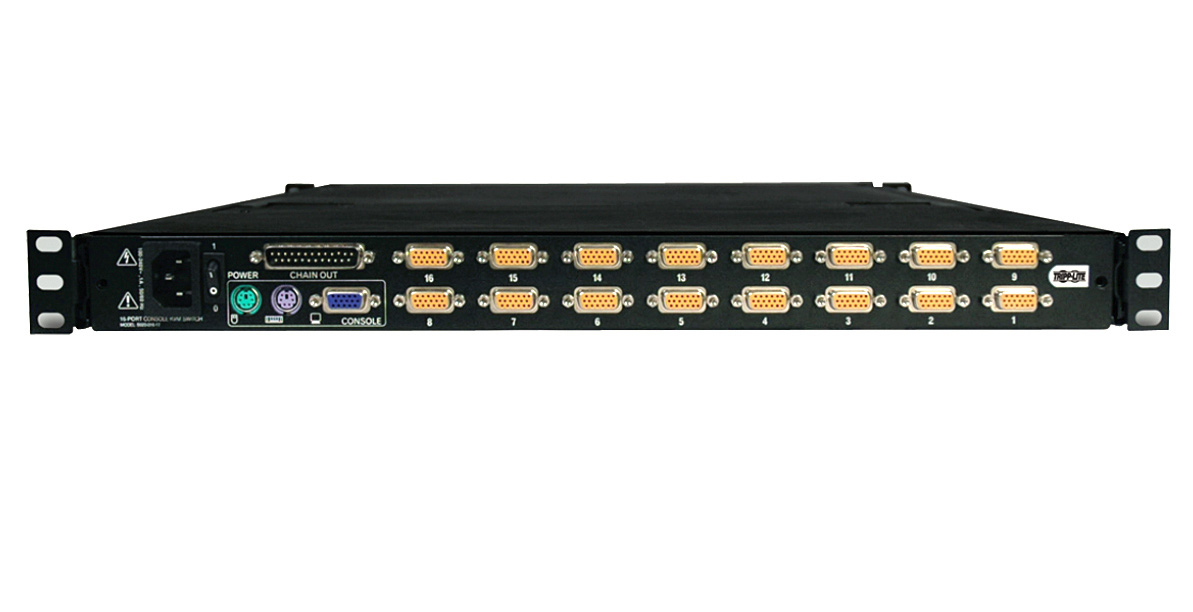

    • Includes additional VGA monitor and PS/2 keyboard/mouse ports, allowing for the connection of an external console, or a Tripp Lite B051-000 IP Remote Access Unit
    • Hot pluggable; add or remove computers without having to power down the switch
    • Port names automatically reconfigured when station sequence is changed
    • Firmware upgradeable
    • Power Consumption: 120V 60Hz 22.8W; 230V 50Hz 24W
    • Compatible with all major operating systems (Special keys on Mac and Sun keyboards are not supported)
    • Constructed of heavy-duty steel housing
    • DDC emulation allows the video settings of each computer
    • to be automatically adjusted for optimal output to the built-in LCD display


  • GTIN:

    0037332125378
