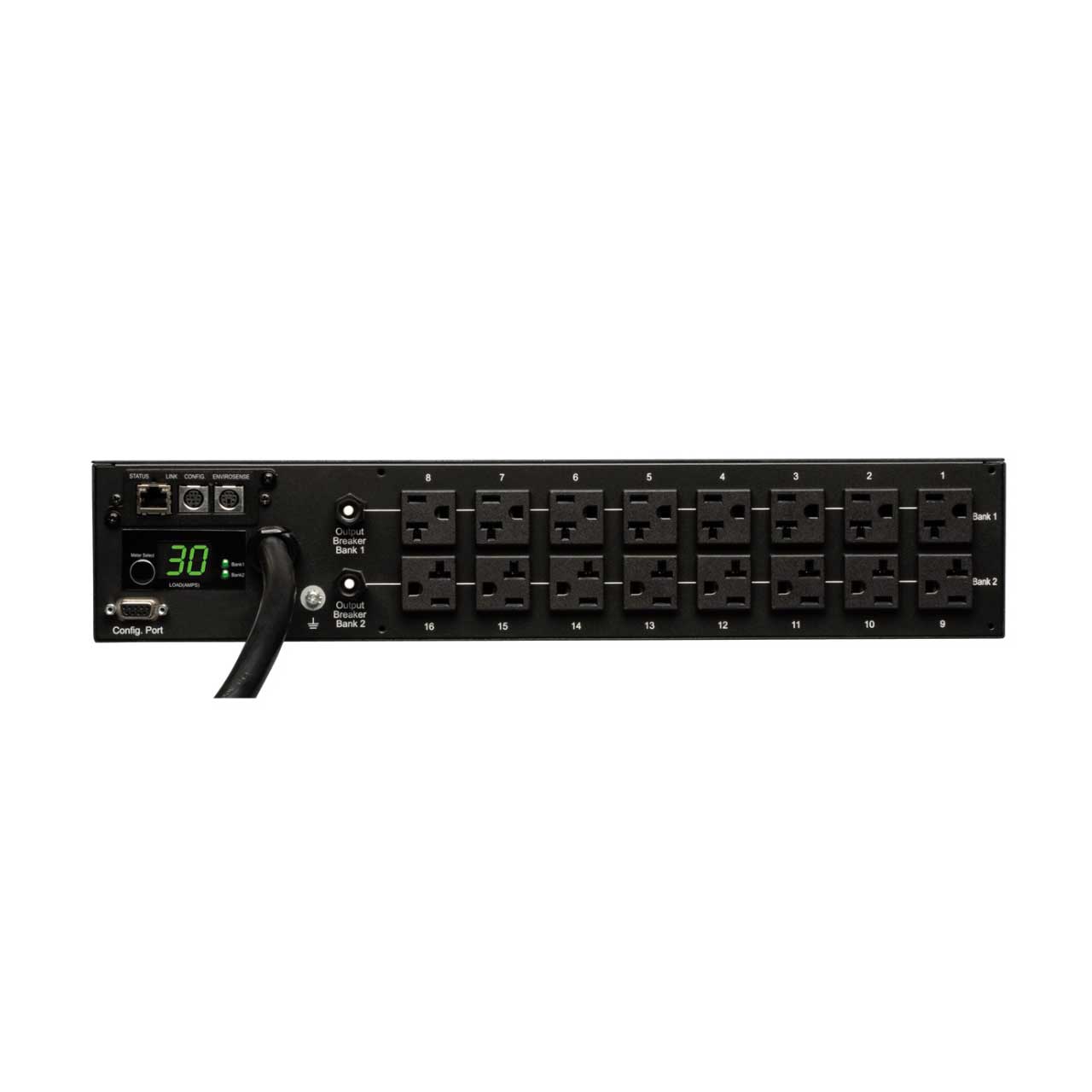

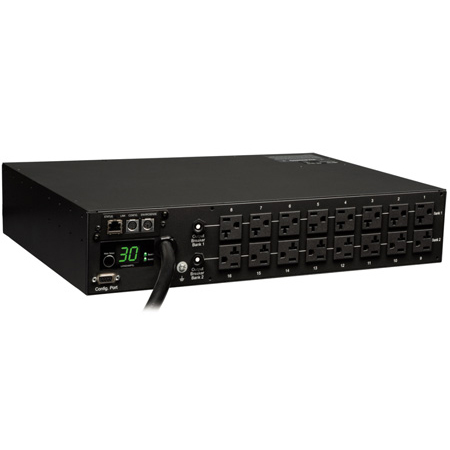

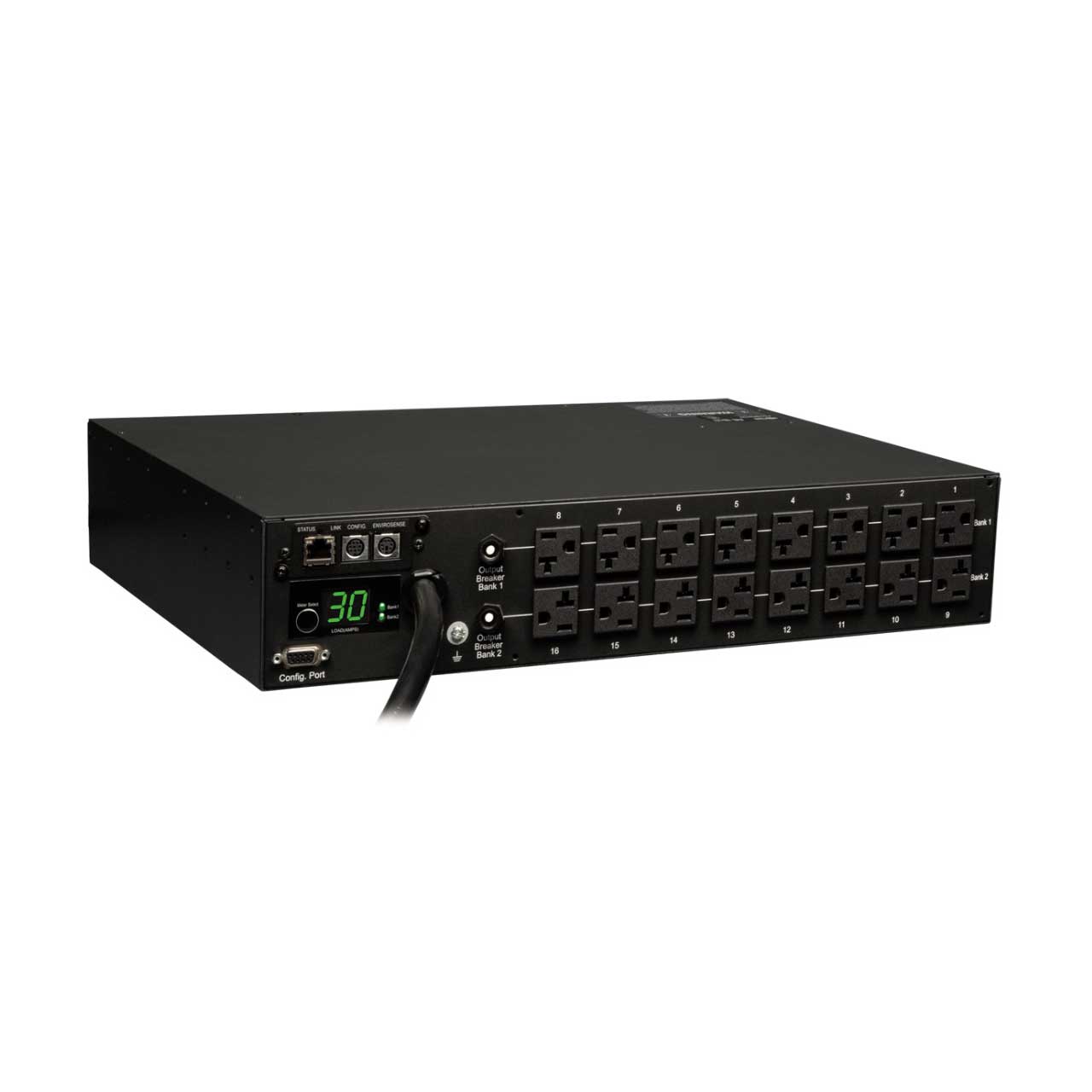

Tripp Lite PDUMNH30 PDU Monitored 120V 30A 5-15/20R 16 Outlet L5-30P Horizontal 2URM

PDUMNH30 - Overview

• Features:

  • 30A single phase 120V Monitored Power Distribution Unit / PDU (agency derated to 24A continuous)
  • Attached NEMA L5-30P input with 10ft / 3m line cord
  • 2U horizontal rackmount format
  • 16 NEMA 5-15/20R outlets
  • Lighted display with select button reports output power consumption in amps in 3 segments (bank 1, bank 2 and total)


• Specifications:

  • Style 2U Rackmount
  • PDU Type Monitored
  • Output Capacity Details 2.88kW (120V input), 3.05kW (127V input), 2.4kW (100V input); 30A maximum (agency de-rated to 24A continuous)
  • Frequency Compatibility 50 / 60 Hz
  • Output Receptacles (16) 5-15/20R
  • Output Nominal Voltage 100-127V nominal, single phase
  • Overload Protection Outlets are arranged in two separately breakered 20A banks of 8 outlets each
  • Outlet Type NEMA 5-20R
  • Customized Load Management Receptacles n/a
  • PDU Input Voltage 100; 120; 127
  • Recommended Electrical Service 30A 120V
  • Maximum Input Amps 30
  • Maximum Input Amps Details Agency de-rated to 24A continuous
  • PDU Plug Type NEMA L5-30P
  • Input Cord Length (ft.) 10
  • Input Cord Length (m) 3
  • Input Phase Single-Phase
  • Front Panel LCD Display Digital current meter reports PDU output current in amps for 3 loading segments (Bank 1, Bank 2 and Banks 1&2 combined)
  • Front Panel LEDs Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 current level is reported when the Bank 1 LED is on; Bank 2 current level is reported when the Bank 2 LED is on; Total output of both banks is reported when both LEDs are on
  • Switches Toggle switch prompts local display of power consumption in three segments (1) Breakered load bank 1, (2) Breakered load bank 2, (3) Breakered banks 1&2 combined
  • Shipping Dimensions (hwd / in.) 8 x 20.5 x 17
  • Shipping Dimensions (hwd / cm) 20.3 x 52.1 x 43.2
  • Shipping Weight (lbs.) 16.9
  • Shipping Weight (kg) 7.7
  • Unit Dimensions (hwd / in.) 3.5 x 17.5 x 12.5
  • Unit Dimensions (hwd / cm) 8.9 x 44.5 x 31.8
  • Unit Weight (lbs.) 13.8
  • Unit Weight (kg) 6.3
  • Material of Construction Metal
  • PDU Form Factor Horizontal (1U, 2U, etc)
  • Storage Temperature Range 5 to 122F (-15 to 50C)
  • Relative Humidity 5-95% non-condensing
  • Operating Elevation (ft.) 0-10,000
  • Operating Elevation (m) 0-3000
  • SNMP Compatibility Pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems
  • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMNH30TAA
  • Certifications Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant
  • Product Warranty Period (Worldwide) 2-year limited warranty


• GTIN:

  0037332157652
