Tripp Lite SMART5000RT-3U 5000VA UPS System SmartPro Rack/Tower Line-Interactive 5kVA 120V/208V

ITEM #: TRL-SMT5000RT3U MFG #: SMART5000RT-3U

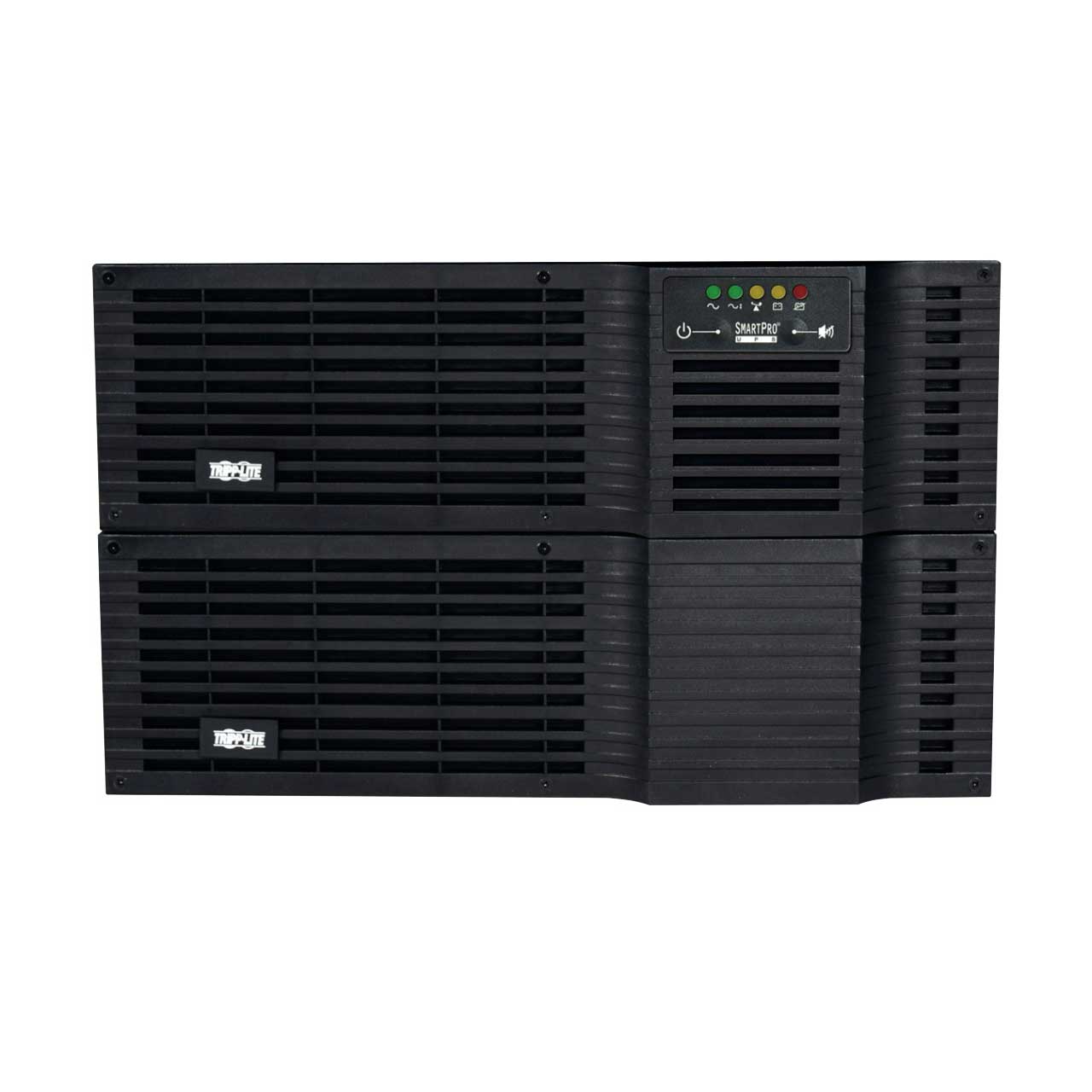

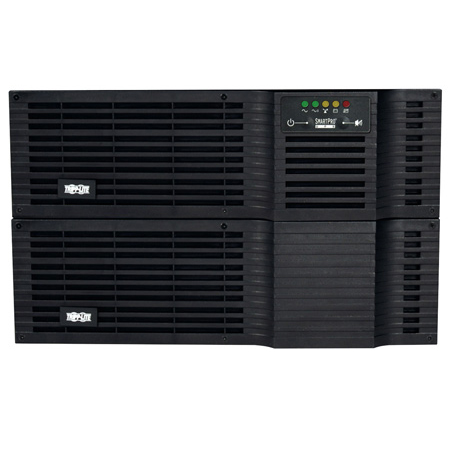

Primary Image

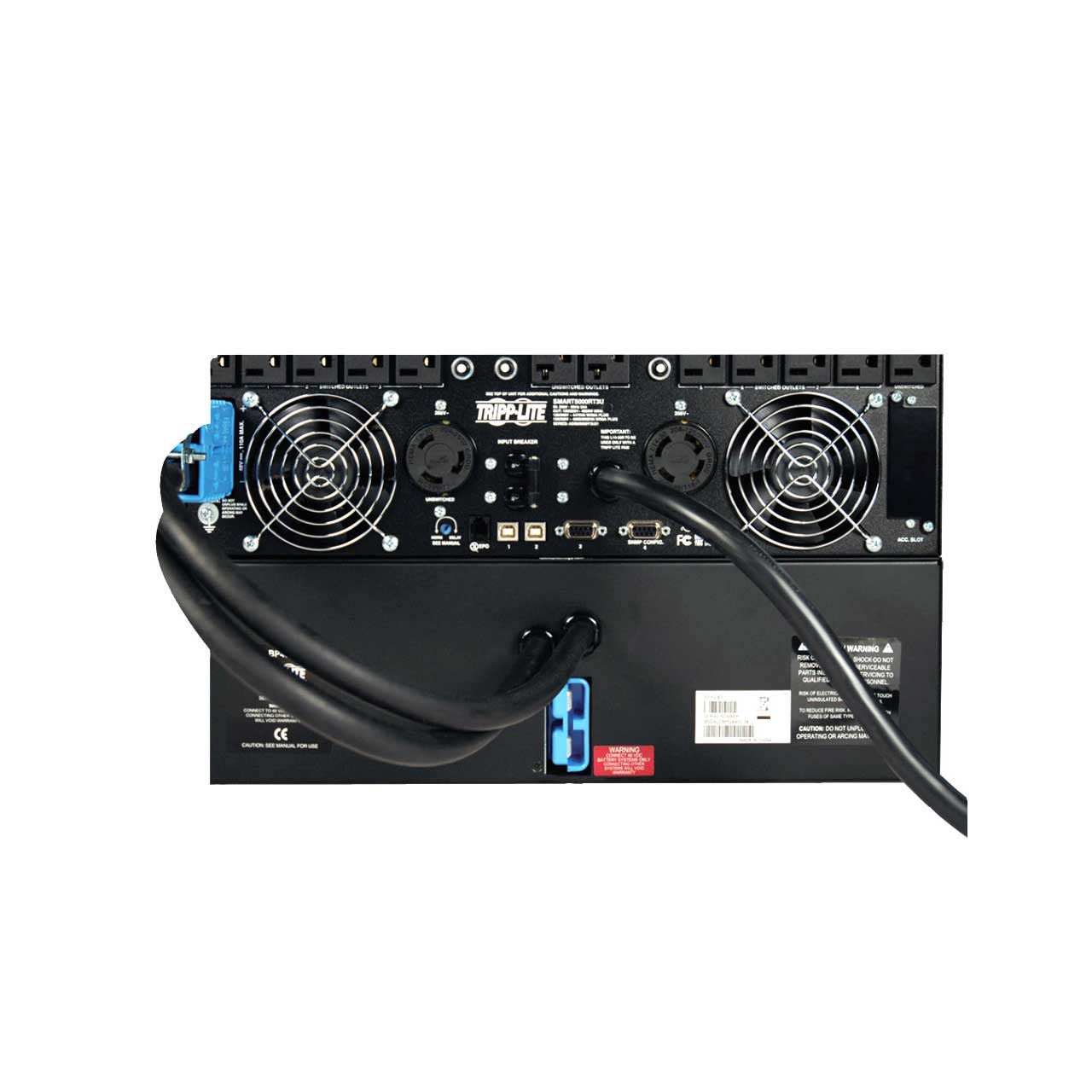

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$6,334.84

Our Price:

$3,810.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


SMART5000RT-3U - Overview

Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. In rack configuration, the power module and battery pack occupy only 3 rack spaces (3U) each. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Battery support can be extended indefinitely with additional external 3U rackmount battery packs. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data.

  • Features:

    • Large 5000VA/4000W output capacity with full-time sine wave output offers guaranteed compatibility with all equipment types
    • High power density 5kVA power module and battery pack occupy only 3 rack spaces(3U) each(UPS and battery pack require 6U total installed)
    • 38 min. half load runtime, expandable with multiple external battery packs BP48V24-2U(limit 1), BP48V60RT-3U(multi-pack compatible) and BP48V27-2US(multi-pack compatible)
    • Line-interactive voltage regulation corrects severe brownouts and overvoltages without using battery power

  • Specifications:

    • Output Capacity Details 120V 5-15R outlets are limited to 450 watts (max.)
    • Output Volt Amp Capacity (VA) 5000
    • Output kVA Capacity (kVA) 5
    • Output Watt Capacity (Watts) 3750
    • Output kW Capacity (kW) 3.75
    • Power Factor 0.75
    • Nominal Output Voltage(s) Supported 120V; 208V
    • Frequency Compatibility 60 Hz
    • Output Voltage Regulation (Line Mode) 208 & 120V (-6%, +20%)
    • Output Voltage Regulation (Battery Mode) +/- 5%
    • Output Receptacles (2) 5-15R; (2) L6-20R; (1) L6-30R
    • Output Circuit Breakers 20A double pole breaker supports L6-20R outlets, 5A breaker supports 5-15R outlets, L6-30R outlet is unbreakered
    • Output AC Waveform (AC Mode) Sine wave
    • Output AC Waveform (Battery Mode) Pure Sine wave
    • Rated input current (Maximum Load) 24A
    • Nominal Input Voltage(s) Supported 208V AC
    • UPS Input Connection Type L6-30P
    • UPS Input Cord Length (ft.) 10
    • UPS Input Cord Length (m) 3
    • Recommended Electrical Service 30A 208V
    • Input Phase Single-Phase
    • Full Load Runtime (min.) 8.5 min. (3750w)
    • Half Load Runtime (min.) 20 min. (1875w)
    • DC System Voltage (VDC) 48
    • Battery Recharge Rate (Included Batteries) Less than 4 hours from 10% to 90% (typical, full load discharge)
    • Internal UPS Replacement Battery Cartridge RBC94-3U (quantity 3)
    • Battery Access Front panel battery access door
    • Battery Replacement Description Hot-swappable, user replaceable batteries
    • Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 167 to 260
    • Overvoltage Correction Input voltages between 228V and 260V are reduced by 12%
    • Undervoltage Correction Input voltages between 167V and 194V are boosted by 12%
    • Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
    • Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
    • Audible Alarm Audible alarm indicates power-failure, overload and low-battery conditions
    • LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
    • UPS AC Suppression Joule Rating 1020
    • UPS AC Suppression Response Time Instantaneous
    • EMI / RFI AC Noise Suppression Yes
    • Installation Form Factors Supported with Included Accessories 4 post 19 inch rackmount
    • Installation Form Factors Supported with Optional Accessories 2 post rackmount (2POSTRMKITWM); Tower (2-9USTAND)
    • Primary Form Factor Rackmount
    • UPS Power Module Dimensions (hwd, in.) 5.25 x 17.5 x 25
    • UPS Power Module Dimensions (hwd, cm) 13.3 x 44.4 x 63.5
    • Installed Whole System Maximum Rack Depth (in.) 25
    • Installed Whole System Maximum Rack Depth (cm) 63.5
    • Rack Height (U Spaces) 3
    • UPS Power Module Weight (lbs.) 143.3
    • UPS Power Module Weight (kg) 65.1
    • UPS Shipping Dimensions (hwd / in.) 11.2 x 23 x 31.5
    • UPS Shipping Dimensions (hwd / cm) 28.6 x 58.4 x 80
    • Shipping Weight (lbs.) 181.9
    • Shipping Weight (kg) 82.6
    • Cooling Method Fan
    • UPS Housing Material Steel
    • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load) 366
    • AC Mode Efficiency Rating (100% Load) 0.97
    • Communications Interface USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
    • Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
    • PowerAlert Software Included
    • Communications Cable USB and DB9 cabling included
    • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
    • Transfer Time 7 milliseconds (AC to Battery), 1 millisecond (Battery to AC)
    • Low Voltage Transfer to Battery Power (Setpoint) 167
    • High Voltage Transfer to Battery Power (Setpoint) 260
    • Grounding Lug Back panel grounding lug
    • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
    • High Availability UPS Features Ho

  • GTIN:

    0037332099242
