Tripp Lite SU1500RTXLCD2U 1500VA 1350W UPS Smart Online Rackmount LCD 100V-120V USB 2URM

ITEM #: TRL-SU15RTXLCD2U MFG #: SU1500RTXLCD2U

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,853.28

Our Price:

$1,108.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    SU1500RTXLCD2U - Overview

    Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.

    • Features:

      • Tripp Lite SU1500RTXLCD2U 1500VA / 1.5kVA / 1350W on-line, double-conversion 2U rack / tower UPS
      • Transformerless, IGBT technology
      • Selectable 100/110/120/127V output (120V factory preset)
      • NEMA 5-15P input, 6 NEMA 5-15R outlets
      • Two switched 3-outlet load banks support remote reboot or programmable load shedding options
      • Supports 2% output voltage regulation and zero transfer time in double conversion mode
      • Economy mode option offers enhanced efficiency, reduced power consumption and lower BTU emissions
      • 14 minutes runtime at 50% load (675W) and 4.2 minutes at 100% load (1350W) with internal batteries
      • BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs available (some configurations require Tripp Lite's External Battery Configuration Software)
      • LCD interface reports operating mode plus 9 selectable screens of UPS data (Load % & kW, Load % & kVA, Power factor, Input volts & Hz, Output volts & Hz, Battery volts and charge %, Minutes runtime, Capacity remaining, Kw/hr. consumption)
      • LCD interface also supports 16 screens of UPS configuration and setup options
      • 4 post installation hardware included, Optional 2POSTRMKITWM enables 2 post rack / wallmount installation, Optional 2-9USTAND enables tower placement
      • Single line TEL / Network surge suppression
      • Electronic bypass maintains utility output during a variety of UPS fault conditions
      • Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
      • Frequency regulation / conversion mode offers generator-compatible frequency correction or conversion of frequency from 50 to 60Hz or 60 to 50Hz
      • Built-in USB, RS-232, contact-closure and optional SNMPWEBCARD accessory monitoring options
      • HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
      • Included PowerAlert UPS monitoring software

    • Specifications:

      • Output Voltage Regulation (Line Mode): +/- 2%
      • Output Voltage Regulation (Economy Line Mode): +/- 10%
      • Output Voltage Regulation (Battery Mode): +/- 3%
      • Output Receptacles: (6) 5-15R
      • Load Management Receptacles: Two switchable three-outlet 5-15R load banks
      • Output AC Waveform (AC Mode): Pure Sine wave
      • Output AC Waveform (Battery Mode): Pure Sine wave
      • Rated input current (Maximum Load): 12A
      • Nominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V AC; 120V AC; 127V AC
      • Nominal Input Voltage Description: 120V factory default
      • UPS Input Connection Type: 5-15P
      • Input Circuit Breakers: 20A
      • UPS Input Cord Length (ft.): 10
      • Recommended Electrical Service: 15A 120V
      • Input Phase: Single-Phase
      • Full Load Runtime (min.): 4.2 min. (1350w)
      • Half Load Runtime (min.): 14 min. (675w)
      • Expandable Battery Runtime: Extended runtime supported via optional external battery packs
      • External Battery Pack Compatibility: BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
      • DC System Voltage (VDC): 48
      • Battery Recharge Rate (Included Batteries): Less than 3 hours recharge to 90%; Add 6 hours per BP48V27-2US (typical, full load discharge)
      • Internal UPS Replacement Battery Cartridge: RBC94-2U
      • Battery Access: Front panel battery access
      • Battery Replacement Description: Hot-swappable, user replaceable batteries
      • UPS AC Suppression Joule Rating: 570
      • UPS AC Suppression Response Time: Instantaneous
      • UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
      • EMI / RFI AC Noise Suppression: Yes
      • Included Mounting Accessory Description: Includes 4 post rackmount installation accessories
      • Installation Form Factors Supported with Optional Accessories: 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
      • Cooling Method: Fan
      • UPS Housing Material: Steel
      • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Relative Humidity: 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 455
      • AC Economy Mode BTU / Hr. (Full Load): 292
      • Battery Mode BTU / Hr. (Full Load): 559

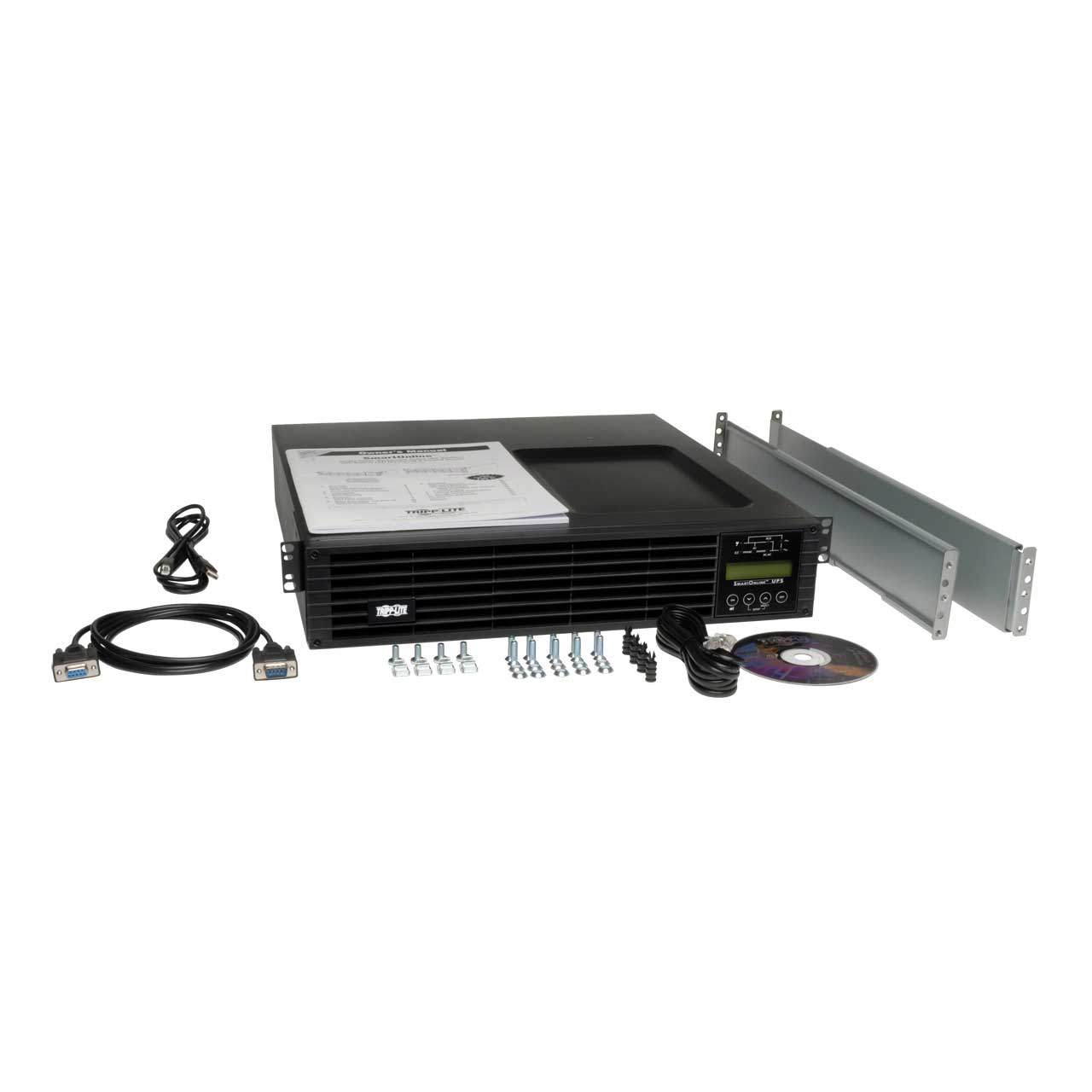

    • Item Includes:

      • SU1500RTXLCD2U UPS System
      • PowerAlert Software with USB, Serial & EPO cabling
      • 4 post rackmount installation kit
      • Instruction manual

    • GTIN:

      0037332168610
