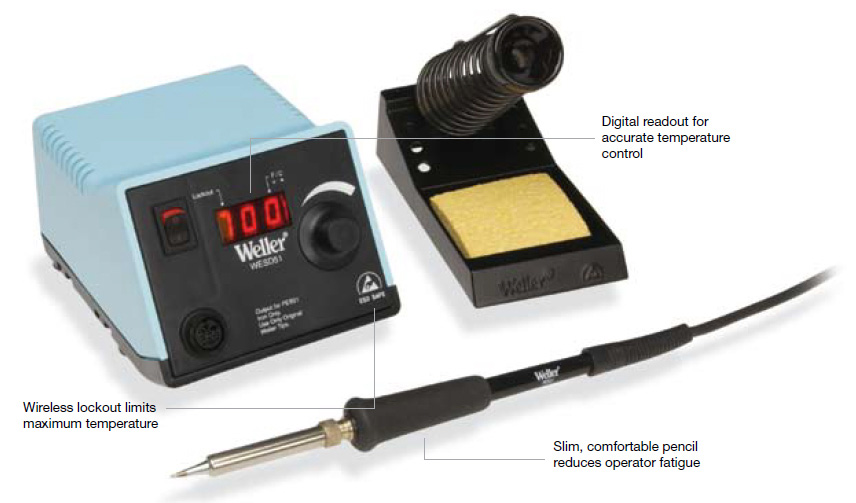

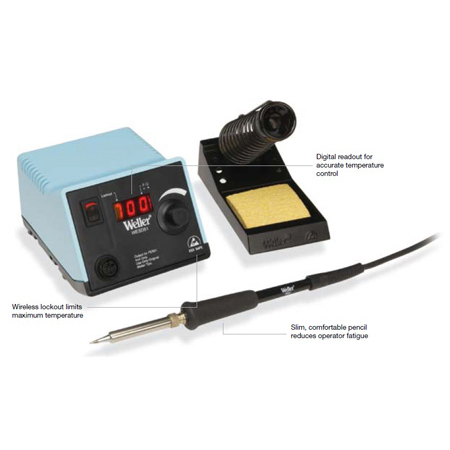

Weller WESD51 Digital Soldering Station with PES51 Pencil Iron and PH50 Stand

ITEM #: WESD51 MFG #: WESD51

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WESD51

WESD51 - Overview

The Weller WESD51 digital soldering station is an innovative heater and sensor combination that gives you a quick heat-up and rapid temperature recovery. It has a wireless temperature lockout to prevent operators from raising the temperature levels higher than specified for the board or component so if gives you control over the process. The station automatically powers down after 90 minutes of inactivity to prolong tip like and save power.

  • Features:

    • Includes WESD51PU power unit, PES51 soldering pencil, PH50 stand, sponge
    • Microprocessor controlled with digital LED display
    • Allows you to read temperature setting and actual tip temperature
    • Designed for continuous production soldering
    • Can switch between °F and °C
    • Slim, comfortable pencil, with ETA tip, reduces operator fatigue
    • Tip temperature offset capability
    • User has capability of resetting station temperature readings
    • Iron is fitted with a non-burnable silicon rubber cord for safety
    • UL and cUL listed, ESD safe to protect sensitive components


  • Specifications:

    • Wattage 50 W
    • Temperature Range: 350° F to 850° F
    • Temperature Accuracy: +/- 10° F to +/- 6° C
    • Voltage Input: 120 V
    • Voltage Output: 24 V
    • Supplied Tip(s): ETA
    • Style Type: Industrial Soldering Stations
    • ESD Safe: Yes
    • Package Length: 10.80 in
    • Package Width: 9.00 in
    • Package Height: 4.30 in
    • Package Gross Weight: 4.05 lb


  • GTIN:

    0037103191328
