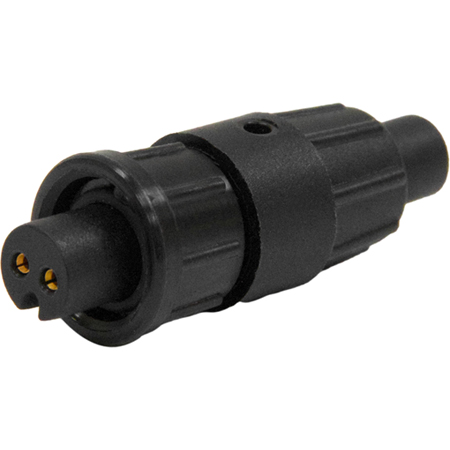

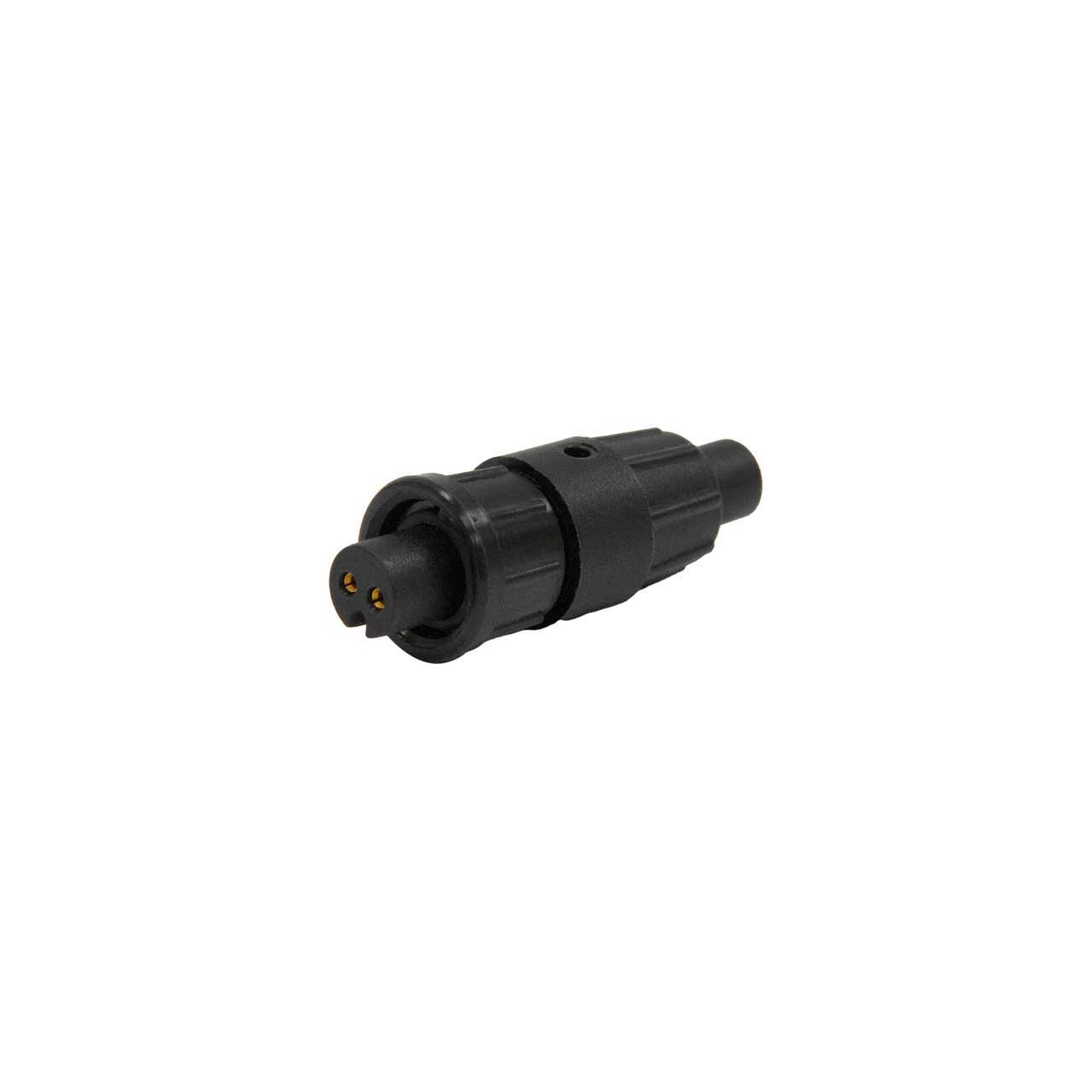

Switchcraft Micro-Con-X 2-Pin Cable Socket w/Solder Contacts - Compatible w/ AJA D10/5/4 Mini-Converter Power Supply

16282-2SG-315 - Overview

• Features:

  • Compatible with AJA D10/5/4 Mini-Converter Power Supplies


• Specifications:

  • Configuration:
  • Number of Conductors: 2
  • Product Line: Micro-Con-X
  • Mounting Type: In-Line
  • Gender: Female
  • Contact Size: 20 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Gold
  • Color: Black
  • Locking: Locking
  • Sealed: Sealed
  • Handle Material: Thermoplastic
  • Insert Material: Thermoplastic
  • Packaging Type: Bulk
  • Backshell Style: Short
  • Winged Coupling Ring: Not Winged

    Electrical:
  • Voltage Rating: 600 Volts
  • Current Rating: 7.5 Amps

    Mechanical:
  • Life Cycle: 300 Cycles
  • Coupling Locking Style: Bayonet
  • Mounting Torque: 9 in-lbs

    Environmental: l
  • Temperature Range: -40°C to +85°C
  • Shielding: Unshielded
  • Flame Rating: UL 94-HB
  • Salt Spray: 300 Hr salt spray when mated
  • Minimum Temperature: -40°C
  • Maxiumum Temperature: 85°C

    Compliance:
  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Conxall
  • IP Rating: IP67
  • IP65: 1
  • IP66: 1
  • IP67: 1
  • IP69K: 1
  • Current Interruption: Not for Current Interruption

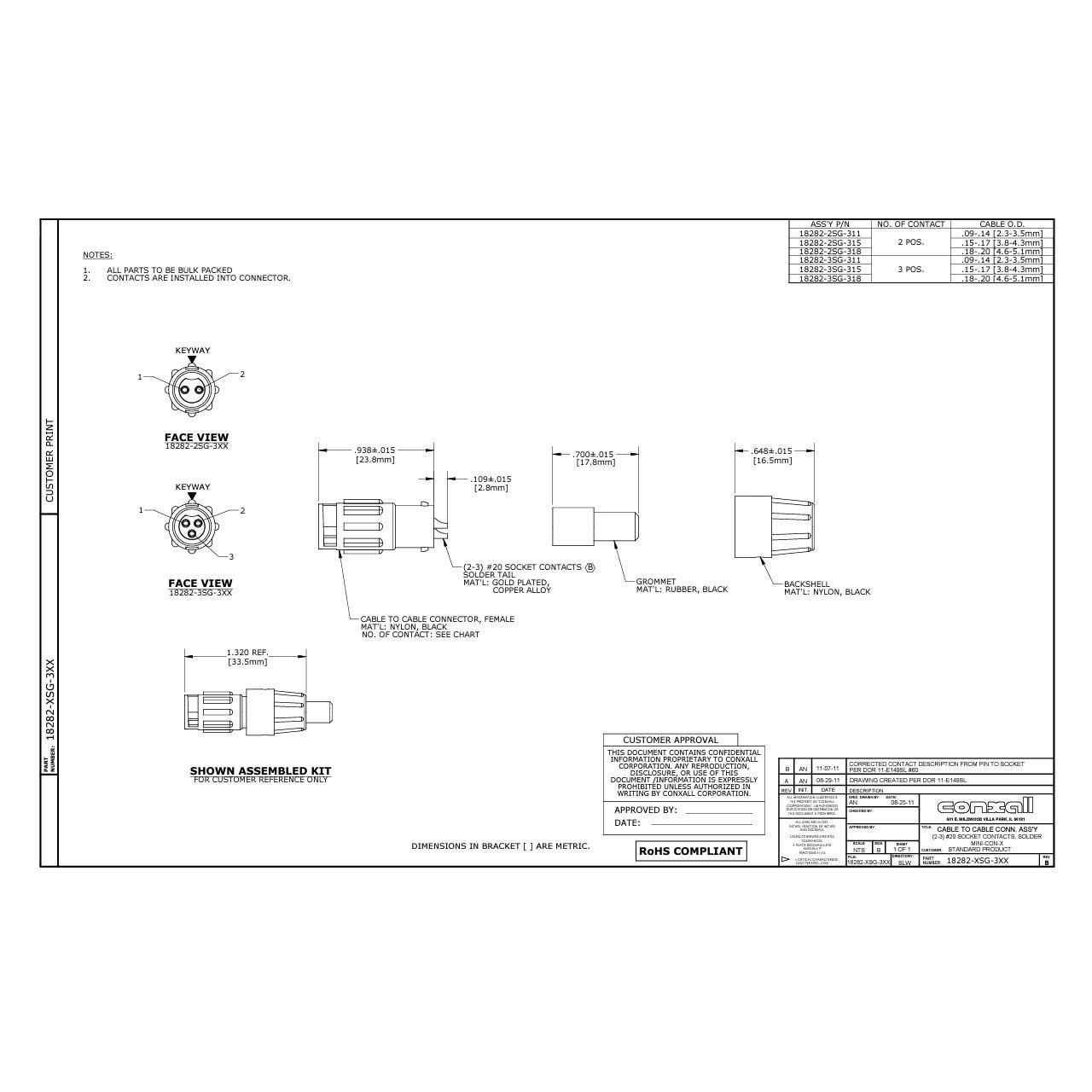

    Dimensional:
  • Outer Diameter: 0.53 in
  • Cable Opening: 0.17 in

    Material:
  • Body Material: Thermoplastic
  • Contact Material: Copper Alloy
  • Contact Plating Type: Gold
  • Insert Material Type: Standard
  • O-Ring Material: Elastomer
  • Weight: 0.005 lb
  • Dimensions (LxWxH): 3.85 x 1.05 x 0.7"
