Optix 1XSOC-STU-OM1-09-10 1X 900um Multi Mode ST OM1 Splice-on Connector - Beige/White - 10/Pack

Name: Optix 1XSOC-STU-OM1-09-10 1X 900um Multi Mode ST OM1 Splice-on Connector - Beige/White - 10/Pack
Brand: Optix America
SKU: 1XSOCSTUOM10910
Price: 75.00 USD
Availability: SoldOut

ITEM #: 1XSOCSTUOM10910 MFG #: 1XSOC-STU-OM1-09-10

Optix America

Options:

Options

Availability: Sold Out

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1XSOC-STU-OM1-09-10 - Overview

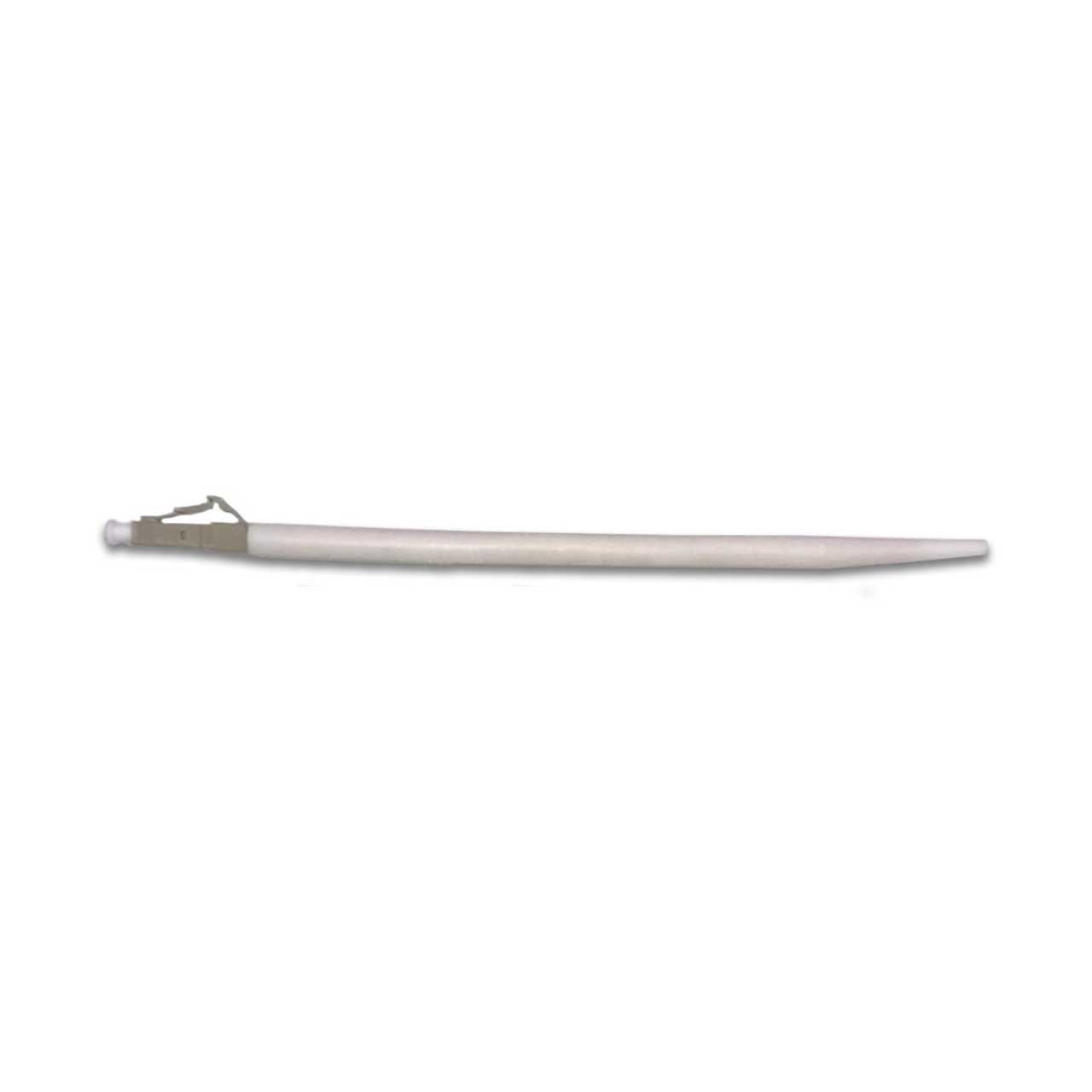

The Optix 1X 900um Splice-on connector is a simple three or four piece design compatible with all brands of fusion splicers on the market today. It features a fast and consistent field termination in less than two minutes. The fiber stub comes stripped, cleaned, and cleaved and ready for splicing on any fusion splicer. Available in LC, SC, and ST styles and made with Prysmian brand fiber cable. Optix's single mode connectors are compliant to Telcordia GR-326 and multimode connectors are compliant to TIA/EIA568C.3. EZ-Open packaging organizes the parts and saves time.

Features:
- Simple, Fast, & Consistent Field Termination
- Works with ALL fusion splicer brands
- Field installable in less than two minutes
- Fiber in connector is stripped and cleaved, ready for splicing
- No adhesives, crimping, mechanical splices, index matching gels, or polishing
- True APC performance for LCA & SCA
- Eliminates the need for splice trays and splice panels
- EZ Open packaging organizes the parts and saves time
- Flame Retardant Connector Housings
Specifications:
- Connector Types: 900um LC
- Polish Types: APC(Singlemode)
- Fiber Types: Prysmian/Draka G.652.D SM & OM1,OM2, OM3, OM4 MM
- Cable Types: 900 micron and 250 micron coated fiber
- Insertion Loss: SM: 0.15 dB(average), 0.3 dB(maximum)
- Return Loss (APC): ≤ -65dB
- Operating Temp: -40°C to + 75°C
- Compliance: SM to Telcordia GR-326
Item Includes:
- 1x Optix 1XSOC-STU-OM1-09-10 1X 900um Multi Mode ST OM1 Splice-on Connector - Beige/White - 10/Pack
Warranty:
- Twenty Year
