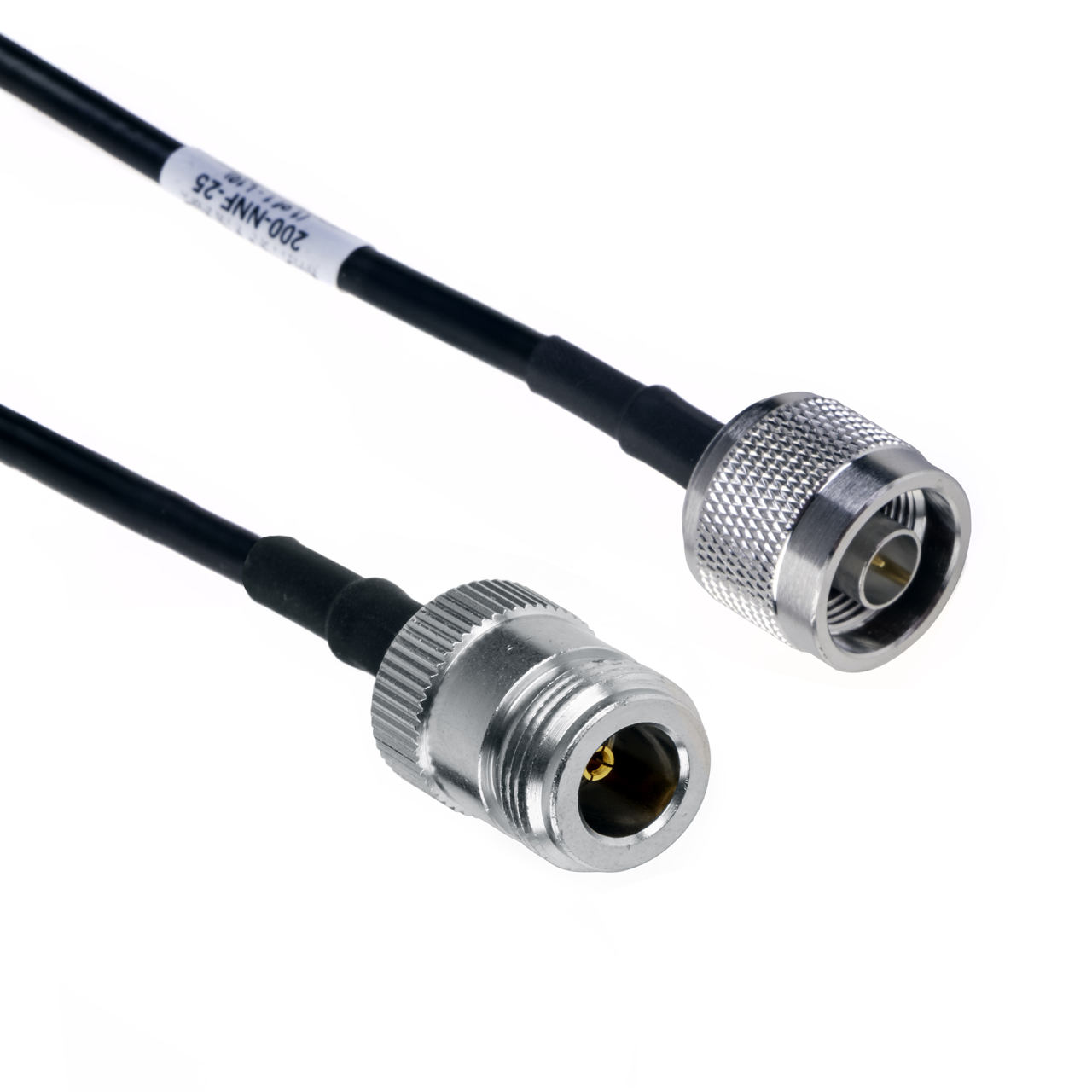

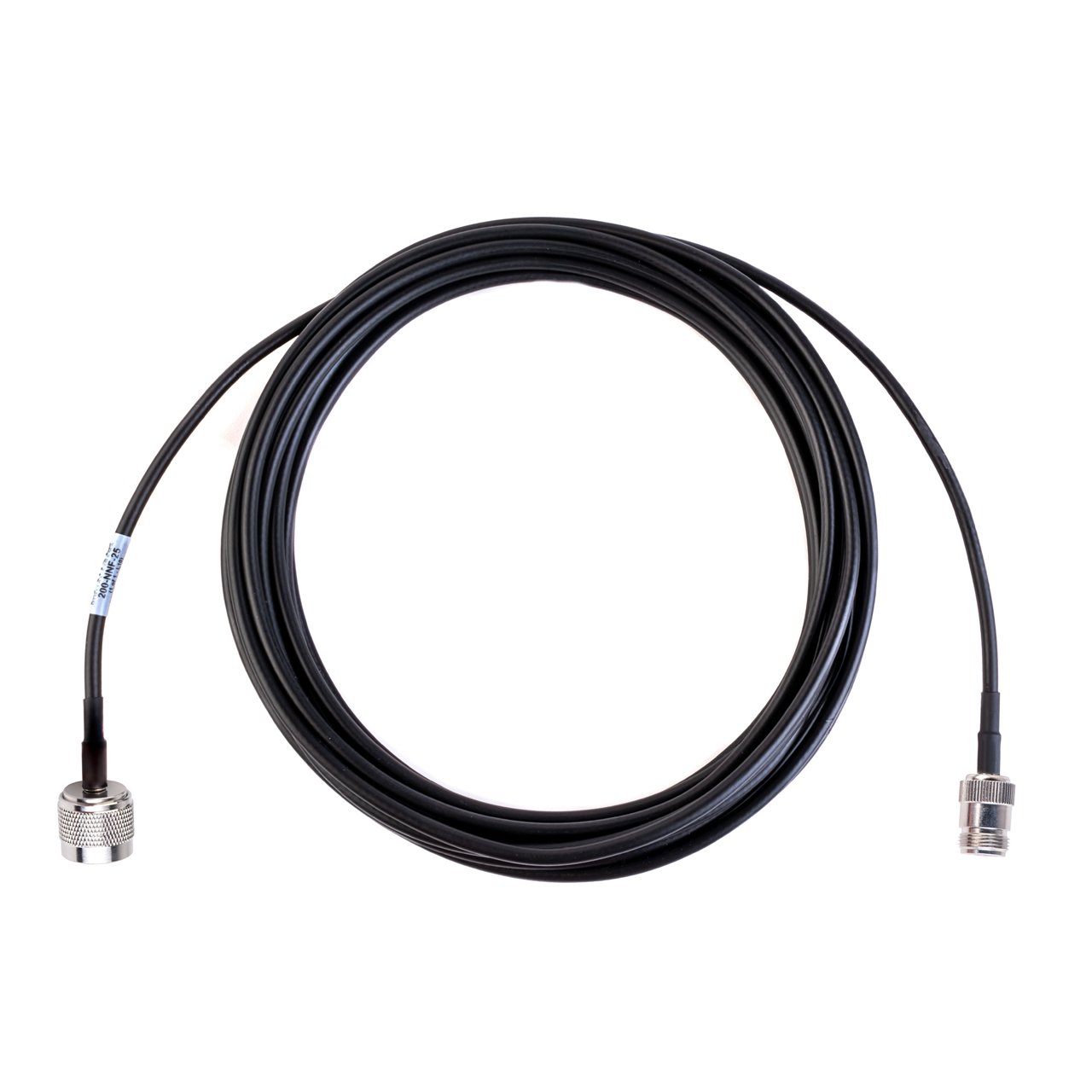

Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 N-Type Male to N-Type Female - 25 Foot

ITEM #: 200-NNF-25 MFG #: 200-NNF-25

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$106.95

Our Price:

$97.95

Availability: In Stock
iAvailability Description Popup


200-NNF-25 - Overview

N-Type is the most commonly used connector for wireless antennas. Relocate your current Wi-Fi antenna or add a high gain antenna to meet aesthetic needs and increase the performance of your wireless LAN network. This ultra low loss cable allows longer runs with no signal degradation. Relocating your Wi-Fi antenna to a more central location and out of an equipment closet is a simple and cost-effective solution for propagation problems. We offer the most common connections, including RP-SMA, RP-TNC, and N-Type. Simply choose the pigtails that meet your connection requirements, then choose the base cable length for your application.

  • Features:

    • Utilizes Belden-7807A cable and High-Quality Amphenol RF Connectors
    • Indoor/outdoor rated
    • Designed for Low Loss (attenuation), Low Passive intermodulation (PIM), and Low Voltage Standing Wave Ratio (VSWR)
    • Excellent performance across long distances

  • Specifications:

    • RG Type: 58
    • Conductor AWG: 17
    • Conductor Stranding: Solid
    • Conductor Nom. Diameter: 0.044 in (1.117mm)
    • Conductor Material: Bare Copper-BC
    • Overall Cable Diameter: 0.195 in (4.95 mm)
    • Insulation Material: Polyethylene - PE - (Foam)
    • Insulation Nom. Diameter: 0.116 in (2.95 mm)
    • Outer Shield Layer 1 Type: Tape
    • Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
    • Outer Shield Layer 2 Type: Braid
    • Outer Shield Layer 2 Material/Coverage: Tinned Copper (TC)/95%
    • Outer Jacket Material: Polyethylene - PE
    • Outer Jacket Nom. Diameter: 0.195 in (4.95 mm)
    • VSWR: 5 - 6000 MHz - 1.25:1
    • Nom. Conductor DCR: 5.4Ω/1000ft
    • Nom. Outer Shield DCR: 3.6Ω/1000ft (12Ω/km)
    • Nom. Capacitance Cond-to-Shield: 23.5 pF/ft (77.1 pF/m)
    • Nom. Characteristic Impedance: 50Ω
    • Nom. Velocity of Prop: 85%
    • Temperature: -40°F to 176°F (-40°C to +80°C)
    • Flexing Bend Radius: 1.9 in (48 mm)
    • Max Pull Tension: 25.4lbs (11.5 kg)
    • Weight: 0.026lbs/ft

      Amphenol Connectors:
    • Body Finish: White Bronze
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material:
      -Jack: Phosphor Bronze
      -Plug: Brass
    • Coupling Mechanism: Threaded
    • Frequency (Max GHz): 11
    • Impedance (Ohms): 50Ω

  • Warranty:

    • 1 Year
