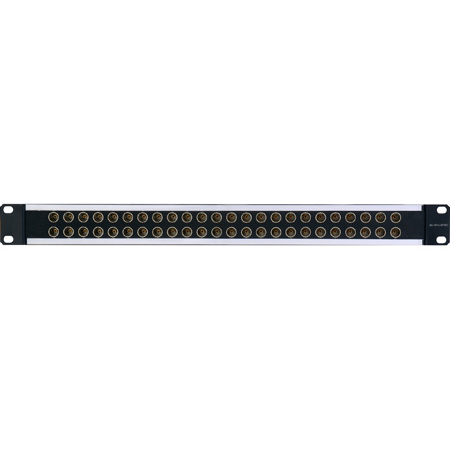

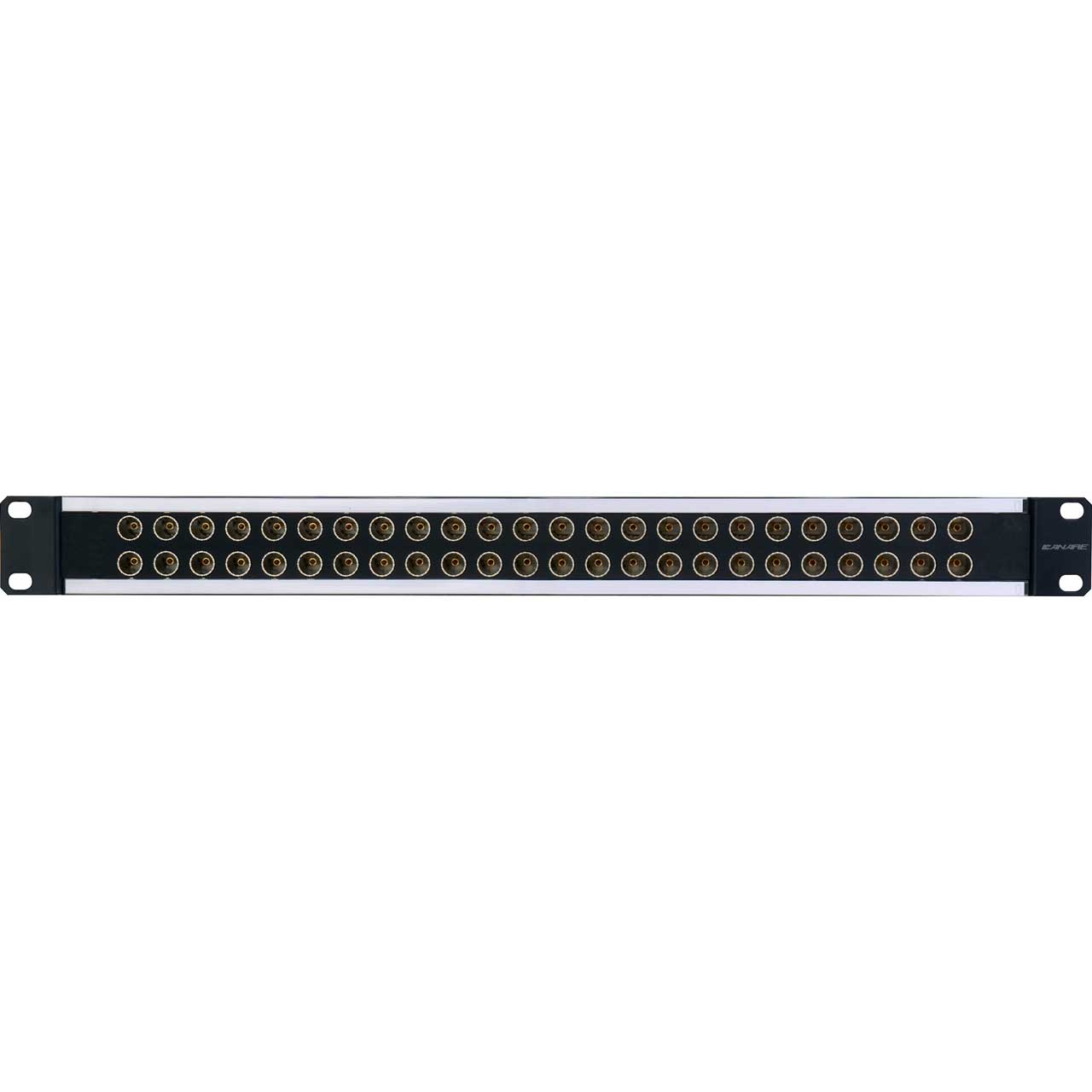

Canare 24DVS 2X24 1RU 75 Ohm Digital Video Patchbay (Straight Through)

24DVS - Overview

• Features:

  • Used to quickly change the path of select signals without dedicated switching equipment
  • Loaded with 24 DVJB-S 75ohm dual video jacks and offers a Straight Through circuit
  • Compatible with HD-SDI, Serial Digital Video, and NTSC Analog
  • Offers bandwidth ranging from DC to 3.0 GHz and a return loss of 20 dB
  • Ideal for use in OB vans and small production studios and for HDTV upgrades
  • Compact size (19 x 1.7 x 3.3" / 483 x 44 x 85 mm)
  • Easy front mount assembly
  • Suitable for satellite headends and broadband telecom cell sites
  • Equipped with Canare's proprietary rotary switch
  • 1 RU lightweight alloy body with beryllium copper and gold-plated center contacts


• Specifications:

  • Panel Size: 1RU
  • Jack: x26 (DVJB-S)
  • Configuration: 2 x 26
  • Patch Point: 52
  • Dimensions (WxHxD): 19" x 1.7" x 3.3" (483mm x 44mm x 85mm)

    Packaging Info
  • Package Weight: 7.05 lb
  • Box Dimensions (LxWxH): 26 x 7.6 x 2.8"


• Applications:

  • SMPTE 424M Compliant
  • Hi Definition Serial Digital Interface (HD-SDI)
  • Serial Digital Video
  • Digital Audio Patch (75 ohm)
  • HDTV Upgrades
  • NTSC Analog
  • Satellite Headends
  • OB Van
  • Broadband Telcom
