Optix 3XSOC-LCU-SM-09-10 3X 900um Single Mode LC UPC Splice-on Connector - Blue/White - 10/Pack

ITEM #: 3XSOC-LCU-SM0910 MFG #: 3XSOC-LCU-SM-09-10

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    3XSOC-LCU-SM-09-10 - Overview

    The Optix 3XSOC-LCU-SM-09-10 3X field installable splice-on connector with patent-pending design and twenty year product warranty avoids the "One&Done" problem associated with current connectors on the market today. These connectors offer up to three opportunities to be spliced to avoid costly scrapped connectors on "failed splice" connections.

    The 3X splice-on connector easily splices on any brand fusion splicer and only requires a sheath clamp or fiber cable holder for splicing, a much simpler design which eliminates a need for expensive connector holders that are not universal to fusion splicers. Our connector provides up to three opportunities to splice fiber ends correctly, thus saving money on "failed splice" connections. Still another advantage is that an increased boot length provides excellent strain relief and utilizes a robust 30mm splice sleeve, offering more protection at the fragile splice point.

    The Optix 3X 900um splice-on connector is a simple three piece design featuring a fast and consistent field termination and is ready for splicing on any fusion splicer. Made with Corning cable, it is available in LC, SC, ST, and FC styles. Our single mode connectors are compliant to Telcordia GR-326 and multimode connectors are compliant to TIA/EIA568C.3.

    • Features:

      • Patent Pending Connector
      • Twenty Year Product Warranty
      • Up to three opportunities to re-splice or reuse the connector
      • Avoid the "One&Done" problem associated with current field installable splice-on connectors
      • Avoid costly scrapped connectors on "failed splice" connections
      • No special holders needed, just use sheath clamp or cable fiber holder
      • Splices easily on ALL fusion splicer brands

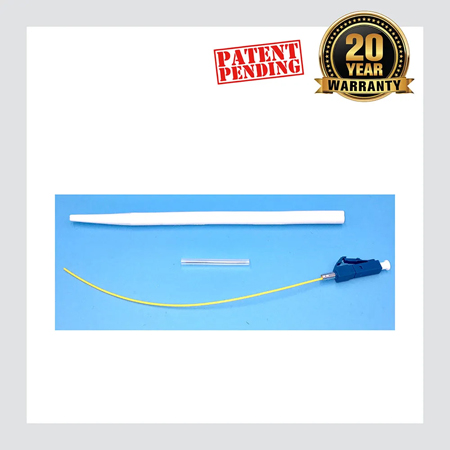

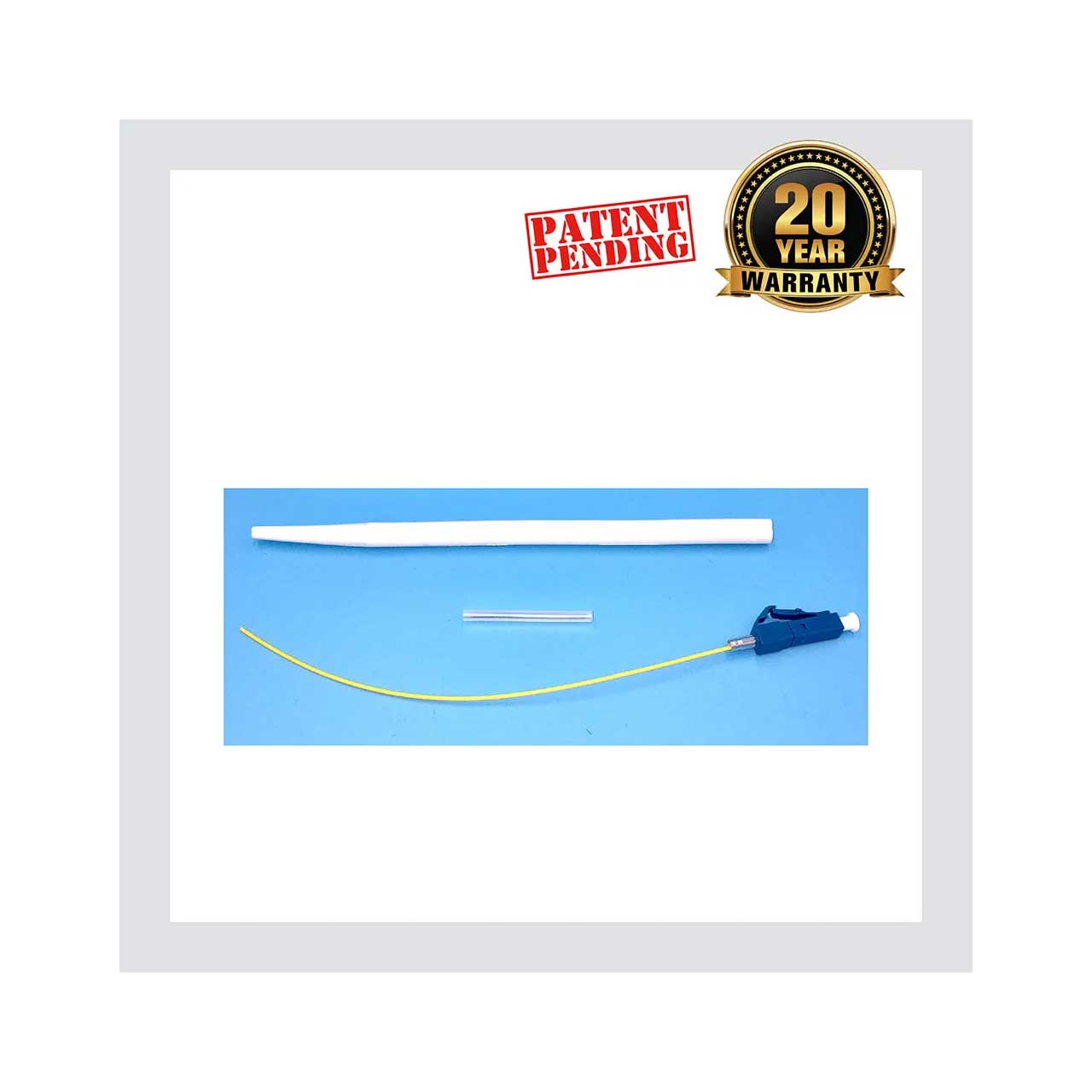

      • Only three parts - flexible silicon boot (130mm), splice sleeve (30mm), Fiber stub (122mm)

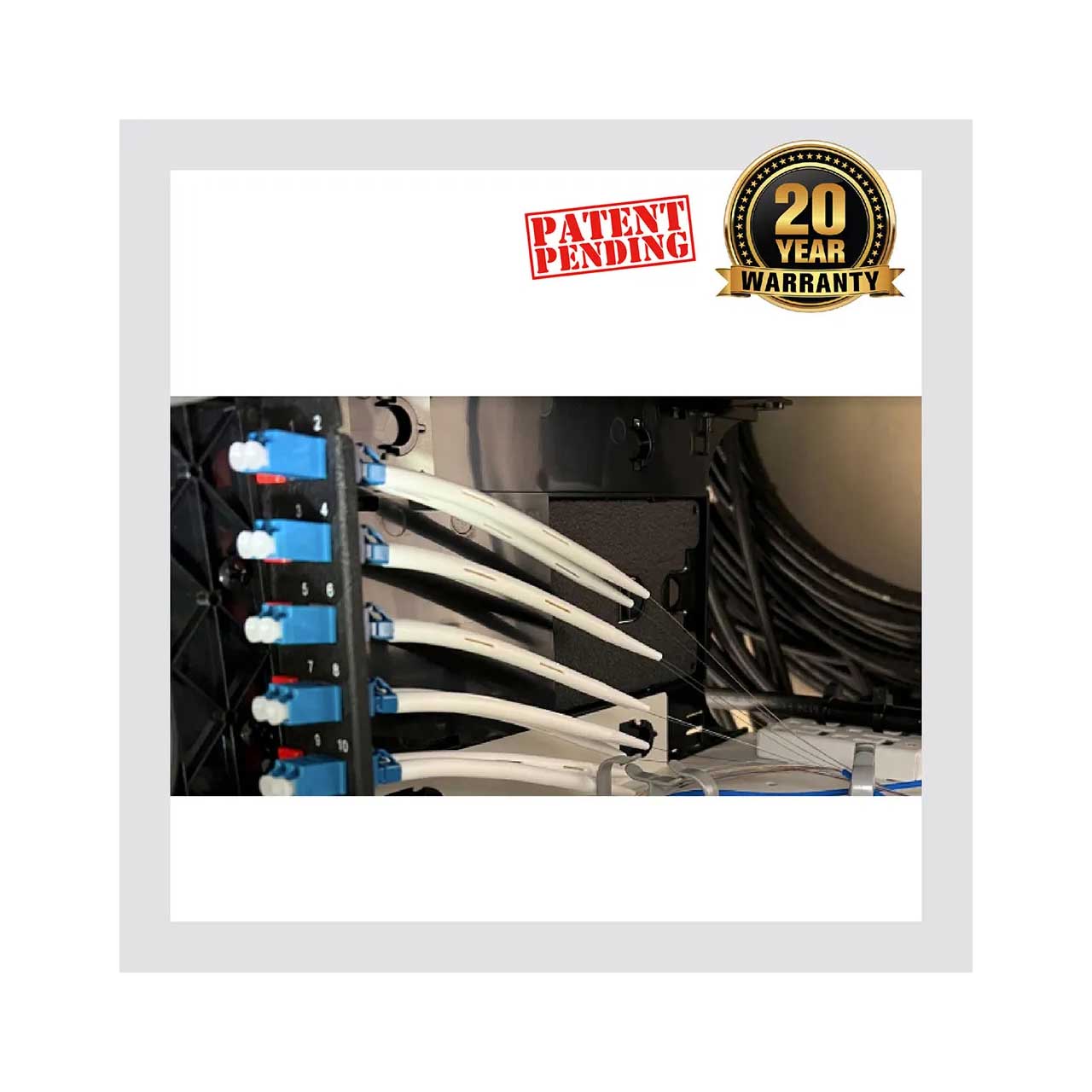

      • Flexible silicon boot routes easily and neatly even in tight wall enclosures
      • Increased boot length provides better strain relief and protection
      • Simple, Fast, & Consistent Field Termination
      • High quality splice protection sleeve (30mm) designed with a stainless-steel strength member, polyolefin inner and outer tube, and tapered edges for rugged construction.

    • Specifications:

      • Connector Types: 900um LC
      • Polish Types: UPC(Singlemode)
      • Fiber Types: Corning G.652.D SM & OM1, OM3, OM4 MM
      • Cable Types: 900 micron and 250 micron coated fiber
      • Insertion Loss: SM: 0.15 dB(average), 0.3 dB(maximum)

    • Item Includes:

      • 1x Optix 3XSOC-LCU-SM-09-10 3X 900um Single Mode LC UPC Splice-on Connector - Blue/White - 10/Pack

    • Warranty:

      • Twenty Year
