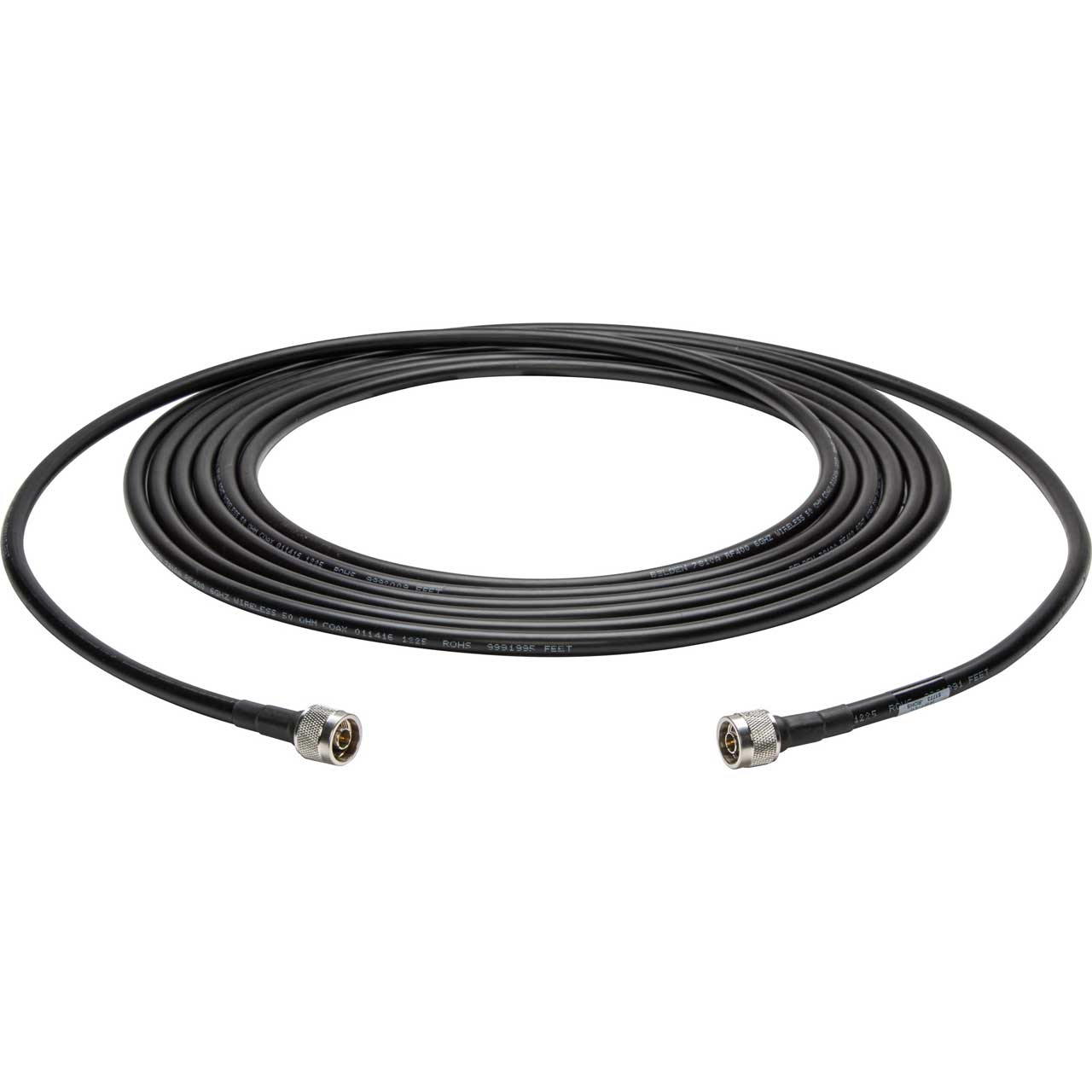

Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7810A N-Type Male to N-Type Male 50 Ohm Cable - 5 Foot

ITEM #: 400-NN-5 MFG #: 400-NN-5

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$72.49

Our Price:

$65.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


400-NN-5 - Overview

Extend your Wi-Fi antenna connection to increase performance. N-Type is the most commonly used connector for wireless antennas and our cables are 802.11 a/b/g compatible. Relocate your current Wi-Fi antenna or add a high gain antenna to meet aesthetic needs and increase the performance of your wireless LAN network. This ultra low loss cable allows longer runs with no signal degradation. Relocating your Wi-Fi antenna to a more central location and out of an equipment closet is a simple and cost-effective solution for propagation problems. We also offer RP-SMA, RP-TNC, and N-Type Extension cables. This cable is constructed utilizing Amphenol Connex 172102H243 Male N Type Connectors and Belden 7810A 50 Ohm cable.

  • Features:

    • Utilizes Belden 7810A cable and High-Quality Amphenol RF N-Type connectors
    • Outdoor Rated, Sunlight Resistant. UV Resistant
    • Designed for Low Loss (attenuation) and Low Voltage Standing Wave Ratio (VSWR)
    • Excellent performance across long-distance

  • Specifications:

    • RG Type: 8
    • Conductor AWG: 10
    • Conductor Stranding: Solid
    • Conductor Nom. Diameter: 0.111in (2.819mm)
    • Conductor Material: Bare Copper Covered Aluminum-BCCA
    • Insulation Material: Polyethylene - PE - (Foam)
    • Insulation Nom. Diameter: 0.285in (7.24mm)
    • Outer Shield Layer 1 Type: Tape
    • Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
    • Outer Shield Layer 2 Type: Braid
    • Outer Shield Layer 2 Material/Coverage: Tinned Copper (TC)/95%
    • Outer Jacket Material: Polyethylene - PE
    • Outer Jacket Nom. Diameter: 0.403in (10.2mm)
    • Overall Cable Diameter: 0.403in (10.2mm)
    • Nom. Conductor DCR: 1.3 Ohm/1000ft
    • Nom. Outer Shield DCR: 2.0 Ohm/1000ft (6.6 Ohm/km)
    • Nom. Capacitance Cond-to-Shield: 23 pF/ft (75 pF/m)
    • Nom. Characteristic Impedance: 50Ω
    • Nom. Velocity of Prop: 86%
    • VSWR: 5 - 6000 MHz - 1.25:1
    • Voltage Rating: 300V
    • Temperature: -40°F to 176°F (-40°C to +80°C)
    • Bend Radius: 2in (51mm)
    • Max Pull Tension: 145lbs (65.8 kg)
    • Weight: 0.077lbs/ft

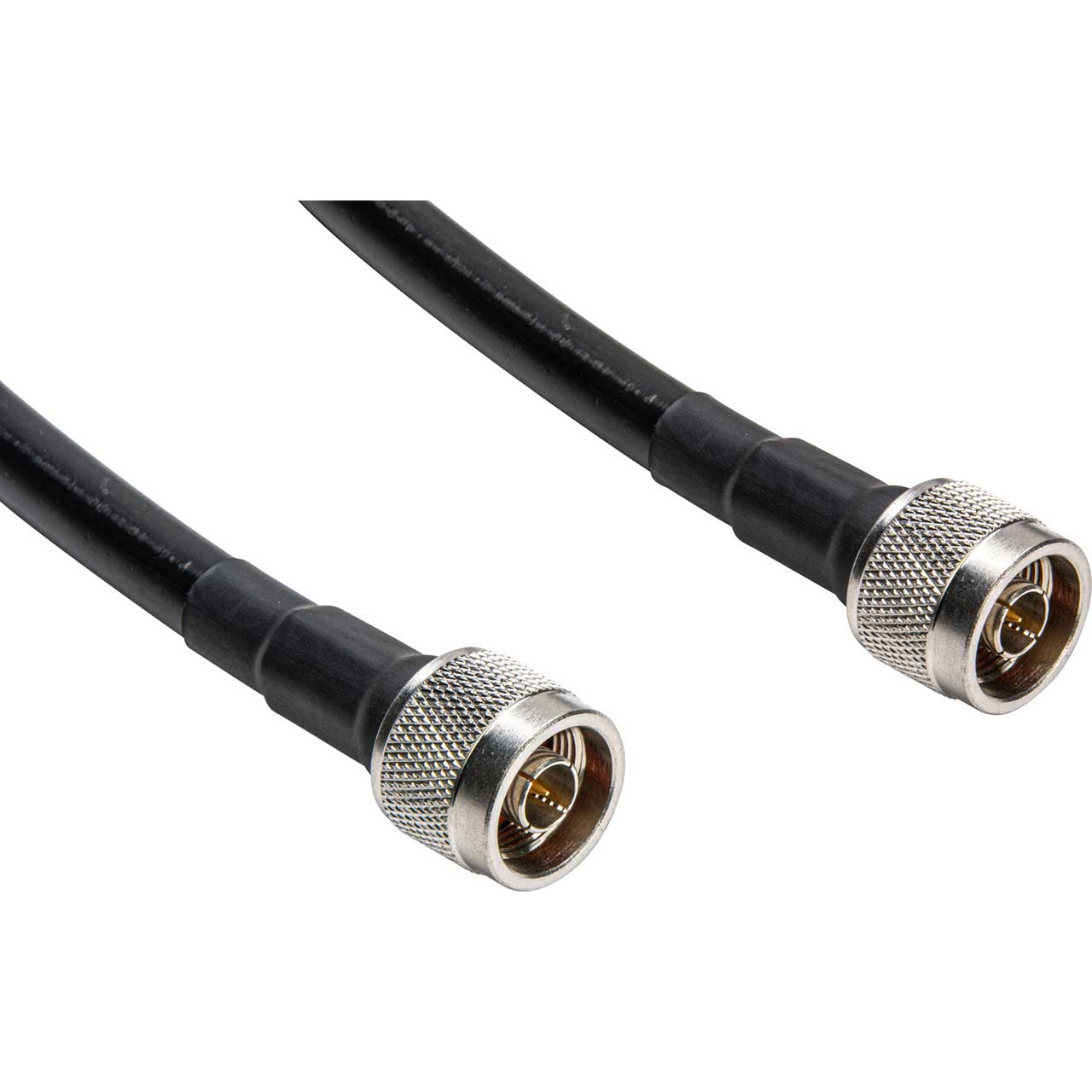

      Amphenol N-Type Connectors:
    • Body Finish: White Bronze
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Brass
    • Coupling Mechanism: Threaded
    • Frequency (Max GHz): 11GHz
    • Impedance (Ohms): 50Ω
    • Insulator Material: PTFE
    • Temperature: -85°F to 329°F to (-65°C to 165°C)

  • Warranty:

    • 1 Year
