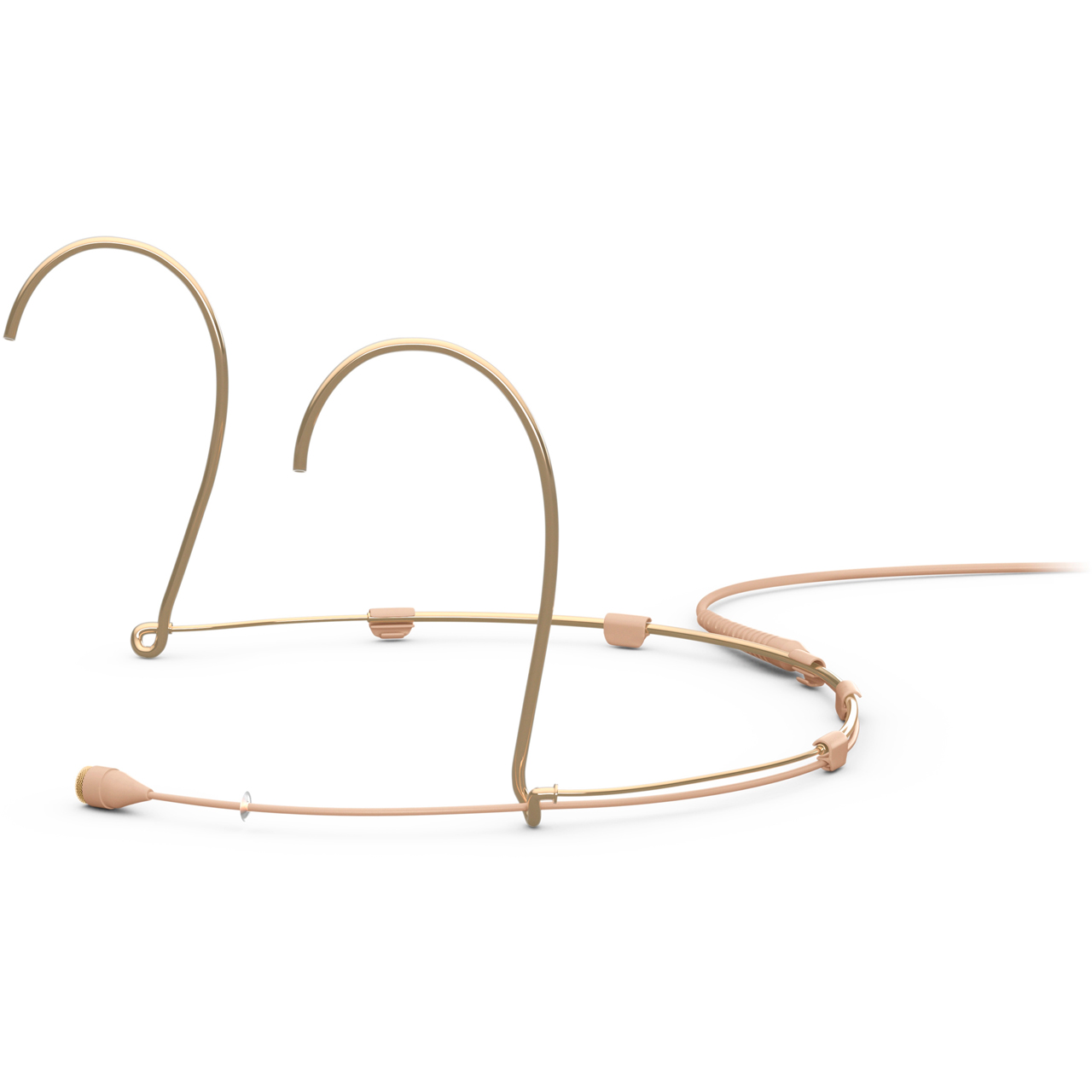

DPA 4066 CORE+ Omni Headset Mic with Mini-Jack - Beige - Small

ITEM #: 4066-OP-A-F34LHS MFG #: 4066-OP-A-F34LHS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$935.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


4066-OP-A-F34LHS - Overview

The DPA 4066 CORE+ microphone offers clean and transparent sound quality with lots of headroom. For years, this has been the chosen headset mic for broadcasters as well as theaters on Broadway, as well as in many auditorium and lecture halls. This is due to its pristine sound and durability.

CORE+ is a revolutionary leap ahead in microphone design, blurring the lines between what is and isn’t acoustically possible.

CORE+ is a technology that neutralizes distortion across the entire dynamic range of the microphone making any residual distortion imperceptible to the naked ear and virtually unmeasurable.

Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

CORE+ applications
Microphones with CORE+ deliver crystal clear, distortion-free sound across the entire dynamic range of the microphone. Anyone seeking the highest possible sound quality will appreciate CORE+.

Whether recording or amplifying content, the sound will remain clear and completely undistorted by the microphone, even when the talent speaks or sings at louder volumes.

Especially at higher sound pressure levels and with multiple microphones on stage, the elimination of distortion will enhance the overall clarity and transparency of the entire sound image.

For miniature microphones in particular, sound professionals in theaters and film industry are the primary beneficiaries.

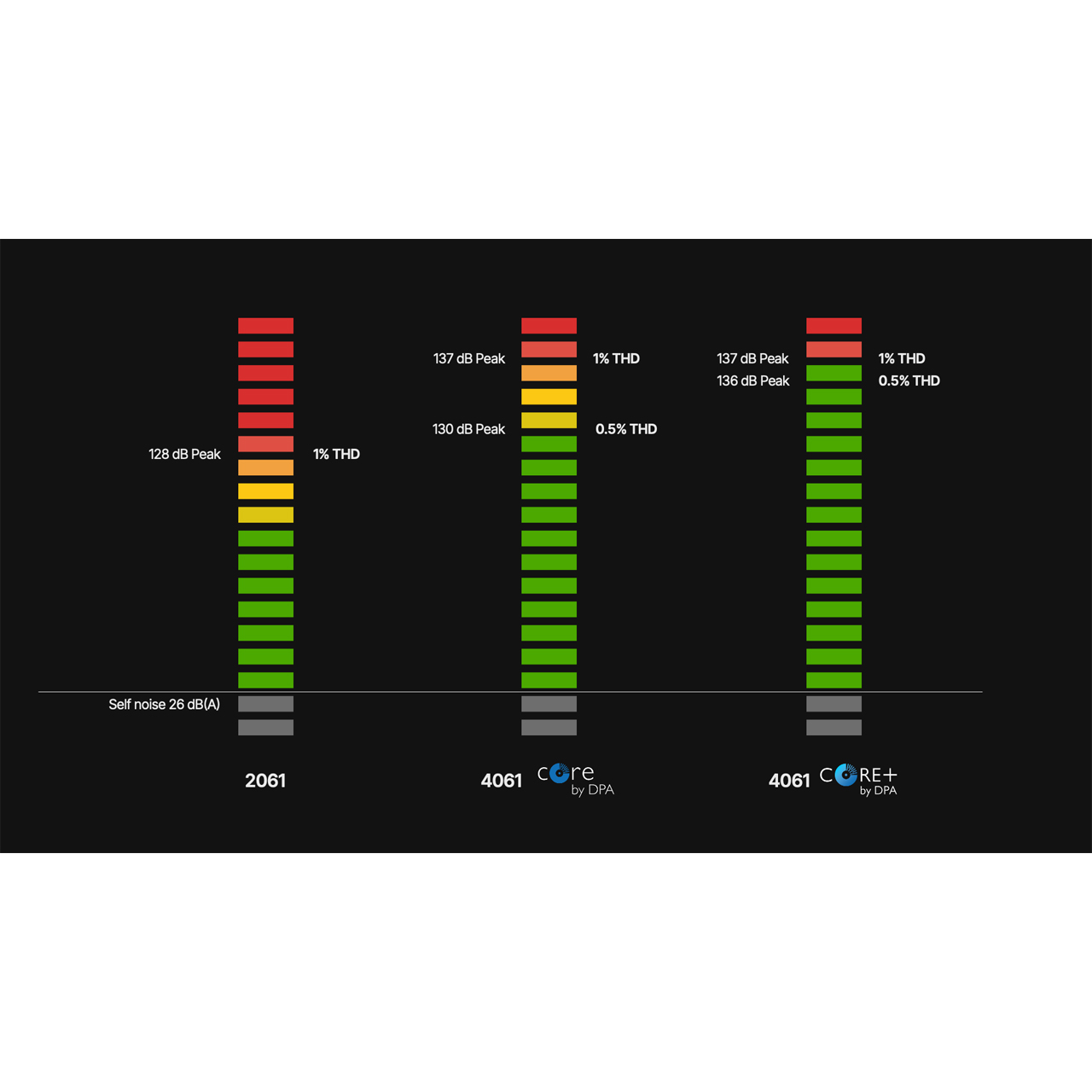

Core vs CORE+, what is the difference?
Microphones with CORE+ provide even more clarity across the entire dynamic range, from low to high sound pressure levels.

Miniature microphones with CORE+ provide unheard levels of openness. While CORE allows mics to handle higher SPLs without significant artifacts up to 1% THD, CORE+ eliminates those artifacts completely.

With CORE+ DPA has shifted the sound pressure level at which they achieve THD 0.5% to be nearly the same as THD 1%.

  • Features:

    • Resistant to humidity
    • Double-vent protection system

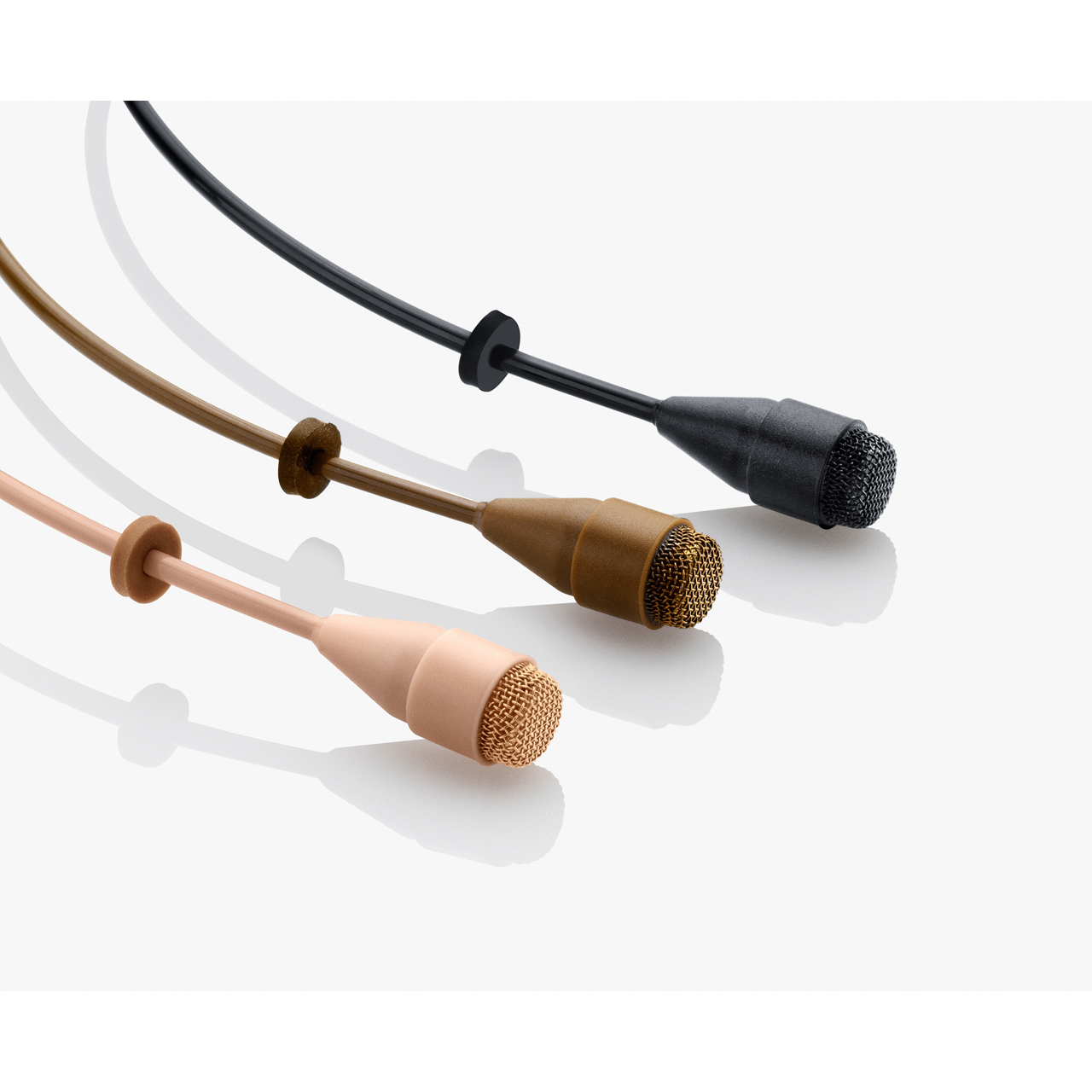

    • Available in three colors and three sizes
    • Modular adapter system fits most professional wireless systems

  • Specifications:

    • Directional Pattern: Omnidirectional
    • Principle of Operation: Pressure
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20 Hz - 20 kHz
    • Effective Frequency Range, ±2 dB:
      - Soft Boost Grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
      - High Boost Grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
    • Sensitivity, Nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
    • Equivalent Noise Level, A-weighted: Typ. Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)
    • Equivalent Noise Level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
    • Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL pea
    • Dynamic Range: Typ. 111 dB
    • Max. SPL, THD 10%: 144 dB SPL peak
    • Rated Output Impedance: 30 - 40 Ω
    • Cable Drive Capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
    • Power Supply (for full performance): Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
    • Current Consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    • Connector: Mini-Jack
    • Available Colors: Black, beige, brown or white
    • Weight: 7.5 g (0.26 oz) incl. Cable
    • Microphone Diameter: 0.21 in (5.4 mm)
    • Microphone Length: 0.5 in (12.7 mm)
    • Cable Length: 5.9 ft (1.8 m)
    • Polarity: Positively increasing sound pressure produces positive going voltage on Mini-Jack
    • Temperature Range: -40°F to 113°F (-40°C to 45°C)
    • Relative Humidity (RH): Up to 90%
    • Sensitivity selection tolerance (at 1 kHz): ±1.5 dB

  • Warranty:

    • 2-Year Limited Warranty
