Name: Cinch Connectivity Solutions 111-0103-001 Single Black Binding Post Speaker Connector
Brand: Pomona Electronics
SKU: 4098-0
Price: 2.95 USD
Availability: InStock

Pomona Electronics

List Price:

$6.95

Our Price:

$5.95

Special Price:

$2.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

J165-ND - Overview

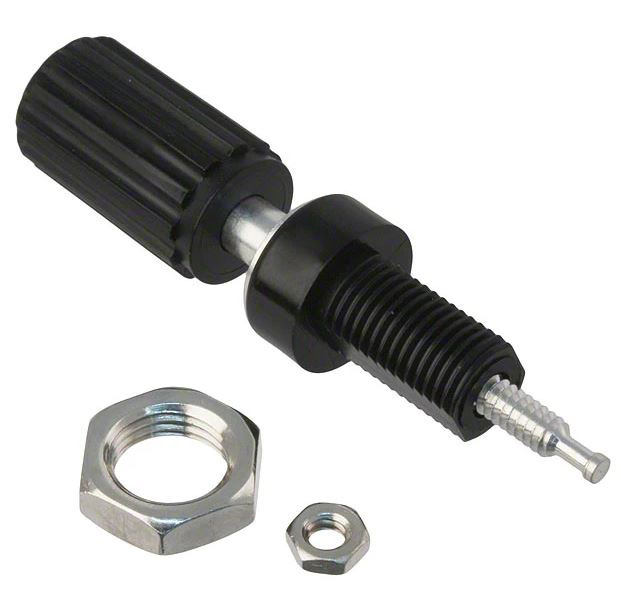

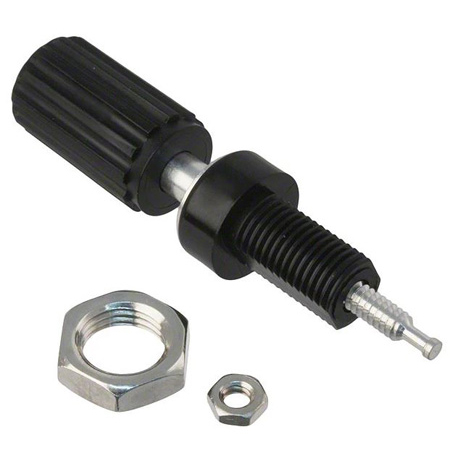

The 4098-0 is a Binding Post Connector Standard Knurled Black Silver. The unit is silver plated brass with a knurled head, with a 0.086" cross hole diameter. This unit is also lead free and RoHS Compliant.

Specifications:
- Type: Standard
- Head Style: Knurled
- Termination: Threaded and Turret
- Termination Thread: 4-40
- Current Rating: 15A
- Material - Body: Brass
- Plating - Body: Silver
- Color: Black
- Cross Hole Diameter: 0.086" (2.18mm)
- Head Size: 0.423" OD x 0.719" L (10.74mm x 18.26mm)
- Material - Insulation: Polyamide (PA66), Nylon 6/6
- Nut Plating: Nickel
- Panel Thickness: 0.281" (7.14mm)
- Lead Free Status / RoHS Status: Lead free / RoHS Compliant
- Moisture Sensitivity Level (MSL): 1 (Unlimited)
