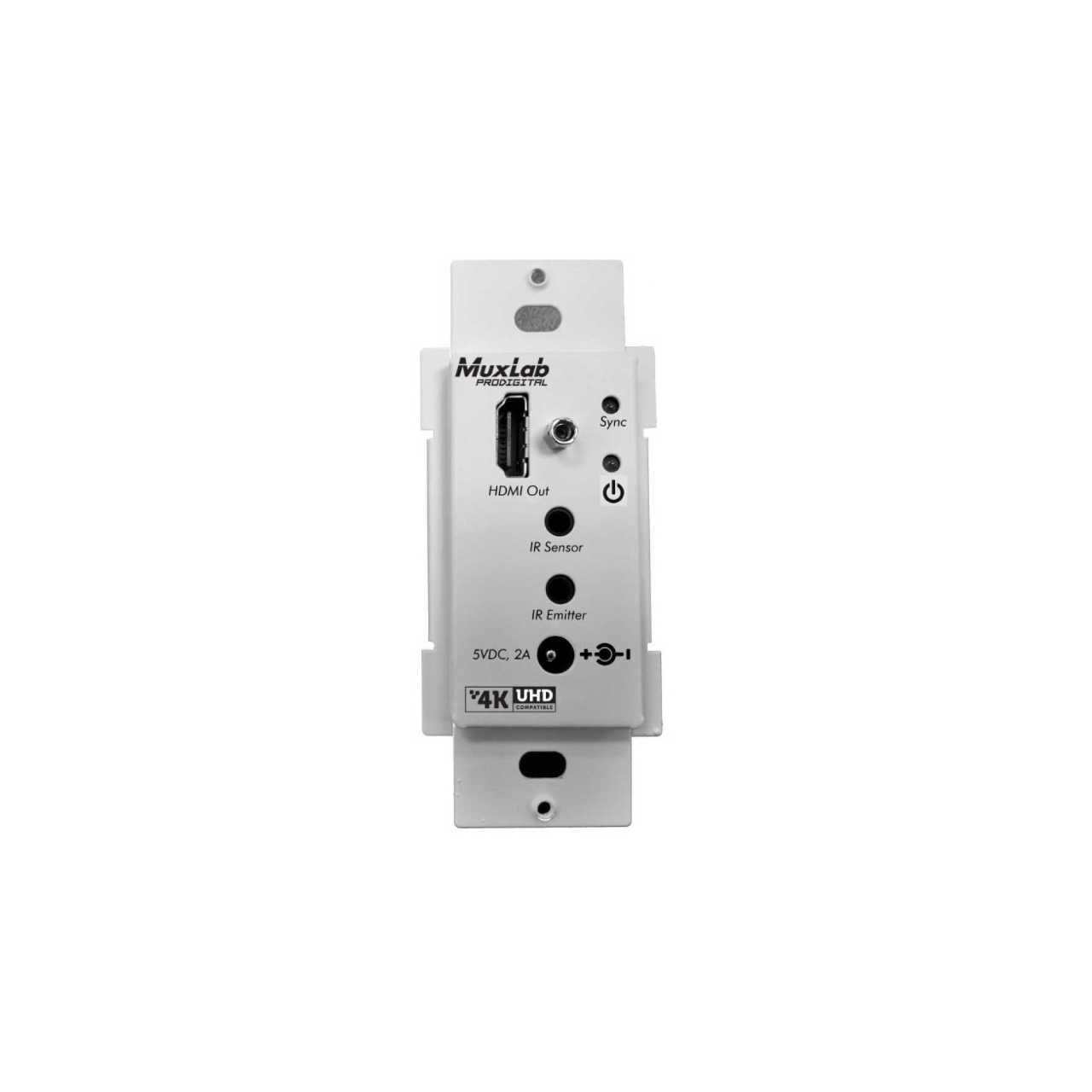

Muxlab 500451-WP-DEC-RX HDMI Wall-Plate Extender Receiver - HDBT UHD-4K (Decora)

500451-WP-DEC-RX - Overview

• Features:

  • Supports 1080p deep color, 4K @ 30fps & 3D resolutions
  • Up to 230 ft (70m) via Cat5e cable
  • Supports Bidirectional IR
  • Compatible with 500451


• Specifications:

  • Environment: HDMI 1.4a (3D)
  • Transmission: Transparent to the user
  • Bandwidth: 340MHz
  • Signals: HDMI 1.4a protocol
  • Connectors:
    - 1x HDMI receptacle

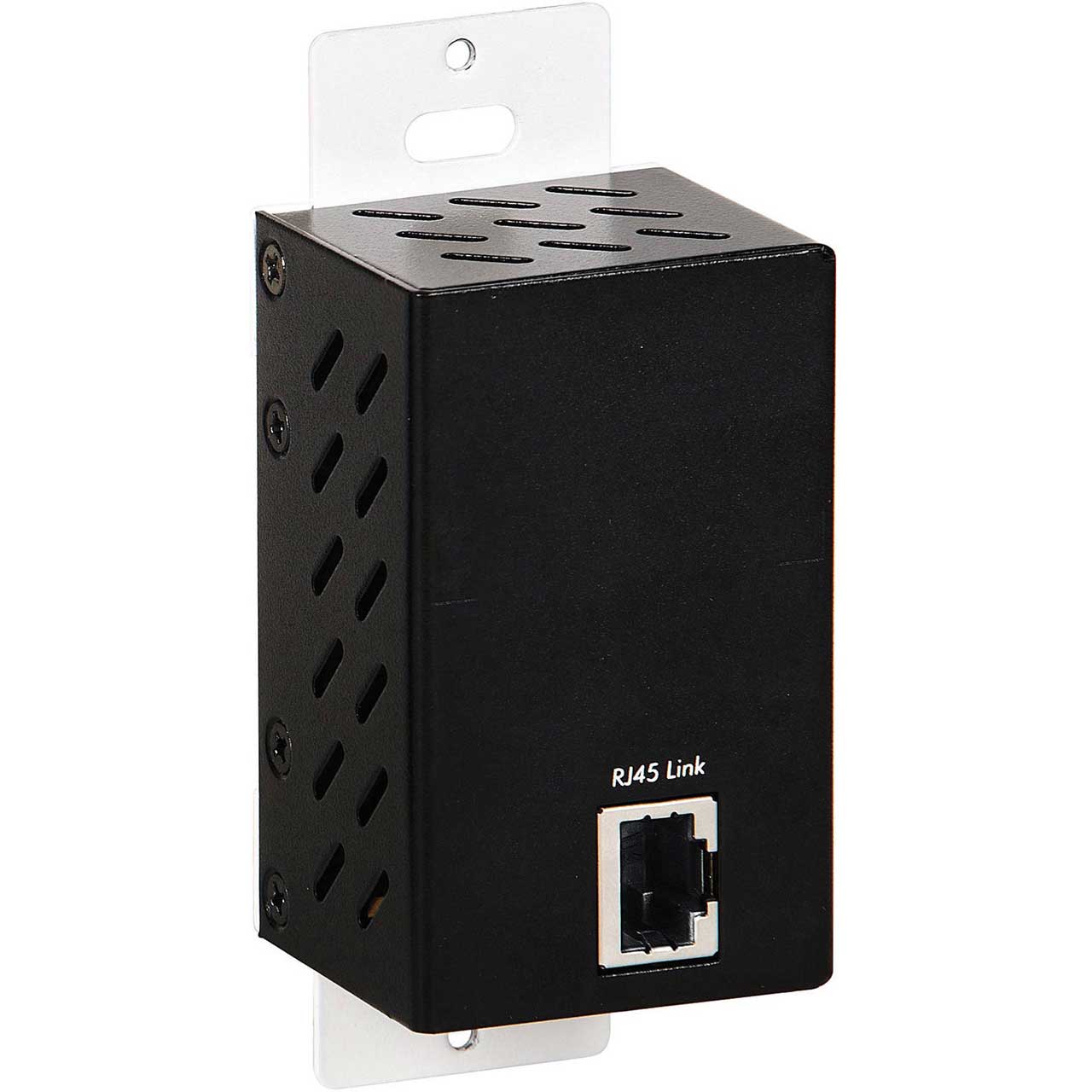

    - 1x RJ45S for Cat5e/6 unshielded or shielded twisted pair
    HDMI cables not included
  • Max. Distance (Based on a maximum length of 6.6ft (2m) of HDMI cable per end):
    - Cat 5e/6: 230ft (70m) up to 1080p Deep Color, 131ft (40m) for 4K; 3840 x 2160/24, 25 &30 Hz
    When installed in an electrically noisy environment, STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
  • Cable: 1x Category 5e or better twisted pair cables required
  • Power Supply: 1x 110-240V/5VDC power supply with interchangeable blades
  • Power Consumption: 6W per side
  • Temperature:
    - Operating: 32°F - 104°F (0°C - 40°C)
    - Storage: -4°F - 185°F (-20°C - 85°C)
    - Humidity: up to 95% non-condensing

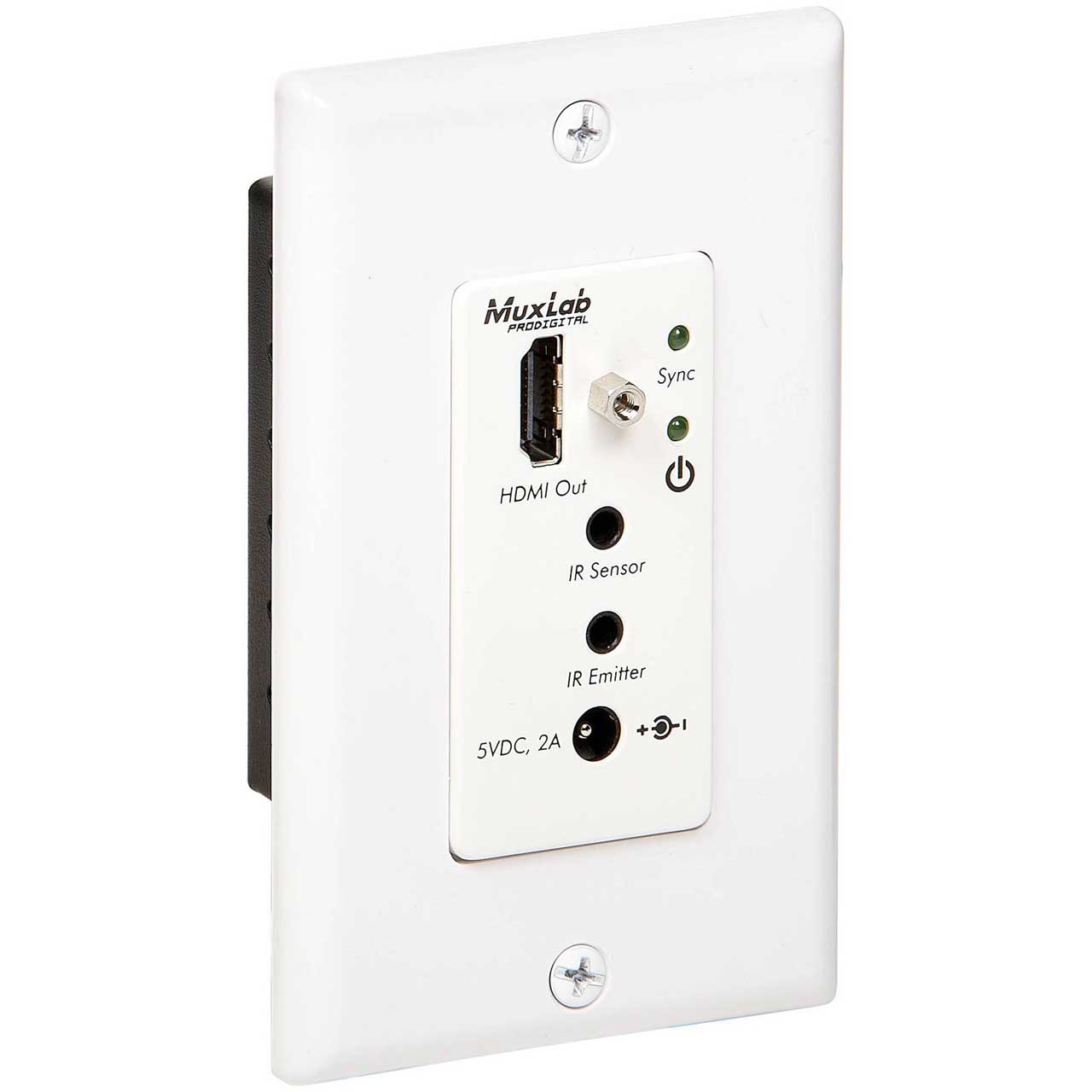

  • Enclosure: Metal Wall-Plate one gang
  • Dimensions: 1.69" x 4.33" x 1.50" (43mm x 110mm x 38mm)
    Choose 1.97" (50 mm) deep back box to allow for Cat 5E/6 wiring connection
  • Weight: 1.6lbs (0.7kg)
  • Mounting: Screws included


• Warranty:

  • 2 Year Warranty

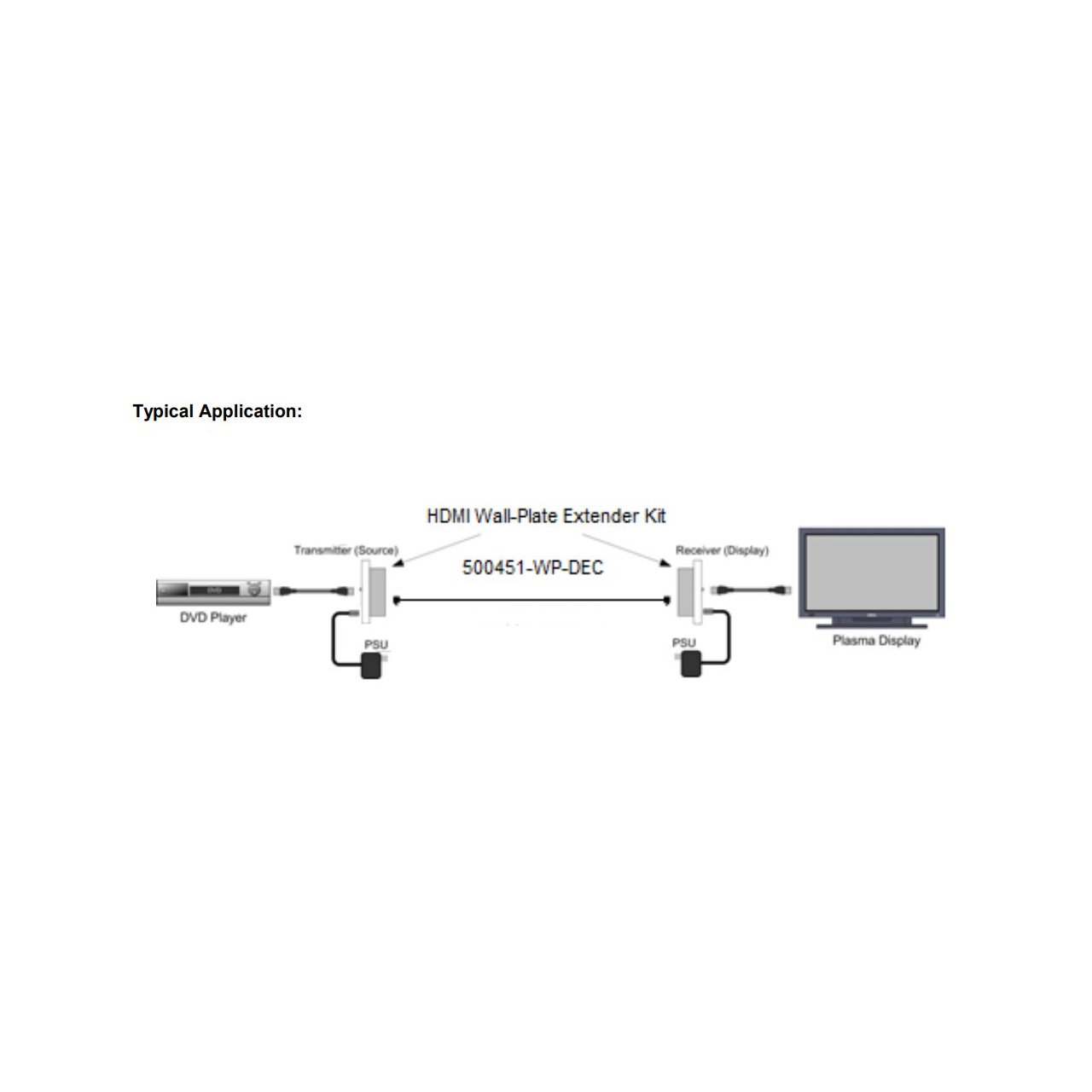

• Applications:

  • Commercial and residential AV systems
  • Classroom projector systems
  • Digital signage
  • Boardroom systems
  • Collaborative PC systems
  • Medical information systems
