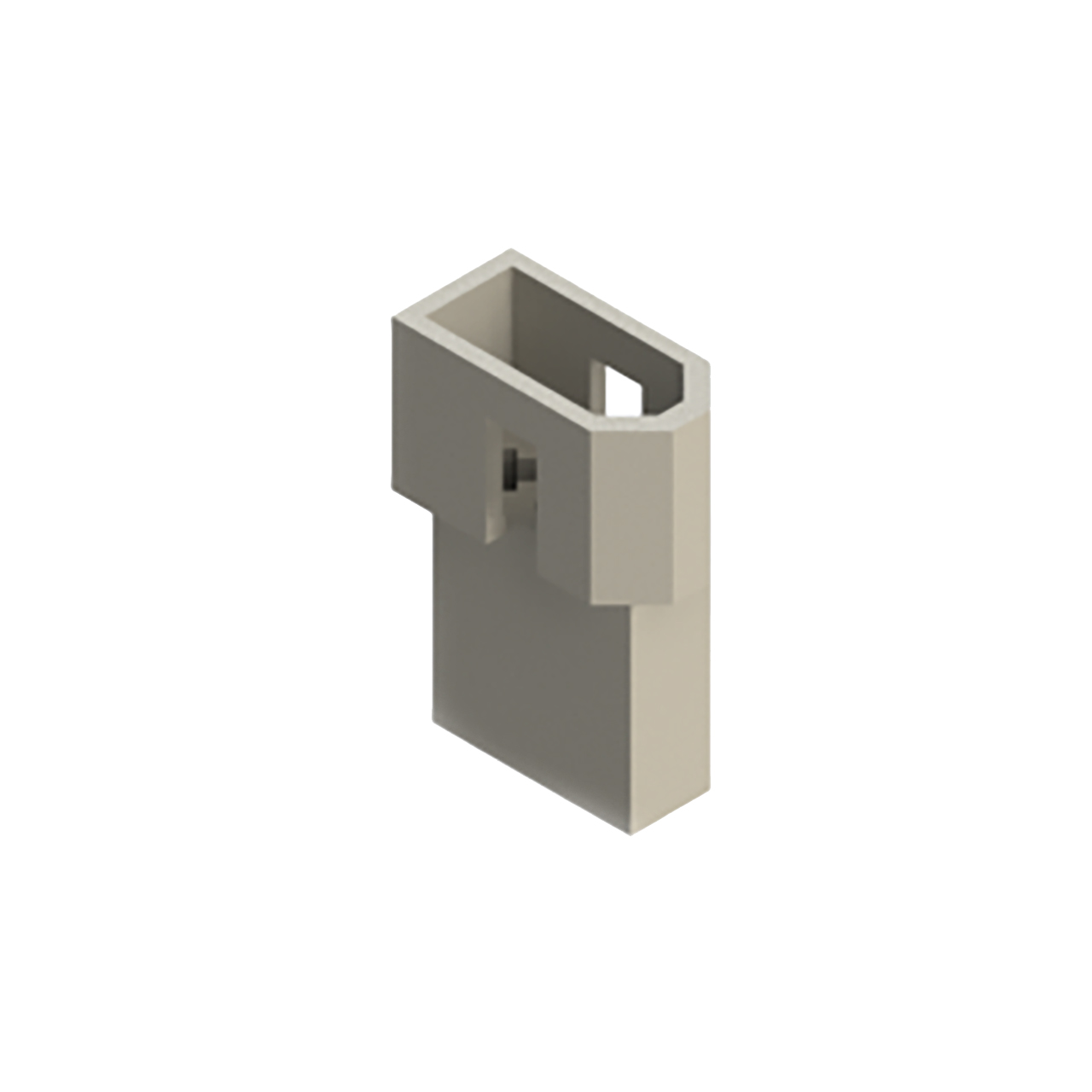

EDAC 556-003-000-201 3 Pin Receptacle

ITEM #: 556-003-000-201 MFG #: 556-003-000-201

Primary Image
EDAC
Free Shipping with $49 Minimum Order

Our Price:

$1.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

556-003-000-201 - Overview

THe EDAC 556-003-000-201 is a 556 Series EDACON Connector with 3 empty contact slots in a Plug style connector. The insulator is White Nylon.

  • Features:

    • .156" (3.96mm) Contact Spacing
    • Available in Plug and Receptacle.
    • Edacon Hermaphroditic Contact Mating Design
    • Contact Termination Options include Crimp, P.C. Tail, Wire Hole, Wire Wrap and Taper Tail
    • Tools are Available for Contact Installation, Removal and Crimping
    • RoHS Compliant


  • Specifications:

    • Insulator Material: Nylon UL 94V-0 , White Color
    • Contact Material: Copper Alloy
    • Contact Plating: Gold Plating over Nickel over entire contact
    • Current Rating: 8.5 Amperes
    • Contact Resistance: 10 milliohms maximum
    • Dielectric Withstanding Voltage: 2000 VAC rms at sea level
    • Insulation Resistance: 5000 Megaohms minimum
    • Operating Temperature: -40°F - 221°F (-40°C - 105°C)
    • Insertion Force: 2 - 16 Oz (0.56 to 4.45N) per contact position
    • Withdrawal Force: 2 - 16 Oz (0.56 to 4.45N) per contact position
