Laird Canare A2V2-L Dual XLR M-F & Dual BNC Dub Cable - 3 Foot

Name: Laird Canare A2V2-L Dual XLR M-F & Dual BNC Dub Cable - 3 Foot
Brand: Laird Digital Cinema
SKU: A2V2-SNK-3
Price: 72.49 USD
Availability: PreSale

ITEM #: A2V2-SNK-3 MFG #: A2V2-SNK-3

Laird Digital Cinema

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$81.95

Our Price:

$72.49

Add to Wish List Leasing Options

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

A2V2-SNK-3 - Overview

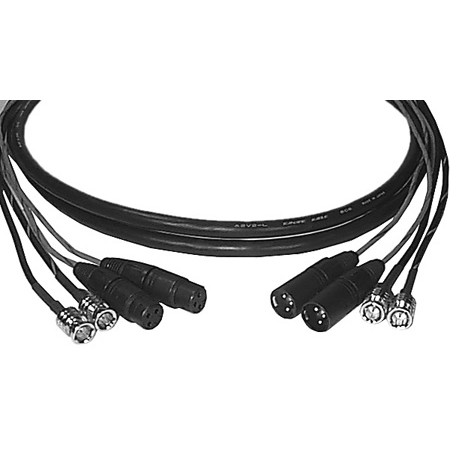

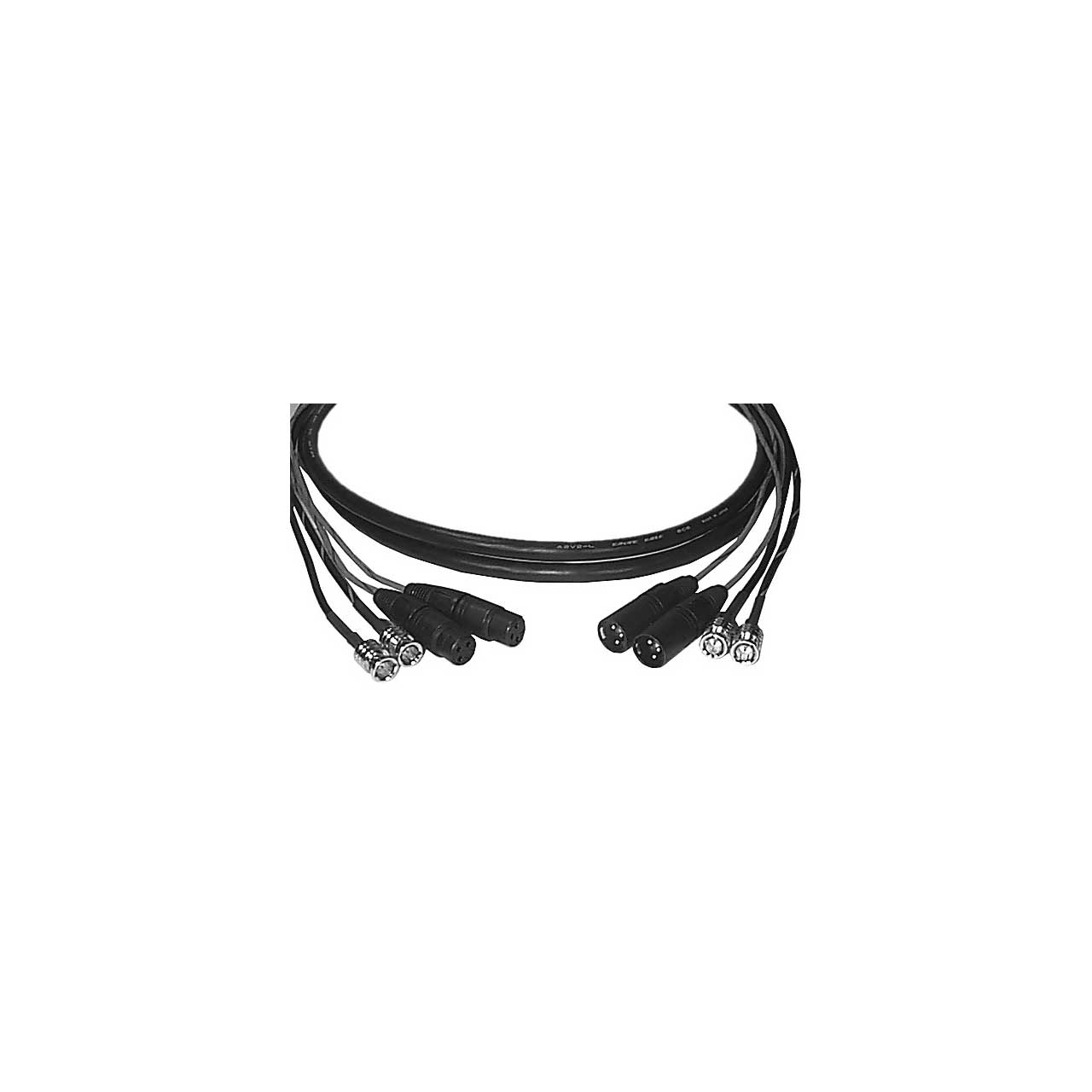

Dubbing cables designed by Laird feature Canare A2V2 Cable, Neutrik Black & Gold XLR Connectors & Premium Quality BNC Video Connectors. XLR cable portions are male to female.

Features:
- Canare A2V2-L Dual Balanced Audio & Dual Coax Remote Cable
- Neutrik Black and Gold Male & Female 3 Pin Female XLR Connectors
- 75 Ohm BNC Plugs
Specifications:
- Canare A2V2-L Dual Balanced Audio & Dual Coax Remote Cable
- Audio + Video in Same Cable Bundle
- Stays Flexible even in Sub-Zero Weather
- Special Fillers prohibit Cable Component Twisting

  Neutrik 3-Pin XLR Connectors
- Capacitance between contacts: ≤ 4 pF
- Contact resistance ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
Warranty:
- 1 Year
