ADJ DBD567 2-Channel XLR & RCA LED DB Level Meter

ITEM #: AA-DBDISPLAYMKII MFG #: DBD567

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$107.95

Our Price:

$89.99

Availability: In Stock
iAvailability Description Popup


DBD567 - Overview

The all metal DB DISPLAY MKII decibel display from American Audio is great for monitoring your sound volume. It also creates a great lightshow in your amp rack. Make sure your speakers stay in great shape by keeping those dBs under control through this monitoring system.

The LED display progresses from green through amber, to red. There are two different operating modes: Dot or Bar. A 5V power supply is included so you can get the unit plugged in and running right away. The DB DISPLAY MKII is perfect for stage, church, club or bar installs or for a mobile entertainer.

  • Features:

    • Designed to set in an amp rack to view your decibel level
    • Creates a great light show in your amp rack
    • Display progresses from green through amber to red
    • Sensitivity adjustment on both left and right channels

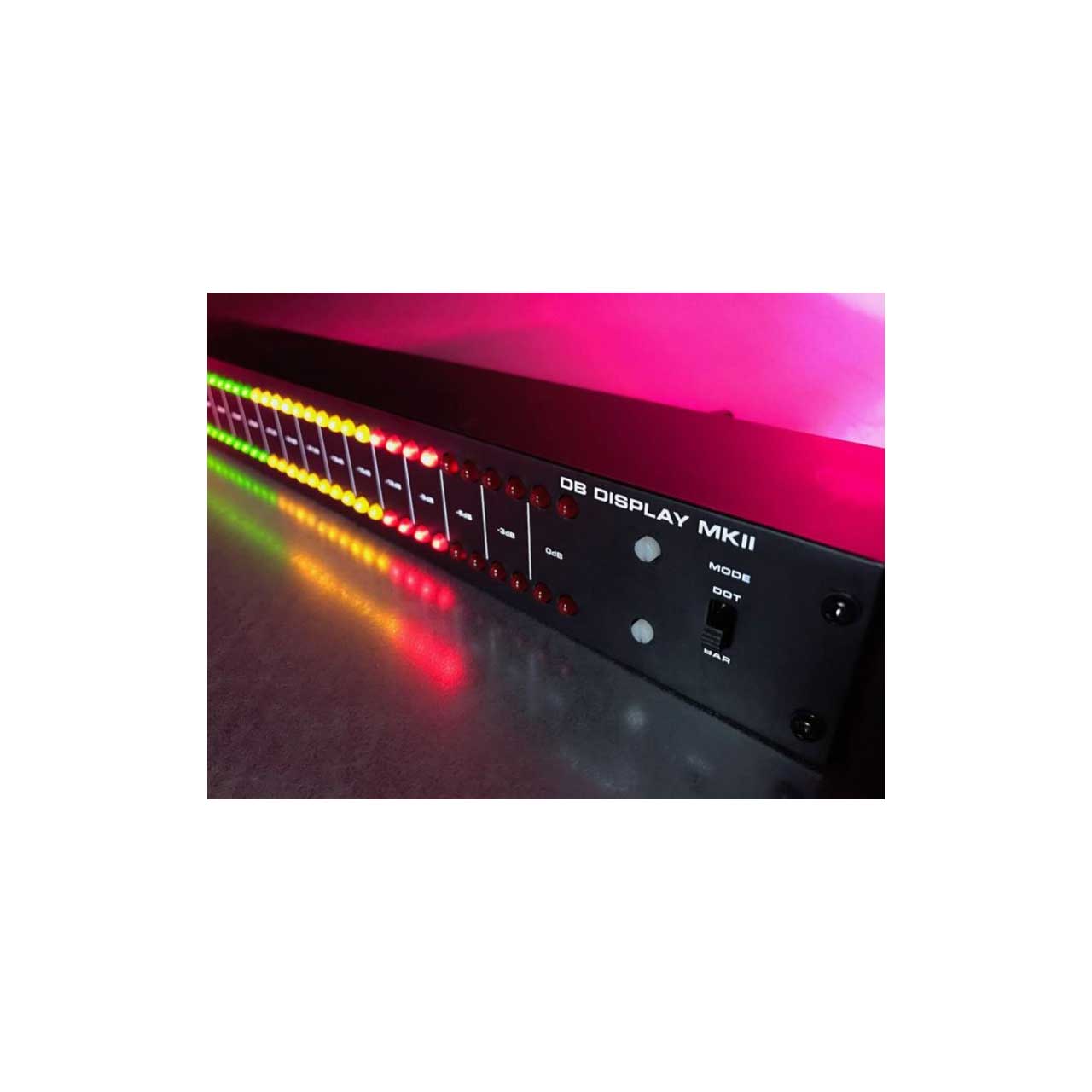

    • 2 separate modes: dot and bar
    • Includes 5V power supply

  • Specifications:

    • Operation modes: dot and bar

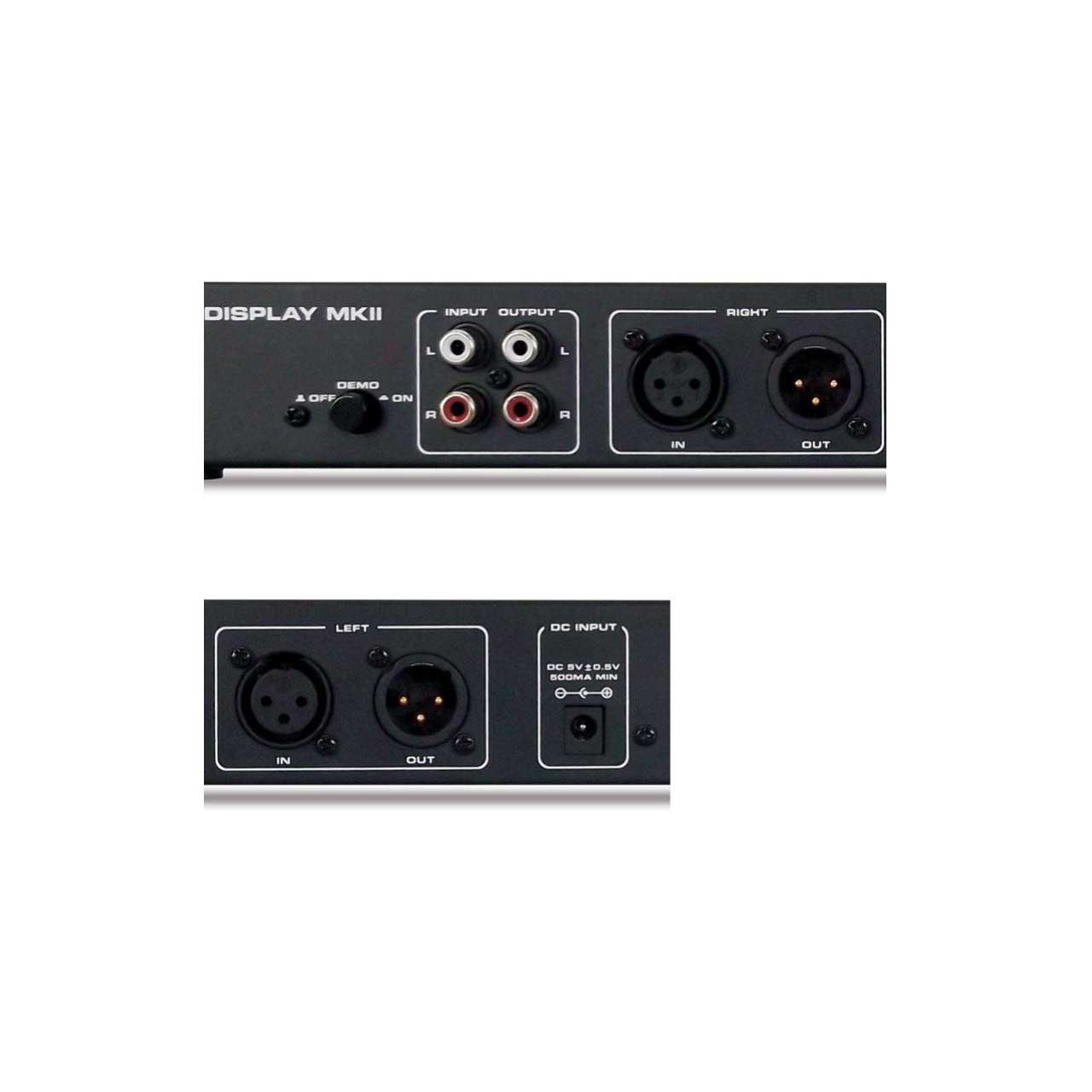

    • Line Inputs: Left & Right RCA / Left & Right XLR
    • Line Outputs: Left & Right RCA / Left & Right XLR
    • Voltage Operation: DC 5V, 500mA Power Supply included
    • Dimensions (L x W x H): 19" x 1.75" x 1.75"
    • Weight: 2.5 lbs.

  • Item Includes:

    • 5V power supply

  • Tags

    :

    • #ASIN B01NAVT59W

  • GTIN:

    0819730019493
