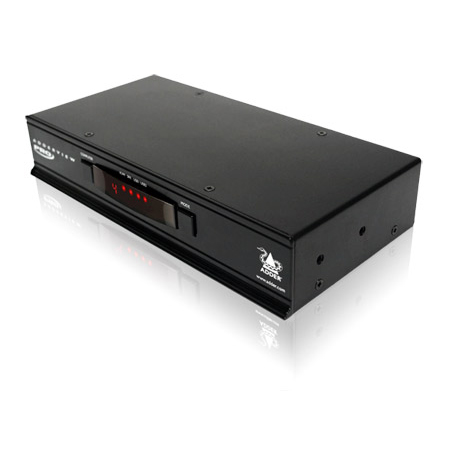

ADDERView AV4PRO-VGA-US 4 PRO VGA 4-port KVMA Switch - VGA & USB

AV4PRO-VGA-US - Overview

Ultimate flexibility for sharing high-res screens and USB peripherals

• Features:

  • Extended DDC EDID profile: ensures that the graphics card is always optimized to work with your screen

  • High resolution video: VGA capabilities enable users to work at very high resolutions including WUXGA (1920 x 1200) or (1920 x 1440)

  • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers

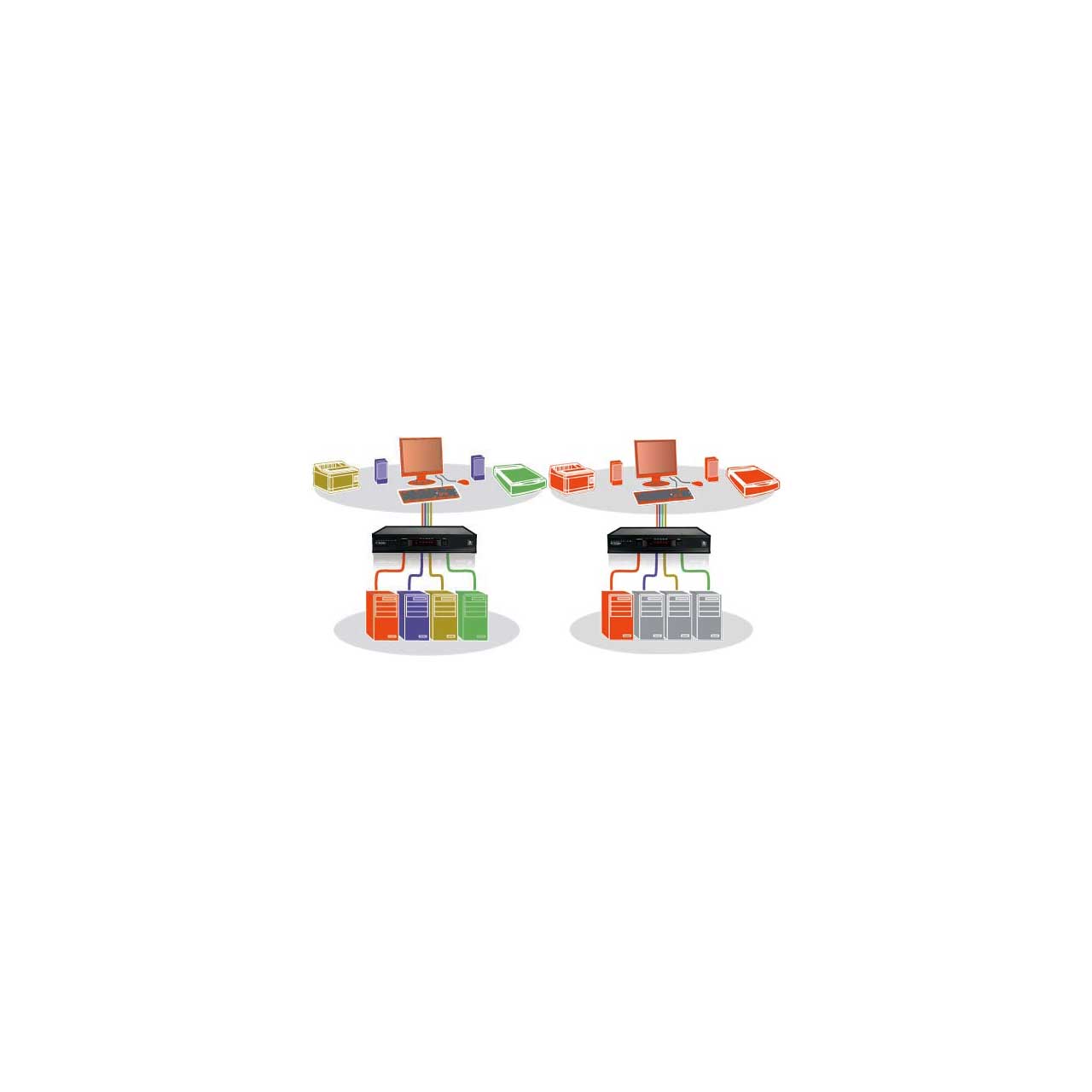

  • Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones

  • Channel selection options: switch using selectable keyboard hotkeys, three button mice or the front panel controls, or add a RC4 remote

  • Broad USB 2.0 HID Support: a range of USB devices can be connected, including printers, scanners, and non-standard human interface devices

  • Options port for control, synchronization and upgrade: port allows remote switching using simple ASCII codes; units to be switched in synchrony to create a multi video head switching system; and firmware upgrades, all through the same port.


• Specifications:

  • Video Resolutions
  • VGA resolutions to a maximum of 1920 x 1200 or 1920 x 1440 @60Hz
  • Dual x 2, Triple x 3 or Quad x 4


  • Audio
  • 3.5mm stereo jack


  • Approvals / Compliance
  • CE
  • FCC


  • Standards
  • USB 2.0 type B


  • Cable Requirements
  • All standard cables


  • Environmental
  • 0 to 40 deg C / 32 to 104 deg F

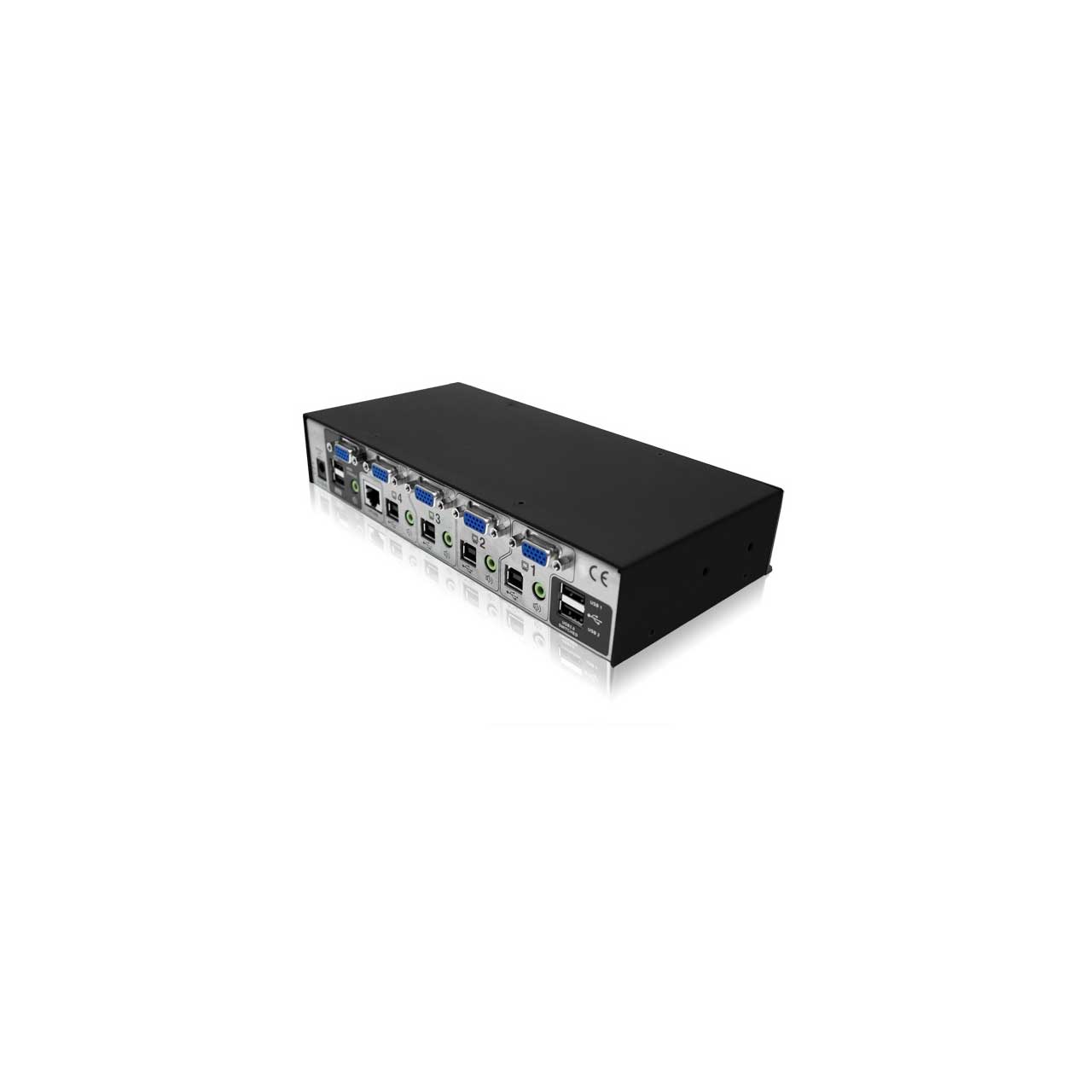

  • Connectors - User
  • Keyboard/Mouse: 2 x USB type A
  • Switched USB: 2 x USB 2.0 type A. Supports USB 2.0 devices in low, full and high speed modes.
  • USB True Emulation: Emulates keyboard and mouse on each port. Low speed HID USB 2.0 devices supported


  • Other Connections:
  • Options (flash upgrade, sync with other AV4PRO-DVI-MS and RS232 triggered power switches):
  • Modular 10P10C USB 2.0 type B
  • Hi Res VGA (up to 4 per connection)
  • 3.5mm stereo jack


  • Connectors - Computer
  • Options (flash upgrade, sync with other AV4PRO-DP and RS232 triggered power switches): Modular 10P10C


  • Mechanical
  • Single: 1U high metal case 260mm (w), 150mm (d), 40mm (h)
  • Dual, Triple and Quad: 2.5U high metal case 260mm (w), 150mm (d), 100mm (h)


  • Power
  • 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter


  • Software
  • Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc


• Item Includes:

  • AV4PRO unit and power supply


• Warranty:

  • 2 Year Limited


• GTIN:

  0657248867638
