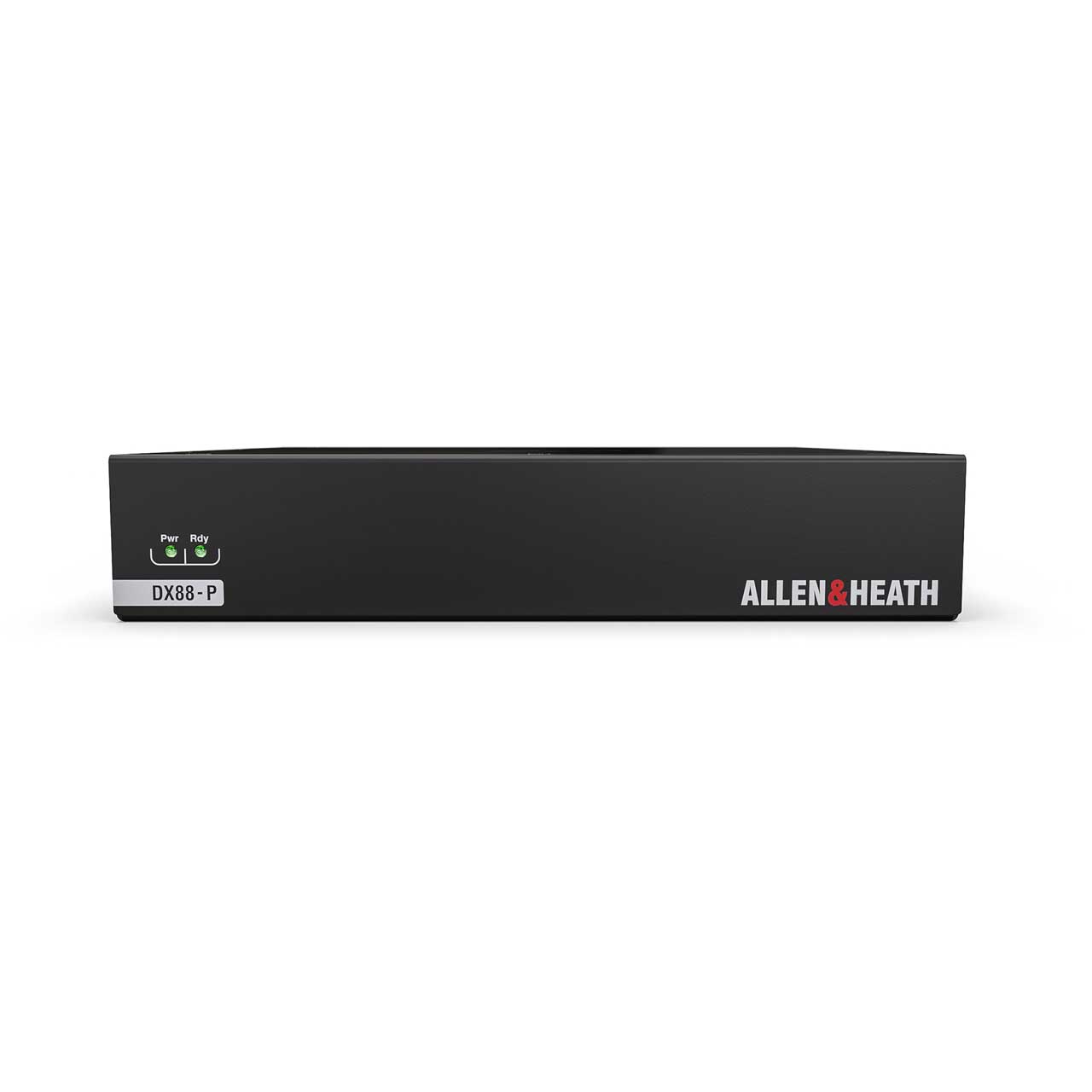

Allen & Heath DX88-P 96kHz DX Expander Designed for Fixed Installations

DX88-P - Overview

An easy way to add local or remote expansion to AHM Audio Matrix Processors!

• Features:

  • Compatible with AHM, SQ, Avantis and dLive systems

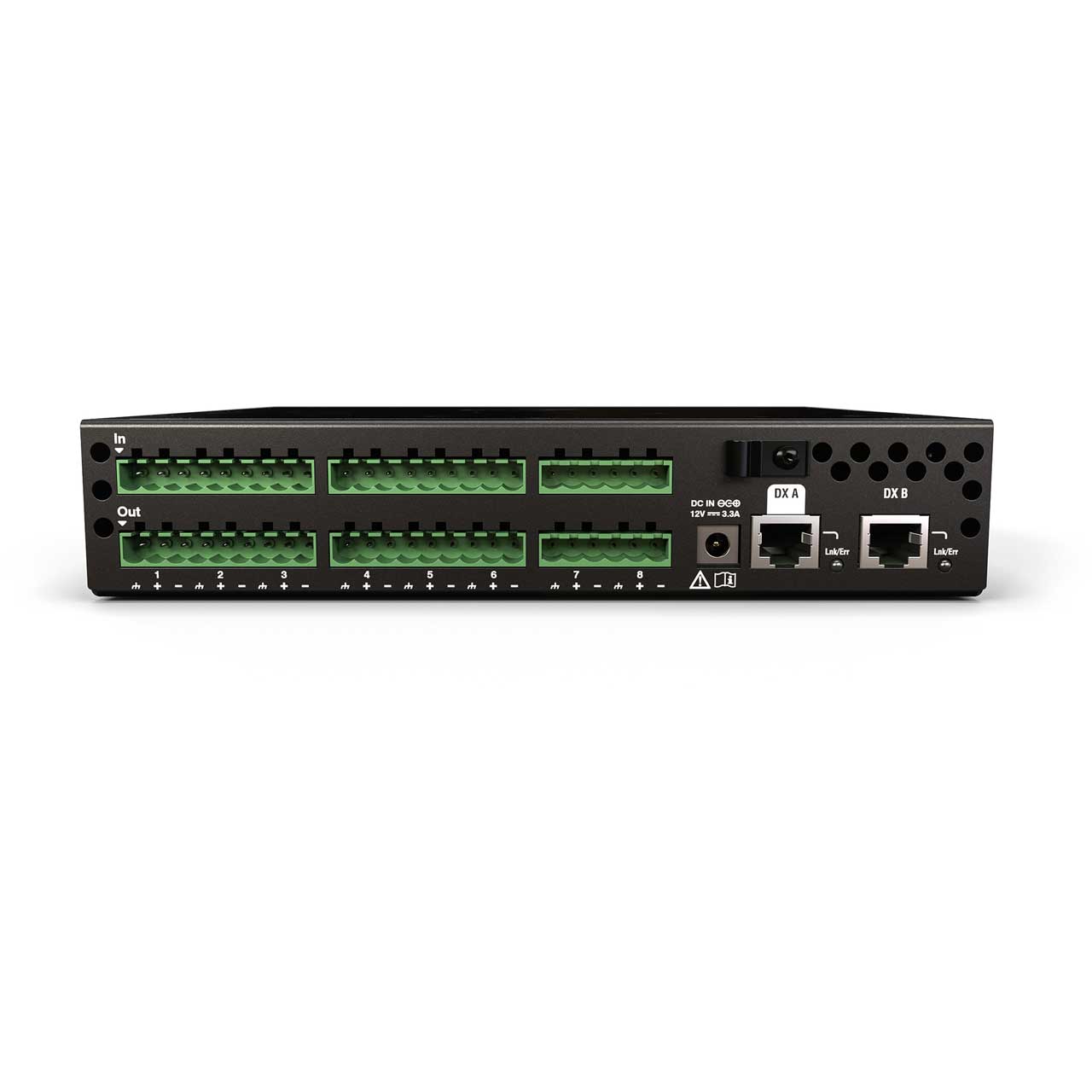

  • 8 Phoenix/Euroblock Inputs with recallable 5-60dB gain, Phantom power and 20dB PAD
  • 8 Phoenix/Euroblock Outputs
  • Cascade mode
  • Multiple DX88-P can be added to a system (up to 8 units on a single DX Hub)
  • Optional rack mount kit
  • Plug and Play - no IP addressing required
  • Compatible with CAT5e (or higher) cables of up to 100m


• Specifications:

  • Inputs
  • Mic/Line Inputs: Balanced Phoenix, +48V phantom power
  • Mic/Line Preamp: Fully recallable
  • Input Sensitivity: -60 to +15dBu
  • Analog Gain: +5 to +60dB, 1dB steps
  • Pad: -20dB Active PAD
  • Maximum Input Level: +30dBu (PAD in)
  • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
  • Mic EIN: -127dB with 150Ω source
  • Sample Rate: 96kHz

    Analogue Outputs
  • Output Impedance: <75Ω
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +21dBu
  • Residual Output Noise:
    -92dBu (muted, 20-20kHz)
    -90dBu (muted, 20-40kHz)
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Power: 12V DC via external PSU, 3.3A max, 39.6W max
  • Dimensions (WxDxH): 8.52 x 7.69 x 1.68" (216.5 x 195.4 x 42.8mm)
  • Weight: 3.32Lbs (1.51kg)


• Item Includes:

  • 1x DX88-P Expander
  • 16x 3-Way Phoenix Contact Plug
  • 1x DC 12V power supply
