AJA U-TAP-HDMI USB 3.0 Powered HDMI Capture Device

ITEM #: AJA-U-TAP-HDMI MFG #: U-TAP HDMI

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$439.00

Add to Cart for Better Price


Availability: In Stock
iAvailability Description Popup


U-TAP HDMI - Overview

Simple USB 3.0 Powered HDMI Capture

The AJA U-TAP HDMI 3.0 (USB 3.2, Gen 1) capture device brings professional connectivity and high quality video capture to your laptop or workstation. U-TAP HDMI is bus powered with the ability to simply and easily bring in video across HDMI for use within a wide range of software without any drivers to install, as it's supported directly in macOS 11™, Windows™ and Linux™.

Pocket Power
U-TAP HDMI offers easy, cost effective and portable solutions for plug and play capture that is compatible with Windows, macOS and Linux operating systems and a broad range of creative applications. From video conferencing, streaming, social media, gaming and more, U-TAP HDMI offers powerful functionality without requiring any third party driver software.

U-TAP HDMI is smaller than a smartphone, with USB connectivity that provides a quick and easy way to connect HDMI sources for capture, without the need to install additional software drivers. Small enough to carry anywhere with you, its bus powered USB connectivity ensures you will never be looking for a power source. U-TAP HDMI supports frame rates up to 1080p 60, for your HD High Frame Rate (HFR) projects.

Rugged and Reliable

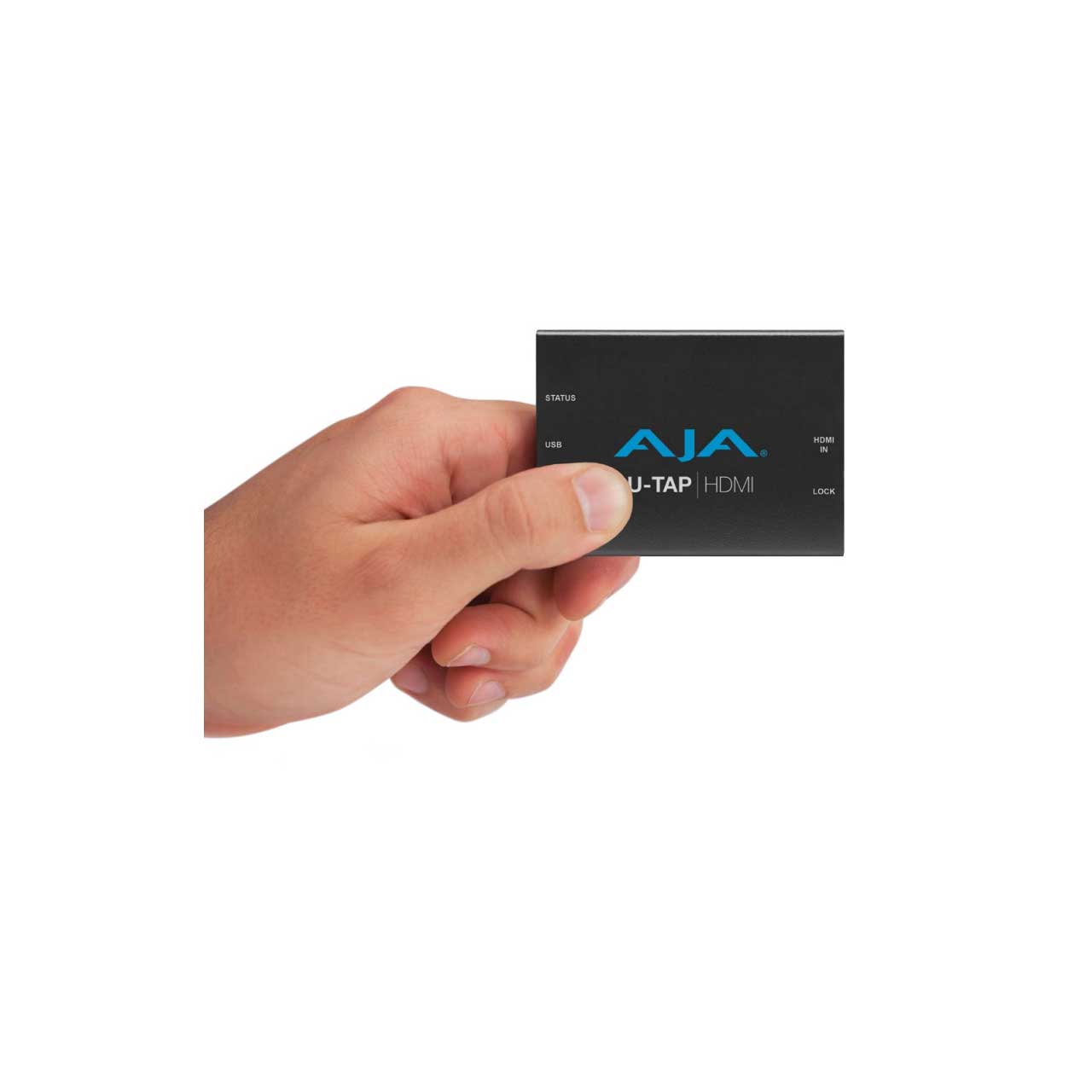

U-TAP is small, rugged, reliable and backed by AJA's world renowned support. Small enough to fit in your pocket and with no power supply to carry, it can go with you anywhere.

Silence defined with no fans or moving parts, U-TAP won't detract from the recording or streaming experience, but quietly enhance it with automatic video scaling and aspect ratio conformity based on your application's requirements, all the way up to 1080p 60.

  • Features:

    • HD/SD Capture up to 1080 60p over USB

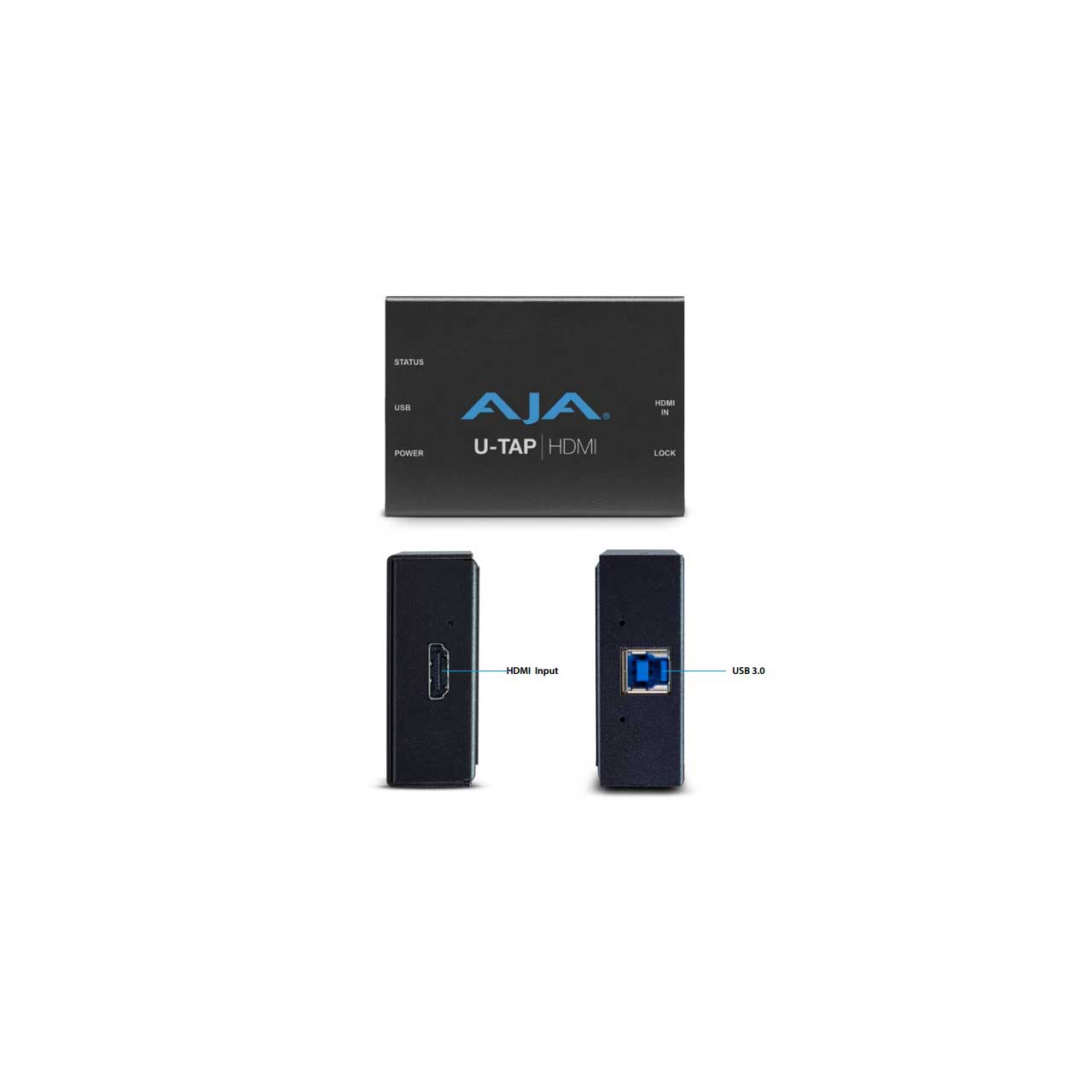

    • 1x HDMI 1.4a with 2-channel embedded audio
    • 1x USB 3.0 (USB 3.2, Gen 1) connector
    • YCbCr 4:2:2 10-bit workflows supported
    • RGB 4:4:4 / YCbCr 4:4:4 10/12-bit (raster / frame rate dependent)
    • HD/SD and scaled (USB) raster support
    • Configurable behavior upon loss of input signal
    • UVC/UAC capture, no third-party driver required
    • Compact, silent and pocketable
    • Bus-powered, no power adapter required
    • macOS, Windows and Linux supported
    • Universal application compatibility

  • Specifications:

    • Video Formats
    • Video (HDMI)
      (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      (HD) 1920x1080i 50, 59.94, 60
      (HD) 1280x720p 50, 59.94, 60
      (SD) 625p 25
      (SD) 625i 50
      (SD) 525p 29.97
      (SD) 525i 59.94
      YCbCr 4:2:2 10-bit*
      YCbCr 4:4:4 8/10/12-bit*
      RGB 4:4:4 8/10/12-bit*
    • Computer (HDMI), up to 60 Hz max for all formats
      1920x1080p
      1680x1050p
      1600x1200p
      1600x1024p
      1280x1024p
      1280x960p
      1280x768p
      1024x768p
      800x600p
      640x480p
    • Scaled (USB), Frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60
      1920x1080p
      1440x1080p
      1280x720p
      1024x576p
      960x540p
      856x480p
      800x600p
      768x576p
      720x576p
      720x480p
      640x480p
      640x360p
      432x240p
      352x288p
      320x240p
      176x144p
    • *Raster and Frame rate dependent.
      Note: Host system specifications/performance will govern what video formats are possible.

      Video Input Digital
    • HDMI v1.4a, 24, 30 or 36-bits/pixel, RGB or YUV

      Audio Input Digital
    • 2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate

      Capture Video
    • 16-bits/pixel, YUV (input video will be truncated as required)

      Capture Audio
    • 2-channel, 16-bit, 48 kHz sample rate (input audio will be truncated as required)

      Host Interface
    • USB 3.0/USB 2.0 UVC/UAC compliant

  • Warranty:

    • 3 Years

  • GTIN:

    0892448000083
