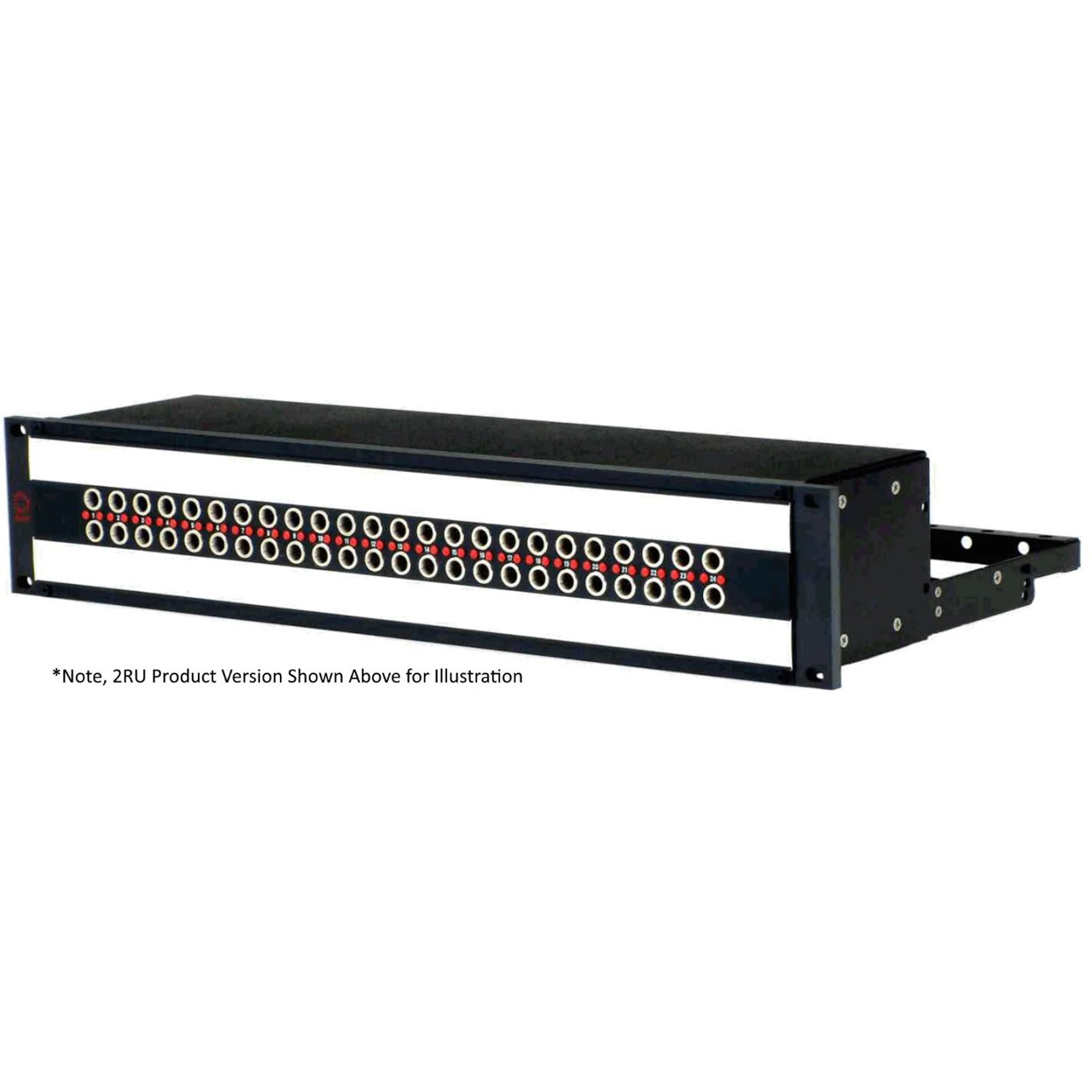

AVP AM-A224E15-L-FN-E03 Jackfield/2x24 Longframe Morph System Patchbay/Even/24 Full Normal Modules - 1.5RU

Name: AVP AM-A224E15-L-FN-E03 Jackfield/2x24 Longframe Morph System Patchbay/Even/24 Full Normal Modules - 1.5RU
Brand: AVP
SKU: AM-A224E15LFNE03
Price: 986.00 USD
Availability: PreSale

ITEM #: AM-A224E15LFNE03 MFG #: AM-A224E15-L-FN-E03

AVP

List Price:

$1,254.00

Our Price:

$986.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AM-A224E15-L-FN-E03 - Overview

The AVP AM-A224E15-L-FN-E03 is a 2x24 Jackfield, Longframe Morph System Patchbay. The award-winning Morph Audio System excels in specialty application requirements as found in mobile units and harsh environments. Its EDAC 3-pin terminations can withstand a 50 gravity vibration with no loss of continuity. In addition, the Morph System's short depth and light weight, allows installation in the tightest spaces. The Morph System features next generation flexibility and customization. Applications include AES/EBU Digital and Analog Audio.

Features:
- Color-coded
- Pivoting Cable Bar, front & rear
- EDAC/ELCO 3 pin interface
- Each Morph Patchbay is shipped complete with its crimp-pin mating connector kit and a captive hex driver
- Morph modules can be effortlessly identified, mixed and changed. Entire racks of jackfields can be re-configured anytime
- Morph modules fit 1, 1.5 & 2 Rack Unit frames
- Captive Jack Screws are locked in the panel
- Easy 'front-of-the-rack' assembly and re-arrangement
- Modules are front mounted, providing a simple module interchange method
- No more frantic searches for dropped screws. Screw holes are hidden by paper insert and clear window. Use the same 2.5mm hex wrench as used with AVP video panels.
- Maximized designations

AM-A224E15-L-FN-E03 - Recommended Accessories

Bittree LPC3600-110 Long Frame Patchcord Nickel 36in - Black
LPC3600-110
Our Price: $36.00
Bittree LPCXM3600-110 1/4 Inch Long-Frame to Male XLR Patchcord - 36 Inch - Black
BIT-LPCXM3600110
Our Price: $60.00
Middle Atlantic RK Series 8RU Rack - Black Laminate
RK-8
Our Price: $252.90
AVP LPC-4-GREEN 4 foot/1200mm Longframe Patch Cord - 4 Ft.
AVP-LPC-4-GREEN
Our Price: $44.24
Bittree SBCTLKT01 Bittree E3 Connector Toolkit
BIT-SBCTLKT01
Our Price: $501.00
Bittree E3-MULT 4 Male E3 Connectors Multed to 1 Female E3
BIT-E3-MULT
Our Price: $18.00
Bittree 3-Pin Female Connector (Bag of 50)
E3F-50
Our Price: $28.00
EDAC Contact Insertion Tool
EDAC-129
Our Price: $43.00
AVP AT-EET EDAC Ejection Tool
AT-EET
Our Price: $149.40
Bittree CCA0196 E3 to Blunt Cable 15 feet
BIT-CCA0196
Our Price: $15.00
EDAC 556-003-000-101 3-Pin Male Plug
556-003-000-101
Our Price: $1.90

AM-A224E15-L-FN-E03 - Reviews

AM-A224E15-L-FN-E03 - Attachments

Designation Layout Drawing
AVP Morph System Datasheet
