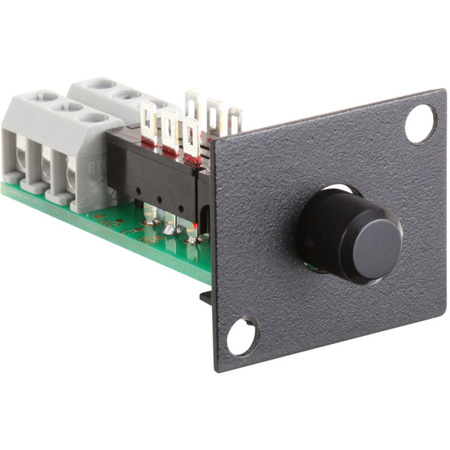

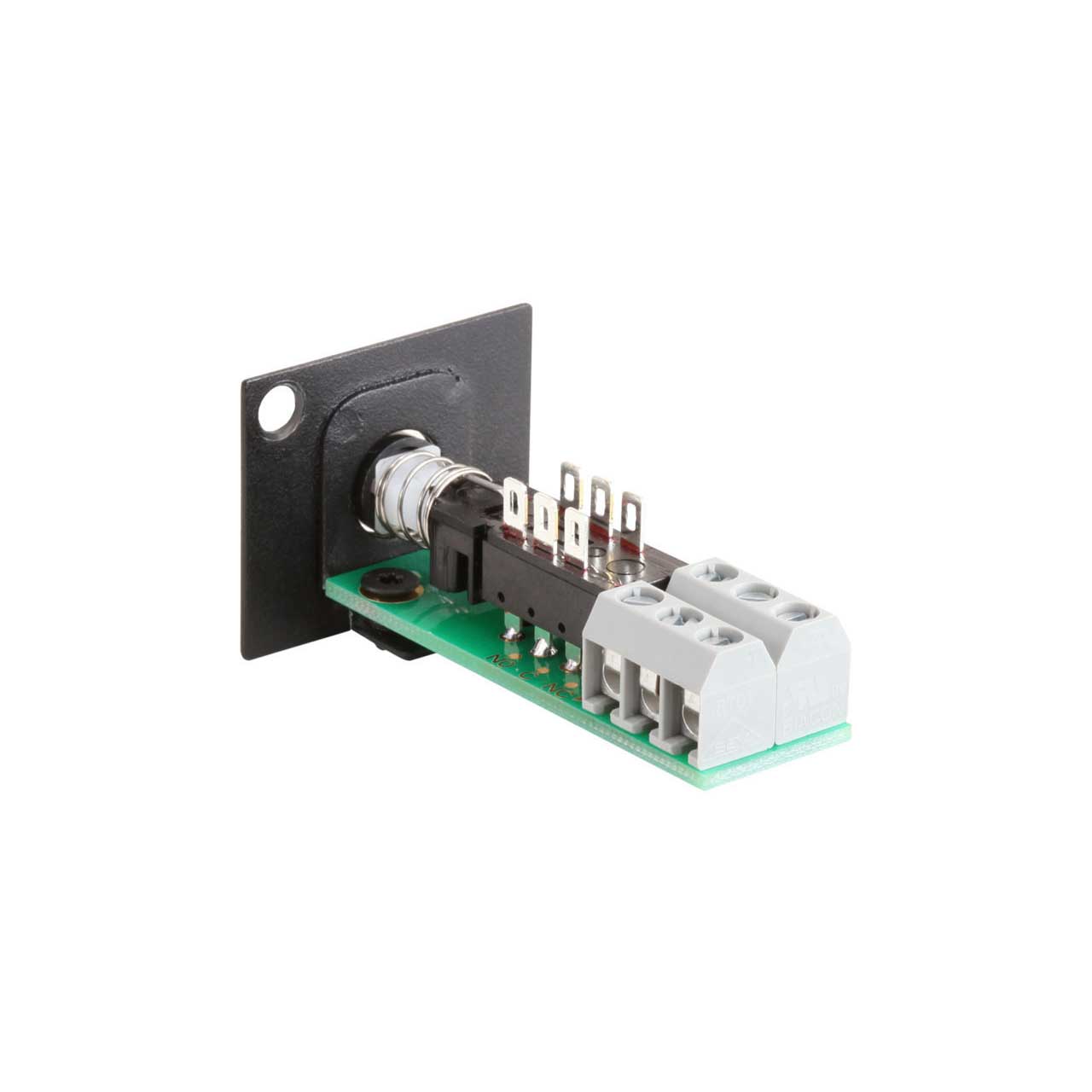

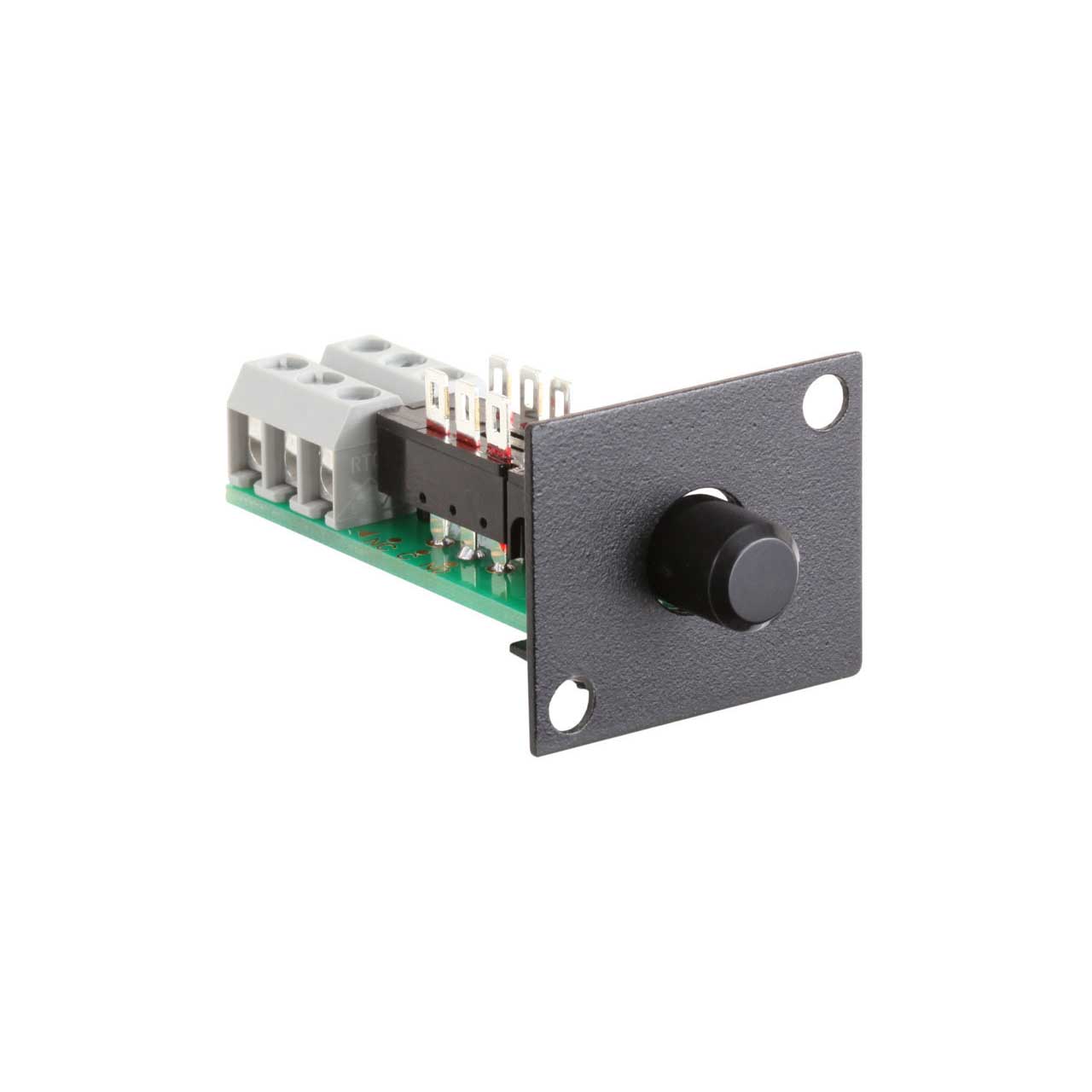

RDL AMS-SW2 Latching DPDT Pushbutton Switch with Terminal Block Connections

ITEM #: AMS-SW2 MFG #: AMS-SW2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$23.39

Our Price:

$17.55

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AMS-SW2 - Overview

The Radio Design Labs AMS-SW2 is an accessory with a DPDT latching pushbutton switch that mounts in AMS mounting frames and in standard D-style cutouts. Two high quality terminal blocks are provided for the connections. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

  • Features:

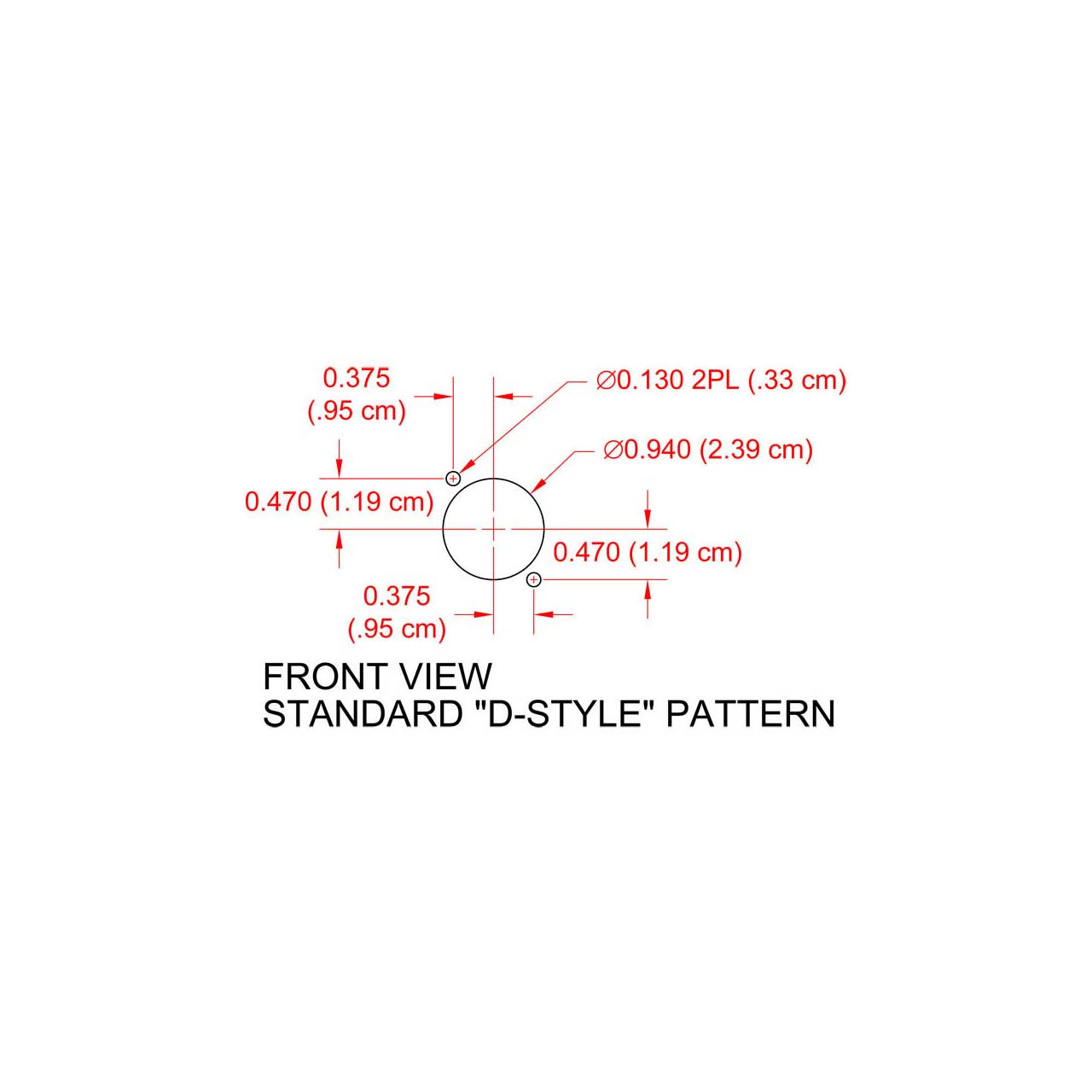

    • Mounts in D-Style Standard Cutouts
    • Mounts in all RDL AMS Mounting Frames
    • Mounts in RDL Decora-Style Wall Plates
    • Availability of a Wide Variety of Associated AMS Accessories
    • Bezel Provides Professional Aesthetic Appearance
    • Provides Flexibility for Connections and Controls

  • Specifications:

    • Mounting:AMS mounts; D-Style cutouts
    • pth (behind the panel):2.08 in
    • Maximum Switching Power:15 W (30 Vdc, 0.5 A)
    • Ambient Operating Environment:-10&Deg; C to 60&Deg; C
    • Package Type:Bag
    • WEEE Weight:0.043 lbs
    • Shipping Weight:0.071 lbs
    • Tariff code:8517.62.0050

  • GTIN:

    0813721012951
