Angelbird ATOM X SSDmini 500GB Kit

ITEM #: ANGEL-ATOMXMINI5 MFG #: ATOMX SSDMINI 500GB

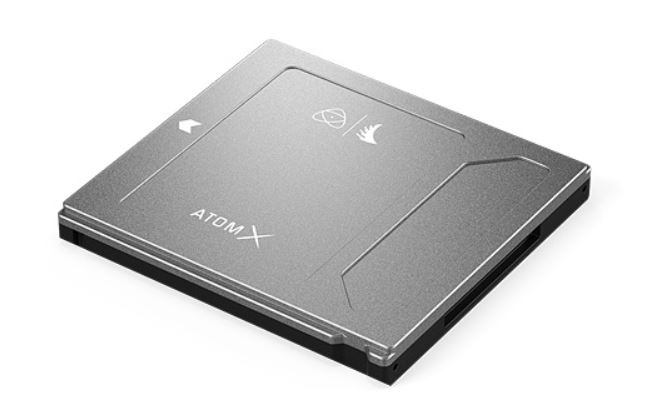

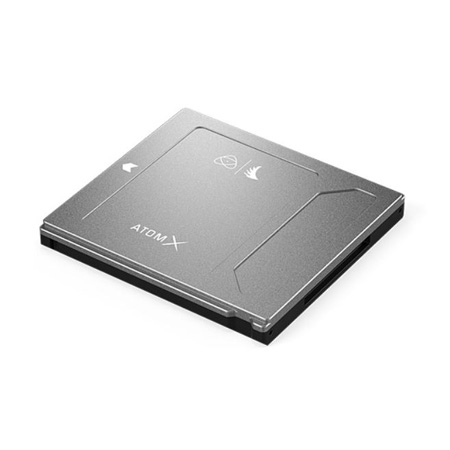

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ANGEL-ATOMXMINI5

ATOMX SSDMINI 500GB - Overview

Angelbird's AtomX SSDmini was custom made for the new Atomos Ninja V monitor recorder and is perfectly compatible with all the other available recorders. The AtomX SSDmini is 20 percent smaller than the average SSD (to fit the small footprint of the Ninja V), offers 500 GB of storage, has sustained read speeds of 540 MB/s and write speeds of 500 MB/s, captures CDNG up to 4K 30p, ProRes RAW HQ 5.7K up to 30p, plus 4K 60p and 2K 240p, sports a SATA III connector, and supports Stable Stream™ technology to never miss a frame.

Whether you are shooting in the desert or the snow-packed mountains, the AtomX SSDmini by Angelbird is your reliable partner. It's tough, likes it rough, and is made to last. The AtomX SSDmini by Angelbird is made to travel. Its rock-solid build makes it shock, temperature, X-Ray and magnetic proof, so wherever you decide to bike, hike, climb or fly, our SSDmini will be a perfect travel companion.

They have made sure that the Atomos Master Caddy guide rail system guarantees perfect docking to the SATA port. And yes, you can even use the AtomX SSDmini by Angelbird with the entire Atomos range of Ninja and Shogun devices, plus - with the use of an adapter handle - even the Sumo19, Sumo19M and Shogun Studio.

Please Note! Aligns with Atomos Master Caddy II products (Shogun Studio 1/2, Sumo 19) when used with AtomX Adapter Handle.

For full operability please ensure that your Atomos recorder is upgraded to the latest firmware.

  • Features:

    • up to 5.7K30p
    • Stable Stream™
    • Read speed up to 560 MB/s; Write speed up to 520 MB/s
    • X-ray & magnetic proof
    • ESD & overload protection
    • Solid Grip™ Shock & temperature proof
    • Power smoothing
    • CNC worked aluminum casing
    • Rock-solid build
    • 3-year limited warranty

  • Specifications:

    • General
    • Capacity: 500 GB
    • Form Factor: SSDmini
    • Dimensions: 3.15" x 2.97" x 0.37" (80.0 x 75.5 x 9.3 mm)
    • Weight: ~ 90.0 g (~ 3.2 oz)
    • Shock Resistance (Operating): 1000 G/0.5ms
    • Vibration Resistance (Operating): 2.17 GRMS
    • Operating Temperature: -20°C ~ +70°C
    • Storage Temperature: -40°C ~ +85°C
    • Humidity: 5 % to 95 % non-condensing
    • Interface: SATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported, SATA 3.0 compliant
    • Over Provisioning: ~ 9 %
    • DC Input Voltage: 5V ± 10%
    • Power Usage (IDLE/MAX): 0.35 W / 3.0 W

      Performance
    • Sequential Read Speed: 560 MB/s
    • Sustained Read Speed: 540 MB/s
    • Sequential Write Speed: 520 MB/s
    • Sustained Write Speed: 500 MB/s
    • Access Time (R/W): ~ 65 µs / 40 µs

      Reliability
    • MTBF: 2,400,000 hours
    • Data Reliability: Built-in EDC | ECC function
    • Data Retention: 10 years at 25°
    • Endurance: 500 GB: up to 1,500 TBW
    • Certifications: RoHS, CE and FCC compliant, REACH

      Supported codecs
    • 4k60p 2k240p Apple ProRes / Avid DNx
    • 5.7k30p 4k60p 2k240p Apple ProRes RAW
    • 4k30p CDNG

  • Warranty:

    • 3 Year

  • GTIN:

    0812937023003
