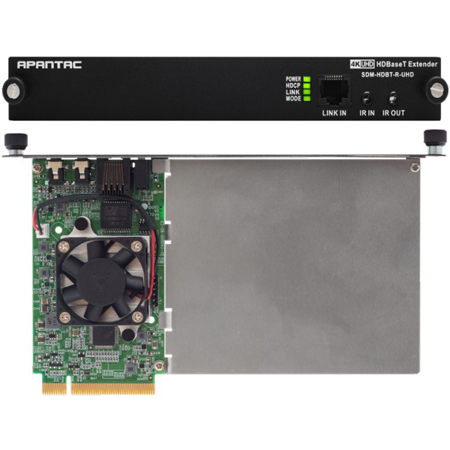

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$600.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SDM-HDBT-R-UHD - Overview

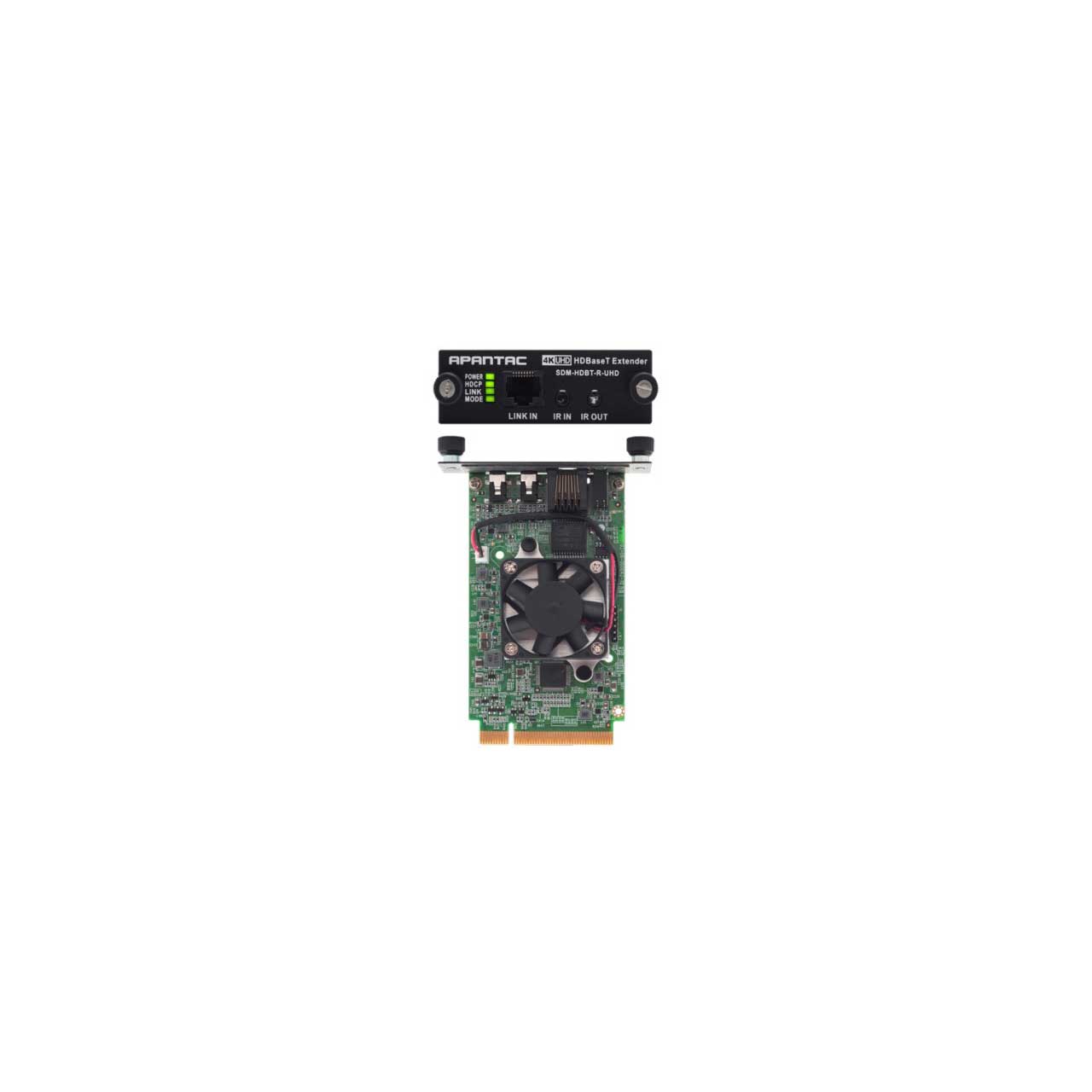

The Apantac SDM-HDBT-R-UHD CRESCENT SDM Module for Digital Signage Displays is a long-distance HDMI UHD HDBaseT Receiver for the SDM-S and SDM-L.

Apantac SDM-HDBT-R-UHD display interfaces employ Intel's "Smart Display Module" (SDM) platform and reduce power and cabling requirements while providing a streamlined connection system for video walls, displays, and projectors. SDM is designed to be scalable into the future as video formats change and evolve. In addition, Apantac SDM interfaces provide critical information about display performance. With details such as the power being drawn and the amount of cooling needed, you get a better sense of system stability and a larger toolset for ensuring the ongoing reliability of your installed displays."


This SDM Module Is Compatible w/ the following NEC monitors:
M431
M491
M551
M651
M751
M861
M981
MA431
MA491
MA551
ME431
ME501
ME551
ME651
P435
P495
P555

  • Features:

    • UHD HDBaseT receiver for SDM-S

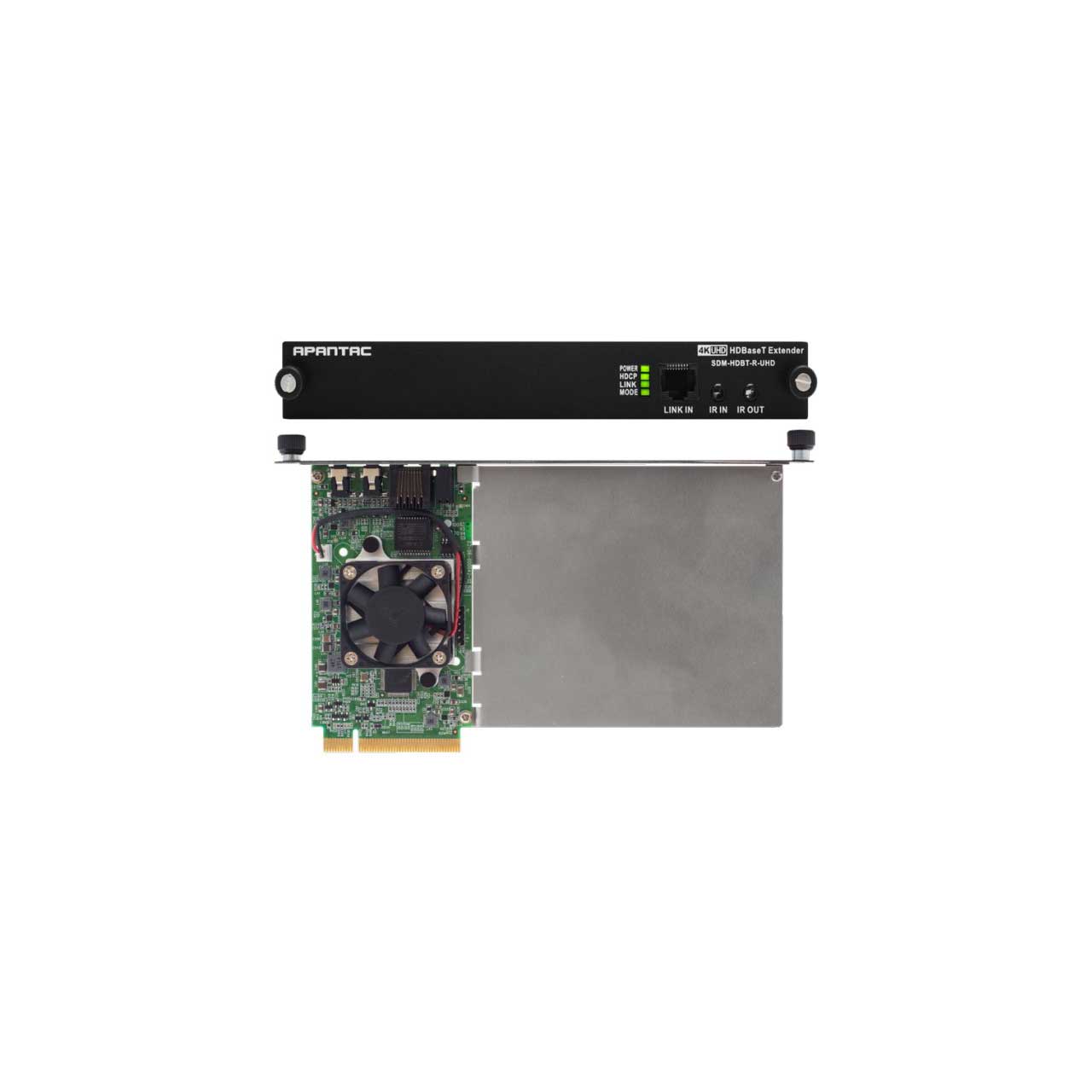

    • Comes with adapter for SDM-L
    • Supports HDMI 2.0/HDCP 2.2
    • Extends HDMI signal (1080P@12 bit) up to 330 feet (100 meters)
    • Extends HDMI (UHD@4:4:4) signals up to 230 feet (70 meters)
    • Supports 3D pass-through
    • Supports CEC pass-through
    • Supports bi-directional RS-232
    • Supports all frequency IR control
    • Supports LPCM, Dolby True HD and Dolby Digital audio

  • Specifications:

    • Input: UHD HDBaseT via RJ45
    • Output: SDM Connector
    • IR: In/Out

      Environment:
    • Operating Temperature: 0C - 50C
    • Storage: -20C to 60C
    • Humidity: 20% - 90% non-condensing

    • Power Consumption: 9W Max
    • Weight / Dimension: 230g, 80mm Width x 112 mm Depth

  • Warranty:

    • 3 Years
