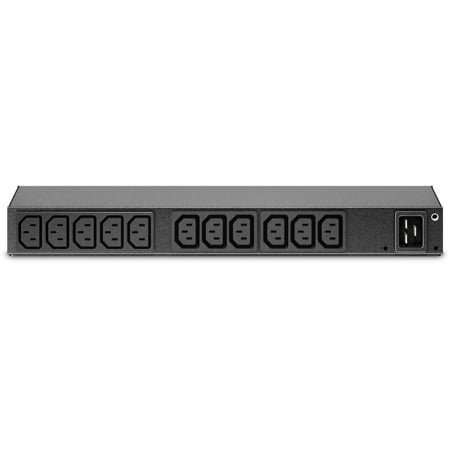

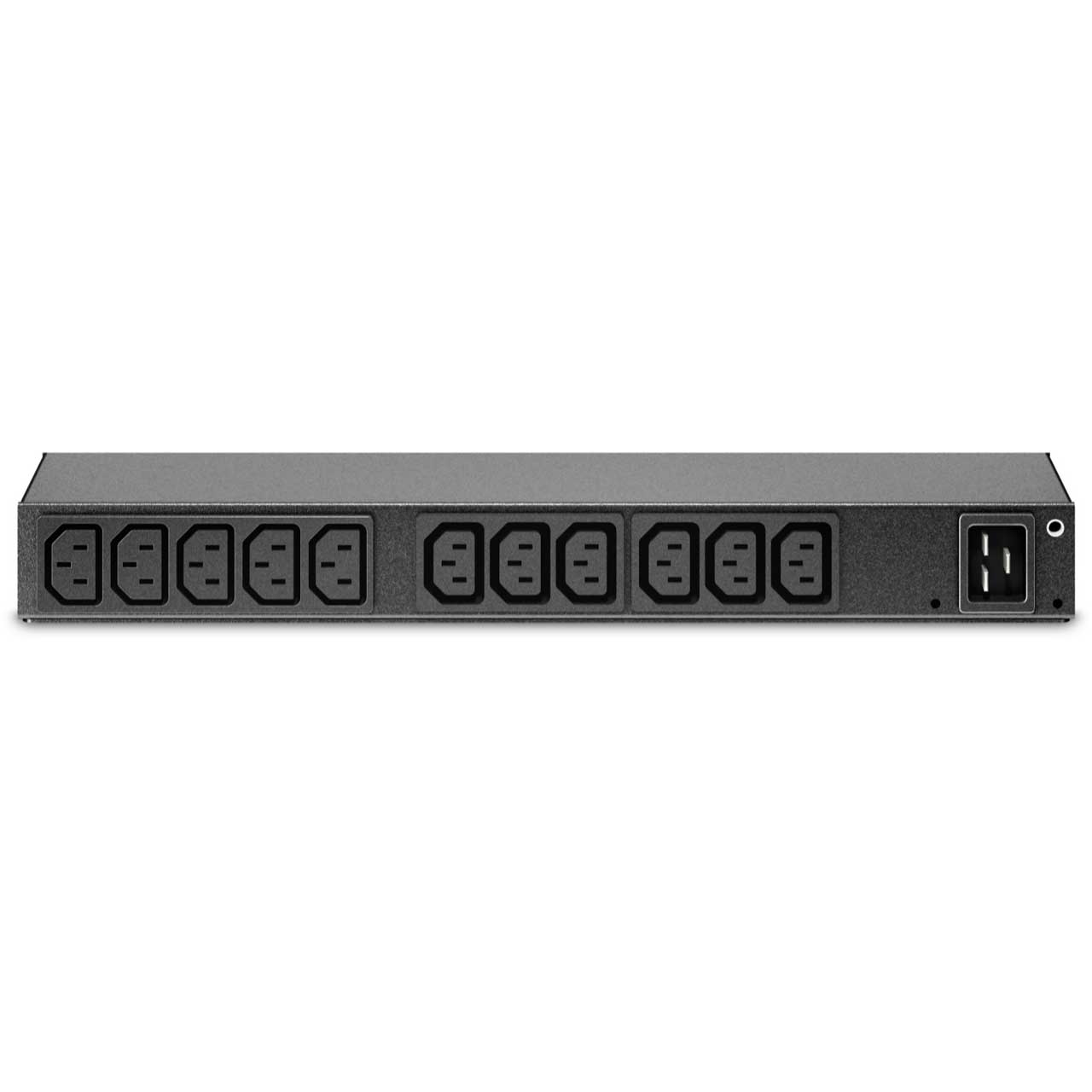

APC AP6020A NetShelter Basic Rack PDU - Horizontal 0U/1PH/3.3kW with 13x C13 outlets & C20 inlet - Black

Name: APC AP6020A NetShelter Basic Rack PDU - Horizontal 0U/1PH/3.3kW with 13x C13 outlets & C20 inlet - Black
Brand: APC
SKU: APC-AP6020A
Price: 109.99 USD
Availability: PreSale

ITEM #: APC-AP6020A MFG #: AP6020A

APC

List Price:

$134.00

Our Price:

$109.99

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AP6020A - Overview

The APC AP6020A is a 100-240V 20A or 200-240V 16A NetShelter Series Basic Rack PDU with 13x C13 Outlets and a C20 inlet. The NetShelter Series Basic Rack PDUs provide reliable rack power distribution and are designed to increase manageability and efficiency in the data center. They supply real-time remote monitoring of connected loads with user-defined alarms to warn IT and data center managers of potential circuit overloads and to prevent accidental power loss to critical equipment.

APC NetShelter Basic PDU are built with industry-leading reliability, manageability, and security. They are ideal for small and medium sized businesses, small-to-medium data centers, and edge computing.

Features:
- Sustainability in Rack PDUs
- Ultra-low profile, space-saving design
- Hydraulic-magnetic circuit breakers
- High retention outlets when used with standard cords
- Ultra-low profile circuit breakers
- Locking IEC outlets when used with locking power cords
Specifications:
- Main
- Color: Black
- PDU Type: Basic
- Cable length: 12 ft (3.66 m)
- Number of cables: 1
- Height: 15.28 in (38.8 cm)
- Width: 1.73 in (4.4 cm)
- Depth: 3.36 in (9.3 cm)

  Power
- Main Input Voltage: 100 V - 120 V - 200 V - 208 V - 230 V - 240 V
- Mounting Location: Front - Rear
- Mounting preference: Lower
- Input Connection Type: IEC 60320 C20
- Mounting Mode: NOT Rack-mountable
- Number of rack unit: 1U
- USB Compatable: No
- Mounting position: Horizontal
- Line Rated Current: 16 A
- Input current limits: 20 A
- Load Capacity: 3300 VA
- Input Frequency: 50/60 Hz
- Number of power socket outlets: 13 IEC 60320 C13

  Environment
- Product Certifications: cUL Listed - CE - EAC - IRAM - PSE - UL Listed - VDE
- Standards: UL 60950
Item Includes:
- 1x AP6020A Basic Rack PDU
- 1x Installation guide
- 1x Safety guide
Warranty:
- 2 years repair or replace
GTIN:
0731304327806
