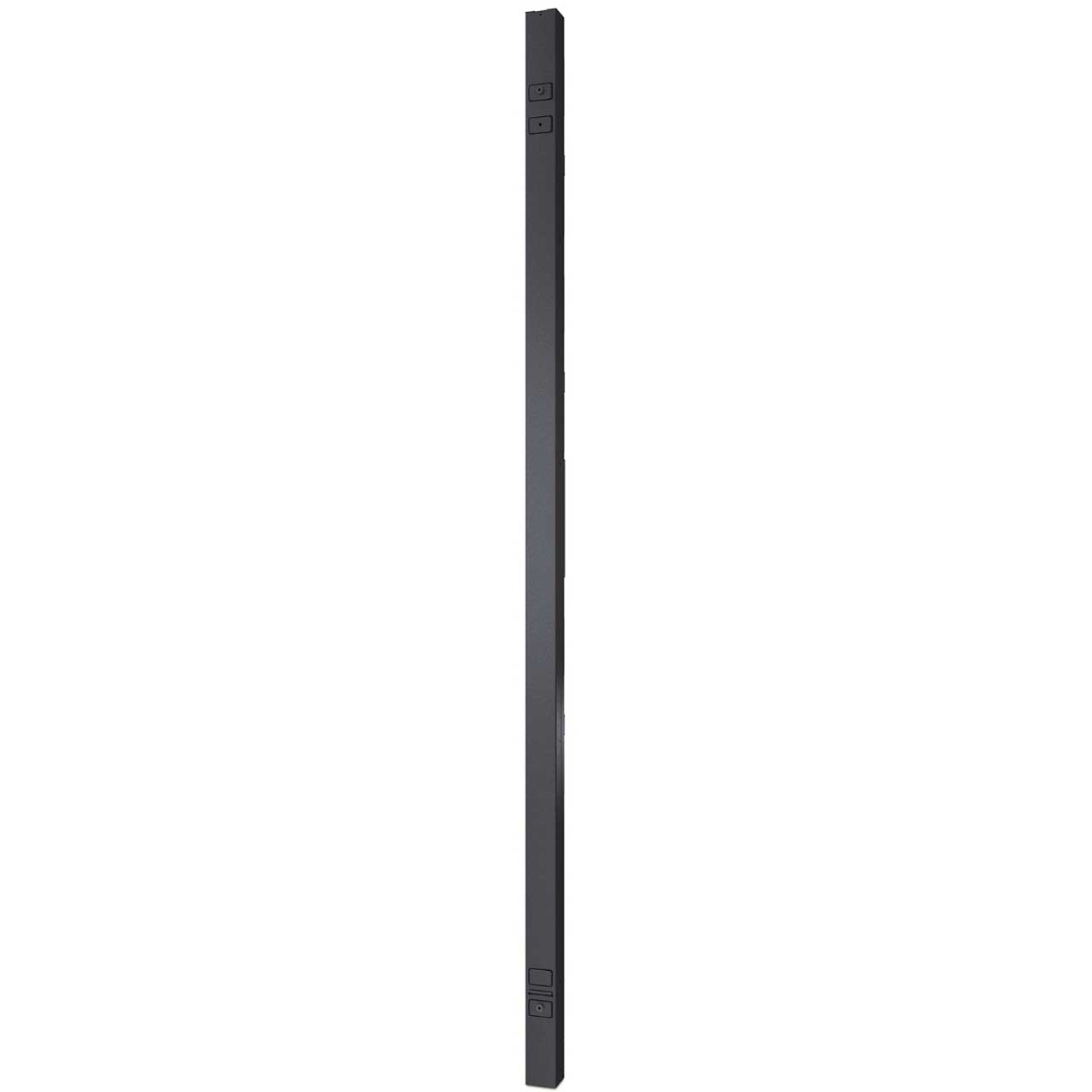

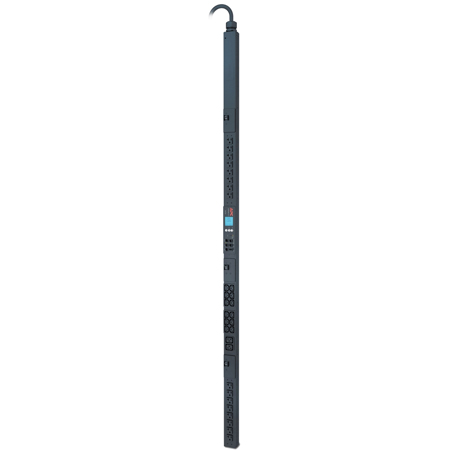

APC AP8870 NetShelter Verticle Metered Rack PDU 2G w/Locking IEC - 30A 100-120/200-240V - 16x5-20R - 12xC13 - 2xC19 Out

Name: APC AP8870 NetShelter Verticle Metered Rack PDU 2G w/Locking IEC - 30A 100-120/200-240V - 16x5-20R - 12xC13 - 2xC19 Out
Brand: APC
SKU: APC-AP8870
Price: 989.00 USD
Availability: PreSale

ITEM #: APC-AP8870 MFG #: AP8870

APC

List Price:

$1,270.00

Our Price:

$989.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Shipment of this item is subject to a separate oversized-package carrier surcharge.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AP8870 - Overview

Best-in-class intelligent rack power distribution!

The APC AP8870 is a NetShelter Series Rack PDU. It's 2G Metered, ZeroU, 30A and ranges from 100-120/200-240V. It has 16 5-20R outlets, 12 C13 outlets and 2 C19 Power Outlets.

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

This APC Metered Rack Power Distribution Unit (PDU) may be used as a stand-alone, networkmanageable power distribution device or up to four devices can be connected together using one network connection. The Rack PDU provides real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads.

Please Note: This APC Rack PDU does not provide power surge protection. To ensure that the device is protected from power failure or power surges, connect the Rack PDU to a Schneider Electric or comparable Uninterruptible Power Supply (UPS)

Features:
- Device power, peak power, apparent power, power factor and energy monitoring.
- Phase voltage, current, peak current, power, apparent power and power factor monitoring.
- Bank current and peak current monitoring (for models that support breaker banks).
- Current, energy, and power monitoring.
- Configurable alarm thresholds that provide network and visual alarms to help avoid overloaded circuits.
- Email notifications for Rack PDU and Network Management Card (NMC) system events.
- SNMP traps, Syslog messages, and email notifications based on the severity level or category of the Rack PDU and NMC system event.
- Security protocols for authentication and encryption.
Specifications:
- Main
- Color: Black
- PDU Type: Metered
- Other Output Voltage: 240 V
- Cable length: 9.84 ft (3.00 m)
- Number of cables: 1

  Power
- Main Input Voltage: 120 V - 208 V
- Height: 70.51 in (179.1 cm)
- Width: 2.17 in (5.5 cm)
- Main Output Voltage: 120 V
- Depth: 1.73 in (4.4 cm)
- Net Weight: 14.07 lb(US) (6.38 kg)
- Mounting Location: Side
- Mounting preference: No preference
- Input Connection: Type NEMA L14-30P
- Mounting Mode: Not rack-mountable
- Number of rack units: 0U
- Mounting position: Vertical
- Line Rated Current: 24 A
- Input current limits: 30 A
- Load Capacity: 4992 VA
- Input Frequency: 50/60 Hz
- Number of power socket outlets: 16 NEMA 5-20R - 12 IEC 60320 C13 - 2 IEC 60320 C19

  Environment
- Product Certifications: cUL Listed - UL Listed
- Standards: FCC Part 15 class A - ICES-003 - UL 60950-1
- Ambient Air Temperature for Operation: 23.140 °F (-5.60 °C)
- Relative Humidity: 5.95 %
- Operating altitude: 0...10000 ft
- Ambient Air Temperature for Storage: -13.149 °F (-25.65 °C)
- Storage Relative Humidity: 5.95 %
- Storage altitude: 0.50000 ft (0.00.15240.00 m)
Item Includes:
- 1x AP8870 Rack PDU 70.51 in/179.1 cm
- 1x Installation guide
- 1x Rack Mounting brackets
- 1x Serial configuration cable
- 1x Safety guide
Warranty:
- 2 years repair or replace
GTIN:
0731304307501
