L0.0016330 - Overview

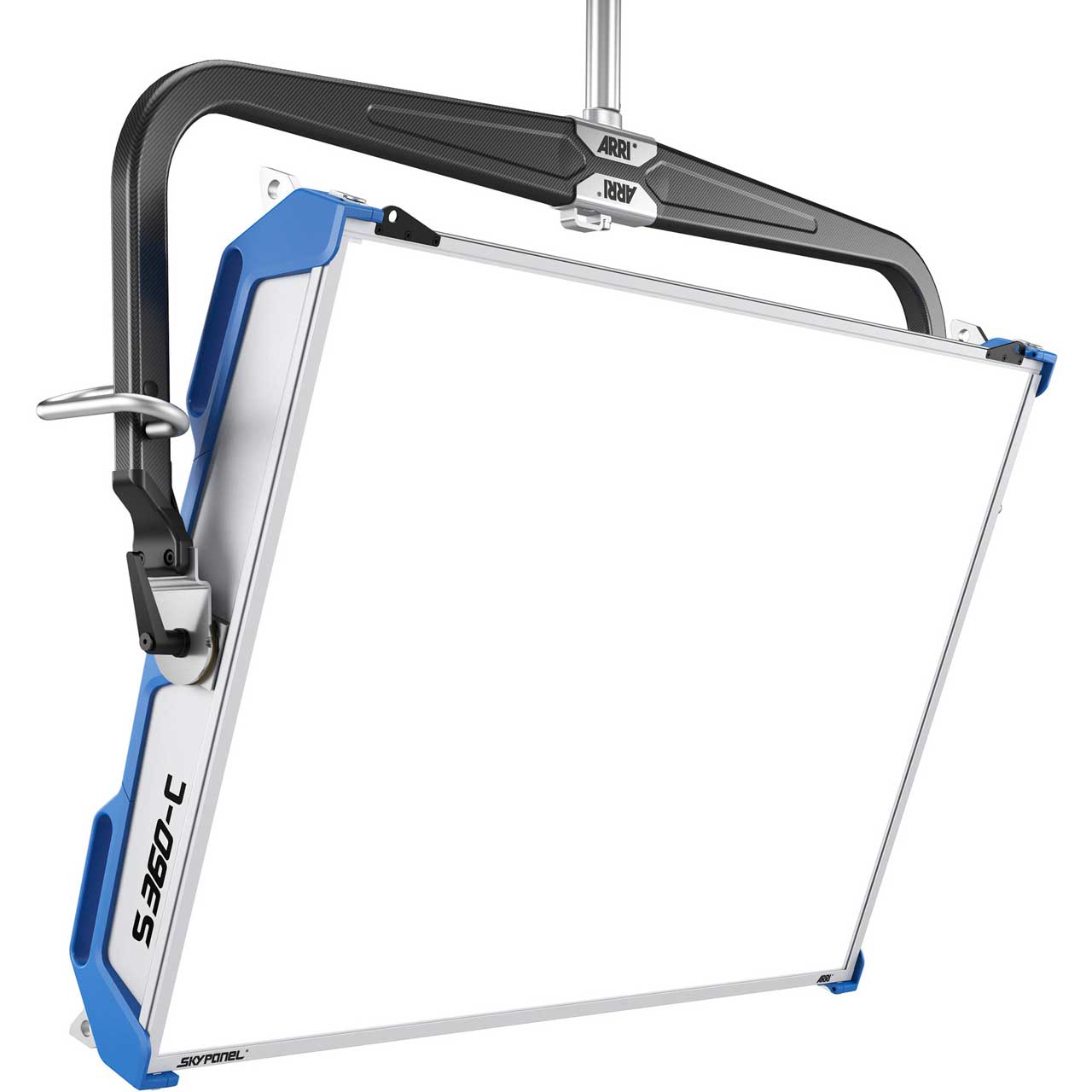

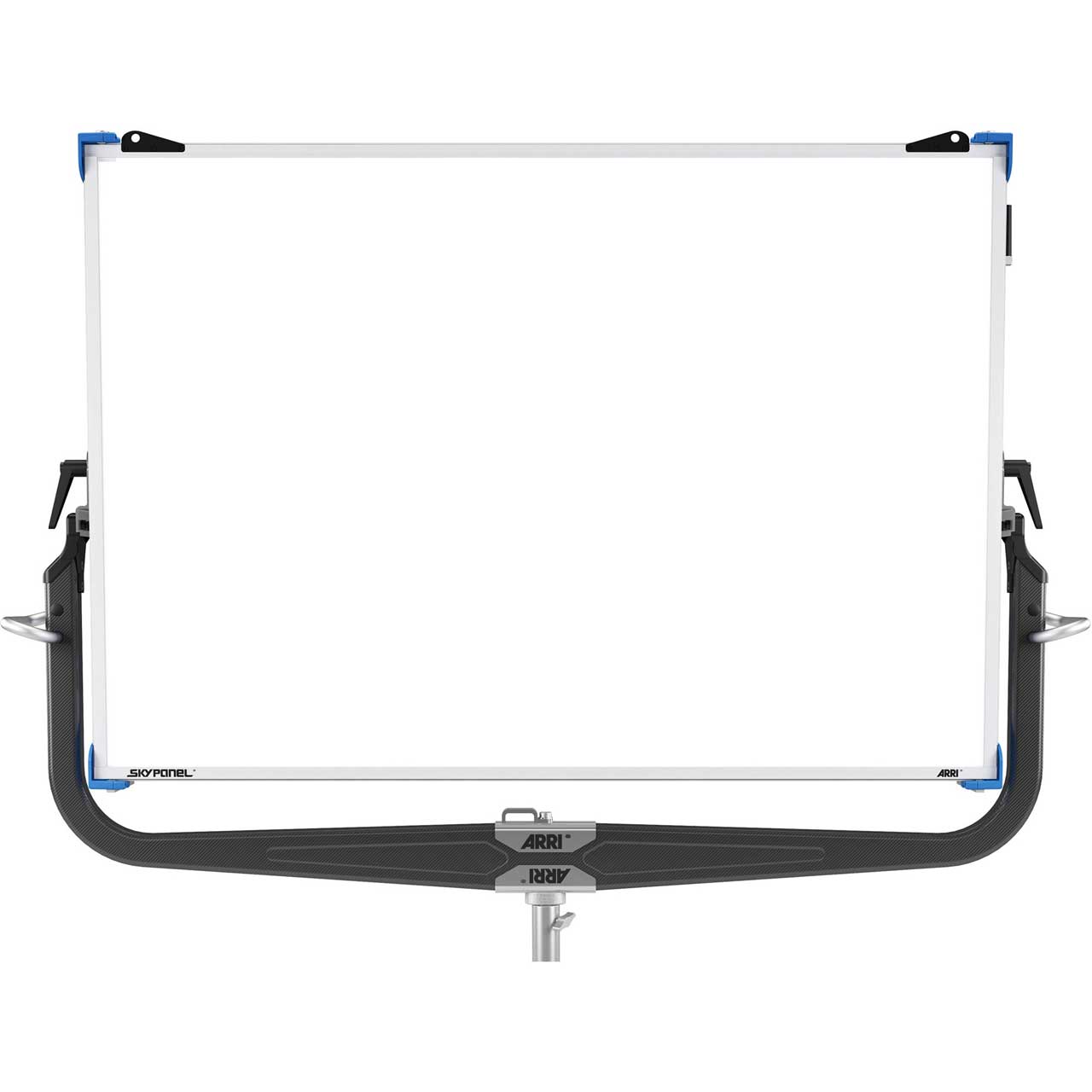

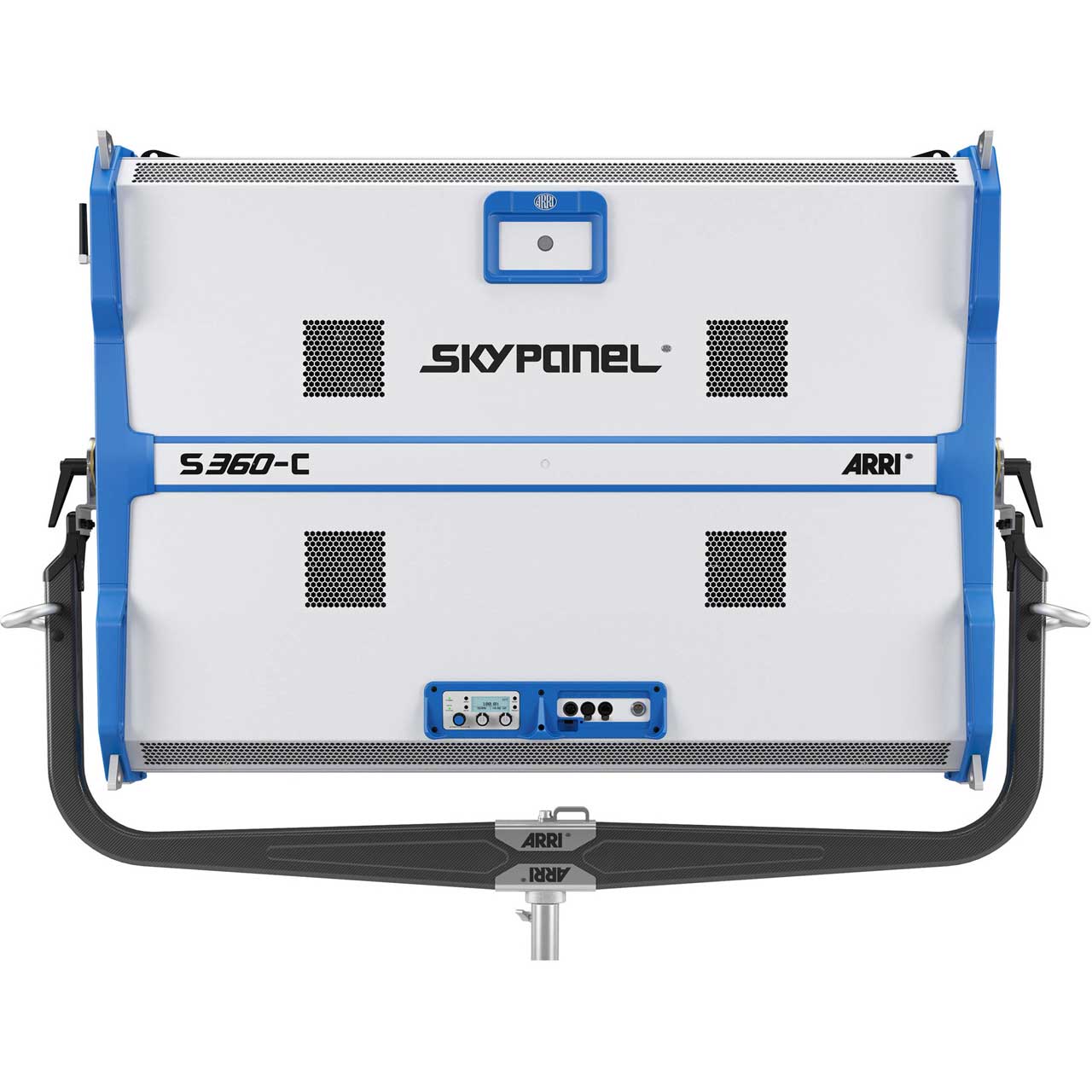

The ARRI SkyPanel has always been known for its tremendous output and large light aperture. The L0.0016330 S360-C has expanded ARRI's LED soft light range with the largest and brightest SkyPanel to date. Not only is the S360-C powerful, but it is packed full of exciting features, making it one of the most versatile LED fixtures on the market. Features include full color control, lighting effects on a huge aperture, wireless DMX built in, a unique carbon fiber yoke, and much more. The S360-C is truly a beast of a light.

Features:
- Fully Tuneable from 2,800 K to 10,000 K
- Vibrant Color Selection (RGB+W Color Gamut)
- High Color Rendering
- Enormous Aperture (1290 x 870 mm)
- LumenRadio Wireless DMX Built In
- Tremendous Output - Over 120,000 Lumens
- Fully Dimmable from 0 to 100%

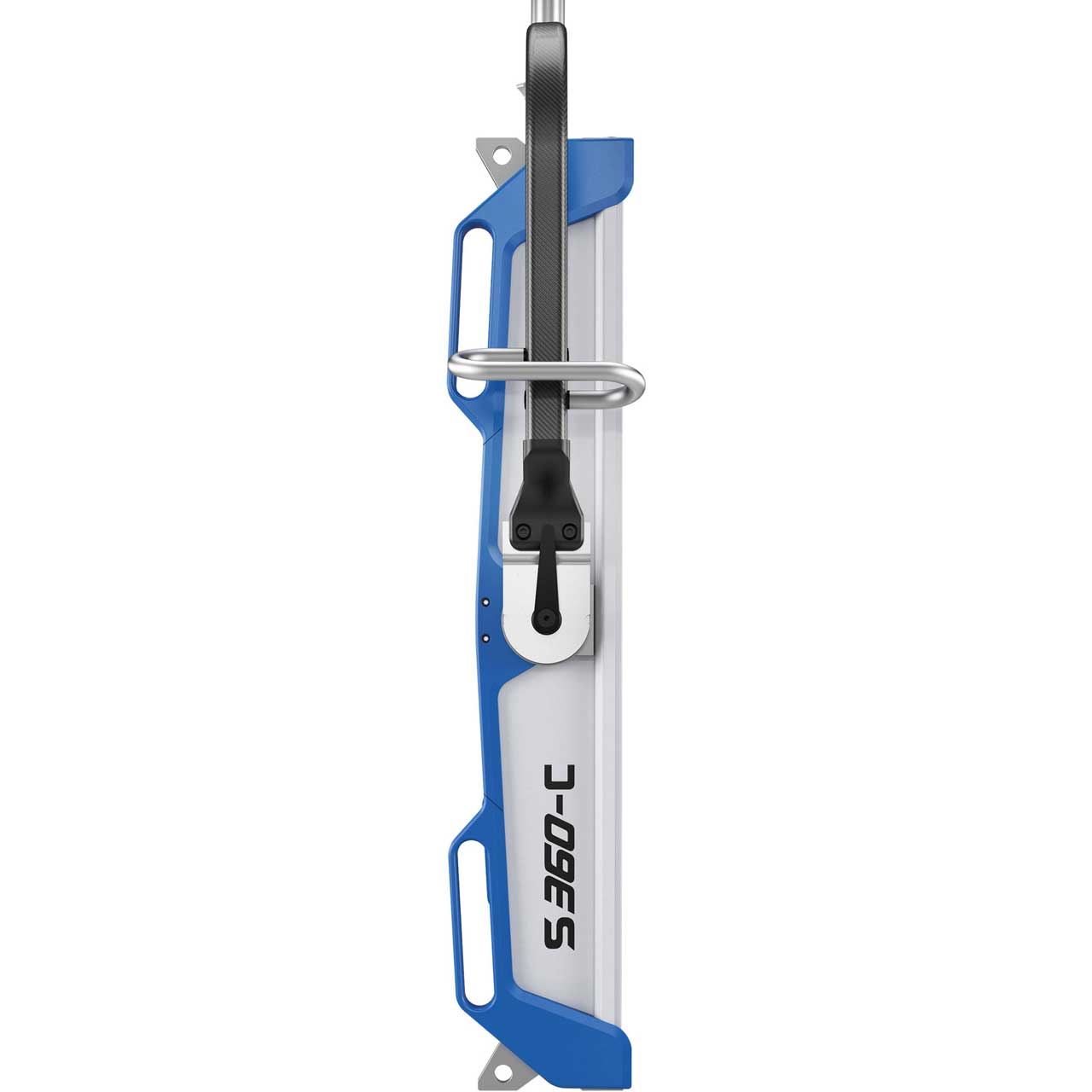

- Light Weight Carbon Fiber Yoke
- Beautiful Soft Beam of Light
- Interchangeable Diffusion Panels
- Wide Range of Accessories Available
- Thin Profile

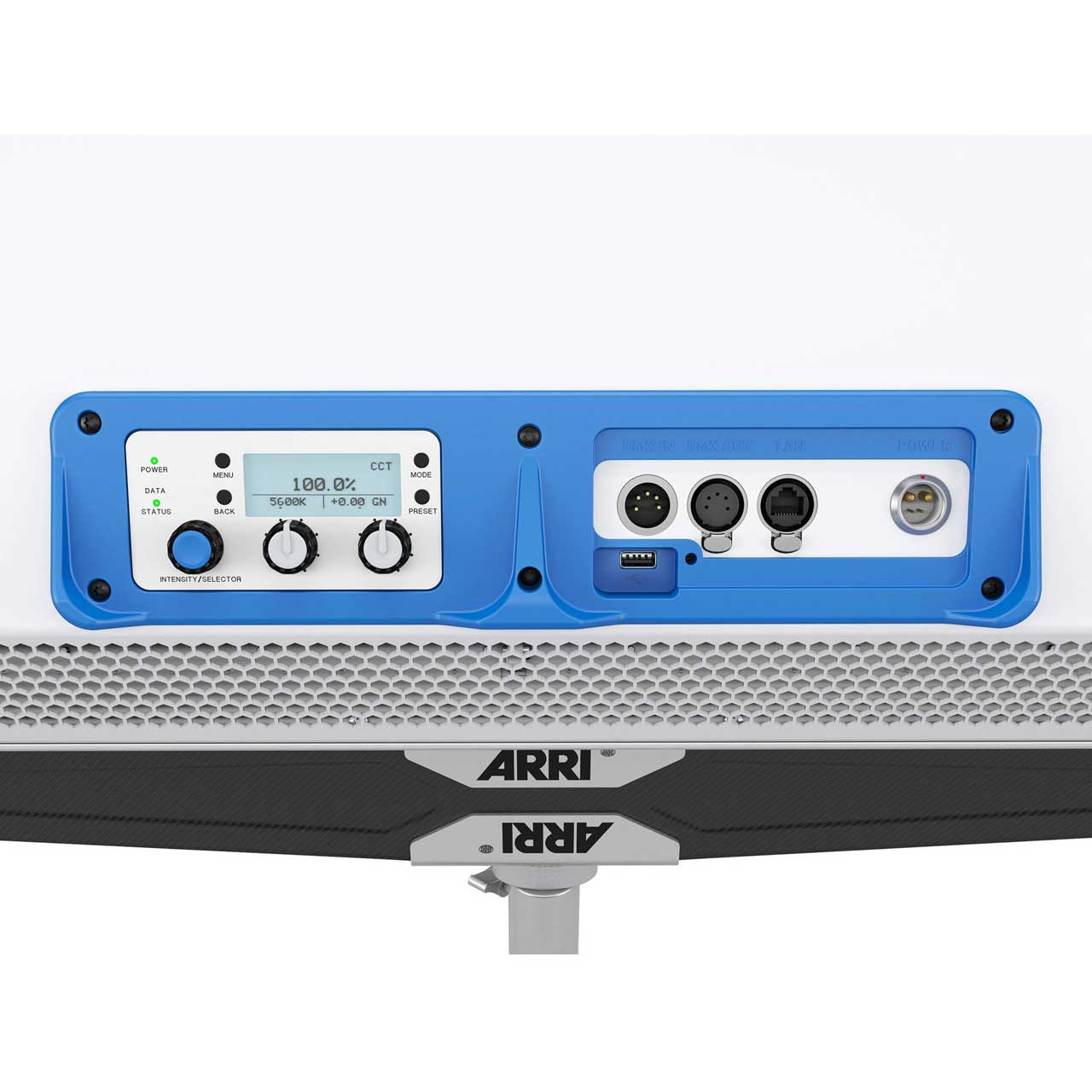

- Onboard Simple Control Panel
- Onboard DMX In and Out
- RDM Implementation
- USB-A Connection for Firmware Updates
- EtherCon port for network connectivity
- Available in Blue/Silver
- Fan Mode Selection
- External PSU
- powerCON 32 A Power Connector
Specifications:
- Optical System: Swappable Soft Diffusion Panels
- Light Aperture: 1280 x 870 mm / 50.4 x 34.4"
- Beam Angle: 105° (Half Peak Angle)
- Weight: 41 kg / 90.4 lbs (incl. Carbon Fiber Yoke and Spigot)
- Handling: Carbon Fiber Yoke, Dual High-Strength Tilt Lock
- Mounting: 28 mm Spigot (Junior Pin)
- Tilt Angle: +/- 90°
- Lamphead Voltage Input: 54 V DC
- Power Consumption: 1,500 W Nominal, 1,600 W Maximum
- Lamphead Power Connection: Male 4-Pin Metal Locking - 30 Amp
- White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
- Colored Light: Full RBG+W color gamut with Hue and Saturation control
- Lamphead Power Connection: Male 3-Pin XLR to 15 Amp (Pin 1: Negative / Pin 2: Positive)
- Battery Connector: Male 4-Pin XLR to 10 Amp (Pin 1: Negative / Pin 4: Positive)
- Battery DC Voltage Range: 23 to 36 V DC
- Battery Mode Light Output: 50 % of total output
- White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
- Colored Light: Full RBG+W color gamut with Hue and Saturation control
- Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
- Color Rendition: CRI Average > 95 TLCI Average > 90
